Redundant Gateways in EVPN-VXLAN:

In an EVPN-VXLAN environment, providing redundant gateway functionality typically involves the use of Anycast Gateway. This allows multiple PEs (Provider Edge devices) to use the same IP address and MAC address for the gateway, enabling seamless failover and redundancy without IP conflicts.

Conserving Address Space:

Using the same IP address across multiple PEs conserves address space because only one IP address is needed for the gateway function, regardless of the number of PEs. The shared MAC address ensures that ARP resolution and forwarding behavior are consistent across all the PEs.

Conclusion:

Option C: Correct---Using IRB interfaces with the same IP and MAC address across all PEs satisfies the need for redundancy while conserving address space.

Options A, B, and D introduce unnecessary complexity or do not fully utilize the efficient Anycast Gateway approach, which is best practice for conserving IP space and providing redundancy.

Identifying Microburst Traffic:

Microbursts are short spikes in network traffic that can overwhelm buffers and cause packet drops. Detecting and analyzing microbursts is crucial for understanding where packet loss might be occurring in a data center network.

Port Buffer Monitoring:

Port Buffer Monitoring: This tool specifically tracks the usage of switch buffers, helping to identify when microbursts are causing buffers to overflow, leading to packet drops.

Port Mirroring:

Port Mirroring: This tool allows you to monitor real-time traffic on a specific port by copying the traffic to another port where it can be analyzed, often with a packet analyzer. While port mirroring doesn't directly detect microbursts, it helps capture traffic patterns that can indicate microbursts.

Conclusion:

Option C: Correct---Port buffer monitoring directly identifies buffer overflows caused by microbursts.

Option A: Correct---Port mirroring allows for the detailed capture and analysis of traffic patterns, which can reveal microburst behavior.

Options B (Traceoptions) and D (Syslog) are less effective in identifying microburst traffic. Traceoptions focus on control plane traffic debugging, and Syslog is more about logging system events than detecting high-frequency traffic spikes.

ERB Architecture in EVPN-VXLAN:

ERB (Edge Routed Bridging) architecture is commonly used in data center networks where routing decisions are made at the network edge (leaf or border devices), while bridging (Layer 2 forwarding) is extended across the fabric. This architecture allows for efficient L3 routing while still enabling L2 services like VLANs to span across multiple locations.

VLAN and VNI Configuration:

The scenario specifies that a server on the Red VLAN needs to communicate with a server on the Green VLAN. Since these VLANs are in different data centers (DC and DC2), and given the use of EVPN-VXLAN, the communication between these VLANs will require a transit VNI (Virtual Network Identifier). This transit VNI will allow traffic to traverse the VXLAN tunnel across the DCI (Data Center Interconnect).

Interconnect between SRX Series Devices:

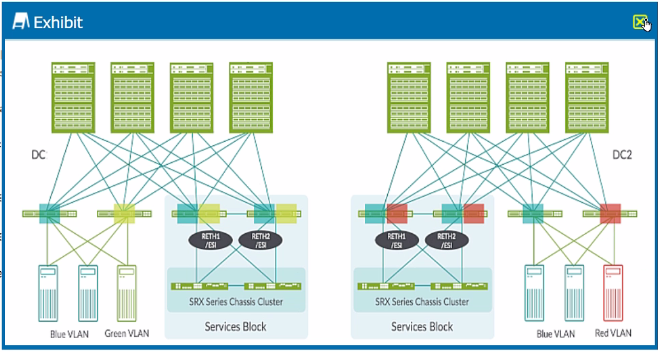

The exhibit shows SRX Series Chassis Clusters used as service devices (likely for firewalling or other security services). These devices need to be interconnected between the two data centers to ensure that VLANs can communicate effectively. The Blue VLAN needs to be stretched between DC and DC2 to maintain the same Layer 2 domain across both data centers.

Conclusion:

Option B: Correct---Interconnecting the SRX Series devices will ensure the necessary service chaining, while stretching the Blue VLAN and adding a transit VNI for the Red and Green VLANs will enable the required communication across the data centers.

Controlling Traffic Within a Tenant's Network:

The requirement is to limit access to specific traffic types within a tenant's network without routing all tenant traffic through a firewall. This requires a selective method that can direct specific types of traffic to different paths based on the nature of the traffic.

Filter-Based Forwarding (FBF):

FBF is a technique that allows for routing decisions based on filters applied to the traffic, such as matching on source IP addresses, destination IP addresses, or even specific application types (like HTTP or FTP). This allows specific types of traffic to be forwarded to a specific next hop (e.g., a firewall) without affecting the entire traffic flow within the tenant's network.

Conclusion:

Option B: Correct---Filter-based forwarding allows for granular control of traffic, ensuring that only specific types of traffic within the tenant's network are redirected through a firewall, satisfying the requirement.

Understanding Multihomed CE-to-PE VXLAN Environment:

In a VXLAN environment using EVPN signaling, multiple PEs (Provider Edge devices) can be connected to the same CE (Customer Edge device). This setup is referred to as multihoming, where a CE device has multiple connections to the network to ensure redundancy and load balancing.

Role of the Designated Forwarder:

The designated forwarder (DF) is a mechanism used in EVPN to manage the forwarding of broadcast, unknown unicast, and multicast (BUM) traffic in a multihomed environment. The DF is selected to ensure that only one of the PEs forwards this type of traffic to the CE, preventing loops and unnecessary duplicate packets.

Avoiding Duplicate Packets:

Without a designated forwarder, all PEs connected to a multihomed CE could potentially forward the same packet to the CE, resulting in duplicate packets. This duplication can cause issues with packet processing on the CE, leading to inefficiencies and potential network problems.

Conclusion:

Option D: Correct---The designated forwarder is essential to prevent duplicate packets from being received on multihomed hosts, ensuring that only one PE forwards BUM traffic to the CE.

Zero Touch Provisioning (ZTP):

ZTP allows for the automated configuration of network devices, like QFX Series switches, without manual intervention. During ZTP, a switch will obtain its configuration from a DHCP server and then download the required software and configuration files from a specified server (e.g., FTP, HTTP).

DHCP Server Configuration:

Option B: The DHCP server needs to know the MAC address for each QFX5120 to provide a specific configuration based on the device identity. By mapping the MAC address to a particular configuration, the DHCP server can ensure that each switch gets the correct configuration.

Option D: The management IP address for each QFX5120 must also be assigned by the DHCP server. This IP address allows the device to communicate on the network and access the configuration files and other required resources during the ZTP process.

Conclusion:

Option B: Correct---MAC addresses allow the DHCP server to identify each QFX5120 and assign the appropriate configuration.

Option D: Correct---Management IP addresses are essential for network communication during ZTP.

BGP in IP Fabric:

In an IP fabric, Border Gateway Protocol (BGP) is used to manage the routing between leaf and spine devices. Each device can have the same or different Autonomous System (AS) numbers depending on the network design.

Multipath Multiple-AS:

Option B: If every device in the fabric has a different AS number, then enabling Equal-Cost Multi-Path (ECMP) routing requires the multipath multiple-as statement. This configuration allows BGP to consider multiple paths across different AS numbers as equal cost, enabling efficient load balancing across the network.

Same AS Number Configuration:

Option A: It's possible for all leaf devices to use the same AS number in an IP fabric, which simplifies the configuration. EBGP (External BGP) will still function correctly in this setup because BGP considers the peering relationship rather than strictly enforcing different AS numbers in this specific use case.

Conclusion:

Option B: Correct---This statement is essential for enabling ECMP in a multi-AS environment.

Option A: Correct---Leaf devices can share the same AS number without needing special EBGP configuration.

Junos Telemetry Interface (JTI):

The Junos Telemetry Interface is a framework that allows network operators to collect real-time telemetry data from Juniper devices. This data can be used for monitoring, analytics, and network automation.

Data Export Methods:

Option B: UDP (User Datagram Protocol) is a lightweight, connectionless protocol used for exporting telemetry data quickly with minimal overhead. While it doesn't guarantee delivery, it is suitable for high-speed data transfer where occasional packet loss is acceptable.

Option D: gRPC (gRPC Remote Procedure Call) is a modern, high-performance method for data export that supports streaming and remote procedure calls, making it ideal for more complex telemetry data use cases.

Conclusion:

Option B: Correct---UDP is supported for exporting telemetry data.

Option D: Correct---gRPC is also supported, offering advanced streaming capabilities

Requirements for AI Workloads:

The scenario requires a network that supports at least 400 Gbps Ethernet and does not require Layer 2 VLANs. This setup is well-suited for a pure Layer 3 network, which can efficiently route traffic between devices without the overhead or complexity of maintaining Layer 2 domains.

Choosing the Right Network Architecture:

Option D: An IP fabric using EBGP (External BGP) is ideal for this scenario. In a typical IP fabric, EBGP is used to handle routing between spine and leaf switches, creating a scalable and efficient network. Since there is no need for Layer 2 VLANs, the pure IP fabric design with EBGP provides a straightforward and effective solution.

Options A, B, and C involve more complex architectures (like VXLAN or EVPN), which are unnecessary when there's no requirement for Layer 2 overlays or VLANs.

Conclusion:

Option D: Correct---An IP fabric with EBGP is the most suitable and straightforward architecture for a network that needs to support high-speed AI workloads without Layer 2 VLANs.
