Understanding the Scenario:

EVPN-VXLAN deployments often involve scenarios where multiple tenants or applications require overlapping VLAN IDs, which can be managed using the mac-vrf routing instance type. This allows you to segregate traffic within the same VLAN ID across different tenants.

Host-facing Interface Configuration:

A . Host-facing interfaces must be configured using a service-provider style configuration: This is correct. In mac-vrf configurations, host-facing interfaces (those connecting end devices) typically follow a service-provider style configuration, where each customer or tenant's traffic is isolated even if overlapping VLAN IDs are used.

B . Host-facing interfaces must be configured using enterprise-style configuration: This is incorrect for mac-vrf instances because enterprise-style configurations are more common in simpler, less segmented networks.

Routing Instance Service Type:

D . The routing-instance service type can be VLAN-based: This is correct. The service type in mac-vrf can indeed be VLAN-based, which is particularly useful in scenarios where VLAN ID overlap is needed between different tenants or services.

Data Center

Reference:

The mac-vrf instance type is powerful for handling complex multi-tenant environments in EVPN-VXLAN, especially when dealing with overlapping VLAN IDs across different segments of the network.

Understanding Bridged Overlay Architecture:

In a single-tenant data center using a bridged overlay architecture, virtual networks (VLANs) are typically isolated within the fabric, with traffic between these VLANs handled outside the fabric.

Communication Between Different Virtual Networks:

A . off-fabric using an external device: This is correct. In many bridged overlay architectures, communication between different virtual networks is handled off-fabric, often using an external router or firewall that connects the different VLANs. The fabric itself primarily provides Layer 2 connectivity within each VLAN, leaving inter-VLAN routing to be handled externally.

Data Center

Reference:

This design is common in smaller or simpler data center environments where a single tenant does not require complex on-fabric routing and prefers to handle inter-VLAN routing through dedicated devices.

Load Balancing in VXLAN:

VXLAN uses UDP encapsulation to transport Layer 2 frames over an IP network. For load balancing across Equal-Cost Multi-Path (ECMP) links, various fields in the packet can be used to ensure even distribution of traffic.

Key Load Balancing Fields:

C . The source port in the UDP header is used to load balance VXLAN traffic: This is correct. The source UDP port in the VXLAN packet is typically calculated based on a hash of the inner packet's fields. This makes the source port vary between packets, enabling effective load balancing across multiple paths.

D . The inner packet fields are used in the hash for load balancing: This is also correct. Fields such as the source and destination IP addresses, source and destination MAC addresses, and possibly even higher-layer protocol information from the inner packet can be used to generate the hash that determines the ECMP path.

Incorrect Statements:

A . The inner packet fields are not used in the hash for load balancing: This is incorrect as the inner packet fields are indeed critical for generating the hash used in load balancing.

B . The destination port in the UDP header is used to load balance VXLAN traffic: This is incorrect because the destination UDP port in VXLAN packets is typically fixed (e.g., port 4789 for VXLAN), and therefore cannot be used for effective load balancing.

Data Center

Reference:

Effective load balancing in VXLAN is crucial for ensuring high throughput and avoiding congestion on specific links. By using a combination of the source UDP port and inner packet fields, the network can distribute traffic evenly across available paths.

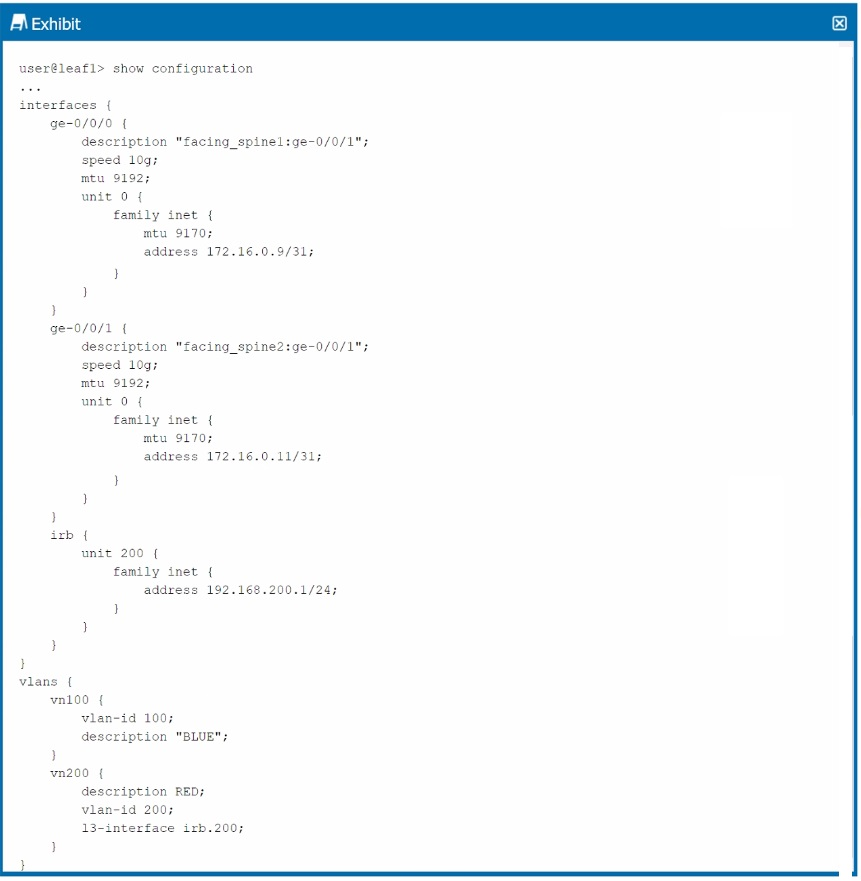

In the provided network configuration, Host A is in VLAN 100 and Host B is in VLAN 200. The issue arises because these two hosts are unable to communicate, which indicates that either the interfaces are not properly linked to their respective VLANs, or there is a missing static route required for inter-VLAN routing.

Step-by-Step Analysis:

VLAN Assignment:

The exhibit shows that irb.200 is correctly associated with VLAN 200 in the configuration. However, there is no corresponding irb.100 for VLAN 100. Without irb.100, the network lacks the logical interface to handle routing for VLAN 100. Thus, adding irb.100 to VLAN 100 is necessary.

Command to solve this:

set vlans vn100 13-interface irb.100

Static Route Configuration:

For inter-VLAN routing to occur, a static route needs to be configured that allows traffic to pass between different subnets (in this case, between VLAN 100 and VLAN 200). The command set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10 would add a static route that directs all traffic from VLAN 100 to the correct gateway (192.168.200.10), which is necessary to route traffic between the two VLANs.

Command to solve this:

set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10

Explanation of Incorrect Options:

Option A (delete vlans vn200 13-interface irb.200): This would remove the logical interface associated with VLAN 200, which is not desired because we need VLAN 200 to remain active and properly routed.

Option B (set interfaces irb unit 100 family inet address 192-168.100.1): This command would incorrectly assign an IP address that does not correspond with the subnet of VLAN 100 (192.168.200.1/24). This could create a misconfiguration, leading to routing issues.

Data Center

Reference:

For a Data Center, proper VLAN management and static routing are crucial for ensuring that different network segments can communicate effectively, especially when dealing with separated subnets or zones like in different VLANs. This aligns with best practices in DCIM (Data Center Infrastructure Management) which stress the importance of proper network configuration to avoid downtime and ensure seamless communication between all critical IT infrastructure components.

Ensuring that the correct interfaces are associated with the correct VLANs and having the proper static routes in place are both essential steps in maintaining a robust and reliable data center network.

This detailed analysis reflects best practices as noted in standard data center design and network configuration guides.

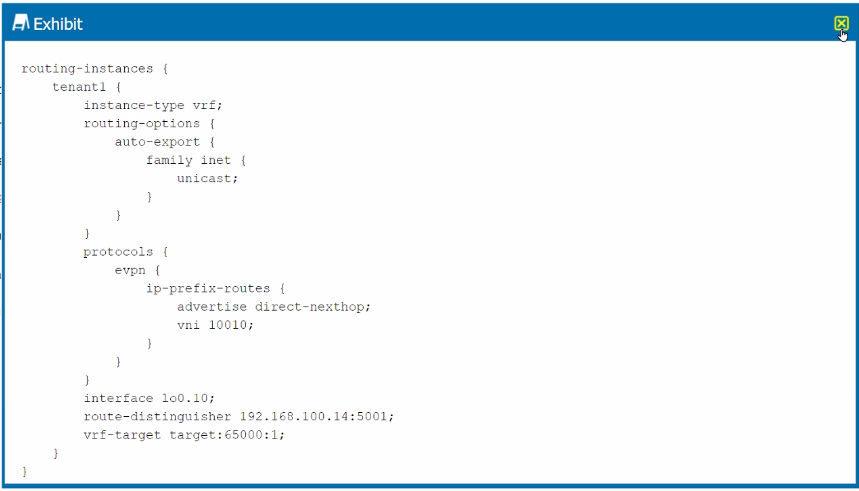

In this scenario, you want the border leaf device to advertise Type 5 EVPN routes to another border leaf in a different data center. Type 5 routes in EVPN are used to advertise IP prefixes, which means that for proper route advertisement, you need to configure the correct settings within the evpn hierarchy.

Step-by-Step Analysis:

Understanding EVPN Type 5 Routes:

EVPN Type 5 routes are used to advertise IP prefixes across EVPN instances, which allow different data centers or networks to exchange routing information effectively.

VRF Target Setting:

The vrf-target configuration is crucial because it defines the export and import policies for the VRF within the EVPN instance. For EVPN Type 5 routes to be advertised to other border leaf devices, the vrf-target needs to be correctly configured under the evpn hierarchy, not just within the routing instance.

Command to solve this:

move vrf-target target:65000:1 to evpn

Other Options:

Option B: Adding a VLAN configuration would not address the requirement to advertise Type 5 routes.

Option C: Adding VXLAN encapsulation may be necessary for other scenarios but does not directly address the Type 5 route advertisement.

Option D: Changing the route-distinguisher will differentiate routes but does not impact the advertisement of Type 5 routes to other data centers.

By moving the vrf-target to the evpn hierarchy, you enable the proper route advertisement, ensuring that the Type 5 routes for local networks are shared with other data center border leaf devices. This is aligned with best practices for multi-data center EVPN implementations, which emphasize the correct placement of routing policies within the EVPN configuration.

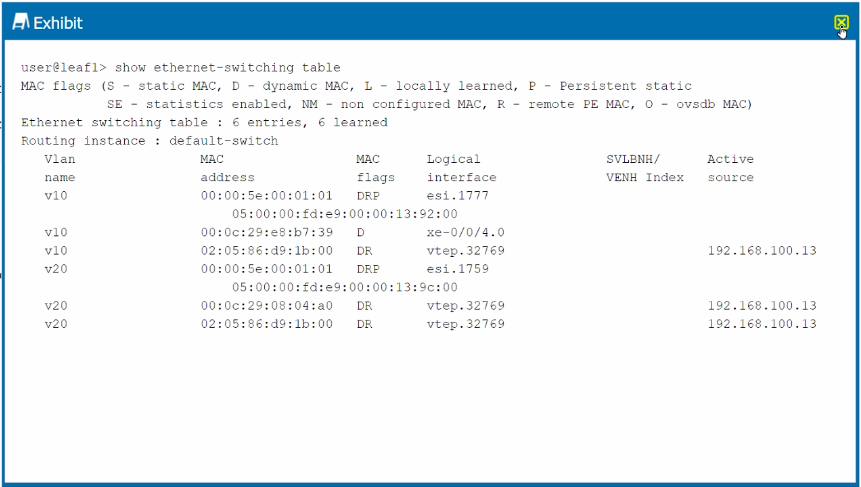

In this scenario, the active source field is blank for the MAC address 00:0c:29:e8:b7:39, indicating an issue with how this MAC entry is being processed within the EVPN/VXLAN environment.

Step-by-Step Analysis:

Understanding the MAC Entry:

The active source field should normally indicate the source of the route advertisement for a specific MAC address within the EVPN. If it is blank, it suggests that there is a problem with how this entry is being learned or propagated.

Possible Issues:

Option A: If the EVPN route for this MAC address does not have a valid next hop, the entry might exist in the MAC table, but it will not have a valid path for forwarding, leading to a blank active source.

Option B: If the ARP lookup had failed, the entry might not even appear in the MAC table. However, the entry does exist, suggesting that ARP is not the primary issue here.

Option C: If the host were locally connected, the active source should reflect a local interface, but the field is blank, ruling out local connection as the cause.

Option D: Multicast EVPN routes typically do not appear in this manner in the MAC table, and this would not cause the active source to be blank.

Conclusion: The most logical explanation is that the EVPN route for this host exists but does not have a valid next hop, leading to the absence of an active source. This is consistent with how EVPN routing tables work in a VXLAN environment, where the lack of a valid next hop would prevent proper route advertisement and forwarding for the specific MAC address.

Understanding Oversubscription Ratio in IP Fabrics:

The oversubscription ratio in an IP fabric typically refers to the ratio of the available bandwidth at the edge of the network (leaves) to the available bandwidth at the core or spine. A 3:1 oversubscription ratio means that for every 3 units of bandwidth at the leaves, there is 1 unit of bandwidth at the spine.

Impact of Adding or Removing Leaf Devices:

Removing Leaf Devices: When you remove leaf devices, the amount of total edge bandwidth decreases while the bandwidth in the spine remains constant. This causes the oversubscription ratio to increase because there is now less total bandwidth to distribute across the same amount of spine bandwidth.

Adding Leaf Devices: Conversely, when you add leaf devices, the total edge bandwidth increases. Since the spine bandwidth remains the same, the oversubscription ratio would remain the same if the additional leaves consume their share of the available bandwidth proportionally.

Conclusion:

Option C: Correct---Removing leaf devices increases the oversubscription ratio.

Option D: Correct---Adding leaf devices typically maintains the oversubscription ratio assuming uniform bandwidth distribution.

Interconnecting Data Centers:

The scenario requires interconnecting two data centers with unique IP spaces across an IP backbone. The key point is that bridging is not required, so Layer 3 routing methods must be used.

EVPN Configuration:

Option B: Establishing EVPN peering between the border leaf nodes in each data center is the most appropriate solution as it allows for exchanging routing information between the two data centers. This ensures that the routes are properly distributed without the need for L2 bridging.

Option C: Configuring Type 5 EVPN routes is necessary for advertising IP prefixes (Layer 3 routes) across the EVPN. Type 5 routes allow for the exchange of IP prefixes between the two data centers, enabling the necessary routing functionality without the need for bridging.

Conclusion:

Option B: Correct---Peering between border leaf nodes sets up the necessary route exchange between data centers.

Option C: Correct---Type 5 EVPN routes are essential for exchanging Layer 3 prefixes between data centers.

Symmetric IRB Routing with EVPN Type 2 Routes:

Symmetric Routing: In symmetric IRB (Integrated Routing and Bridging), routing occurs in both directions at the ingress and egress leaf nodes using the same routing logic. This is contrasted with asymmetric routing, where different routing logic is used depending on the direction of the traffic.

Required Components:

Option A: An L3 IRB interface is necessary for each VLAN that participates in routing, as it handles the Layer 3 processing for the VLAN.

Option B: MAC-VRF is required for symmetric routing to maintain a mapping of MAC addresses to the appropriate VRF, ensuring correct forwarding within the EVPN.

Option D: A transit VNI (Virtual Network Identifier) is required for each VRF to encapsulate the Layer 3 traffic as it traverses the network, allowing the IP traffic to be appropriately forwarded.

Conclusion:

Option A: Correct---Each local VLAN needs an IRB interface for L3 processing.

Option B: Correct---MAC-VRF is necessary for handling MAC address resolution in symmetric routing.

Option D: Correct---Transit VNIs are required for routing VRF-specific traffic across the network.

Options C and E are incorrect because:

C: Symmetric routing can work with various VLAN models, including single or multiple VLANs within an EVPN instance.

E: Symmetric routing is generally more efficient than asymmetric routing as it uses consistent routing logic in both directions.
