MuleSoft MCD - Level 1 Practice Test - Questions Answers, Page 7

Option1 is correct syntax to configure HTTP Listener endpoint

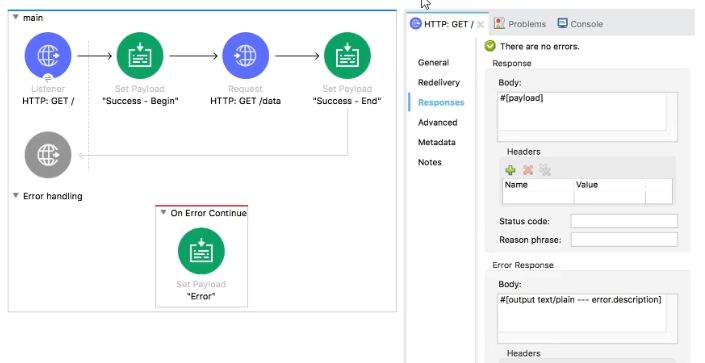

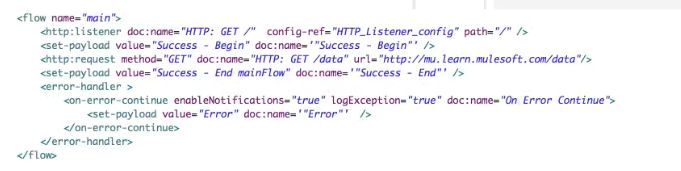

Answer:: Response body: 'Error' Default response status code: 200.-------------------------------------------------------------------------------------------------------------------------------------------------1) Payload is successfully set to ''Success -- Started Flow''2) When HTTP Request throws an error, execution halts#[error.description] = ''ABC'#[error.errorType] = 'XYZ'3) The On Error Continue scope handles the error. When On Error Continue scope is invoked, all the processors in error block are executed and success response is sent back to the client with payload which is set in error flow. In this case payload is set to 'Error' value in error block.4) ''Error'' is returned to the requestor in the body of the HTTP request with HTTP Status Code: 200 as On error continue always sends success error code.Reference Diagram:

Center for Enablement is correct answer .It is a cross-functional team typically staffed with members from central IT, line-of-business departments, and digital innovation teams charged with productizing, publishing, and harvesting reusable assets and best practices. In this case , app team would have checked first with Center for Enablement before developing their own API's. Hence could have avoided re-work

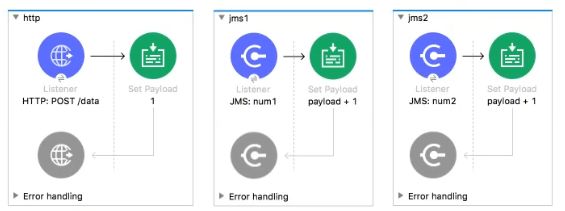

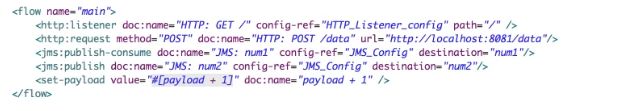

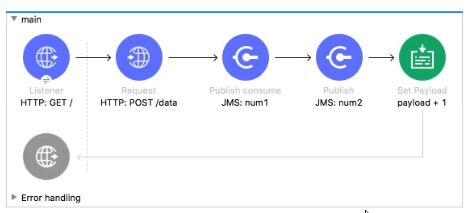

The flow can be described as below. 1) First HTTP POST requets is made in which paylaod is set to 1 and it gets returned to our mail flow. 2) Second call is initiated for JMS Publish Consume JMS: num1 which add 1 to the payload which makes it as 2. Note that pubih consume is a synchronous operation. Hence paylaod is returned to main flow. 3) Third call is initiated for JMS Publish JMS: num2 which add 1 to the payload . Note that pubih is asynchronous operation. Hence paylaod is never returned to main flow. So payload in main flow is still 2. 4) Finally Set Payload increments payload by 1 making payload as 3 which is returned by the flow. Hence option 3 is the correct answer.

option 3 is the correct syntz to access application properties

Correct answer is Modify the API implementation to use auto-discovery to register with API Manager

API Autodiscovery

Configuring autodiscovery allows a deployed Mule runtime engine (Mule) application to connect with API Manager to download and manage policies and to generate analytics data. Additionally, with autodiscovery, you can configure your Mule applications to act as their own API proxy.

When autodiscovery is correctly configured in your Mule application, you can say that your application's API is tracked by (green dot) or paired to API Manager. You can associate an API in a Mule setup with only one autodiscovery instance at a given time.

MuleSoft Doc Ref : https://docs.mulesoft.com/api-manager/2.x/api-auto-discovery-new-concept

Correct answer isSave the payload from the Database SELECT operation to a variable

Response from HTTP request will override the payload and hence response of database SELECT can be lost. Best way to preserve is to assign payload of first operation to variable using TransformMessage.

This helps CloudHub to dynamically allocates a port at deployment time.

MuleSoft Doc Ref :https://docs.mulesoft.com/mule-runtime/4.3/deploy-to-cloudhub#prerequisites
