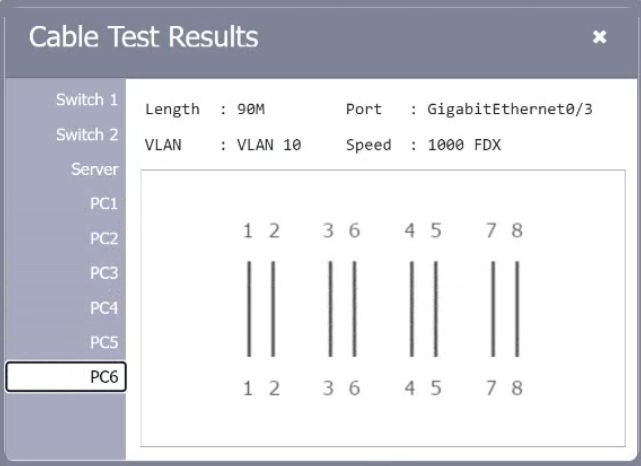

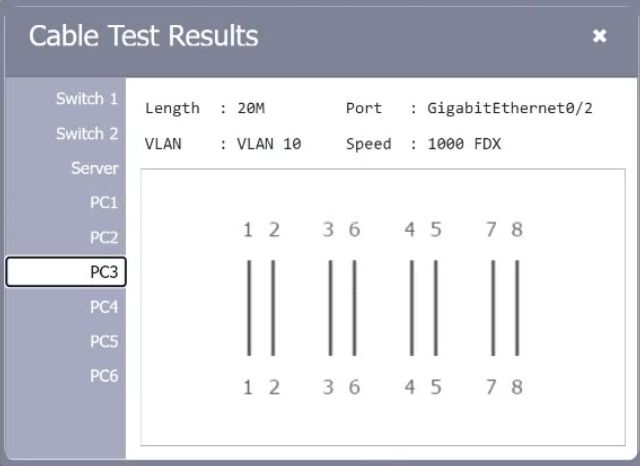

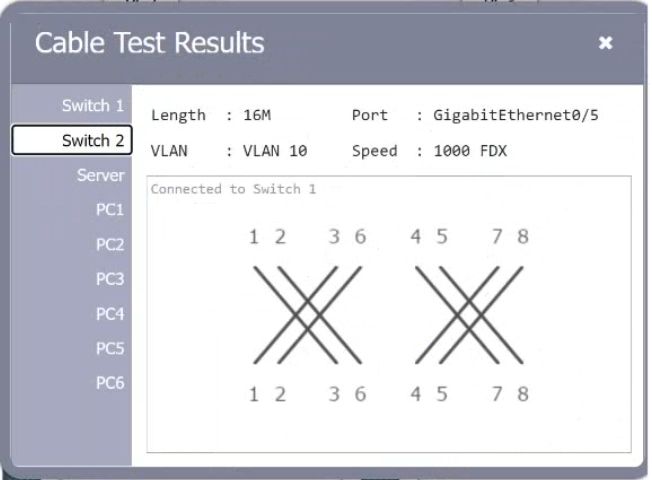

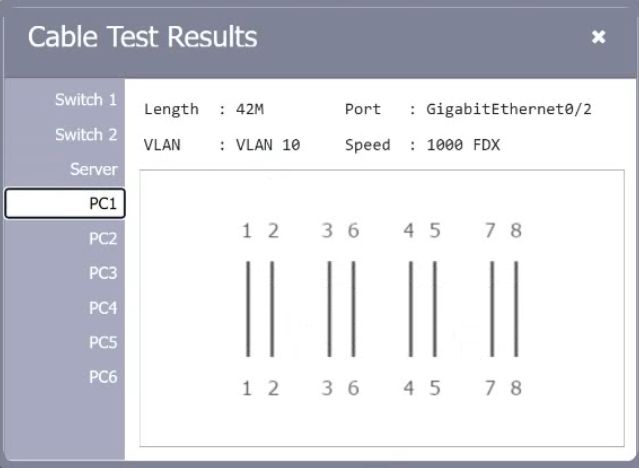

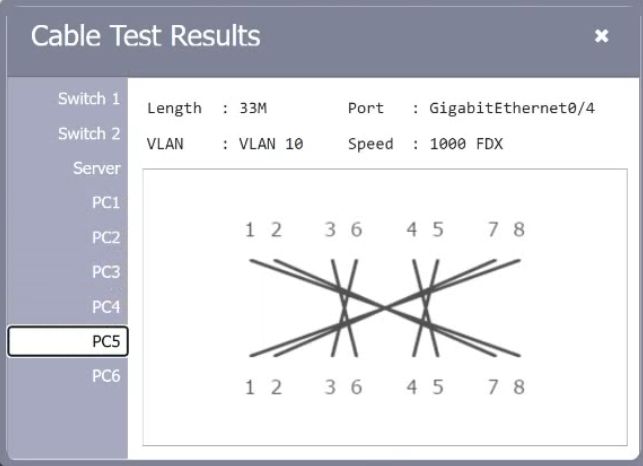

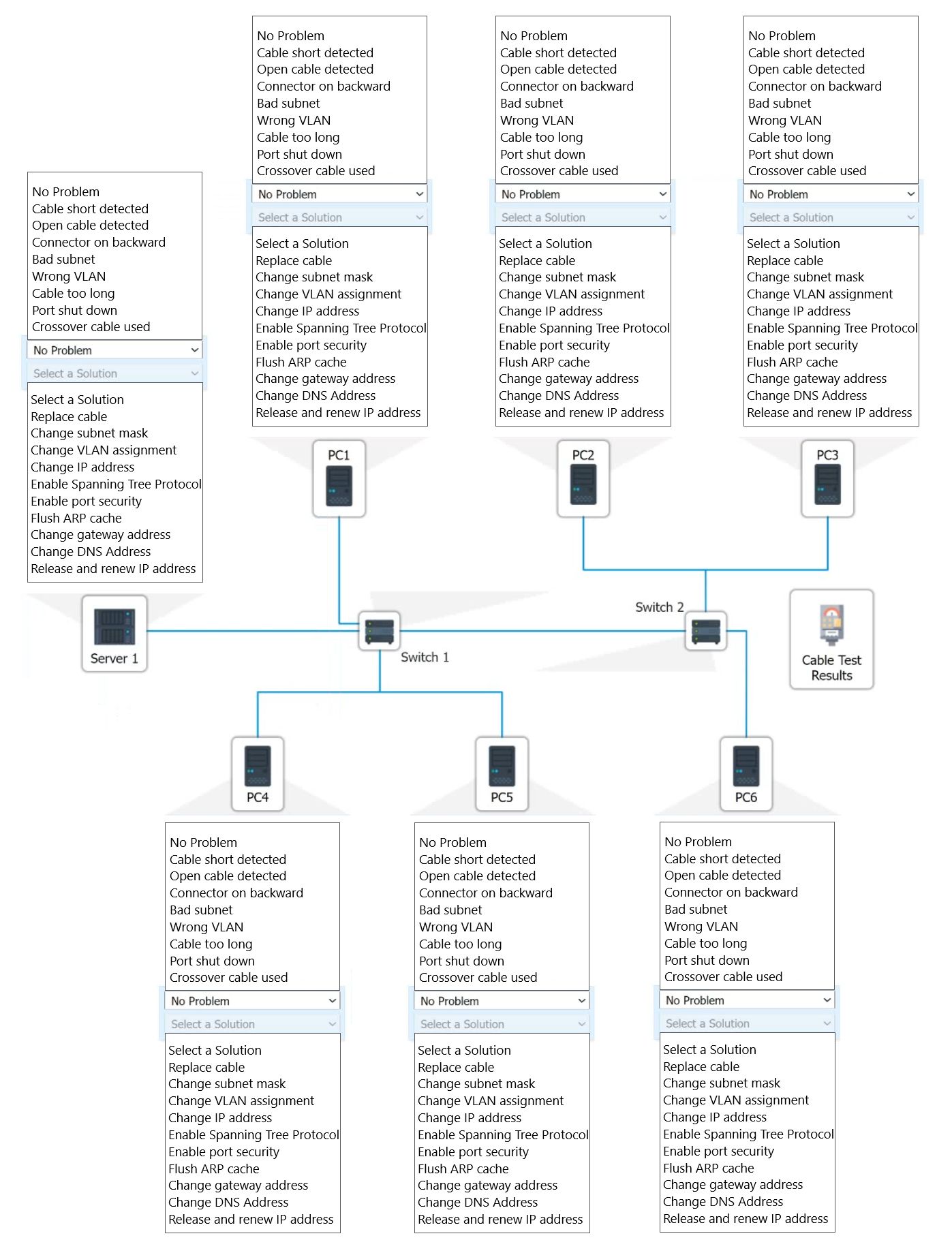

Cross talk can often be caused by improper termination of cables. The first step in troubleshooting should be to inspect the connectors for any wires that might be touching or exposed. Ensuring that all wires are correctly seated and that no conductors are exposed can help reduce or eliminate cross talk. This step should be taken before attempting to re-terminate the connections or check for other sources of interference.

Reference: CompTIA Network+ study materials.

A mesh network is the best solution for providing reliable wireless service to public safety vehicles. In a mesh network, each node (vehicle) can connect to multiple other nodes, providing multiple paths for data to travel. This enhances reliability and redundancy, ensuring continuous connectivity even if one or more nodes fail. Mesh networks are highly resilient and are well-suited for dynamic and mobile environments such as public safety operations.

Reference: CompTIA Network+ study materials.

Network Health:

WAN 2 appears to have a lower average latency and loss percentage, which would make it the preferred WAN station for VoIP traffic. VoIP traffic requires low latency and packet loss to ensure good voice quality and reliability. WAN 1 seems to have higher RAM and processor usage, which could also affect the performance of VoIP traffic.

Here's the summary of the key metrics for WAN 1 and WAN 2 from the image provided:

WAN 1:

Uplink Speed: 10G

Total Usage: 26.969GB Up / 1.748GB Down

Average Throughput: 353MBps Up / 23.42MBps Down

Loss: 2.51%

Average Latency: 24ms

Jitter: 9.5ms

WAN 2:

Uplink Speed: 1G

Total Usage: 930GB Up / 138GB Down

Average Throughput: 12.21MBps Up / 1.82MBps Down

Loss: 0.01%

Average Latency: 11ms

Jitter: 3.9ms

For VoIP traffic, low latency and jitter are particularly important to ensure voice quality. While WAN 1 has higher bandwidth and throughput, it also has higher latency and jitter compared to WAN 2. However, WAN 2 has much lower loss, lower latency, and lower jitter, which are more favorable for VoIP traffic that is sensitive to delays and variation in packet arrival times.

Given this information, WAN 2 would generally be preferred for VoIP traffic due to its lower latency, lower jitter, and significantly lower loss percentage, despite its lower bandwidth compared to WAN 1. The high bandwidth of WAN 1 may be more suitable for other types of traffic that are less sensitive to latency and jitter, such as bulk data transfers.

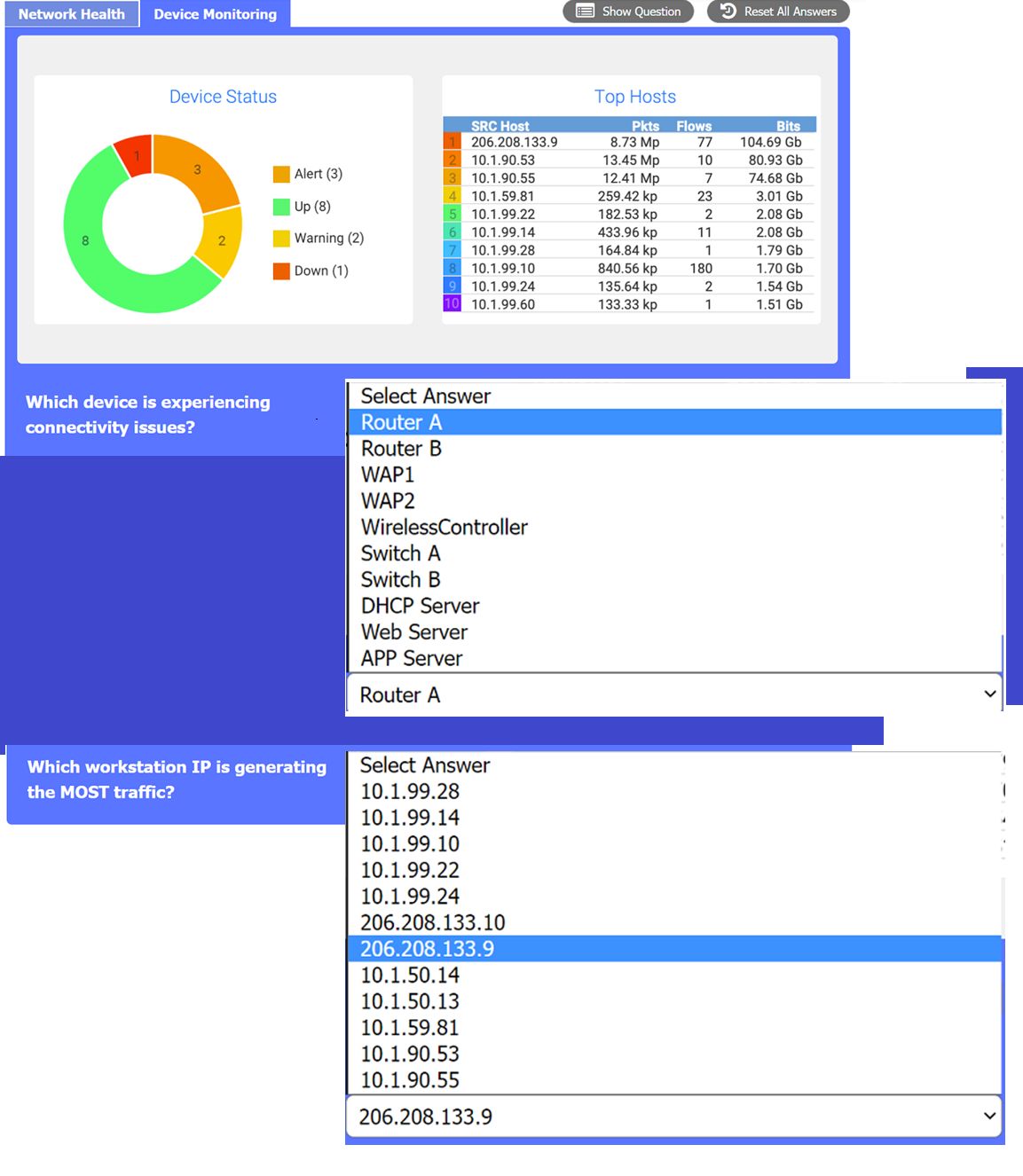

Device Monitoring:

the device that is experiencing connectivity issues is theAPP Server or Router 1, which has a status ofDown. This means that the server is not responding to network requests or sending any data. You may want to check the physical connection, power supply, and configuration of the APP Server to troubleshoot the problem.

Port mirroring, also known as SPAN (Switched Port Analyzer), is used to send a copy of network packets seen on one switch port (or an entire VLAN) to another port where the IDS is connected. This allows the IDS to passively inspect network traffic without interfering with the actual traffic flow. Port mirroring is an essential feature for implementing IDS in a network for traffic analysis and security monitoring.

Reference: CompTIA Network+ study materials.

Out-of-band (OOB) management refers to using a dedicated management network that is physically separate from the regular data network. This management network uses a different set of IP addresses to ensure that management traffic is isolated from user data traffic, providing a secure way to manage network devices even if the main network is down or compromised.

Reference: CompTIA Network+ study materials.

Direct Connect refers to a dedicated network connection between an on-premises network and a cloud service provider (such as AWS Direct Connect). This link bypasses the public internet, providing a more reliable and higher-bandwidth connection. It may not inherently include encryption because it relies on the security measures of the dedicated physical connection itself. In contrast, other options like VPN typically involve encryption as they traverse the public internet.

CompTIA Network+ full course material indicates that Direct Connect type services offer dedicated, private connections which might not include encryption due to the dedicated and secure nature of the link itself.

SSH (Secure Shell) is a protocol used to securely connect to a remote server/system over a network. It operates on port 22 and provides encrypted communication, unlike Telnet which operates on port 23 and is not secure. TLS is used for securing HTTP connections (HTTPS) and operates on ports like 443, while RDP (Remote Desktop Protocol) is used for remote desktop connections and operates on port 3389.

The CompTIA Network+ materials and tutorials cover SSH as the standard protocol for secure remote access, highlighting its operation on port 22.

The address range 224.0.0.0/24 falls within the Class D IP address range (224.0.0.0 to 239.255.255.255), which is reserved for multicast traffic. Multicast addresses are used for the delivery of information to multiple destinations simultaneously, making them ideal for applications like audio and video broadcasting. The other options (172.16.0.0/24, 192.168.0.0/24, and 240.0.0.0/24) are not suitable for multicast as they are within different IP ranges used for other purposes (private addressing and future use, respectively).

Reference: CompTIA Network+ Certification Exam Objectives - IP Addressing section.
