You want to provision an iSCSl LUN.

Which two steps are required to accomplish this task? (Choose two.)

A.
Add the initiator IP address to the igroup.
A.
Add the initiator IP address to the igroup.
Answers
B.
Map the LUN to the igroup.
B.
Map the LUN to the igroup.
Answers
C.
Add the target WWPN to the igroup.
C.
Add the target WWPN to the igroup.
Answers
D.
Add the initiator 1QN to th«t igroup.
D.
Add the initiator 1QN to th«t igroup.
Answers
Suggested answer: B, D

Which NetApp tool views automated, schedule configuration, and performance data for a customer's SAN from a Web browser?

A.
Virtual Storage Console
A.
Virtual Storage Console
Answers
B.
OnCommand Workflow Analyzer
B.
OnCommand Workflow Analyzer
Answers
C.
Config Advisor
C.
Config Advisor
Answers
D.
Active 1Q
D.
Active 1Q
Answers
Suggested answer: B

A storage administrator created a LUN using two ports on a storage system. Later, additional LUNs were added to the same node as the original LUN. After a while, the performance of the original LUN dropped beyond an acceptable level.

What would you advise to remedy the Issue?

A.
Add an additional switch between the hosts and cluster.
A.
Add an additional switch between the hosts and cluster.
Answers
B.
Add new LIFs on unused ports.
B.
Add new LIFs on unused ports.
Answers
C.
Add new LIFs on the used ports.
C.
Add new LIFs on the used ports.
Answers
D.
Reduce the queue depth on the used ports.
D.
Reduce the queue depth on the used ports.
Answers
Suggested answer: B

Which two scenarios in deploying ONTAP Cloud are supported by the Cloud Manager tool? (Choose two.)

A.
ONTAP Cloud deployed as an HA pair on IBM Cloud
A.
ONTAP Cloud deployed as an HA pair on IBM Cloud
Answers
B.
ONTAP Cloud deployed as an HA pair on VMware
B.
ONTAP Cloud deployed as an HA pair on VMware
Answers
C.
ONTAP Cloud deployed as a single instance on Microsoft Azure
C.
ONTAP Cloud deployed as a single instance on Microsoft Azure
Answers
D.
ONTAP Cloud deployed as an HA pair on Amazon Web Services
D.
ONTAP Cloud deployed as an HA pair on Amazon Web Services
Answers
Suggested answer: C, D

An administrator is planning a hardware refresh and data migration from a Data ONTAP 7.3 system to new AFF A3-00 cluster that is using ONTAP 9.0. The Mode system only serves FC LUNs to a Windows 2012Rs server cluster that needs to remain connected after migration Referring to the scenario, which method would be used for the LUN migration.

A.
Unified Host Utility Kit
A.
Unified Host Utility Kit
Answers
B.
7-Mode Transition Tool (7MIT)
B.
7-Mode Transition Tool (7MIT)
Answers
C.
Foreign LUN import (FLI)
C.
Foreign LUN import (FLI)
Answers
D.
Oncommand system Manager
D.
Oncommand system Manager
Answers
Suggested answer: B

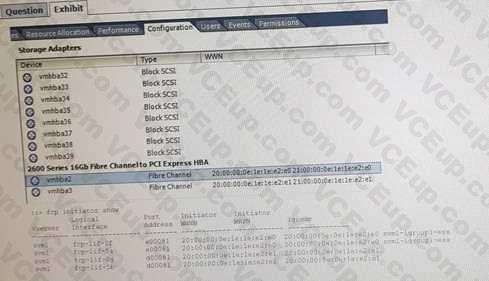

Exhibit.

The VMware ESX host discovers only two of four paths to a LUN on a new ONTAP cluster.

Referring to the exhibit, which statement Is correct?

A.
The fabric zoning configuration does not allow access to the target LlFs.
A.
The fabric zoning configuration does not allow access to the target LlFs.
Answers
B.
The igroup does not contain the. WWPN of one initiator.
B.
The igroup does not contain the. WWPN of one initiator.
Answers
C.
The fabric name server is disabled.
C.
The fabric name server is disabled.
Answers
D.
The initiator HBA is not connected to the fabric.
D.
The initiator HBA is not connected to the fabric.
Answers
Suggested answer: D

A customer wants to use both Cisco FC and FCoE switches in their ONTAP environment. According to NetApp best practices, what are two requirements in this scenario? (Choose two.)

A.
You must use single initiator zoning.
A.
You must use single initiator zoning.
Answers
B.
You must create interface groups to isolate FC and FCoE LIFs.
B.
You must create interface groups to isolate FC and FCoE LIFs.
Answers
C.
You must create a trunk with multiple virtual LANs.
C.
You must create a trunk with multiple virtual LANs.
Answers
D.
You must not have more than one target UF for the same physical port in a single fabric zone.
D.
You must not have more than one target UF for the same physical port in a single fabric zone.
Answers
Suggested answer: A, D

You are provisioning a LUN using an ISCSI initiator on an ESX host. You disable Ethernet flow control for all ports but are experiencing Performance issues.

In this scenario, which two actions would improve the performance issue? (Choose two.)

A.
Set the MTU settings 1500 for optimal performance.
A.
Set the MTU settings 1500 for optimal performance.
Answers
B.
Dedicate your ports to ISCSI traffic.
B.
Dedicate your ports to ISCSI traffic.
Answers
C.
Enable jumbo frames across the entire data path.
C.
Enable jumbo frames across the entire data path.
Answers
D.
Confirm that your host .mil storage polls are connected to a different network.
D.
Confirm that your host .mil storage polls are connected to a different network.
Answers
Suggested answer: B, C

Exhibit.

You are adding a boot LUN for a new server. The server uses FCP attached through a CN

A.
The ONTAP cluster is also attached to the same fabric by way of UTA2. You configure the zoning for the fabric as shown in the exhibit. You discover that the server cannot see its boot LUN.What is the problem with your zoning configuration?
A.
The ONTAP cluster is also attached to the same fabric by way of UTA2. You configure the zoning for the fabric as shown in the exhibit. You discover that the server cannot see its boot LUN.What is the problem with your zoning configuration?
Answers
B.
The zone set must have the same name as the zone.
B.
The zone set must have the same name as the zone.
Answers
C.
The zone was not activated.
C.
The zone was not activated.
Answers
D.
The zone used a wrong zone ID.
D.
The zone used a wrong zone ID.
Answers
E.
The WWPN for the NetApp LIF is incorrect.
E.
The WWPN for the NetApp LIF is incorrect.
Answers
Suggested answer: D

An administrator needs to connect a new VMware 6.5 cluster to an ONTAP cluster for iSCSl connectivity. Which two steps would accomplish this task? (Choose two.)

A.
Enable iSCSl adapters on the ESXi hosts.
A.
Enable iSCSl adapters on the ESXi hosts.
Answers
B.
Install the Virtual Storage Console for VMware vSphere.
B.
Install the Virtual Storage Console for VMware vSphere.
Answers
C.
Configure zoning for the HBAs and the ONTAP data LIFs.
C.
Configure zoning for the HBAs and the ONTAP data LIFs.
Answers
D.
Configure ALUA on the ONTAP SVM.
D.
Configure ALUA on the ONTAP SVM.
Answers
Suggested answer: A, D
