Network Appliance NS0-520 Practice Test - Questions Answers, Page 12

Add to Whishlist

List of questions

Question 111

Report Export Collapse

You will be purchasing two high availability NetApp AFF A700s systems. You want to set up a 4-node cluster. Which switch would you use for the cluster interconnect switches?

NetApp CN1610
NetApp CN1610
Cisco Nexus 3132Q-V
Cisco Nexus 3132Q-V
Cisco Nexus 5548UP
Cisco Nexus 5548UP
Cisco Nexus 5020
Cisco Nexus 5020
Suggested answer: B
asked 23/09/2024
Piotr Jakubowski
39 questions

Question 112

Report Export Collapse

What does the space allocation argument in a lun create command do?

It thick provisions the LUN.
It thick provisions the LUN.
It only disables space reclamation (or the LUN.
It only disables space reclamation (or the LUN.
It thin provisions the LUN,
It thin provisions the LUN,
It enables or disables space reclamation for the LUN
It enables or disables space reclamation for the LUN
Suggested answer: D
asked 23/09/2024
Kash Rx
43 questions

Question 113

Report Export Collapse

An enterprise customer has both a NetApp FAS8200 4-node cluster and a third-party storage array in a shared SAN environment. The host servers connect to both storage vendors' arrays in the fabric.

Regarding (he hosts in this scenario, what are- two NetApp best practices when performing this task?

(Choose two.)

Set the default timeout values and storage parameters for the host system.
Set the default timeout values and storage parameters for the host system.
Provide isolation between storage systems using NetApp's multitenancy feature.
Provide isolation between storage systems using NetApp's multitenancy feature.
Always use the same adapter for heterogeneous storage systems.
Always use the same adapter for heterogeneous storage systems.
Use separate adapters to connect to each vendors' storage system.
Use separate adapters to connect to each vendors' storage system.
Suggested answer: A, D
asked 23/09/2024
Euwing Mendoza
50 questions

Question 114

Report Export Collapse

Exhibit.

Network Appliance NS0-520 image Question 114 79511 09232024011723000000

You are working on a project to install a new AFF A300 storage array. You use a pair of Nexus 3596 switches for FC connectivity between your VMware ESXi servers and the AFF A300.

Which SAN switch feature must be enabled to accomplish this task?

N_Port ID visualization (NP1V)
N_Port ID visualization (NP1V)
Open Shortest Path First (OSPF)
Open Shortest Path First (OSPF)
Link Aggregation Control Protocol (LACP)
Link Aggregation Control Protocol (LACP)
N_Port Visualization (NPV)
N_Port Visualization (NPV)
Suggested answer: A
asked 23/09/2024
Cynan Jones
43 questions

Question 115

Report Export Collapse

You ate deploying an 8-node FAS8200 ONTAP cluster and attaching to an existing FC fabric.

Which two ONTAP features would be used to restrict or limit the available paths seen from the host?

(Choose two.)

port sets
port sets
igroup
igroup
VIAN
VIAN
Selective IUN Map
Selective IUN Map
Suggested answer: A, D
asked 23/09/2024
OLUSEGUN IJAOLA
36 questions

Question 116

Report Export Collapse

A customer experiences intermittent connectivity problems between an ESXi server and FC LUNs in an SVM. The customer has examined the nodes hosting the LUNs and both the disk and CPU performance are below 50% utilization.

The customer examined the switch ports connected to the storage array, and they ate also below 50% utilization.

Which two steps would you perform next in this scenario? (Choose two.)

Verify that the host is using SnapDrive.
Verify that the host is using SnapDrive.
Verify that the host Ethernet interfaces are using jumbo frames.
Verify that the host Ethernet interfaces are using jumbo frames.
Verify that the host recommended settings were applied by Virtual Storage Console.
Verify that the host recommended settings were applied by Virtual Storage Console.
Verify that the HBA queue depth is set properly.
Verify that the HBA queue depth is set properly.
Suggested answer: C, D
asked 23/09/2024
Syed Azar
46 questions

Question 117

Report Export Collapse

Exhibit.

Network Appliance NS0-520 image Question 117 79514 09232024011723000000

Referring to the exhibit, what is the total amount of space that is guaranteed for the LUNs in the /vo1/vo1_sanlunsiprod_03 volume?

0 GB
0 GB
300 GB
300 GB
600 GB
600 GB
2600 GB
2600 GB
Suggested answer: A
asked 23/09/2024
Christos Katopis
37 questions

Question 118

Report Export Collapse

Exhibit.

Network Appliance NS0-520 image Question 118 79515 09232024011723000000

A customer is testing a dual-fabric FC SAN configuration as shown in the exhibit. The zones are implemented on the switches shown below.

Network Appliance NS0-520 image Question 118 79515 09232024011723000000

IF all the nodes are in the SLM reporting nodes list, how many paths per LUN should the customer expect when simulating a node failure by powering off Node 04?

4 paths
4 paths
6 paths
6 paths
8 paths
8 paths
2 paths
2 paths
Suggested answer: B
asked 23/09/2024
Kristian Gutierrez
50 questions

Question 119

Report Export Collapse

You have a 4-node cluster with a FAS8200 HA pair and an AFF A300 HA pair. You need to migrate a LUN from a FAS8200 node to an AFF A300 node for faster performance.

Which method will non-disruptively migrate the LUN to the AFF A300 while retaining snapshots of the LUN on the FAS8200?

You move the LUN.
You move the LUN.
You relocate the aggregate.
You relocate the aggregate.
You move the volume.
You move the volume.
You copy the LUN.
You copy the LUN.
Suggested answer: D
asked 23/09/2024
PEDRO ARIAS
43 questions

Question 120

Report Export Collapse

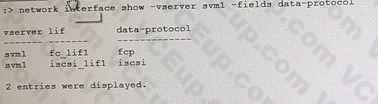

Exhibit.

Network Appliance NS0-520 image Question 120 79517 09232024011723000000

You need to configure the SnapCenter Plug-in for VMware vSphere to back up and restore VMware datastores.

Referring to the exhibit, which additional LIF type should you create before you configure the plugin?

intercluster
intercluster
node management
node management
SVM management
SVM management
cluster management
cluster management
Suggested answer: C
asked 23/09/2024
Kamal maru
45 questions
Total 234 questions
