Network Appliance NS0-520 Practice Test - Questions Answers, Page 14

You are planning few a new AFF A700 2-node switchless FC solution with two Cisco 9100 switches.

Each AFF A700 will have one 16 Gb port Connected to each Cisco 9100 switch and four FC LIKs per physical port. You want to guarantee recovery from connection loss on a NetApp physical port and you are using single initiator to multiple target zoning.

What is the minimum number of zones required to accomplish this task?

An administrator is migrating from a third-party's SAN to a newly purchased FAS9000. The administrator decides to use the NetApp Foreign LUN Import (FL1) process.

What must the administrator do for this process to work properly?

Exhibit.

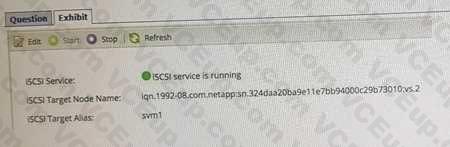

You are asked to change the iSCSl Target Node Name of an SVM named SVM1 that is serving data.

Referring to the exhibit, which two statements are correct? (Choose two.)

Exhibit.

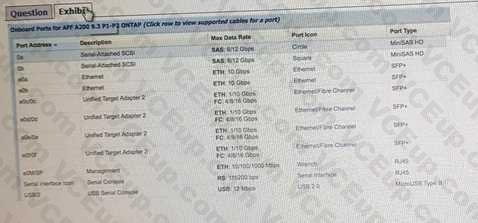

An administrator has an AFF A200 HA pair.

Referring to the exhibit, how many 10 Gbps connections would the customer have on a single node for SAN host connectivity?

Exhibit.

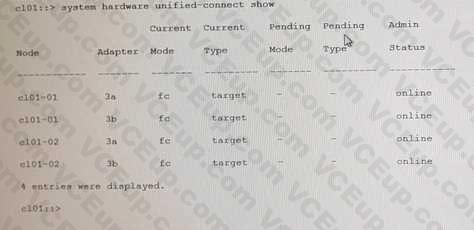

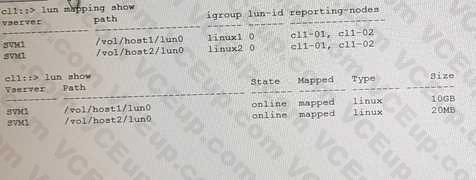

Dining a data mobility test on a 4-node ONTAP 9.3 cluster, the host loses direct access to its LUNs.

The LUNs are hosting on node cl1-01 and are being moved to cl1-03 on a different HA pair.

Referring to the exhibit, which corrective step is needed to ensure access while the volume is moved?

You have a 4-node FAS8200 A300 cluster that are using ONTAP 9.3 default settings. For faster performance, you move a volume with LUNs from a node on the FAS8200 to a node on the AFF A300.

You determine that your SAN host is still using all active/optimized FC paths to the FAS8300 HA pair.

What do you need to troubleshoot to move all active/optimized FC paths to the AFF A300 HA pair?

Exhibit.

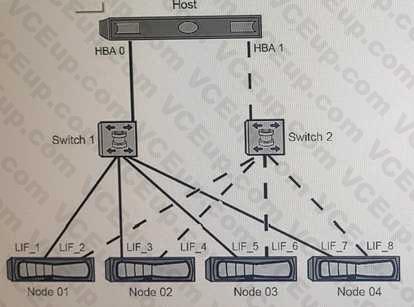

The host in the exhibit is connected to a 4-node ONTAP SAN using dual-fabric implementation. LUNs have been mapped LUN through all available UFs on nil (our nodes. Switch 2 is powered off for highavailability testing.

How many paths per LUN would you expect the host to see in this scenario?

Which data collection tool would be used for obtaining detailed information about hosts that are attached to ONTAP storage?

Exhibit.

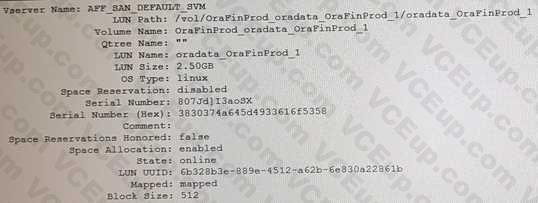

The exhibit shows the Inn show command output for the oradata oraFinProd_l LUN.

Which two statements ate correct about the LUN'? (Choose two.)
