Network Appliance NS0-520 Practice Test - Questions Answers, Page 22

We only need to convert one FC to initiator per node, if you need to enable multipath with 2 switches, then you need 2 ports on initiator mode per node

https://manualzz.com/doc/24230310/san-migration-using-foreign-lun-import (10) (15)(16)

ANA Supportability

NVMe/FC is supported on ONTAP 9.6 or later for the following versions of SLES:

SLES15 SP1

SLES15 SP1 host can run both NVMe/FC, & FCP traffic through the same fibre channel initiator adapter ports.

You can find more information on this link:

https://docs.netapp.com/us-en/ontap-sanhost/nvme_sles15_sp1.html#supportability

Zoning the host using WWNNs is not recommended. Netapp always recommends to use WWPN to zone correctly.

We can not stablish a queue depth value because we don't have the amount of ports and hosts to calculate the recommended queue depth Installing VSC and updating the HBA driver are best practices recommended by Netapp You can find more information on this link:

https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.exp-iscsi-esx-cpg%2FGUIDC751F905-04B4-4DE6-ADC4-A47EA9076078.html

https://docs.netapp.com/ontap-9/topic/com.netapp.doc.exp-fc-esxcpg/FC%20express%20configuration%20for%20ESXi%20using%20VSC.pdf (page 7)

Installing ANA is related with NVMe protocol

Binding an igroup to a port set will only limit our paths

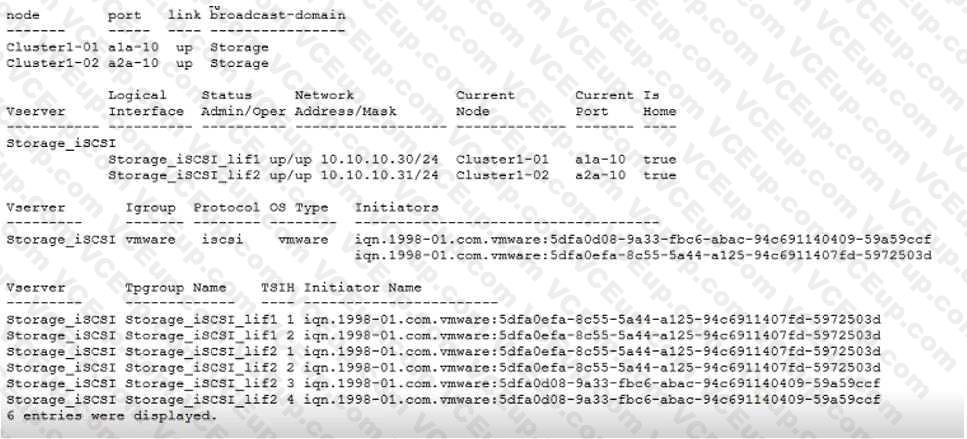

Stopping the FCP service will not affect at anything, because this is an ISCSI LUN When you migrate ISCSI using FLI, you need to map the LUNs to an igroup where the destination arrays is added, after the LUN has been imported, you can create a new iSCSI igroup and add the hosts to the igroup You can find more information on this link:

https://www.netapp.com/pdf.html?item=/media/17060-tr4380pdf.pdf (page 71)

When you implement VLANs in large IP network infrastructures, you derive the following benefits:

Increased security.

VLANs enable you to leverage existing infrastructure while still providing enhanced security because they limit access between different nodes of an Ethernet network or an IP SAN.

You can find more information on this link:

https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-sanconf%2FGUIDC5288E55-DAED-4050-84A2-71BF13BC6556.html

Iscsi is already started, we can not run those commands successfully if the protocol is not started ALUA is enabled on hosts, It is not enabled on switches VLANs are configured on the Netapp and switches, they need to be properly configured on both sides to work correctly You can find more information on this link:

https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-nmg%2FGUID-52AE6E9C-13B6-49BA-B030-545C1C7647AC.html

SLM will choose 4 LIFs per node, being 8 LIF total (owner and HA partner), enabling portsets will help to limit the ports per node... that way we can stablish only 2 LIF per node.

Creating port sets and binding igroups to port sets

In addition to using Selective LUN Map (SLM), you can create a port set and bind the port set to an igroup to further limit which LIFs can be used by an initiator to access a LUN. If you do not bind a port set to an igroup, then all of the initiators in the igroup can access mapped LUNs through all of the LIFs on the node owning the LUN and the owning node's HA partner.

You can find more information on this link:

https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-sanag%2FGUID-5CC27202-A43F-429F-AB13-C70E7CD58E09.html

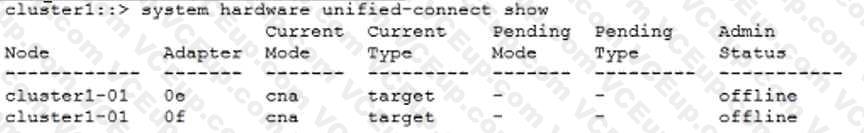

Before using your UTA ports on a FC infraestructure, you need to modify the current mode from CNA to FC. You need to set the ports offline before you modify that parameter.

You can find more information on this link: http://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-sanag%2FGUIDE2CD31BE- 28EC-468E-AF49-83A641575799.html

We would not be able to run that command if NVMe is not enabled

NVMe is supported on the same SVM along with FC protocol

The multipath tool on NVMe is called ANA

NQN needs to be correctly declared on the subsystem to map the new NVMe resources
