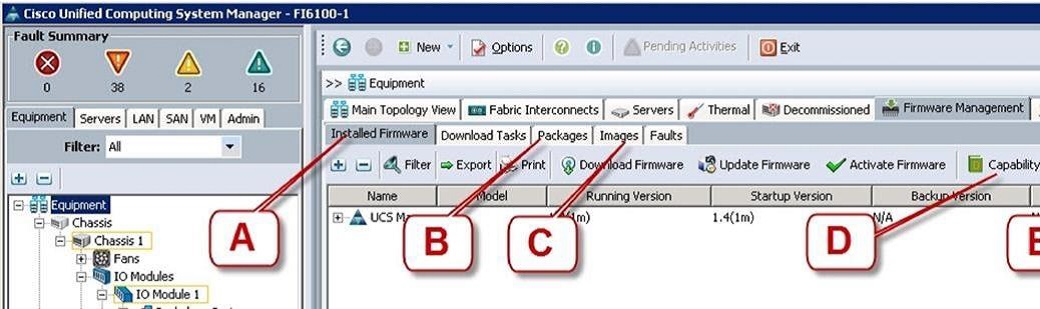

Refer to the exhibit.
Where is the best place to find the B200 BIOS version used in a specific Cisco UCS Manager version?
A - Installed Firmware
B - Packages
C - Images
D - Capability Catalog
E - Management Extension

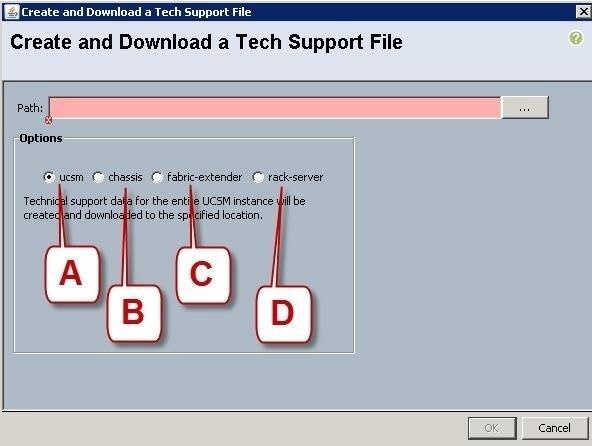

Refer to the exhibit.
Which option should you select to get the output of the show tech-support detail command for the Cisco UCS B-Series blade?
A - ucsm
B - chassis
C - fabric-extender
D - rack-server

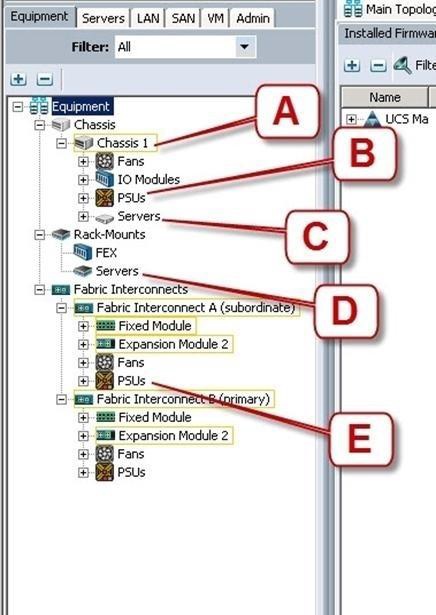

Refer to the exhibit.
Where is the best place to see the power supply status of the blade server enclosure?
A - Chassis 1
B - Chassis 1 - PSUs
C - Chassis1 - Servers
D - Rack-Mounts - Servers
E - Fabric Interconnects A - PSUs
To do a password recovery on a Cisco NX-OS Switch, which option shows the correct syntax to display the bootflash contents at the switch(boot)#?
display bootflash:
show bootflash:
dir bootflash:
find bootflash:
Which Cisco NX-OS command displays kernel uptime?
show module
show version
show license
show boot
show interface
Which two commands display the version of Cisco NX-OS code that the device is currently running on? (Choose two.)
show version
show module
show interface
show boot
show license
On the Sensors page from the CIMC view, which four tabs are displayed to view further information? (Choose four.)
Power Supply
Fan
Memory
CPU
LEDs
Temperature
Which three options are the minimum browser requirements to log into the Cisco CIMC GUI? (Choose three.)
Java 1.6 or higher
HTTP and HTTPS enabled
Adobe Flash Player 10 or higher
Internet Explorer version 10
Firefox 26.0
Adobe Shockwave Player 11 or higher
Which tool does a network administrator not need when installing hardware?
cable tester
wrench set
cable wraps
needle-nose pliers
PCMCIA memory
soldering iron with grounded tip
When the Cisco UCS Manager is used to verify the B- or C-Series device, which two types of Overall Status are acceptable and do not indicate a failure? (Choose two.)
Online
OK
Unassociated
Active
