F5 201 Practice Test - Questions Answers, Page 23

Question list

List of questions

Question 221

(0)

Assuming that systems are synchronized, which action could take place if the fail over cable is connected correctly and working properly, but the systems cannot communicate over the network due to e

Question 222

(0)

Which must be sent to the license server to generate a new license?

Question 223

(0)

When initially configuring the BIG-IP system using the config utility, which two parameters can be set? (Choose two.)

Question 224

(0)

A site has six members in a pool. All of the servers have been designed, built, and configured with the same applications. It is known that each client's interactions vary significantly and can affe

Question 225

(0)

The incoming client IP address is 205.12.45.52. The last five connections have been sent to members C, D, A, B, B. Given the virtual server and pool definitions and the statistics shown in the graph

Question 226

(0)

Which two can be a part of a pool's definition? (Choose two.)

Question 227

(0)

What is required for a virtual server to support clients whose traffic arrives on the internal VLAN and pool members whose traffic arrives on the external VLAN?

Question 228

(0)

A standard virtual server has been associated with a pool with multiple members. Assuming all other settings are left at their defaults, which statement is always true concerning traffic processed b

Question 229

(0)

Monitors can be assigned to which three resources? (Choose three.)

Question 230

(0)

A site has assigned the ICMP monitor to all nodes and a custom monitor, based on the HTTP template, to a pool of web servers. The HTTP based monitor is working in all cases. The ICMP monitor is fail

Question 221

Assuming that systems are synchronized, which action could take place if the fail over cable is connected correctly and working properly, but the systems cannot communicate over the network due to external network problems?

If network failover is enabled, the standby system will assume the active mode.

Whether or not network failover is enabled, the standby system will stay in standby mode.

Whether or not network failover is enabled, the standby system will assume the active mode.

If network failover is enabled, the standby system will go into active mode but only until the network recovers.

Show Answer Comment (0)

Question 222

Which must be sent to the license server to generate a new license?

the system's dossier

the system's host name

the system's base license

the system's purchase order number

Show Answer Comment (0)

Question 223

When initially configuring the BIG-IP system using the config utility, which two parameters can be set? (Choose two.)

the netmask of the SCCP

the IP address of the SCCP

the port lockdown settings for the SCCP

the netmask of the host via the management port

the IP address of the host via the management port

the port lockdown settings for the host via the management port

Show Answer Comment (0)

Question 224

A site has six members in a pool. All of the servers have been designed, built, and configured with the same applications. It is known that each client's interactions vary significantly and can affect the performance of the servers.

If traffic should be sent to all members on a regular basis, which loadbalancing mode is most effective if the goal is to maintain a relatively even load across all servers?

Ratio

Priority

Observed

Round Robin

Show Answer Comment (0)

Question 225

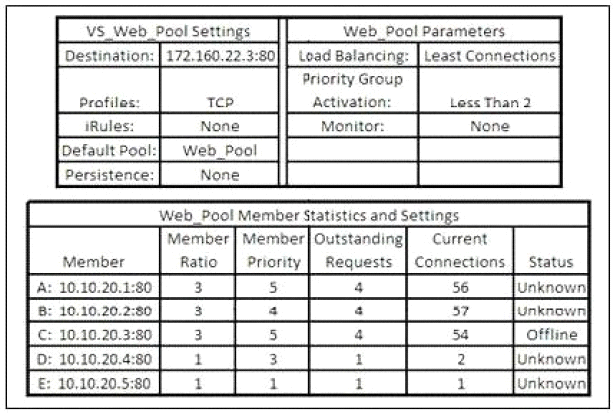

The incoming client IP address is 205.12.45.52. The last five connections have been sent to members C, D, A, B, B. Given the virtual server and pool definitions and the statistics shown in the graphic, which member will be used for the next connection?

10.10.20.1:80

10.10.20.2:80

10.10.20.3:80

10.10.20.4:80

10.10.20.5:80

Show Answer Comment (0)

Question 226

Which two can be a part of a pool's definition? (Choose two.)

rule(s)

profile(s)

monitor(s)

persistence type

loadbalancing mode

Show Answer Comment (0)

Question 227

What is required for a virtual server to support clients whose traffic arrives on the internal VLAN and pool members whose traffic arrives on the external VLAN?

That support is never available.

The virtual server must be enabled for both VLANs.

The virtual server must be enabled on the internal VLAN.

The virtual server must be enabled on the external VLAN.

Show Answer Comment (0)

Question 228

A standard virtual server has been associated with a pool with multiple members. Assuming all other settings are left at their defaults, which statement is always true concerning traffic processed by the virtual server?

The client IP address is unchanged between the client side connection and the serverside connection.

The server IP address is unchanged between the client side connection and the serverside connection.

The TCP ports used in the client side connection are the same as the TCP ports serverside connection.

The IP addresses used in the clientside connection are the same as the IP addresses used in the serverside connection.

Show Answer Comment (0)

Question 229

Monitors can be assigned to which three resources? (Choose three.)

NATs

pools

iRules

nodes

SNATs

pool members

virtual servers

Show Answer Comment (0)

Question 230

A site has assigned the ICMP monitor to all nodes and a custom monitor, based on the HTTP template, to a pool of web servers. The HTTP based monitor is working in all cases. The ICMP monitor is failing for 2 of the pool member 5 nodes.

All other settings are default. What is the status of the monitor is working in all cases?

All pool members are up since the HTTPbased monitor is successful.

All pool members are down since the ICMPbased monitor is failing in some cases.

The pool members whose nodes are failing the ICMPbased monitor will be marked disabled.

The pool members whose nodes are failing the ICMPbased monitor will be marked unavailable.

Show Answer Comment (0)

Total 254 questions
