A network engineer is designing a new wireless network. The network needs to have these characteristics:
Which approach should be taken?
Deploy APs near each other for 5 GHz coverage, and disable the 2A GHz radios for some Aps.
Deploy APs near each other for 2.4 GHz coverage, and disable the 5 GHz radios for all APs.
Deploy APs near each other for 5 GHz coverage, and enable the 2.4 GHz radios for all Aps.
Deploy APs near each other for 2.4 GHz coverage, and disable the 5 GHz radios for some APs.
An enterprise has moved most services to the cloud, including email applications and real-time communication. Which feature must be enabled on the wireless network to improve the user experience?
QoS
Radio management
Interference mitigation
Fast secure roaming
An engineer is designing a network deployment for a college with six buildings Each building must have a WLC located in the IDF to support the APs. The wireless clients should be able to roam between the APs and the controllers. Which type of wireless architecture should be used?
Distributed
Centralized
Cloud
Autonomous
A customer called with a requirement that internal clients must be on different subnets depending on the building they are in. All access points are operating in local mode and will not be modified, and this is a single controller solution. Which design approach creates the desired result?
Create AP groups for each desired location, map the correct VLANs to the internal SSID, and add the access points for that location.
Create an SSID place it to the desired VLAN under WLANs and configure 802.1x in ISE to assign the correct VLAN based on the SSID from which the client is authenticating
Create FlexConnect groups, place the access points in, and set the correct VLAN to SSID mapping based on location.
Create mobility anchors for the SSID and on the controller under the internal SSID create a foreign map to the desired VLAN based on location.
Two cisco 5520 wireless LAN controllers are managing all access points throughout the network. The WLCs are in different locations to provide geographical redundancy a mobility group has been configured on both WLCs and has a UP status on both controllers. The Aps in location A are statically configured to use controller A as the primary and controller B as the secondary. If the WLC in location A goes offline. The Aps successfully join the WLC in location, but they do not fail over to their primary configured controller. Which configuration task fixes the issue?
Configure the WLC in location A as primary using the CAPWAP AP Controller IP Address command on all the location A Access points.
Use DHCP Option 43 and specify WLC in location A as primary.
Enable AP fallback globally on the WLC
Change the AP Failover Priority to critical.
An AP is receiving 802.11 packets on its 802.11a radio with an RSSI value of -77 dBm. The current AP is part of an AP group that has been assigned an RF profile with RX-SOP set to Medium for 802.11
a. Which action does the AP take with the packets?
All frames are classified as non-Wi-Fi frames and are not decoded by the 5 GHz radio.
Frames are decoded by the 2.4 GHz radio.
All frames are classified as non-Wi-Fi frames and are not decoded by the 2.4 GHz radio.
Frames are decoded by the 5 GHz radio.
An engineer must repurpose a lab WLC appliance for use in the production environment of the enterprise. After the new WLC is configured with the information of the other WLC, the mobility tunnels are still not coming up. What is the reason?
A firewall is blocking UDP port 16667 between the WLCs.
The WLC management interfaces are in the same VLAN.
The hardware platform is incompatible.
The mobility groups are different.

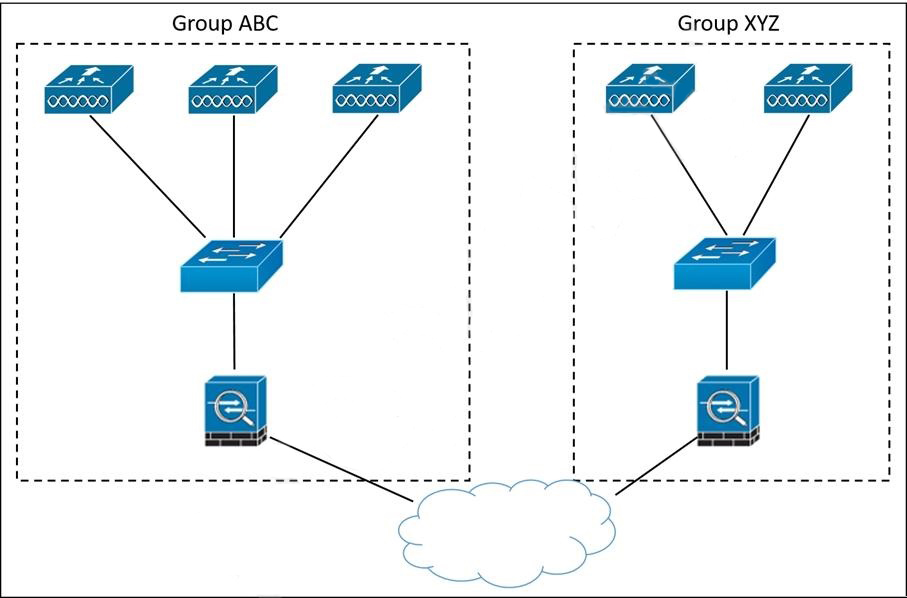

Refer to the exhibit.
An enterprise has offices spread around the globe. The APs are connected to different controllers installed in separate datacenters. The IT team wants to allow clients to roam from controllers in group ABC to controllers in group XYZ. Which feature must be incorporated in the design to accomplish this task?
switch peer group
workgroup bridge
mDNS gateway
mobility lists
An engineer must create a multicampus architecture wireless design to accommodate 4500 access points for wireless data Which model controller the requirements to support all access points on one high availability controller setup?
3504
5508
5520
8540
A wireless network consists of:
* two IOS XE controllers installed in a data center
* 9100 series APs
* corporate and a guest WLAN
The customer must high availability pair two Cisco WLCs for the client SSO. Which two design approaches must the engineer take to meet the requirement? (Choose two.)
The controllers must have the same number of licenses.
Both WLCs must have the same redundancy management IP address.
Both WLCs must have the same service port IP address.
Each WLC must have a unique redundancy management IP address.
The controllers must run the same operating system version.
