Cisco 300-425 Practice Test - Questions Answers, Page 2

List of questions

Question 11

Report Export Collapse

A company has 10 access point licenses available on their backup Cisco WLC and their primary Cisco WLC is at full capacity, 5 access points are set to high failover priority and 7 access points are set to critical failover priority. During a failure, not all critical access points failed over to the backup Cisco WLC. Which configuration is the cause of this issue?

The high priority access point is oversubscribed.

The high priority access point is oversubscribed.

network ap-priority is set to enable.

network ap-priority is set to enable.

The critical priority access point count is oversubscribed.

The critical priority access point count is oversubscribed.

network ap-priority is set to disable.

network ap-priority is set to disable.

Suggested answer: D
Explanation:

https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2016/pdf/BRKCOL-2275.pdf

asked 07/10/2024
HW Yan
50 questions

Question 12

Report Export Collapse

Which UDP port numbers are used for exchange mobility packets in an AireOS wireless deployment?

UDP 16666 for control plane, EoIP (IP protocol 97) for data plane

UDP 16666 for control plane, EoIP (IP protocol 97) for data plane

UDP 16668 for control plane, UDP 16667 for data plane

UDP 16668 for control plane, UDP 16667 for data plane

UDP 16667 for control plane, UDP 16666 for data plane

UDP 16667 for control plane, UDP 16666 for data plane

UDP 16666 for control plane, UDP 16667 for data plane

UDP 16666 for control plane, UDP 16667 for data plane

Suggested answer: A
Explanation:

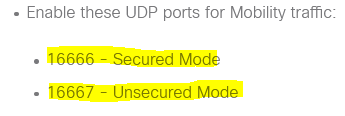

Cisco 300-425 image Question 12 explanation 112150 10072024005848000000

asked 07/10/2024
Robert Miletich
51 questions

Question 13

Report Export Collapse

A customer asks an engineer to explain the concept of mobility domains and mobility groups. Which statement does the engineer respond with?

A mobility group does not constrain the distribution of security context of a client and also does not constrain AP fail-over between controllers when the WLC are in the same mobility domain.

A mobility group does not constrain the distribution of security context of a client and also does not constrain AP fail-over between controllers when the WLC are in the same mobility domain.

If WLCs are in the same mobility domain, they communicate with each other but, if an anchor WLC is present it must be in the same mobility domain for communication to be possible.

If WLCs are in the same mobility domain, they communicate with each other but, if an anchor WLC is present it must be in the same mobility domain for communication to be possible.

If WLCs are in the same mobility domain, they communicate with each other. Mobility groups constrain the distribution of security context of a client and also constrain AP fail-over between controllers.

If WLCs are in the same mobility domain, they communicate with each other. Mobility groups constrain the distribution of security context of a client and also constrain AP fail-over between controllers.

WLCs do not need to be in the same mobility domain to communicate with each other. Mobility groups constrain the distribution of security context of a client and also constrain AP fail-over between controllers.

WLCs do not need to be in the same mobility domain to communicate with each other. Mobility groups constrain the distribution of security context of a client and also constrain AP fail-over between controllers.

Suggested answer: C
Explanation:

https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-0/configuration-guide/b_cg80/b_cg80_chapter_010011.html

asked 07/10/2024
Mathias Gontek
46 questions

Question 14

Report Export Collapse

An engineer is designing a wireless deployment for a university auditorium. Which two features can be used to help deal with the issues introduced by high AP count? (Choose two.)

TSPEC

TSPEC

RXSOP

RXSOP

TPC

TPC

LSS

LSS

DFS

DFS

Suggested answer: C, E
Explanation:

https://www.cisco.com/c/en/us/support/docs/wireless-mobility/80211/200069-Overview-on-802-11h-Transmit-Power-Cont.html

asked 07/10/2024
Javier Portabales
44 questions

Question 15

Report Export Collapse

A wireless engineer is designing a wireless network to support real-time applications over wireless. Which IEEE protocol must the engineer enables on the WLC so that the number of packets that are exchanged between an access point and client are reduced and fast roaming occurs?

802.11w

802.11w

802.11r

802.11r

802.11i

802.11i

802.11k

802.11k

Suggested answer: D
Explanation:

Cisco 300-425 image Question 15 explanation 112153 10072024005848000000

asked 07/10/2024
Luigi Trigilio
46 questions

Question 16

Report Export Collapse

A network administrator of a global organization is collapsing all controllers to a single cluster located in central Europe. Which concern must addressed?

Some channels may not be available consistently across the organization.

Some channels may not be available consistently across the organization.

Different RF policies per office are not available in this configuration.

Different RF policies per office are not available in this configuration.

Syslog must be configured to the time-zone of the NMS platform.

Syslog must be configured to the time-zone of the NMS platform.

Centralized controllers cannot uniformly authenticate global users.

Centralized controllers cannot uniformly authenticate global users.

Suggested answer: A
Explanation:

https://www.cisco.com/c/en/us/td/docs/wireless/controller/technotes/86/b_Cisco_Wireless_LAN_Controller_Configuration_Best_Practices.html

asked 07/10/2024
Komalaharshini Basireddygari
48 questions

Question 17

Report Export Collapse

An engineer must ensure that the new wireless LAN deployment can support seamless roaming between access points using a standard based on an amendment to the 802.11 protocol. Which protocol must the engineer selects?

802.11i

802.11i

802.11ac

802.11ac

802.11r

802.11r

802.11e

802.11e

Suggested answer: C
Explanation:

Cisco 300-425 image Question 17 explanation 112155 10072024005848000000

asked 07/10/2024
Juan Carlos Yepez
38 questions

Question 18

Report Export Collapse

A high-density wireless network is designed. Which Cisco WLC configuration setting must be incorporated in the design to encourage clients to use the 5 GHz spectrum?

Band Select

Band Select

RRM

RRM

Cisco Centralized Key Management

Cisco Centralized Key Management

load balancing

load balancing

Suggested answer: A
Explanation:

Cisco 300-425 image Question 18 explanation 112156 10072024005848000000

asked 07/10/2024
S Tharakanparampil
42 questions

Question 19

Report Export Collapse

A network engineer is preparing for an office site survey with a height of 2.5 meters. Which three components are recommended to complete the survey? (Choose three.)

Use a battery pack to power APs

Use a battery pack to power APs

Use a drawing of the office space to draw AP and client placements.

Use a drawing of the office space to draw AP and client placements.

Use DoS attack on APs while measuring the throughput.

Use DoS attack on APs while measuring the throughput.

Use APs with directional antennas.

Use APs with directional antennas.

Use APs with external antennas.

Use APs with external antennas.

Use APs with built-in antennas.

Use APs with built-in antennas.

Suggested answer: A, B, F
Explanation:

https://www.cisco.com/c/en/us/td/docs/wireless/technology/mesh/8-4/b_mesh_84/Site_Preparation_and_Planning.html#ID3405

asked 07/10/2024
lakshmi govindu
47 questions

Question 20

Report Export Collapse

A wireless engineer must optimize RF performance for multiple buildings with multiple types of construction and user density. Which two actions must be taken? (Choose two.)

Configure Flexconnect groups for each building.

Configure Flexconnect groups for each building.

Configure WMM profiles for each building.

Configure WMM profiles for each building.

Configure AP groups for each area type.

Configure AP groups for each area type.

Configure RF profiles for each area type.

Configure RF profiles for each area type.

Enable DTPC on the network.

Enable DTPC on the network.

Suggested answer: C, D
Explanation:

https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-10/config-guide/b_cg810/configuring_ap_groups.html

asked 07/10/2024
Teste Teste
42 questions
Total 195 questions
Go to page: of 20
