A wireless engineer is hired to design a network for a technology company. The company campus has four buildings and a warehouse with access points that provide full wireless coverage as well as a pair of WLCs located in the core of the network. Which type of wireless architecture is being used?
unified deployment
autonomous deployment
centralized deployment
distributed deployment

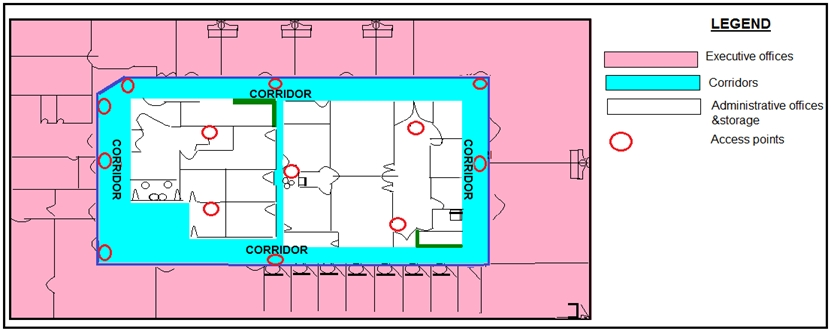

Refer to the exhibit.
What is the main reason why the Wi-Fi design engineer took a different approach than installing the APs in the offices, even though that installation provides better coverage?
aesthetics
transmit power considerations
antenna gain
power supply considerations
Where must the APs be mounted when used in a high-density wireless network to provide 6 dB to 20 dB of attenuation to a cell?
in the aisle
under the seat
above the stage
under the stage
A company wants to replace its existing PBX system with a new VoIP System that will include wireless IP phones. The CIO has concerns about whether the company's existing wireless network can support the new system. Which tool in Cisco Prime can help ensure that the current network will support the new phone system?
Location Readiness
Site Calibration
Map Editor
Voice Readiness
A rapidly expanding company has tasked their network engineer with wirelessly connecting a new cubicle area with Cisco workgroup bridges until the wired network is complete. Each of 42 new users has a computer and VoIP phone. How many APs for workgroup bridging must be ordered to keep cost at a minimum while connecting all devices?
4
5
6
7
Which two considerations must a network engineer have when planning for voice over wireless roaming? (Choose two.)
Full reauthentication introduces gaps in a voice conversation.
Roaming time increases when using 802.1x + Cisco Centralized Key Management.
Roaming occurs when the phone has seen at least four APs.
Roaming occurs when the phone has reached -80 dBs or below.
Roaming with only 802.1x authentication requires full reauthentication.
An engineer is designing a wireless network that will support many different types of wireless clients. When conducting the survey, which client must be used to ensure a consistent experience for all of the wireless clients?
the client that has the highest RF properties
the client that is used most by the company
the client that is used least by the company
the client with the worst RF characteristics

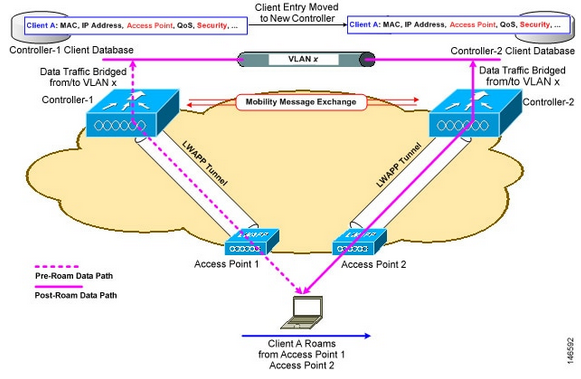

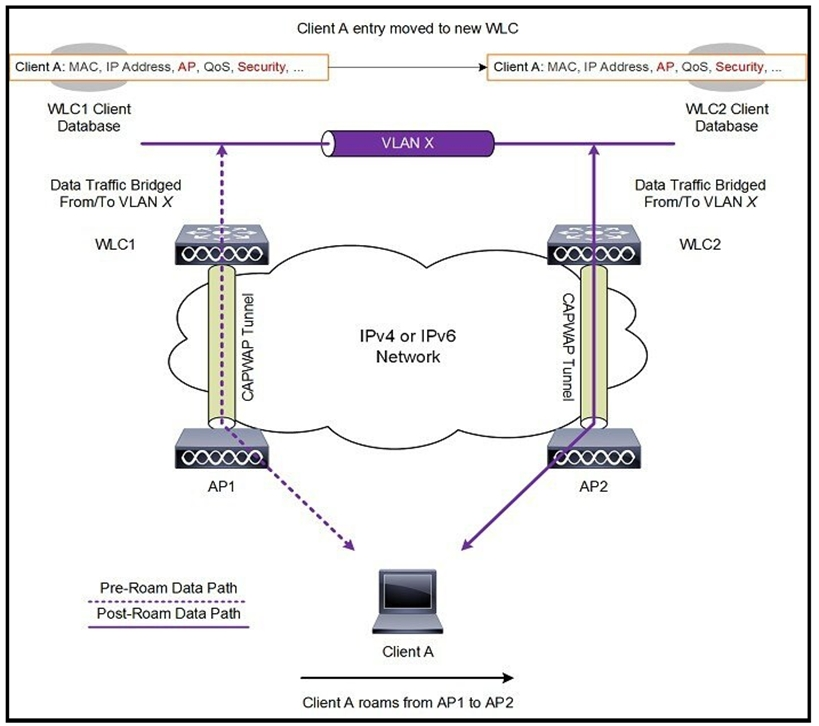

Refer to the exhibit.
A client roams between two APs that are registered to two different controllers, where each controller has an interface in the client subnet. Both controllers are running AireOS. Which scenario explains the client roaming behavior?
Controllers exchange mobility control messages (over UDP port 16666) and the client database entry is moved from the original controller to the new controller.
Controllers do not exchange mobility control messages (over UDP port 16666) andthe client database, entry is not moved from the original controller to the newcontroller.
Controllers exchange mobility control messages (over UDP port 16666) and a new client session is started with the new controller.
Controllers exchange mobility control messages (over UDP port 16666) and the client database entry is tunneled from the original controller to the new controller.
An engineer has performed a predictive site survey for high-speed data and voice in an indoor office. What is the recommended data rate with -67 dBm signal level for optimal VoWLAN design?
6 Mbps on 802.11 bgn
24 Mbps on 802.11 bgn
12 Mbps on 802.11 an
24 Mbps on 802.11 an
An engineer has configured guest anchoring for a newly created SSD however, the mobility tunnels are not up, and EPING is failing from the foreign WLC to the anchor WLC. Which traffic flow must be allowed at the firewall to enable the communication?
UDP port 16666
IP protocol 97
UDP port 97
TCP port 97
