A school deploys a Cisco wireless infrastructure in its classrooms to support a high density of mobile devices. The network administrator wants to bond channels in groups of two and only allow APs to send 802.11 management frames at 24 MB. What should be included in the design to accomplish this objective?
Set the channel width for 802.11b to 40 MHz and set data rates to 24 MB and Mandatory.
Set the channel width for 802.11a to 40 MHz and set data rates to 24 MB and Supported.
Set the channel width for 802.11a to 40 MHz and set data rates to 24 MB and Mandatory.
Set the channel width for 802.11b to 40 MHz and set data rates to 24 MB and Supported.
An engineer designed a new wireless network for an enterprise customer. The customer is concerned that some wireless features may not be available because the bill of materials has only Base and no WPlus licenses for the Cisco WLC version 8. What is the reason for the engineer to take this approach regarding the licenses?
ForceExtend AP needs a WPlus license.
CAPWAP Data Encryption licenses are required for this feature.
All WLC features are available because WPLUS license is now included in the Base license.
To have all the features, plus licenses must be installed on the WLC.
DRAG DROP
A wireless consultant is creating a wireless design for a multistory building. The building will house several groups that will use the wireless network for different operations. Depending on how the wireless network is used, different wireless approach designs must be taken. Drag and drop the services from the left onto the AP density levels on the right based on the wireless deployment requirements.

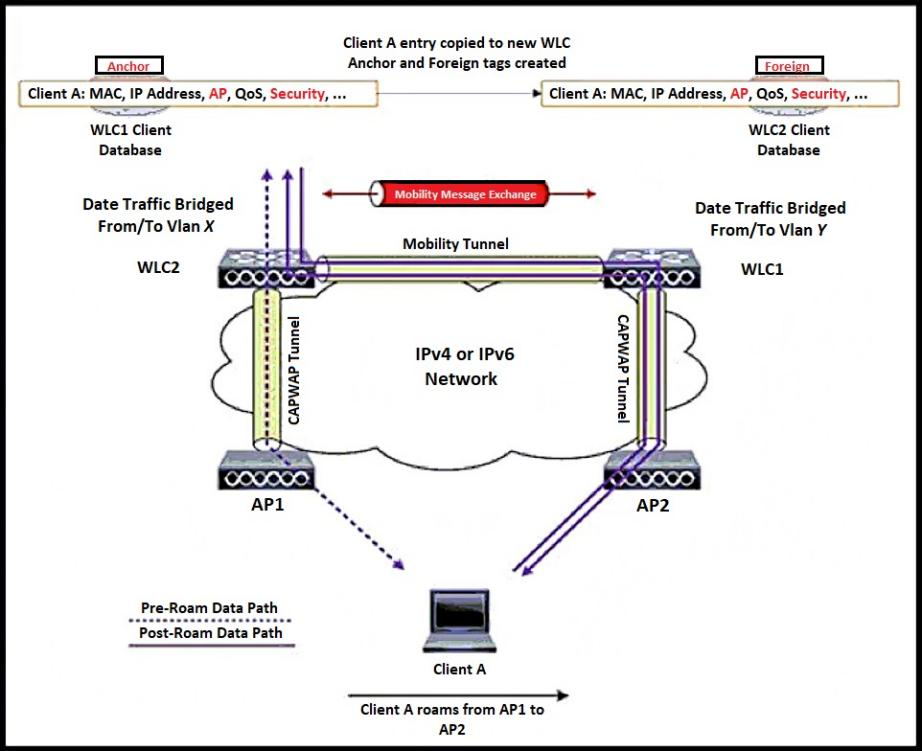

Refer to the exhibit.
Client A is roaming from AP1 on WLC1 to AP2 on WLC2. The client roams between two APs registered to two different controllers. The WLAN on the two controllers is on a different subnet. Which scenario explains the client's roaming behavior?
The client database entry is different than that of Layer 2 roam. (Instead of cop-ying, it moves the database to the new controller.)
The client database entry is different than that of Layer 2 roam. (Instead of mov-ing, it copies the database to the new controller.)
The client database entry is different than that of Layer 2 roam because the cli-ent database is neither moved nor copied into the new controller.
The client database remains in the mobility anchor controller and it is not cop-ied or moved.
An engineer working for an enterprise deployed multiple Cisco WLCs. A controller that sits in the R&D division is connected through a firewall and is part of the same mobility group. The engineer must ensure that the mobility tunneling is available through the firewall and test it as R&D engineers roam the production ..within their department. How is this requirement met?
mapping on UDP port 16666 and mapping on Protocol 96 between management ports
mapping on UDP port 16666 and mapping on Protocol 97 between management ports
mapping on UDP port 16667 and mapping on Protocol 97 between management ports
mapping on UDP port 16667 and mapping on Protocol 96 between management ports
An engineer is designing a solution where guests terminate on an anchor controller in the DMZ. The engineer is having issues and wants to test connectivity between members of a mobility group. Which command must be issued to test whether a mobility control packet is able to be reached over the management interface?
show logging
mapping
mapping
tracert
When a wireless network is designed for location services, how many APs must be heard by each location-ready AP at a signal level of -75 dBm or better?
three APs
no more than three APs
two APs
at least four APs
A company is in the process of relocating to a new force space and ends out that the Internet circuit will not be ready before the move. The new building has a non-Cisco WLAN to which they can connect. The engineer has a 12-port switch and one Cisco autonomous AP and must connect multiple wired devices. Which additional device is needed to get all clients connected over the workgroup bridge?
router
transparent firewall
hub
wireless controller
An engineer is implementing a wireless design for a service provider. The design includes a Catalyst 9800, a stack of two Catalyst 9300X-48HX switches, and 9166 APs. Each AP must be named using the Floor-439412509-01X sting where X is the area number. The engineer wants to connect the APs to the switch stack using POE. How many APs must the engineer connect to the stack so the APs run using full functionalities?
all ports on switch 2 of the stack
all ports on switch 1 of the stack
all ports of the switches
half ports per switch
A customer has a Wi-Fi network that is designed to support video over Wi-Fi. The Wi-Fi network has good coverage; however, video multicast traffic is unreliable. Video multicast traffic is reliable on the wired portion of the network. Which performance value indicates an issue with the Wi-Fi multicast traffic?
jitter
packet error rate
throughput
latency
