Cisco 300-430 Practice Test - Questions Answers, Page 4

Question list

List of questions

Question 31

(0)

Refer to the exhibit. Which two items must be supported on the VoWLAN phones to take full advantage of this WLAN configuration? (Choose two.)

Question 32

(0)

An engineer must use Cisco AVC on a Cisco WLC to prioritize Cisco IP cameras that use the wireless network. Which element do you configure in a rule?

Question 33

(0)

An IT administrator is managing a wireless network in which most devices are Apple iOS. A QoS issue must be addressed on the WLANs. Which configuration must be performed?

Question 34

(0)

What is the Cisco recommended configuration for a Cisco switch port connected to an AP in local mode for optimal voice over WLAN performance with an 8821 wireless phone?

Question 35

(0)

An engineer has configured Media Stream on the WLC and must guarantee at least 2 Mbps stream per user. Which RRC template should the engineer use?

Question 36

(0)

Refer to the exhibit. Which COS to DSCP map must be modified to ensure that voice traffic is tagged correctly as it traverses the network?

Question 37

(0)

Which QoS level is recommended for guest services?

Question 38

(0)

An engineer wants to configure WebEx to adjust the precedence and override the QoS profile on the WLAN. Which configuration is needed to complete this task?

Question 39

(0)

All APs are receiving multicast traffic, instead of only the APs that need it. What is the cause of this problem?

Question 40

(0)

What is the difference between PIM sparse mode and PIM dense mode?

Related questions

Refer to the exhibit. A network architect configured the Cisco Catalyst 9800 Series Controller to find out information on client types in the wireless network. RADIUS profiling is enabled so that the controller forwards the information about clients to a Cisco ISE server through vendor-specific RADIUS attributes. The ISE server is not profiling any data from the controller. Which configuration must be added in the blank in the code to accomplish the profiling on the Cisco 9800 Series controller?

A network engineer needs to configure multicast in the network. The implementation will use multiple multicast groups and PIM routers. Which address provides automatic discovery of the best RP for each multicast group?

After receiving an alert about a rogue AP, a network engineer logs into Cisco Prime Infrastructure and looks at the floor map where the AP that detected the rogue is located. The map is synchronized with a mobility services engine that determines that the rogue device is actually inside the campus. The engineer determines that the rogue is a security threat and decides to stop if from broadcasting inside the enterprise wireless network. What is the fastest way to disable the rogue?

DRAG DROP A wireless engineer wants to schedule monthly security reports in Cisco Prime infrastructure. Drag and drop the report the from the left onto the expected results when the report is generated on the right.

Refer to the exhibit. An engineer needs to configure location services in an office. The requirement is to use FastLocate and achieve higher locations refresh rates. Which location-based technique should be implemented?

A customer is deploying local web authentication. Which software application must be implemented on Cisco ISE to utilize as a directory service?

An IT administrator deployed an OEAP to the home of a remote user, but the OEAP cannot reach the WLC. Which two configuration settings must be completed before an OEAP is deployed successfully? (Choose two.)

A wireless engineer must implement a corporate wireless network for a large company in the most efficient way possible. The wireless network must support 32 VLANs for 300 employees in different departments. Which solution must the engineer choose?

Which two restrictions are in place with regards to configuring mDNS? (Choose two.)

A network engineer created a new wireless network that will be used for guest access. The corporate network must utilize all rates. The guest network must use only lower rates instead of 802.11n data rates. To what must the WMM policy of the WLAN be set to accomplish this task?

Question 31

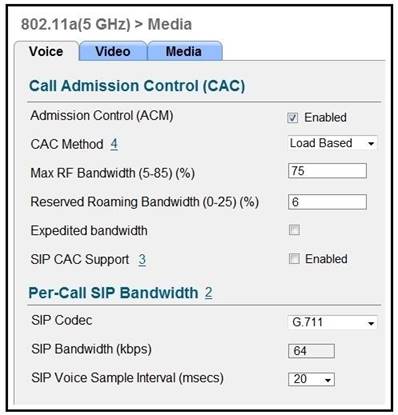

Refer to the exhibit. Which two items must be supported on the VoWLAN phones to take full advantage of this WLAN configuration? (Choose two.)

TSPEC

SIFS

802.11e

WMM

APSD

Show Answer Comment (0)

Question 32

An engineer must use Cisco AVC on a Cisco WLC to prioritize Cisco IP cameras that use the wireless network. Which element do you configure in a rule?

permit-ACL

WMM required

mark

rate-limit

Show Answer Comment (0)

Question 33

An IT administrator is managing a wireless network in which most devices are Apple iOS. A QoS issue must be addressed on the WLANs. Which configuration must be performed?

Enable Fastlane globally under Wireless > Access Points > Global Configuration.

Create a new AVC Profile named AUTOQOS-AVC-PROFILE and apply to all WLANs.

Enable Fastlane under each WLAN setting.

Enable WMM TSPEC/TCLAS negotiation under Wireless > Advanced.

Show Answer Comment (0)

Question 34

What is the Cisco recommended configuration for a Cisco switch port connected to an AP in local mode for optimal voice over WLAN performance with an 8821 wireless phone?

switchport encapsulation dot1q switchport mode trunk mls qos trust device cisco-phone

switchport mode access mls qos trust device cisco-phone

switchport mode access mls qos trust cos

switchport mode access mls qos trust dscp

Show Answer Comment (0)

Question 35

An engineer has configured Media Stream on the WLC and must guarantee at least 2 Mbps stream per user. Which RRC template should the engineer use?

coarse

medium

low

ordinary

Show Answer Comment (0)

Question 36

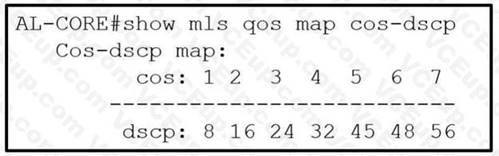

Refer to the exhibit.

Which COS to DSCP map must be modified to ensure that voice traffic is tagged correctly as it traverses the network?

COS of 6 to DSCP 46

COS of 3 to DSCP 26

COS of 7 to DSCP 48

COS of 5 to DSCP 46

Show Answer Comment (0)

Question 37

Which QoS level is recommended for guest services?

gold

bronze

platinum

silver

Show Answer Comment (0)

Question 38

An engineer wants to configure WebEx to adjust the precedence and override the QoS profile on the WLAN. Which configuration is needed to complete this task?

Change the WLAN reserved bandwidth for WebEx

Create an AVC profile for WebEx

Create an ACL for WebEx

Change the AVC application WebEx-app-sharing to mark

Show Answer Comment (0)
