DRAG DROP
Refer to the exhibit. A Cisco ACI fabric is newly deployed, and the security team requires more visibility of all inter EPG traffic flows. All traffic in a VRF must be forwarded to an existing firewall pair. During failover, the standby firewall must continue to use the same IP and MAC as the primary firewall. Drag and drop the steps from the left into the implementation order on the right to configure the service graph that meets the requirements. (Not all steps are used.)
DRAG DROP
An engineer must configure VMM domain integration on a Cisco UCS B-Series server that is connected to a Cisco ACI fabric. Drag and drop the products used to create VMM domain from the bottom into the sequence in which they should be implemented at the top. Products are used more than once.
DRAG DROP
An engineer must configure RADIUS authentication with Cisco ACI for remote authentication with out-of-band management access. Drag and drop the RADIUS configuration steps from the left into the required implementation order on the right. Not all steps are used.
A customer creates Layer 3 connectivity to the outside network. However, only border leaf switches start receiving destination updates to other networks from the newly created L3Out. The updates must also be propagated to other Cisco
ACI leaf switches. The L3Out is linked with the EPGs via a contract. Which action must be taken in the pod policy group to accomplish this goal?
Apply a BGP route reflector policy.
Enable a COOP policy.
Configure an IS-IS policy.
Implement an access management policy.
A network administrator configures AAA inside the Cisco ACI fabric. The authentication goes through the local users if the TACACS+ server is not reachable. If the Cisco APIC is out of the cluster, the access must be granted through the fallback domain. Which configuration set meets these requirements?
Ping Check: True
Default Authentication Realm: Local
Fallback Check: True
Ping Check: True
Default Authentication Realm: TACACS+
Fallback Check: False
Ping Check: False
Default Authentication Realm: Local
Fallback Check: False
Ping Check: False
Default Authentication Realm: TACACS+
Fallback Check: True
A Cisco ACI environment consists of multiple silent hosts that are often relocated between leaf switches. When the host is relocated, the bridge domain takes more than a few seconds to relearn the host’s new location. The requirement is to minimize the relocation impact and make the ACI fabric relearn the new location of the host faster. Which action must be taken to meet these requirements?
Set Unicast Routing to Enabled.
Configure ARP Flooding to Enabled.
Set L2 Unknown Unicast to Hardware Proxy.
Configure IP Data-Plane Learning to No.
Refer to the exhibit.

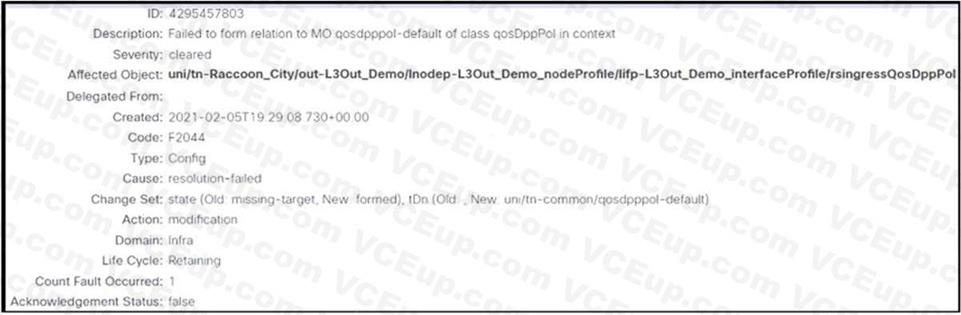

Refer to the exhibit. An engineer configures an L3Out but receives the error presented. Which action clears the fault?
Acknowledge the QoS-related error.
Associate a custom QoS class.
Create a custom QoS policy.
Set the QoS policy to Level 3.
A customer must upgrade the Cisco ACI fabric to use a feature from the new code release. However, there is no direct path from the current release to the desired one. Based on the Cisco APIC Upgrade/Downgrade Support Matrix, the administrator must go through one intermediate release.
Which set of steps must be taken to upgrade the fabric to the new release?
Upgrade the APICs to an interim release.
Upgrade the switches to an interim release.
Upgrade the APICs to the targeted release.
Upgrade the leaf and spine switches to the targeted release.
Upgrade the APICs to an interim release and then switches to an interim release.
When all switches are operational, upgrade leaf switches to the targeted release.
Upgrade the spine switches to the targeted release.
Upgrade the APICs to the targeted release.
Upgrade the APICs to an interim release.
Upgrade the leaf switches directly to the targeted release.
Upgrade the spine switches directly to the targeted release.
Upgrade the APICs to the targeted release.
Upgrade the APICs directly to the targeted release.
Upgrade the switches to an interim release.
When all switches are operational, upgrade the leaf switches to the targeted release.
Upgrade the spine switches to the targeted release.
Refer to the exhibit.

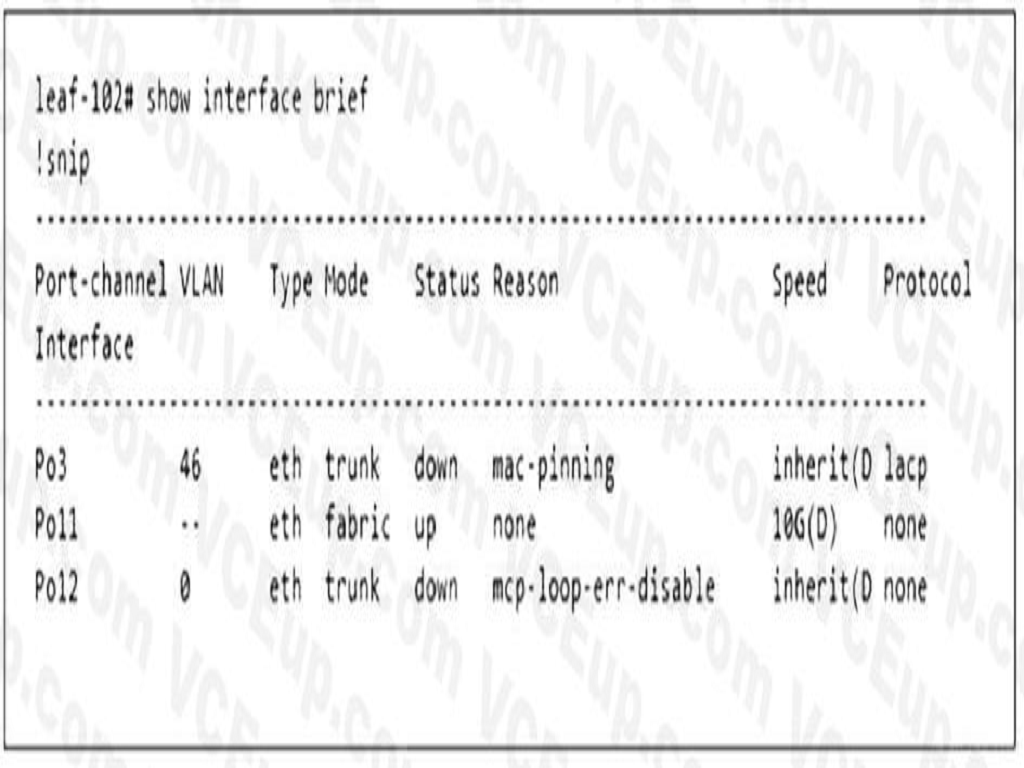

Refer to the exhibit. Which two configuration steps are completed before this output is generated?
(Choose two.)
MCP policy for the interface policy group for Port-channel 12 is enabled.
MCP Instance Policy default in the global access policies is enabled.
Error Disabled Recovery Policy for Loop Indication by MCP is set to True.
BPDU Guard is enabled for the interface policy group for Port-channel 12.
Spanning Tree Policy Region STP_4CAF232E48FF20 is added to the spanning-tree policy of the switch.
The customer is looking for redundant interconnection of the existing network to the new ACI fabric.
Unicast and multicast traffic must be routed between the two networks. Which L3Out implementation meets these requirements?
