Nokia 4A0-104 Practice Test - Questions Answers, Page 21

Question list

List of questions

Question 201

(0)

Click the exhibit. This output is from router R4. Service 333 is a VPLS. Why might the peer 10.10.10.1 have the same value for IngLbl and EgrLbl?

Question 202

(0)

A customer has sites on three different Nokia 7750 SRs. The customer requires a fully-meshed VPLS. Which of the following is TRUE?

Question 203

(0)

Which of the following about Hierarchical VPLS is FALSE?

Question 204

(0)

By default, what does the Nokia 7750 SR do when a frame with an unknown destination address is received in a VPLS?

Question 205

(0)

On an Nokia 7750 SR, which of the following about a VPLS is FALSE?

Question 206

(0)

Click the exhibit. E-pipe 100 is using an SDP (4) with an LSP that uses the path shown (PE1-PE2-PE3-PE4). Which of the following is the expected output from the OAM command?

Question 207

(0)

Click the exhibit. PE1 and PE2 are Nokia 7750 SRs. Which of the following is the missing configuration required on PE2 to complete the mirror?

Question 208

(0)

Click the exhibit. Which tool produced this output?

Question 209

(0)

Click the exhibit. An operator at PE1 wants to analyze the traffic between CE1 and PE1 on SAP 1/1/3, On an Nokia 7750 SR, which of the following is NOT required as part of the configuration?

Question 210

(0)

Which of the following about the label stack of a VPRN is FALSE?

Question 201

Click the exhibit. This output is from router R4. Service 333 is a VPLS. Why might the peer 10.10.10.1 have the same value for IngLbl and EgrLbl?

The labels are of local significance only, so other routers can use the same value.

10.10.10.1 has yet to send its own unique label.

Router R4 is using the same tunnel to send and receive to 10.10.10.1.

The service on 10.10.10.1 is down, so it is rejecting packets.

Show Answer Comment (0)

Question 202

A customer has sites on three different Nokia 7750 SRs. The customer requires a fully-meshed VPLS. Which of the following is TRUE?

Each router requires 1 SDP.

Each router requires 2 SDPs.

Each router requires 3 SDPs.

Each router requires 6 SDPs.

Show Answer Comment (0)

Question 203

Which of the following about Hierarchical VPLS is FALSE?

They allow a VPLS to scale more easily.

They use mesh SDPs to connect smaller VPLSes together.

They allow a service to span multiple metro networks.

They simplify the configuration required when adding new PEs.

Show Answer Comment (0)

Question 204

By default, what does the Nokia 7750 SR do when a frame with an unknown destination address is received in a VPLS?

It drops the frame.

It floods the frame to all PEs participating in the service.

It sends a destination unreachable message back to the originating host.

It sends the frame to the closest neighbor.

Show Answer Comment (0)

Question 205

On an Nokia 7750 SR, which of the following about a VPLS is FALSE?

By default, the VC ID on the mesh SDPs of a VPLS are set to the service ID.

A VPLS appears to the customer as a direct Ethernet connection.

Mesh SDPs are used for VPLSes to avoid loops.

By default, T-LDP is used for signaling service labels.

Show Answer Comment (0)

Question 206

Click the exhibit.

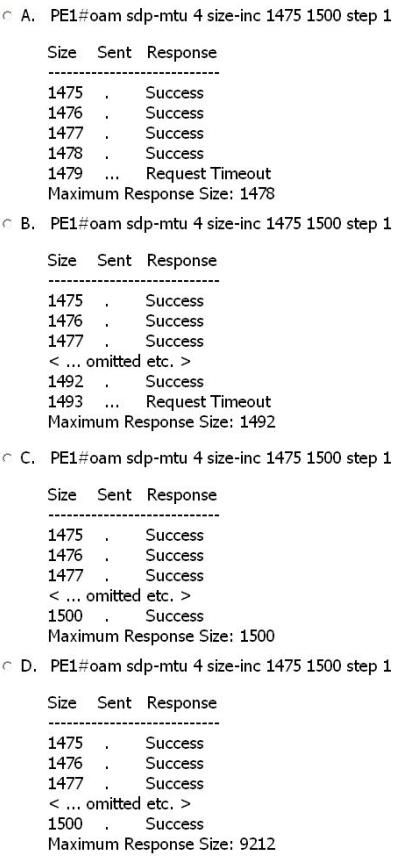

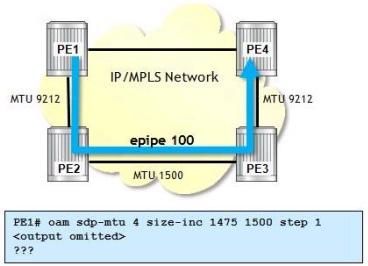

E-pipe 100 is using an SDP (4) with an LSP that uses the path shown (PE1-PE2-PE3-PE4). Which of the following is the expected output from the OAM command?

Option A

Option B

Option C

Option D

Show Answer Comment (0)

Question 207

Click the exhibit.

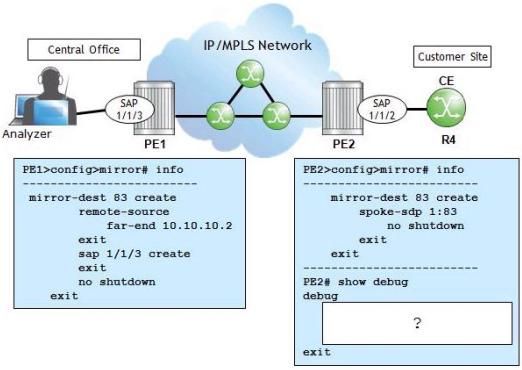

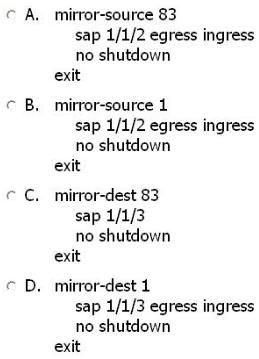

PE1 and PE2 are Nokia 7750 SRs. Which of the following is the missing configuration required on PE2 to complete the mirror?

Option A

Option B

Option C

Option D

Show Answer Comment (0)

Question 208

Click the exhibit.

Which tool produced this output?

mac-trace

svc-ping

Isp-trace

traceroute

Show Answer Comment (0)

Question 209

Click the exhibit.

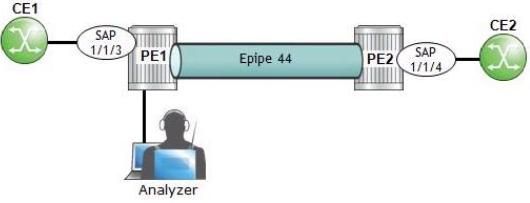

An operator at PE1 wants to analyze the traffic between CE1 and PE1 on SAP 1/1/3, On an Nokia 7750 SR, which of the following is NOT required as part of the configuration?

A mirror source with a defined source type.

A mirror source defined with an SDP destination.

A mirror destination with a SAP defined.

A mirror destination and a mirror source with the same service ID.

Show Answer Comment (0)
