Question 211

Report
Export
Collapse

The SAP 1/1/1:2.3 receives an Ethernet frame with outer VLAN tag 2 and inner VLAN tag 5. Which of the following is TRUE?

A.
The matching outer tag is removed, and the frame is forwarded.
A.
The matching outer tag is removed, and the frame is forwarded.
Answers
B.
The inner tag is removed, and the frame is forwarded.
B.
The inner tag is removed, and the frame is forwarded.
Answers
C.
The inner tag is changed to match the SAP, and the frame is forwarded.
C.
The inner tag is changed to match the SAP, and the frame is forwarded.
Answers
D.
The frame is dropped.
D.
The frame is dropped.
Answers
Suggested answer: D

Question 212

Report
Export
Collapse

Which of the following SAPs can be used so that only untagged frames and frames with a VLAN tag of 0 are accepted?

A.
sap 1/1/1:0
A.
sap 1/1/1:0
Answers
B.
requires both sap 1/1/1:0 and sap 1/1/1:*
B.
requires both sap 1/1/1:0 and sap 1/1/1:*
Answers
C.
sap 1/1/1:0-4096
C.
sap 1/1/1:0-4096
Answers
D.
sap 1/1/1:*
D.
sap 1/1/1:*
Answers
Suggested answer: A

Question 213

Report
Export
Collapse

Which of the following SAPs will forward all tagged and untagged frames on the port?

A.
sap 1/1/1
A.
sap 1/1/1
Answers
B.
sap 1/1/1:*.0
B.
sap 1/1/1:*.0
Answers
C.
sap 1/1/1:0.*
C.
sap 1/1/1:0.*
Answers
D.
1/1/1:0
D.
1/1/1:0
Answers
Suggested answer: A

Question 214

Report
Export
Collapse

An SDP using MPLS encapsulation is configured for an E-pipe service. The network port on the Nokia 7750 SR used by the SDP has an MTU of 8000. What is the SDP path MTU?

A.
7958
A.
7958
Answers
B.
7978
B.
7978
Answers
C.
8022
C.
8022
Answers
D.
8042
D.
8042
Answers
Suggested answer: B

Question 215

Report
Export
Collapse

Which of the following about configuring a distributed E-pipe service is TRUE?

A.
The VC ID on the mesh SDP must be explicitly configured.
A.
The VC ID on the mesh SDP must be explicitly configured.
Answers
B.
The VC ID on the spoke SDP must be explicitly configured.
B.
The VC ID on the spoke SDP must be explicitly configured.
Answers
C.
The VC ID on the mesh SDP does not have to be explicitly configured and it will use the service id.
C.
The VC ID on the mesh SDP does not have to be explicitly configured and it will use the service id.
Answers
D.
The VC ID on the spoke SDP does not have to be explicitly configured and it will use the service id.
D.
The VC ID on the spoke SDP does not have to be explicitly configured and it will use the service id.
Answers
Suggested answer: B

Question 216

Report
Export
Collapse

Which of the following best describes a MAC FDB used by a VPLS service?

A.
A VPLS service does not use a MAC FDB.
A.
A VPLS service does not use a MAC FDB.
Answers
B.
A single MAC FDB is shared by all VPLS services on a PE.
B.
A single MAC FDB is shared by all VPLS services on a PE.
Answers
C.
A separate MAC FDB is used on the PE for each VPLS service.
C.
A separate MAC FDB is used on the PE for each VPLS service.
Answers
D.
Each VPLS service uses a separate MAC FDBs for unicast and multicast traffic.
D.
Each VPLS service uses a separate MAC FDBs for unicast and multicast traffic.
Answers
Suggested answer: C

Question 217

Report
Export
Collapse

Which of the following about the Nokia 7750 SR svc-ping, when used in-band, is FALSE?

A.
It will show the hops taken between service endpoints.
A.
It will show the hops taken between service endpoints.
Answers
B.
It will test the delay across the service.
B.
It will test the delay across the service.
Answers
C.
It will test the SDPs of a service in both directions.
C.
It will test the SDPs of a service in both directions.
Answers
D.
It will test the round-trip connectivity of the service.
D.
It will test the round-trip connectivity of the service.
Answers
Suggested answer: A

Question 218

Report
Export
Collapse

Which of the following best describes the flooding of traffic on a PE when unknown traffic is received on a SAP of a VPLS?

A.
Traffic is flooded to all SAPs in the service.
A.
Traffic is flooded to all SAPs in the service.
Answers
B.
Traffic is flooded to all SAPs and spoke SDPs in the service.
B.
Traffic is flooded to all SAPs and spoke SDPs in the service.
Answers
C.
Traffic is flooded to all SAPs and mesh SDPs in the service.
C.
Traffic is flooded to all SAPs and mesh SDPs in the service.
Answers
D.
Traffic is flooded to all SAPs, spoke SDPs, and mesh SDPs in the service.
D.
Traffic is flooded to all SAPs, spoke SDPs, and mesh SDPs in the service.
Answers
E.
The traffic is not flooded.
E.
The traffic is not flooded.
Answers
Suggested answer: D

Question 219

Report
Export
Collapse

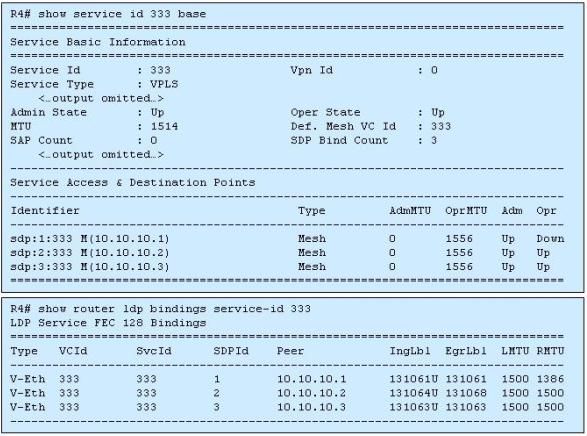

Click the exhibit.

Both clips of output are from router R4. The show service command indicates that an SDP is down. What might be the cause?

A.
The mesh SDP on router R4 has been shutdown.
A.
The mesh SDP on router R4 has been shutdown.
Answers
B.
The mesh SDP on 10.10.10.1 has been shutdown.
B.
The mesh SDP on 10.10.10.1 has been shutdown.
Answers
C.
The service MTU on 10.10.10.1 has been set to a different value.
C.
The service MTU on 10.10.10.1 has been set to a different value.
Answers
D.
The IngLbl and EgrLbl that router R4 has for 10.10.10.1 are identical.
D.
The IngLbl and EgrLbl that router R4 has for 10.10.10.1 are identical.
Answers
Suggested answer: C

Question 220

Report
Export
Collapse

How many service labels must be signaled to bring up a fully-meshed VPLS among five PE routers?

A.
1
A.
1
Answers
B.
5
B.
5
Answers
C.
10
C.
10
Answers
D.
20
D.
20
Answers
Suggested answer: D
