Avaya 7230X Practice Test - Questions Answers, Page 7

Question list

List of questions

Question 61

(0)

Avaya Aura® Messaging (AAM) needs to communicate with Avaya Aura® Session Manager (SM) whose identity certificates have been signed by Avaya Aura® System Manager (SMGR) Certificate Authority (CA).

Question 62

(0)

What is the way to check the version of Presence Services snap-in installed on the Avaya Breeze™ platform?

Question 63

(0)

Which method can be used to verify the Client and TSAPI services have been administered correctly?

Question 64

(0)

After upgrading Avaya Aura® Application Enablement Services (AES), the customer’s CTI application does not seem to be working. Which two methods can be used to verify AES system status? (Choose two.

Question 65

(0)

Refer to the exhibit. In the Cluster Administration screen of a PresenceServices cluster, when you try to change the cluster state to Accept New Service, you receive the error: Servers that are

Question 66

(0)

How can you enable all levels of the log, including debug, to be dumped into the ps.log file?

Question 67

(0)

Where can an administrator go to validate the Breeze/WebRTC cluster is synchronized to Avaya Aura® System Manager (SMGR)?

Question 68

(0)

Which statement about Instant Message and Presence delivery to a SIP Remote Worker is true?

Question 69

(0)

In Avaya Aura® 7, how are calls typically routed from Avaya Aura® Communication Manager (CM) to Avaya Aura® Messaging (AAM)?

Question 70

(0)

In which way can you verify that STUN/TURN messages are being received from web browser at the Avaya Session Border Controller for Enterprise (SBCE)?

Related questions

A customer reports that Instant Messaging (IM) and Presence are not working for one or two users. Where would you go to check that IM and Presence have been enabled for the affected users?

A customer reports that none of their users can IM or see each other’s presence. After troubleshooting you discover that default gateway of the Avaya Breeze ™ SM100 has the wrong IP Address in the configuration. Where would you go to correct this problem?

Refer to the exhibit. In the Cluster Administration screen of a PresenceServices cluster, when you try to change the cluster state to Accept New Service, you receive the error: Servers that are not in License Restricted mode assigned to the cluster are below the Minimum number of required servers. You check that a server has been administered under Engagement Development Platform > Server Administration which shows green check under License Mode, and a System State of Denying. Which action needs to be taken to solve this problem?

After Avaya Aura® Messaging (AAM) answers a call Avaya Aura® Communication Manager (CM) will initiate a shuffle of the media path if possible to establish a direct media path between the IP endpoint and AAM. Which SIP message is sent by Avaya Aura® Communication Manager (CM) to AAM to initiate the shuffle?

When Avaya Session Border Controller for Enterprise (SBCE) initially receives the message from a SIP endpoint wanting to update their Presence status, which operation does it perform?

Considering the message flow to an Avaya Aura® Contact Centre (AACC) Agent Desktop, which protocol is used to communicate between Avaya Aura® Communication Manager (CM) and Avaya Aura® Application Enablement Services (AES)?

Callers hear a fast busy when they dial into Avaya Aura® Messaging (AAM) to retrieve their voicemail messages. After troubleshooting you discover that someone has left trunks in busy-out state on AAM. How would you restore the trunks to in-service status?

Incoming SIP Trunking calls from Service Provider to Session Manager are failing because Avaya Session Border Controller for Enterprise (SBCE) is not sending a domain name in the TO, FROM and REQUEST headers. What needs to be changed in SBCE to make this happen?

In which way can you check if the Avaya Aura® Messaging (AAM) server is using the correct certificate?

To validate the initial system status of Breeze with the WebRTC Snap-I, which two components should be checked? (Choose two.)

Question 61

Avaya Aura® Messaging (AAM) needs to communicate with Avaya Aura® Session Manager (SM) whose identity certificates have been signed by Avaya Aura® System Manager (SMGR) Certificate Authority (CA).

How does AAM get a copy of the Trusted SMGR CA Certificate?

The certificate is retrieved from SMGR automatically when AAM services are started.

The certificate needs to be manually installed.

The certificate installs as a result of running ‘initTM –f’.

The certificate installs as a result of the enrollment process.

Show Answer Comment (0)

Question 62

What is the way to check the version of Presence Services snap-in installed on the Avaya

Breeze™ platform?

Using Avaya Aura® System Manager (SMGR) Navigate to Elements > Engagement Development Platform > Server Administration, and read the Version displayed.

Using Avaya Aura® System Manager (SMGR) Navigate to Elements > Engagement Development Platform > Server Management, and read the Version displayed.

Using PuTTY SSH to the Avaya Breeze™ platform, login as cust, then execute the swversion command.

Using PuTTY SSH to the Avaya Breeze™ platform, login as cust, then execute the swversion– PresenceServices command.

Show Answer Comment (0)

Question 63

Which method can be used to verify the Client and TSAPI services have been administered correctly?

The TSAPI test is call initiated from CTI endpoints using SIP telephones.

The TSAPI test is call initialed from within Avaya Aura® Communication Manager (CM) command line using the test TSAPI interface command.

The TSAPI test is call initiated within the TSAPI web interface > TSAPI Monitoring Tool menu.

The TSAPI test is call initiated within the Utilities > Diagnostics > AE ServiceTSAPI Test menu.

Show Answer Comment (0)

Question 64

Access the TSAPI web interface to monitor AES.

Access the AES command line, and run the status aesvcs cti-link command.

Access the AES web console, and view the services status in the AES menu.

Access Communication Manager (SAT), and run the statapp command to view AES services status.

Using Communication Manager’s System Administration Terminal (SAT), run the status aesvcs cti-link command to see the service state.

Show Answer Comment (0)

Question 65

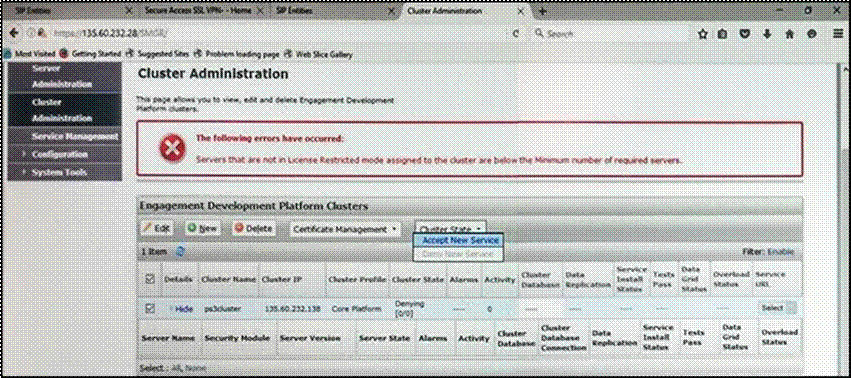

Refer to the exhibit.

In the Cluster Administration screen of a PresenceServices cluster, when you try to change the cluster state to Accept New Service, you receive the error:

Servers that are not in License Restricted mode assigned to the cluster are below the Minimum number of required servers.

You check that a server has been administered under Engagement Development Platform > Server Administration which shows green check under License Mode, and a System State of Denying.

Which action needs to be taken to solve this problem?

Edit the Cluster, access the Servers tab, and assign the server to the cluster; then set the cluster to Accept New Service.

Under Engagement Development Platform > Server Administration, select the server and change the System State to Accept New Service, then return to the Cluster Administration screen and set the cluster to Accept New Service.

Obtain and install an Avaya Breeze™ license on webLM with more instances of Avaya Breeze™ nodes.

Edit the cluster to change the cluster profile from Core Platform to General Purpose.

Show Answer Comment (0)

Question 66

How can you enable all levels of the log, including debug, to be dumped into the ps.log file?

Web browse to Avaya Aura® System Manager (SMGR), navigate to Services > Events > Logs > Log Settings, then enter PresenceServices into the Logger filed, and enter ALL into Log Level.

Use SSH to the PresenceServices Avaya Breeze™ node and execute the ce dlogon PresenceServices command.

Use SSH to the PresenceServices Avaya Breeze™ node and execute the edp dlogon all command.

Use SSH to Avaya Aura® System Manager (SMGR) and execute the edp dlogon all command.

Show Answer Comment (0)

Question 67

Where can an administrator go to validate the Breeze/WebRTC cluster is synchronized to Avaya Aura® System Manager (SMGR)?

the Duplication menu in SMGR web interface

the Replication menu in WebRTC web interface

the Synchronization menu in Breeze web interface

the Replication menu in SMGR web interface

Show Answer Comment (0)

Question 68

Which statement about Instant Message and Presence delivery to a SIP Remote Worker is true?

IM is sent/from to a Remote Worker via Session Manager and SBCE; Presence notifications are relayed from Breeze to Remote Worker via SBCE but without passing through Session Manager.

Presence and IM is delivered to SIP Remote Workers without passing through Session Manager.

Presence notifications and IM are sent to a Remote Worker via Session Manager and Avaya SBCE.

Presence notifications are sent to a Remote Worker via Session Manager and SBCE; IM is relayed from Breeze to Remote Worker via SBCE but without passing through Session Manager.

Show Answer Comment (0)

Question 69

In Avaya Aura® 7, how are calls typically routed from Avaya Aura® Communication Manager (CM) to Avaya Aura® Messaging (AAM)?

Using an in-directly routed H.323 trunk group between CM and AAM via Session Manager

Using a direct H323 trunk group between CM and AAM.

Using SIP via Avaya Aura® Session Manager (SM), AAM is built as a user with a Communication Profile and registry routing forwards the calls to AAM.

Using SIP via Avaya Aura® Session Manager (SM), a dial pattern or regular expression forwards the call to AAM.

Show Answer Comment (0)

Question 70

In which way can you verify that STUN/TURN messages are being received from web browser at the Avaya Session Border Controller for Enterprise (SBCE)?

Enable traceFM with the STUN/TURN option enabled.

Enable traceSBC with the STUN/TURN option enabled.

Enable traceHTTP with the STUN/TURN option enabled.

Enable debug logging on SBCE and look in ipcs.log.

Show Answer Comment (0)
