HP HPE6-A69 Practice Test - Questions Answers, Page 5

Question list

List of questions

Question 41

(0)

The example ACL is used with Aruba CX 6400 switches to permit traffic to web servers configured on interface 1/1/1 inbound with IP 10.254.4.1/24. How does this ACL affect the HTTPS traffic to des

Question 42

(0)

You have designed a new wired solution for a customer that uses gateways and Dynamic Segmentation Which statements about User-Based Tunneling are true? (Select two)

Question 43

(0)

With the given access-list: Which statement is true about hardware resource consumption of this ACL?

Question 44

(0)

What are two valid steps in a Proof of Concept plan? (Select two)

Question 45

(0)

With the given topology, the customer Has ArubaOS-CX 6300 switches and Aruba Gateway in use. What is required for the client traffic to be tunneled as per best practice between the connected swit

Question 46

(0)

Refer to the exhibit. A customer has implemented this ArubaOS-CX solution. NetEdit is not present. After a while, the secondary node of the VSX-cluster fails. What is the correct procedure to rep

Question 47

(0)

(Scenarios may contain multiple errors which may or may not Impact the solution) Refer to the exhibit. An engineer has attempted to configure two pairs of switches in the referenced configuration

Question 48

(0)

A customer wants to verify the proposed configuration snippets to create a point-to-point link between Aruba Switch and a third-party switch. Will this configuration work with static routing?

Question 49

(0)

You are working with a customer whos has a paw of Aruba 8325 switches configured for Multi- Chassis Link Aggregation The customer is complaining that users are experiencing intermittent packet drops

Question 50

(0)

How Is voice Traffic prioritized correctly on ArubaOS-CX switches?

Related questions

A customer wants to implement a new Aruba 6300M 48-port iGbE Class 4 PoE and d-port SFP56 Switch solution. The customer wants to automatically provision devices, connected to the switch with correct settings. VoIP phones need to be placed in VLAN 10, send out traffic with a VLAN tag. The phone is LLDP-MED capable How can you accomplish this with the least amount of administrative effort? A) B) C) D)

With the given topology, the customer Has ArubaOS-CX 6300 switches and Aruba Gateway in use. What is required for the client traffic to be tunneled as per best practice between the connected switch port and the Aruba Gateway'' (Select two.)

Which statements are true with regards to Strict Priority scheduling? (Select two.)

(Scenarios may contain multiple errors which may or may not impact the solution) Refer to the Exhibit. An engineer has attempted to configure two pairs of switches m the referenced configuration it Is required to implement Multi-Chassis Link Aggregation for each pair of switches The ports of the Aruba 8325 switches used for Agg01 and Agg02 are populated as follows The configuration includes: There is an error message stating "mismatched group speed" What should you add to the configuration to correct the error?

The customer is considering Implemented the following VSX configuration that will host an Aruba mobility cluster servicing 9000 dual stack employee devices. The client's default gateways will be hosted on the VSX stack. The customer is seeking advice about how to ensure ArubaOS-CX VSX best practices have been applied. What advice can you offer the customer? (Select two)

Refer to the exhibit. Aruba CX 6300 switch has routes in three different VRFs as per the example above. The user needs to leak routes between VRF Secure and VRF Dev. and also between VRF default and VRF Dev The customer Is not able to establish routing between directly connected networks 10.100.50.0/24 and 10.102.26.0/24 Which statement is true regarding the routing troubleshooting?

A customer with an ArubaOS-CX 6300M switch is having a performance issue on the network and has received complaints about users experiencing intermittent connectivity. After performing troubleshooting it is determined that many of the local websites on the LAN that users are unable to reach are resolved to an invalid MAC address What are the minimum steps that should be performed to mitigate this condition? (Select two.)

The customer is implementing new ArubaOS-CX 6300 switches into an environment that has thirdparty switches and uses centralized authentication from Microsoft Active Directory and TACACS* servers What would be a valid configuration requirement for ArubaOS-CX switches for centralized user authentication?

Refer to the exhibit. • For all traffic within VLAN 10. a remark action or DSCP value EF must be set • For all traffic exiting VLAN 10, a remark action of DSCP value AF41 must be set Which is the correct configuration? A) B) C) D)

Question 41

The example ACL is used with Aruba CX 6400 switches to permit traffic to web servers configured on interface 1/1/1 inbound with IP 10.254.4.1/24.

How does this ACL affect the HTTPS traffic to destination 10.254.4.7 from a client 10.253.1.5 viainterface 1/1/2 with IP 10 254.3.1/24?

The ACL would be valid only if bound to 1/1/2 outbound.

The implicit rule allows the traffic

The implicit rules deny the traffic.

The traffic is allowed when ACL is Pound to inbound traffic.

Show Answer Comment (0)

Question 42

You have designed a new wired solution for a customer that uses gateways and Dynamic Segmentation Which statements about User-Based Tunneling are true? (Select two)

In U8T, the switch performs user authentication.

in UBT, the Aruba Gateway performs user authentication

UBT is supported only with Aruba Gateway standalone

in UBT, the switch sends user role Information to Aruba Gateway

In UBT, the Aruba Gateway assigns the Primary user role

Show Answer Comment (0)

Question 43

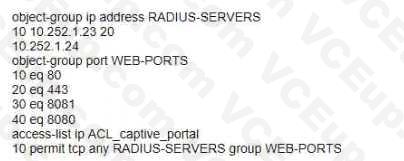

With the given access-list:

Which statement is true about hardware resource consumption of this ACL?

The ACL consumes a total of 2 entries

The ACL consumes a total of 4 entries.

The ACL consumes a total of 6 entries.

The ACL consumes a total of 8 entries.

Show Answer Comment (0)

Question 44

What are two valid steps in a Proof of Concept plan? (Select two)

Development of the items to Be tested

Engineering a proposed solution

Definition of success criteria

Acceptance of the proposed solution

Show Answer Comment (0)

Question 45

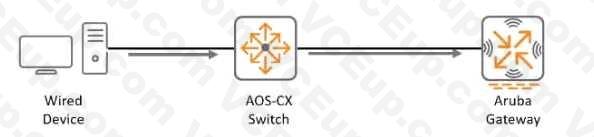

With the given topology, the customer Has ArubaOS-CX 6300 switches and Aruba Gateway in use.

What is required for the client traffic to be tunneled as per best practice between the connected switch port and the Aruba Gateway'' (Select two.)

IP Protocol 6 should not be blocked on me datapath

IP Protocol 47 should not be blocked in the data-path

The ArubaOS-CX switch and Aruba gateway should have an end-to-end MacSec connection

The ArubaOS-CX switch and Aruba gateway should be EBGP peers.

Change the default MTU on the data-path between the switch and gateway

Show Answer Comment (0)

A customer has implemented this ArubaOS-CX solution. NetEdit is not present. After a while, the secondary node of the VSX-cluster fails. What is the correct procedure to replace the failed node as quickly as possible?

Replace the failed unit, boot up the new node without connecting cables, upgrade firmware and configure as secondary vsx node connect iSl and wart for VSX to synchronize After successful recovery, reconnect the remaining cables.

Replace the failed unit, boot up the new node without connecting cables, upgrade firmware, and restore and save config Shutdown all ports, reconnect the correct cables, and enable all ports

Replace the failed unit, connect the correct cables, boot up the new node in recovery mode, upgrade firmware and restore, and save config Then, reboot and wait for VSX to synchronize.

Replace the failed unit, connect the correct cables, boot up the new node and wait for VSX to synchronize configuration and firmware.

Show Answer Comment (0)

Question 47

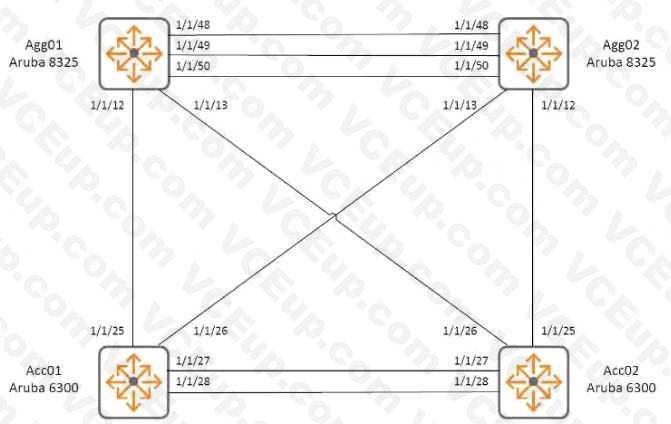

(Scenarios may contain multiple errors which may or may not Impact the solution) Refer to the exhibit.

An engineer has attempted to configure two pairs of switches in the referenced configuration, it is required to implement Multi-Chassis Link Aggregation for each pair of switches The ports of the Aruba 8325 switches used for Agg01 and Agg02 are populated as follows:

There is an error message staling "incompatible interface." Which interfaces are the cause of the error? (Select two.)

1/1/12 10GBaseT SFP*+ 30m Cat6A Transceiver

1/1/49 40G QSFP+ 15m Active Optical Cable

1/1/13 10GBaseT SFP+ 30m Cat6A Transceiver

1/1/48 iGBaseT 100m Cat5e Transceiver

1/1/50 40G QSFP+ 15m Active Optical Cable

Show Answer Comment (0)

Question 48

A customer wants to verify the proposed configuration snippets to create a point-to-point link between Aruba Switch and a third-party switch.

Will this configuration work with static routing?

No, the configuration will not work, because the Aruba Switch has an MTU mismatch which will prevent IP communication.

No. the configuration will not work, because the Aruba Switch does not have a locally reachable IP address from the third-party switch.

No. the configuration will not work because the Aruba Switch does not have the "routing" command on it

yes, the configuration should work fine and has no issues

Show Answer Comment (0)

Question 49

You are working with a customer whos has a paw of Aruba 8325 switches configured for Multi- Chassis Link Aggregation The customer is complaining that users are experiencing intermittent packet drops. Which action should be taken to quickly aid you in identifying the cause?

Enable debug of vri with "console" set as the destination

Setup a mirror session to generate a Tshark file.

Setup a mirror session to niter packets for TCPDUMP analysis

Check the configured VLANs using "show vsx config-consistency"

Show Answer Comment (0)
