Question 51

The customer is currently planning the migration of their current switches from the existing Aruba 5400R to ArubaOS-CX 6400. Which statements are correct about the mitigation of rogue DHCP servers with the selected product?

(Select two )

With Aruba CX 6400 configure dhcp-snooping for the selected VLANs with authorized servers

DHCP snooping can be enabled on ArubaOS-CX switches, once it's disabled on ArubaOS switches for same VLANs

DHCP snooping is supported on both IPv4 and IPv6

DHCP snooping needs to be enabled per VRF basis on Aruba CX 6400

Show Answer Comment (0)

Question 52

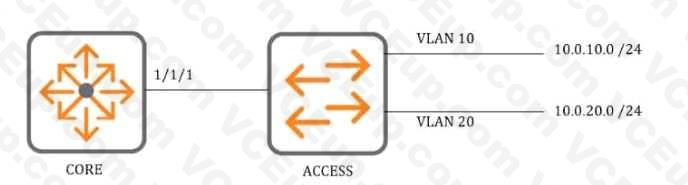

Refer to the exhibit.

• For all traffic within VLAN 10. a remark action or DSCP value EF must be set

• For all traffic exiting VLAN 10, a remark action of DSCP value AF41 must be set Which is the correct configuration?

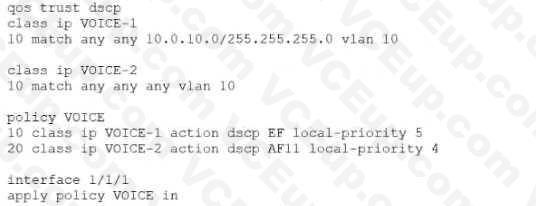

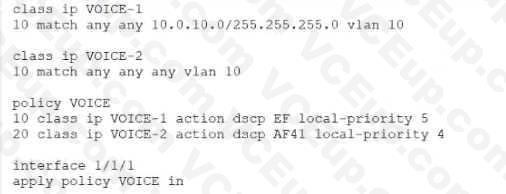

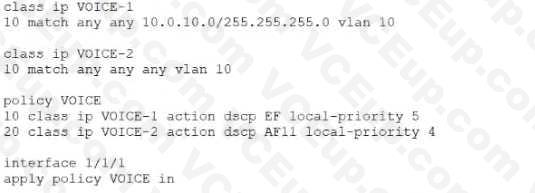

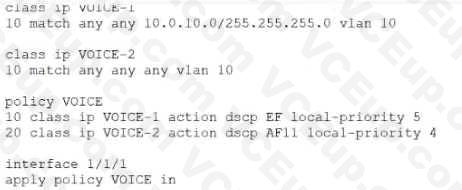

Option A

Option B

Option C

Option D

Show Answer Comment (0)

Question 53

Which functionalities of ClearPass can be added in a wired network that implements dynamic segmentation? (Select two.)

Profiling

Fingerprinting

Downloadable user Roles

Multi Factor Authentication

Dynamic VLANs

Show Answer Comment (0)

Question 54

A customer is migrating from a Cisco VSS system to an ArubaOS-CX VSX cluster in order to provide default gateway functionality, the local network administrator creates VLAN interfaces The network administrator then migrates successfully from Cisco to Aruba The next day a manager asks if the solution is redundant. The network administrator realizes that there is no redundancy on the default gateway functionality What is the preferred solution with the least amount of configuration and disturbance?

Remove the IP address on every VLAN interface, and replace it with another one in the same subnet Configure active gateway IP with the default gateway address on every VLAN interface on Doth switches

For every VLAN Interface, configure a VRRP IP address with the same IP address as already present in the first VSX node. Configure this on both switches.

Remove the IP address on every VLAN interface, and replace it with another one in the same subnet Configure VRRP with the default gateway address as virtual IP-address per VLAN.

For every VLAN interface, configure an active gateway IP with the same IP address as already present in the first VSX node Configure this on both switches

Show Answer Comment (0)

Question 55

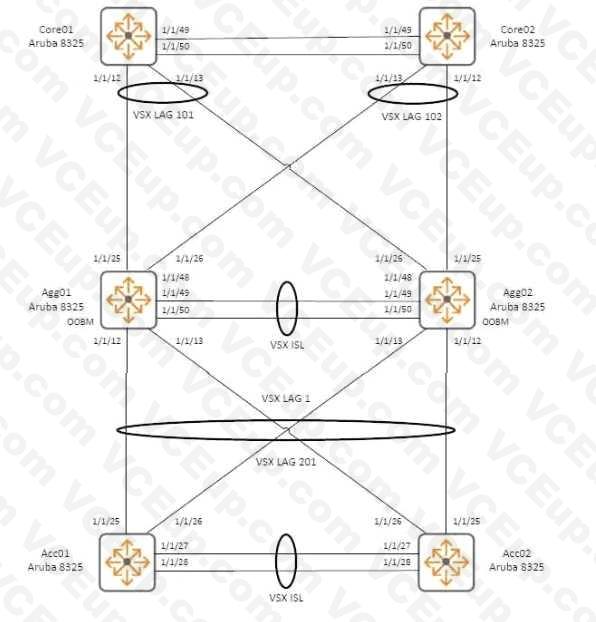

Refer to the exhibit.

You want to protect the aggregation layer if the VSXISL falls. Where should you place a VSX keepalive link?

On VSX LAG 1

On a dedicated link created using port 1'1/48 of each aggregation switch

On the OOBM ports of both aggregation switches

On VSX LAG 101

Show Answer Comment (0)

Question 56

Which statements are true with regards to Strict Priority scheduling? (Select two.)

Strict Priority scheduling protects against starvation of low priority queues.

Under strict Priority, the port will never forward a packet in a tower priority queue if a higher priority queue includes even one packet.

Strict Priority must be used with egress queue shaping to prevent starvation.

Strict Priority works best when the network uses the higher priority queues for the majority of applications

Show Answer Comment (0)

Question 57

The rate-limiting QoS feature can be implemented on all ArubaOS-CX platforms However, some features are platform dependent. Which statements are true'' (Select two.)

Unknown unicast rate limiting is supported on all ArubaOS-CX platforms

ICMP-Rate limiting is supported on all ArubaOS-CX platforms.

Broadcast-rate limiting is supported on all ArubaOS-CX platforms

Multicast and broadcast rate limits cannot be applied at the same time on the same Interface

Show Answer Comment (0)

Question 58

ArubaOS-CX 8325 VSX configuration has a Tailed ISL link between the switches with keepalive status established. While troubleshooting the condition, what is the expected behavior of the VSX traffic flow in the current condition?

vsx tables are n sync

VSX tables are out of sync

VSX nodes Keep forwarding traffic over its interfaces

VSX protection state is OK

VSX peer is seen as down

Show Answer Comment (0)

Question 59

What are the requirements for managing a switch using Aruba NetEdit? (Select two)

REST access-mode must be set to read-write.

HTTPS service must be restricted to the management VRF

The switch user account mat NetEdit uses should have a password.

Telnet must be disabled on the switch

Show Answer Comment (0)

Question 60

The customer is already using Aruba Gateway and third-party L2 switches New ArubaOS CX 6300 switches have been deployed for R&D. which have a requirement for user profiling and tunneled traffic between ArubaOS CX 6300 and Aruba Gateway What is required for this configuration to apply QoS user-based rules for the R&D client traffic?

Apply a QoS rule to the ArubaCX 6300 client port, lo classify traffic before it is tunneled.

Apply a port-access policy with QoS defined in the user role on the ArubaOS CX6300 switch

Manually prioritize IP protocol 47 traffic on the third-party switches to prioritize the tunneled traffic

Create a QoS policy for the UBT-client-VLAN traffic on the third-party switch.

Show Answer Comment (0)

Total 60 questions
