Question 1

(0)

An administrator adds local administrative accounts to manage the Aruba Mobility Controllers (MCs). Which role should be assigned to an administrator who needs to only generate reports and monitor

Question 2

(0)

Refer to the exhibit. What can be determined from the command output shown in the exhibit?

Question 3

(0)

Refer to the exhibit. An administrator supports a RAP at a branch office shown in the exhibit. The company has one Mobility Controller (MC) at the Primary DMZ site and one at the Secondary DMZ si

Question 4

(0)

An administrator supports a cluster of four Aruba Mobility Controllers (MCs) with management addresses of 10.1.100.101, 10.1.100.102, 10.1.100.103, and 10.1.202.181. The administrator can an adminis

Question 5

(0)

A VIA client tries to initially connect to corporate office controller through an intermediate firewall. However, the VPN connection fails. The administrator examines the firewall rules and determi

Question 6

(0)

An administrator has a cluster of Aruba Mobility Controllers (MCs). The administrator wants to manually reboot one of the controllers. Before rebooting, which command should the administrator use t

Question 7

(0)

Which Aruba Unified Communications and Collaboration (UCC) deployment mode should be used when UCC is disabled on the Mobility Controllers (MCs)?

Question 8

(0)

An administrator implements a ClearPass solution to authenticate Aruba wireless users. The Aruba wireless solution is an ArubaOS 8.x Mobility Master (MM) deployment. ClearPass sends an Aruba VSA rol

Question 9

(0)

Refer to the exhibit. What is true about the configuration shown in the exhibit?

Question 10

(0)

Which license type must an administrator purchase to use Spectrum Monitoring?

Related questions

An administrator wants to use AirWave to manage the configuration policy settings of a set of ArubaOS-Switches. Where should the administrator perform this action?

Refer to the exhibit. An AP is connected to a cluster of controllers. An AAA server provides all authentication and authorization functions for wireless users. A wireless user connects to an AP, and Active User Anchor Controller (A-UAC) and Standby UAC (S- UAC) tunnels are built from the AP to the respective controllers in the cluster. Why would an administrator create four VRRP groups with four Virtual IP (VIP) addresses in the cluster?

An administrator configures the MultiZone feature for a company network, where a mobility cluster is the primary zone and a standalone controller in the company's DMZ represents a secondary data zone. The administrator configures two AP Groups and respective VAPs for the zones on the Mobility Master (MM) in the primary zone. When the APs boot up and establish connections to both zones, the administrator notices that no data connections are established to the data zone. What must the administrator do to fix this problem?

An administrator wants to dynamically upgrade AppRF on Aruba Mobility Controllers (MC) in a cluster. The administrator does not want to reboot the system at the time of the upgrade. What should the administrator use for this upgrade?

Refer to the exhibit. An administrator configures policies to allow RAPs to connect to the corporate office and remote users to access resources. Which function does the VPN address pool serve in this situation?

Refer to the exhibit. The branch office RAP shown in the exhibit provides secure wireless employee access. Because of security concerns, the company's security policy does not allow wireless guest access. Some customers that visit the Branch office need Internet access. A RAP's Ethernet Port 3 is used for wired guest access and Port2 is used for wired employee access. When employees connect to Port2, they are authenticated successfully and split-tunnel policy allows them access to both corporate and Internet resources from the Branch office. Guest users, however, cannot access Internet resources on Port 3. How can the administrator provide guest users Internet access?

Which forwarding mode is used for a WLAN if a RAP needs to decrypt all user traffic and forward it locally?

An administrator implements the Aruba AitGroup feature to accommodate the Apple Bonjour service. In this implementation, which protocol advertises devices such as printers, computers, and their services?

An administrator manages an AirWave Management Platform (AMP). The AMP server receives many SNMP traps from managed devices, but no alerts are generated on the AMP for certain critical traps. Which rule should the administrator create to cause the AMP server to generate an alert based on receipt of a critical SNMP trap from an Aruba Mobility Controller (MC)?

Where would an administrator define the split-tunneling mode for a RAP located at a branch office?

Question 1

An administrator adds local administrative accounts to manage the Aruba Mobility Controllers (MCs).

Which role should be assigned to an administrator who needs to only generate reports and monitor WLANS and ports?

Location-api-management

Network-operations

Root

AP-provisioning

Show Answer Comment (0)

Question 2

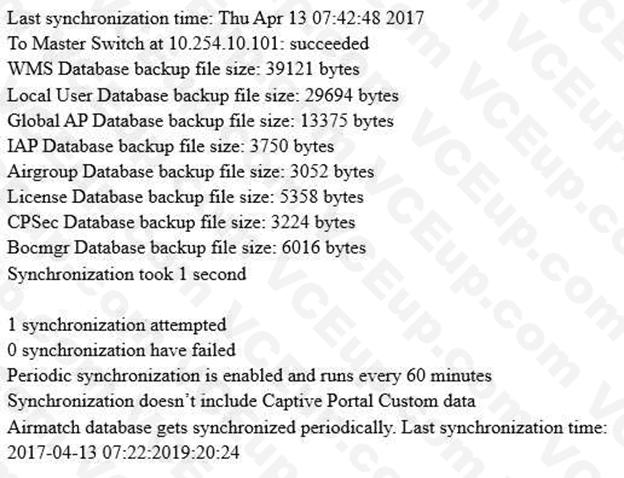

Refer to the exhibit.

What can be determined from the command output shown in the exhibit?

The synchronized data is protected by VRRP.

The command was executed on the standby Mobility Master (MM).

The synchronization period is at its default value.

The other Mobility Master (MM) is the active license server.

Show Answer Comment (0)

An administrator supports a RAP at a branch office shown in the exhibit. The company has one Mobility Controller (MC) at the Primary DMZ site and one at the Secondary DMZ site. The RAP is configured to connect to only the MC at the Primary DMZ site. A network outage with the ISP at the Primary DMZ site causes the RAP to reboot. Upon reboot, the RAP cannot build a tunnel to the Secondary DMZ site MC because the administrator forgot to add the Second LMS IP address to the AP Group configuration. Once the RAP can successfully connect, the administrator can add the Secondary DMZ MC as a backup LMS to fix the AP Group.

What should the administrator implement to allow the RAP to connect to the MC at the Secondary DMZ site while the outage at the primary site persists?

Dynamic discovery through DHCP Option 43

Static configuration from apboot mode

Dynamic discovery through DHCP Option 60

Dynamic discovery through multicast ADP

Show Answer Comment (0)

Question 4

An administrator supports a cluster of four Aruba Mobility Controllers (MCs) with management addresses of 10.1.100.101, 10.1.100.102, 10.1.100.103, and 10.1.202.181. The administrator can an administrator this cluster, reboots it and accesses apboot mode. The administrator executes the printenv command. Which AP parameter contains the IP addresses of the cluster members that the AP should use to connect to the cluster?

Nodelist

Servername

Master_ip

Cfg_lms

Show Answer Comment (0)

Question 5

A VIA client tries to initially connect to corporate office controller through an intermediate firewall.

However, the VPN connection fails. The administrator examines the firewall rules and determines that rules for UDP 4500 and UDP 500 are configured.

Which additional protocol must be allowed in the firewall rules to resolve this connection failure?

TCP 389

UDP 4500

UDP 8200

TCP 993

Show Answer Comment (0)

Question 6

An administrator has a cluster of Aruba Mobility Controllers (MCs). The administrator wants to manually reboot one of the controllers.

Before rebooting, which command should the administrator use to move the APs?

apmove

lc-cluster move ap

active-ap-rebalance

active-ap-lb

Show Answer Comment (0)

Question 7

Which Aruba Unified Communications and Collaboration (UCC) deployment mode should be used when UCC is disabled on the Mobility Controllers (MCs)?

Heuristics mode

WMM mode

ALG mode

SDN-API mode

Show Answer Comment (0)

Question 8

An administrator implements a ClearPass solution to authenticate Aruba wireless users. The Aruba wireless solution is an ArubaOS 8.x Mobility Master (MM) deployment. ClearPass sends an Aruba VSA role name for an authenticated user.

However, the administrator notices that the role assigned to the user is different from the one assigned by the ClearPass server.

Which two items should the administrator verify that might be the cause of this problem? (Choose two.)

Enablement of user roles on the controller

Spelling of the role on the ClearPass server

Server-derived role assignment on the ClearPass server

Role existence on the Managed Network

Order assignment that the controller uses to select a user role

Show Answer Comment (0)
