Question 41

(0)

Refer to the exhibit. A user uses Microsoft Windows for a wireless session. Based on the output shown in the exhibit for the selected Aruba AP, what is the possible problem with this user's wirel

Question 42

(0)

Refer to the exhibit. The administrator expects the AP to connect to a cluster, but the AP fails to connect. The administrator examines the configuration of an AP from apboot mode shown in the ex

Question 43

(0)

Refer to the exhibit. An administrator implements the MultiZone feature. The administrator sets up five zones as shown in the exhibit. -Zone A has six controllers that form a cluster. -Zone B h

Question 44

(0)

An administrator creates service-based policies for AirGroup on the Mobility Master (MM). The administrator can define location-based policy limits based on which information?

Question 45

(0)

A branch office location has two buildings: an office and a small warehouse that are within 20 meters of each other. A RAP at the branch office provides connectivity to the corporate office network.

Question 46

(0)

An administrator needs to authenticate users connected to an ArubaOS-Switch. The Aruba Mobility Controller (MC) authenticates the user and assigns user roles to wired users. Which mode should the a

Question 47

(0)

An administrator wants to add a new folder in AirWave. Where would the administrator perform this action?

Question 48

(0)

An administrator uses a ClearPass server to perform user authentication and download the role configuration that should be applied to the user's session. The server is associated to an AAA profile o

Question 49

(0)

An administrator deploys an Aruba wireless solution comprised of: -a pair of Mobility Masters (MMs) -multiple Mobility Controllers (MCs) and virtual Mobility Controllers (VMCs) -an AirWave server

Question 50

(0)

A cluster has two Aruba 7240 Mobility Controllers (MCs) and two Aruba 7220 Mobility Controllers (MCs). How is the cluster leader elected if all controllers have the default priority?

Related questions

An administrator wants to use AirWave to manage the configuration policy settings of a set of ArubaOS-Switches. Where should the administrator perform this action?

Refer to the exhibit. An AP is connected to a cluster of controllers. An AAA server provides all authentication and authorization functions for wireless users. A wireless user connects to an AP, and Active User Anchor Controller (A-UAC) and Standby UAC (S- UAC) tunnels are built from the AP to the respective controllers in the cluster. Why would an administrator create four VRRP groups with four Virtual IP (VIP) addresses in the cluster?

An administrator configures the MultiZone feature for a company network, where a mobility cluster is the primary zone and a standalone controller in the company's DMZ represents a secondary data zone. The administrator configures two AP Groups and respective VAPs for the zones on the Mobility Master (MM) in the primary zone. When the APs boot up and establish connections to both zones, the administrator notices that no data connections are established to the data zone. What must the administrator do to fix this problem?

Which forwarding mode is used for a WLAN if a RAP needs to decrypt all user traffic and forward it locally?

An administrator wants to dynamically upgrade AppRF on Aruba Mobility Controllers (MC) in a cluster. The administrator does not want to reboot the system at the time of the upgrade. What should the administrator use for this upgrade?

An administrator implements the Aruba AitGroup feature to accommodate the Apple Bonjour service. In this implementation, which protocol advertises devices such as printers, computers, and their services?

Refer to the exhibit. An administrator configures policies to allow RAPs to connect to the corporate office and remote users to access resources. Which function does the VPN address pool serve in this situation?

Refer to the exhibit. The branch office RAP shown in the exhibit provides secure wireless employee access. Because of security concerns, the company's security policy does not allow wireless guest access. Some customers that visit the Branch office need Internet access. A RAP's Ethernet Port 3 is used for wired guest access and Port2 is used for wired employee access. When employees connect to Port2, they are authenticated successfully and split-tunnel policy allows them access to both corporate and Internet resources from the Branch office. Guest users, however, cannot access Internet resources on Port 3. How can the administrator provide guest users Internet access?

An administrator manages an AirWave Management Platform (AMP). The AMP server receives many SNMP traps from managed devices, but no alerts are generated on the AMP for certain critical traps. Which rule should the administrator create to cause the AMP server to generate an alert based on receipt of a critical SNMP trap from an Aruba Mobility Controller (MC)?

Where would an administrator define the split-tunneling mode for a RAP located at a branch office?

Question 41

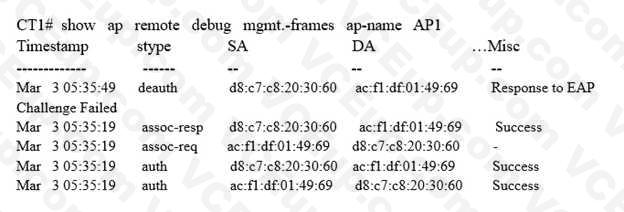

Refer to the exhibit.

A user uses Microsoft Windows for a wireless session. Based on the output shown in the exhibit for the selected Aruba AP, what is the possible problem with this user's wireless session?

The AP has reached the limit for number of users that are allowed to connect to the radio.

The controller cannot reach the AAA server to perform the authentication.

The user is configured for PEAP, but the WLAN profile on the controller implemented EAP-TLS.

The user misconfigured the Managed Network Settings profile in Windows.

Show Answer Comment (0)

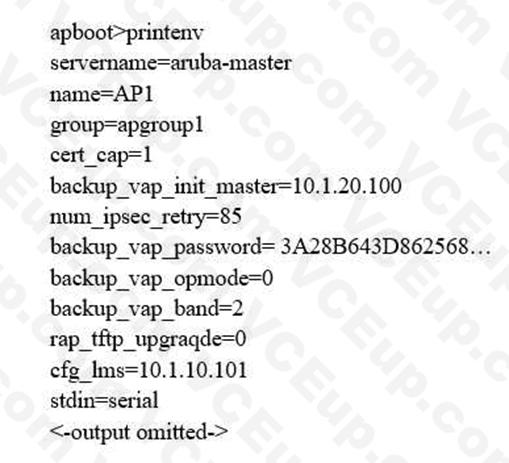

The administrator expects the AP to connect to a cluster, but the AP fails to connect. The administrator examines the configuration of an AP from apboot mode shown in the exhibit. What can the administrator determine about the configuration of the AP?

The AP is configured to terminate on a non-cluster Mobility Controller.

The AP is configured as a RAP to terminate on a stand-alone controller.

The AP is configured as a RAP to terminate on a Mobility Master.

The AP is configured to terminate on a Mobility Controller in a cluster.

Show Answer Comment (0)

Question 43

Refer to the exhibit.

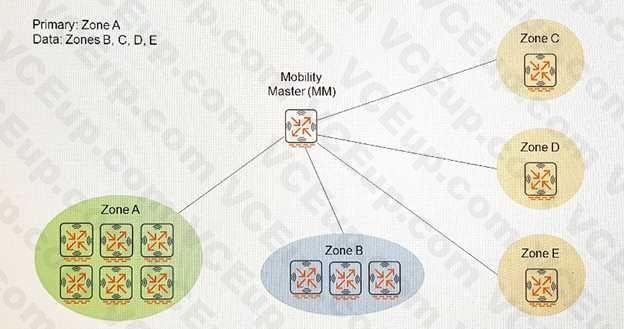

An administrator implements the MultiZone feature. The administrator sets up five zones as shown in the exhibit.

-Zone A has six controllers that form a cluster.

-Zone B has three controllers that from a cluster.

-Zones C, D, and E have a single standalone controller each.

A total of 13 VAPs are created across the five zones. A zone needs to accept RAP connections form branch offices. All zones have the same AP Group name. One of the zones will not accept connections from the MultiZone APs.

Which could be a cause of this problem?

RAPs are used in the configuration.

The number of zones exceeds the maximum limit of four zones.

AP Group names are different for each zone.

The number of VAPs exceeds the maximum limit of 12 VAPs.

Show Answer Comment (0)

Question 44

An administrator creates service-based policies for AirGroup on the Mobility Master (MM). The administrator can define location-based policy limits based on which information?

AP names, AP groups, controller names, and controller groups

AP Fully Qualified Location Names (FQLNs) and controller Fully Qualified Domain Names (FQDNs)

AP names, AP groups, and AP Fully Qualified Location Names (FQLNs)

Controller names, controller groups, and controller Fully Qualified Domain Names (FQDNs)

Show Answer Comment (0)

Question 45

A branch office location has two buildings: an office and a small warehouse that are within 20 meters of each other. A RAP at the branch office provides connectivity to the corporate office network. This RAP is also configured as a Remote

Mesh Portal (RMP).

Which solution should the administrator implement to provide connectivity between the office and small warehouse buildings at the branch office location?

Deploy a Remote Mesh Portal in the warehouse building to connect to the Remote Mesh Portal in the office building.

Deploy a Remote Mesh Point AP in the warehouse building to connect to the Remote Mesh Portal in the office building.

Deploy an ArubaOS-Switch in the warehouse building with tunneled node to connect to the Remote Mesh Portal in the office building.

Deploy a Mesh Point AP in the warehouse building to connect to the Remote Mesh Portal in the office building.

Show Answer Comment (0)

Question 46

An administrator needs to authenticate users connected to an ArubaOS-Switch. The Aruba Mobility Controller (MC) authenticates the user and assigns user roles to wired users.

Which mode should the administrator configure on the MC?

Per-user tunneled node

Per-port tunneled node

VLAN tunneled node

Split-tunneled node

Show Answer Comment (0)

Question 47

An administrator wants to add a new folder in AirWave. Where would the administrator perform this action?

in AMP Setup

in AP/Devices

in Groups

in Device Setup

Show Answer Comment (0)

Question 48

An administrator uses a ClearPass server to perform user authentication and download the role configuration that should be applied to the user's session. The server is associated to an AAA profile of a VAP. However, when a user connects to the SSID of the VAP, they are assigned the default role.

What must the administrator do to ensure that the role is downloaded and used?

Enable download role for CPPM in the VAP's WLAN profile.

Enable server derivation in the ClearPass' RADIUS configuration.

Enable server derivation in the server group.

Enable server derivation in the AAA Server Group.

Show Answer Comment (0)

Question 49

An administrator deploys an Aruba wireless solution comprised of:

-a pair of Mobility Masters (MMs)

-multiple Mobility Controllers (MCs) and virtual Mobility Controllers (VMCs) -an AirWave server -a ClearPass server The Aruba Mobility solution runs ArubaOS 8.X.

Which component in this environment globally defines and deploys VLANs for wireless users?

Mobility Controller or Virtual Mobility Controller

AirWave server

Mobility Master

ClearPass server

Show Answer Comment (0)

Question 50

A cluster has two Aruba 7240 Mobility Controllers (MCs) and two Aruba 7220 Mobility Controllers (MCs). How is the cluster leader elected if all controllers have the default priority?

The 7240 controller with the highest MAC address is elected.

The controller with the highest IP address is elected.

The controller with the highest MAC address is elected.

The 7240 controller with the lowest IP address is elected.

Show Answer Comment (0)
