Home / HP / HPE6-A71

HP HPE6-A71 Practice Test - Questions Answers, Page 12

Question list

List of questions

Question 111

(0)

Refer to the exhibit. An administrator examines the configuration of an AP from apboot mode shown in the exhibit. What can the administrator determine from the configuration?

Question 112

(0)

An administrator deploys an AP at a branch office. The branch office has a private WAN circuit that provides connectivity to a corporate office controller. An Ethernet port on the AP is connected to

Question 113

(0)

An administrator deploys Aruba Mobility Controller 7005s to a company's branch offices. The administrator wants to disable the console port to prevent unauthorized access to the controllers. Which

Question 114

(0)

Refer to the exhibit. Once connected to a WLAN, a user cannot reliably access resources in a company's network. Based on the output shown in the exhibit, what can be determined about the user's c

Question 115

(0)

What is true about clustering and AP connections to cluster members?

Question 116

(0)

Which IEEE standard should user devices support to implement Fast BSS Transition when a network implements wireless roaming (mobility)?

Question 117

(0)

An administrator purchases a pair of Mobility Masters (MM) and wants to deploy 16 Virtual Mobility Controllers (VMCs). What is the minimum number of clusters that the administrator needs to implemen

Question 118

(0)

Which methods can be used to configure RAP redundancy when connected to two redundant Aruba Mobility Controllers (MCs) in the DMZ? (Select two.)

Question 119

(0)

An administrator wants to change the default roles for the pre- and post-authentication user roles for a WLAN on a Mobility Master (MM). The controllers in the network perform all authentication. U

Question 120

(0)

An administrator wants to implement 802.1X authentication on Ethernet ports on branch office controllers. What must the administrator do to implement this policy?

Related questions

An administrator wants to use AirWave to manage the configuration policy settings of a set of ArubaOS-Switches. Where should the administrator perform this action?

Refer to the exhibit. An AP is connected to a cluster of controllers. An AAA server provides all authentication and authorization functions for wireless users. A wireless user connects to an AP, and Active User Anchor Controller (A-UAC) and Standby UAC (S- UAC) tunnels are built from the AP to the respective controllers in the cluster. Why would an administrator create four VRRP groups with four Virtual IP (VIP) addresses in the cluster?

An administrator configures the MultiZone feature for a company network, where a mobility cluster is the primary zone and a standalone controller in the company's DMZ represents a secondary data zone. The administrator configures two AP Groups and respective VAPs for the zones on the Mobility Master (MM) in the primary zone. When the APs boot up and establish connections to both zones, the administrator notices that no data connections are established to the data zone. What must the administrator do to fix this problem?

An administrator wants to dynamically upgrade AppRF on Aruba Mobility Controllers (MC) in a cluster. The administrator does not want to reboot the system at the time of the upgrade. What should the administrator use for this upgrade?

Refer to the exhibit. An administrator configures policies to allow RAPs to connect to the corporate office and remote users to access resources. Which function does the VPN address pool serve in this situation?

Refer to the exhibit. The branch office RAP shown in the exhibit provides secure wireless employee access. Because of security concerns, the company's security policy does not allow wireless guest access. Some customers that visit the Branch office need Internet access. A RAP's Ethernet Port 3 is used for wired guest access and Port2 is used for wired employee access. When employees connect to Port2, they are authenticated successfully and split-tunnel policy allows them access to both corporate and Internet resources from the Branch office. Guest users, however, cannot access Internet resources on Port 3. How can the administrator provide guest users Internet access?

Which forwarding mode is used for a WLAN if a RAP needs to decrypt all user traffic and forward it locally?

An administrator implements the Aruba AitGroup feature to accommodate the Apple Bonjour service. In this implementation, which protocol advertises devices such as printers, computers, and their services?

An administrator manages an AirWave Management Platform (AMP). The AMP server receives many SNMP traps from managed devices, but no alerts are generated on the AMP for certain critical traps. Which rule should the administrator create to cause the AMP server to generate an alert based on receipt of a critical SNMP trap from an Aruba Mobility Controller (MC)?

Where would an administrator define the split-tunneling mode for a RAP located at a branch office?

Question 111

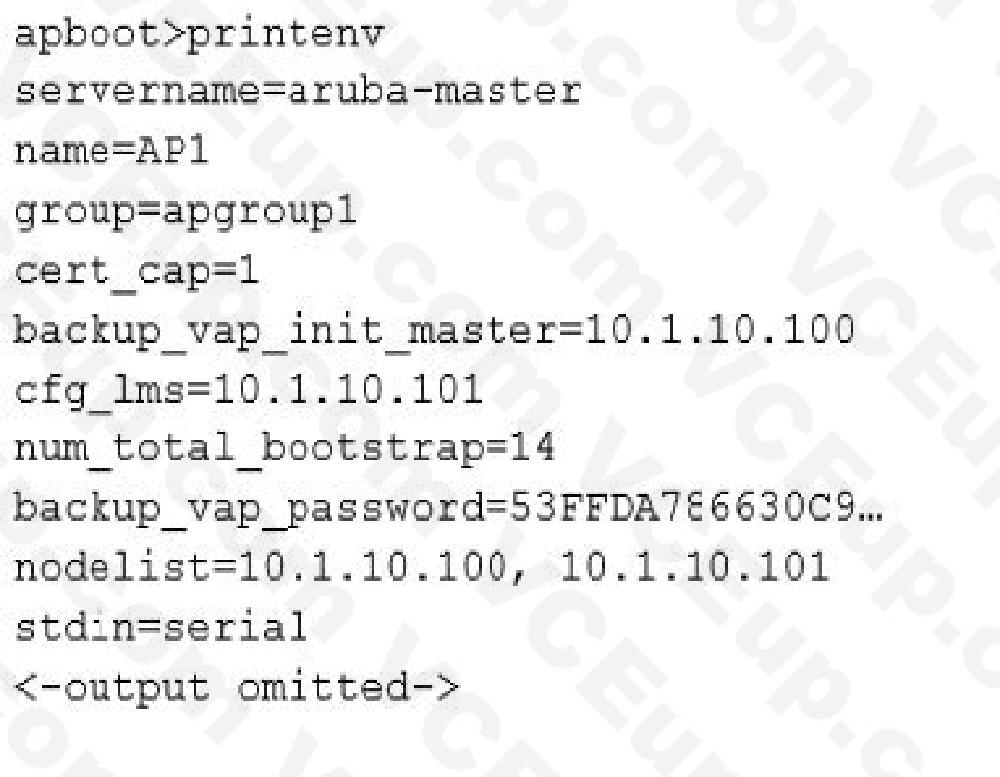

Refer to the exhibit.

An administrator examines the configuration of an AP from apboot mode shown in the exhibit.

What can the administrator determine from the configuration?

RAP terminated on a stand-alone controller.

AP terminated on a non-cluster Mobility Controller.

RAP terminated on a Mobility Master.

AP terminated on a Mobility Controller in a cluster.

Show Answer Comment (0)

An administrator deploys an AP at a branch office. The branch office has a private WAN circuit that provides connectivity to a corporate office controller. An Ethernet port on the AP is connected to a network storage device that contains sensitive information. The administrator is concerned about sending this traffic in clear-text across the private WAN circuit.

What can the administrator do to prevent this problem?

Redirect the wired port traffic to an AP-to-controller GRE tunnel.

Convert the campus AP into a RAP.

Enable AP encryption for wired ports.

Enable IPSec encryption on the AP's wired ports.

Show Answer Comment (0)

Question 113

An administrator deploys Aruba Mobility Controller 7005s to a company's branch offices. The administrator wants to disable the console port to prevent unauthorized access to the controllers.

Which controller command should the administrator use to implement this policy?

no console enable

no mgmt-user console

mgmt-user console-block

console disable

Show Answer Comment (0)

Question 114

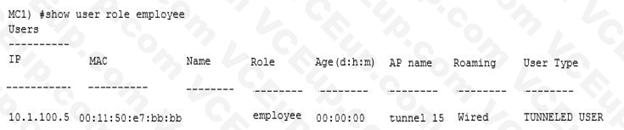

Refer to the exhibit.

Once connected to a WLAN, a user cannot reliably access resources in a company's network. Based on the output shown in the exhibit, what can be determined about the user's connection?

The user has successfully authenticated through use of PEAP.

The user is connected to a controller through use of the VIA client.

The user is connected wirelessly to a controller.

The user is connected to an ArubaOS-Switch.

Show Answer Comment (0)

Question 115

What is true about clustering and AP connections to cluster members?

The AP will always stay connected to the LMS IP address configured in the AP profile.

During rebalancing, the active load is redistributed first.

The default thresholds are 75% for the Rebalanced Threshold and 25% for the Unbalanced Threshold.

AP load balancing is disabled by default.

Show Answer Comment (0)

Question 116

Which IEEE standard should user devices support to implement Fast BSS Transition when a network implements wireless roaming (mobility)?

802.11r

802.11f

801.11m

802.11i

Show Answer Comment (0)

Question 117

An administrator purchases a pair of Mobility Masters (MM) and wants to deploy 16 Virtual Mobility Controllers (VMCs). What is the minimum number of clusters that the administrator needs to implement to support the number of VMCs?

Show Answer Comment (0)

Question 118

Which methods can be used to configure RAP redundancy when connected to two redundant Aruba Mobility Controllers (MCs) in the DMZ? (Select two.)

Virtual IP address of the two controllers.

Active and Standby AAC.

Primary and backup LMS IP addresses.

IPSec High Availability (HA) between two cluster members.

AirWave direction to RAPs redundant Mobility Controllers.

Show Answer Comment (0)

Question 119

An administrator wants to change the default roles for the pre- and post-authentication user roles for a WLAN on a Mobility Master (MM). The controllers in the network perform all authentication.

Under the Managed Network hierarchy, where can the administrator assign these roles?

AAA Profiles

VLAN

RADIUS attributes

AAA Server Group

Show Answer Comment (0)

Question 120

An administrator wants to implement 802.1X authentication on Ethernet ports on branch office controllers. What must the administrator do to implement this policy?

Define the port an untrusted, and assign an AAA policy to the port.

Define the port as trusted, and assign an AAA policy to the port.

Define the port as untrusted, and assign an AAA policy to the VLAN.

Define the port as trusted, and assign an AAA policy to the VLAN.

Show Answer Comment (0)

Total 171 questions
