LSPs contain information about the state and cost of links in the network, and are flooded periodically throughout the network. PSNPs are used to acknowledge receipt of LSPs and request retransmission of missing or corrupted LSPs. PSNPs contain only descriptions of LSPs, such as their sequence numbers and checksums. CSNPs contain a complete list of all link-state PDUs in the IS-IS database. CSNPs are sent periodically on all links, and the receiving systems use the information in the CSNP to update and synchronize their link-state PDU databases.

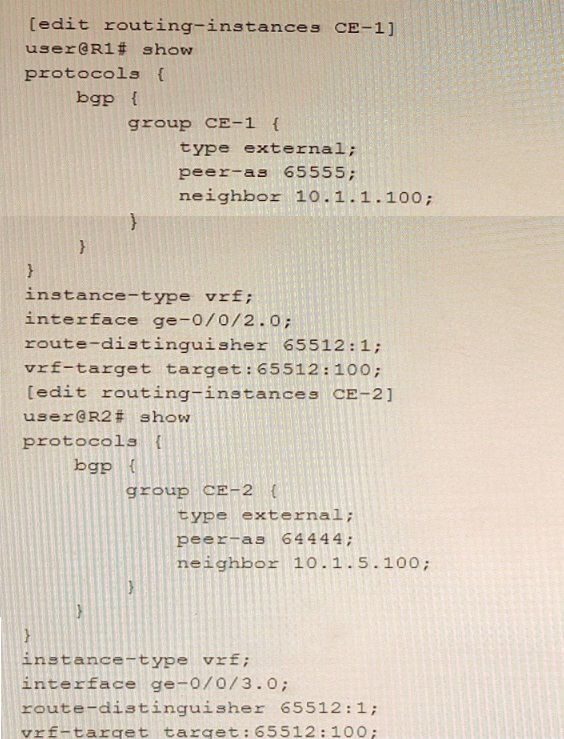

The route distinguisher (RD) is a BGP attribute that is used to create unique VPN IPv4 prefixes for each VPN in an MPLS network. The RD is a 64-bit value that consists of two parts: an administrator field and an assigned number field. The administrator field can be an AS number or an IP address, and the assigned number field can be any arbitrary value chosen by the administrator. The RD is prepended to the IPv4 prefix to create a VPN IPv4 prefix that can be advertised across the MPLS network without causing any overlap or conflict with other VPNs. In this question, we have two PE routers (PE-1 and PE-2) that are connected to two CE devices (CE-1 and CE-2) respectively. PE-1 and PE-2 are configured with VRFs named Customer-A and Customer-B respectively.

BGP is an exterior gateway protocol that uses path vector routing to exchange routing information among autonomous systems. BGP uses various attributes to select the best path to each destination and to propagate routing policies. Some of the common BGP attributes are AS path, next hop, local preference, MED, origin, weight, and community. BGP attributes can be classified into four categories: well-known mandatory, well-known discretionary, optional transitive, and optional nontransitive. Well-known mandatory attributes are attributes that must be present in every BGP update message and must be recognized by every BGP speaker. Well-known discretionary attributes are attributes that may or may not be present in a BGP update message but must be recognized by every BGP speaker. Optional transitive attributes are attributes that may or may not be present in a BGP update message and may or may not be recognized by a BGP speaker. If an optional transitive attribute is not recognized by a BGP speaker, it is passed along to the next BGP speaker. Optional nontransitive attributes are attributes that may or may not be present in a BGP update message and may or may not be recognized by a BGP speaker. If an optional nontransitive attribute is not recognized by a BGP speaker, it is not passed along to the next BGP speaker. In this question, we have four routers (R1, R2, R3, and R4) that are connected in a full mesh topology and running IBGP. R3 receives the 192.168.0.0/16 route from its EBGP neighbor and advertises it to R1 and R4 with different BGP attribute values. We are asked which statements are correct about the BGP routes on R3 that are learned from the ISP-A neighbor. Based on the information given, we can infer that the correct statements are:

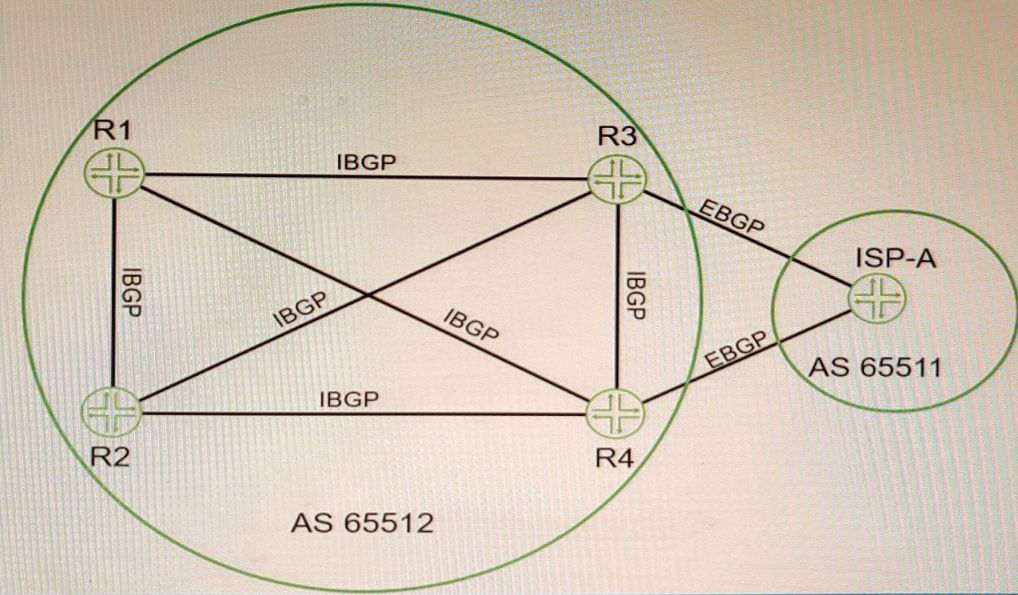

By default, the next-hop value for these routes is not changed by ISP-A before being sent to R3. This is because the default behavior of EBGP is to preserve the next-hop attribute of the routes received from another EBGP neighbor. The next-hop attribute indicates the IP address of the router that should be used as the next hop to reach the destination network.

The BGP local-preference value that is used by ISP-A is not advertised to R3. This is because the local-preference attribute is a well-known discretionary attribute that is used to influence the outbound traffic from an autonomous system. The local-preference attribute is only propagated within an autonomous system and is not advertised to external neighbors.

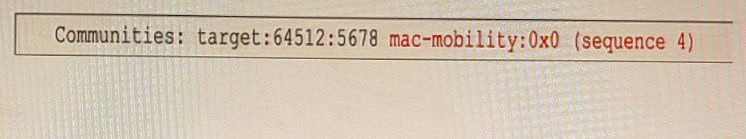

The sequence number is a field in the MAC mobility extended community that is used to resolve conflicting MAC address ownership claims and to help the local PE to identify the latest advertisement. The sequence number is incremented by one for every MAC address mobility event, such as when a host moves from one Ethernet segment to another segment in the EVPN network. The PE device that receives multiple MAC advertisements for the same MAC address chooses the one with the highest sequence number as the most recent and valid advertisement.

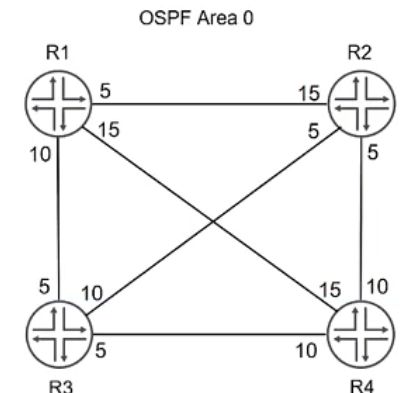

The OSPF cost is carried in the LSAs that are exchanged within an OSPF area. When a router calculates the cost to a destination it uses the cost of the exit interface of each router in the path to the destination.
