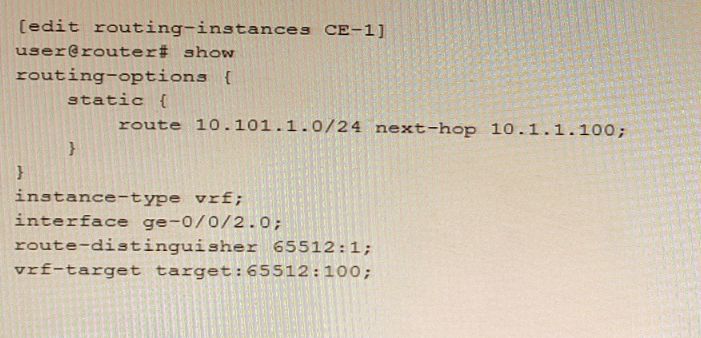

The auto-export parameter is a routing option that allows a routing instance to share routes with other routing instances or the master routing table. The auto-export parameter automatically exports routes from one routing instance to another based on the route target communities attached to the routes. In this scenario, the 10.101.1.0/24 route will be shared if the auto-export parameter is configured under [edit routing-options] hierarchy level.

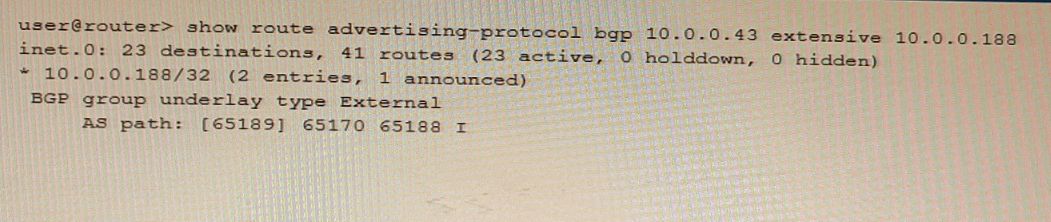

The brackets [ ] in the AS path identify an AS set, which are groups of AS numbers in which the order does not matter. An AS set is used when BGP aggregates routes from different ASs into a single prefix. For example, if BGP aggregates routes 10.0.0.0/16 and 10.1.0.0/16 from AS 100 and AS 200, respectively, into a single prefix 10.0.0.0/15, then the AS path for this prefix will be [100 200]. An AS set reduces the length of the AS path and prevents routing loops.

Route reflection is a BGP feature that allows a router to reflect routes learned from one IBGP peer to another IBGP peer, without requiring a full-mesh IBGP topology. Route reflectors do not change any existing BGP attributes by default when advertising routes, unless explicitly configured to do so. A BGP peer does not require any configuration changes to become a route reflector client, only the route reflector needs to be configured with the client parameter under [edit protocols bgp group group-name neighbor neighbor-address] hierarchy level.

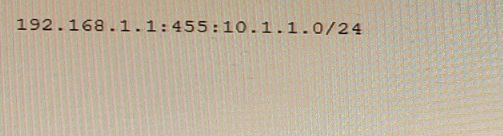

Type 1: When Type value is 1, the Administrator field is 4-bytes and Assigned Number field is 2-bytes. The Administrator field should be set to the IP address (public IP addresses should be used). The Assigned Number field contains a number from a numbering space that is administered by the enterprise to which the IP address has been assigned by the appropriate authority.

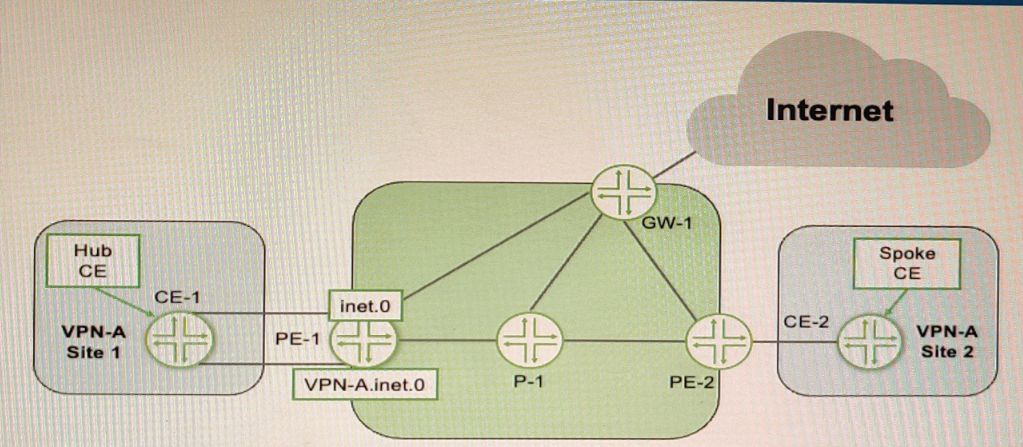

To provide Internet access for VPN-A using CE-1 as the hub CE, you need to do the following:

You must use RIB groups to leak routes between the inet.0 and vpn-a.inet.0 tables on PE-1 and CE-1. RIB groups are routing options that allow you to import routes from one routing table into another routing table based on certain criteria. In this scenario, you need to configure RIB groups on PE-1 and CE-1 to import Internet routes from inet.0 into vpn-a.inet.0 and vice versa.

Internet traffic from Site 2 takes the path of PE-2 -> PE-1 -> CE-1 -> PE-1 -> GW-1. This is because Site 2 does not have direct Internet access and needs to use CE-1 as its default gateway for Internet traffic. Site 2 sends its Internet traffic to PE-2, which forwards it to PE-1 based on VPN-A routes. PE-1 then sends it to CE-1 based on RIB group import policy. CE-1 then sends it back to PE-1 based on its default route pointing to GW-1. PE-1 then forwards it to GW-1 based on RIB group import policy again.

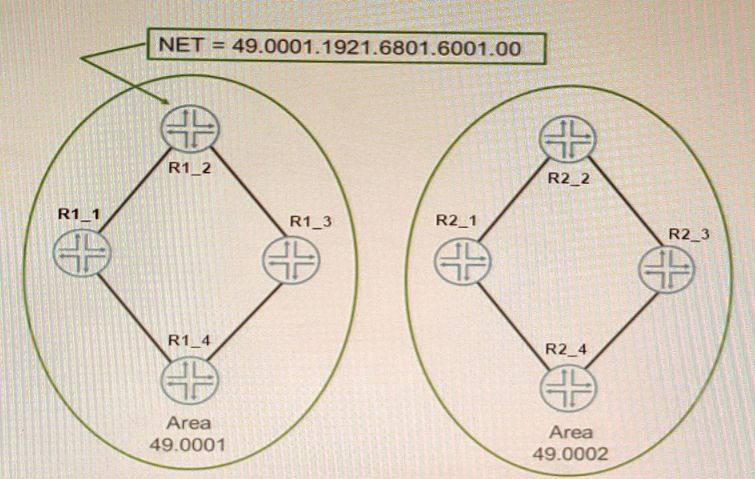

IS-IS is an interior gateway protocol that uses link-state routing to exchange routing information among routers within a single autonomous system. IS-IS uses two types of addresses to identify routers and areas: system ID and area address. The system ID is a unique identifier for each router in an IS-IS domain. The system ID is 6 octets long and can be derived from the MAC address or manually configured. The area address is a variable-length identifier for each area in an IS-IS domain. The area address can be 1 to 13 octets long and is composed of high-order octets of the address. An IS-IS instance may be assigned multiple area addresses, which are considered synonymous.Multiple synonymous area addresses are useful when merging or splitting areas in the domain1. In this question, we have a network based on IS-IS with four routers (R1_1, R1_2, R2_1, and R2_2) belonging to area 0001. The area address for area 0001 is 49.0001. The NSEL byte for area 0001 is the last octet of the address, which is 01.The NSEL byte stands for Network Service Access Point Selector (NSAP Selector) and indicates the type of service requested from the network layer2. Therefore, the correct statement in this scenario is that the NSEL byte for area 0001 is 01.

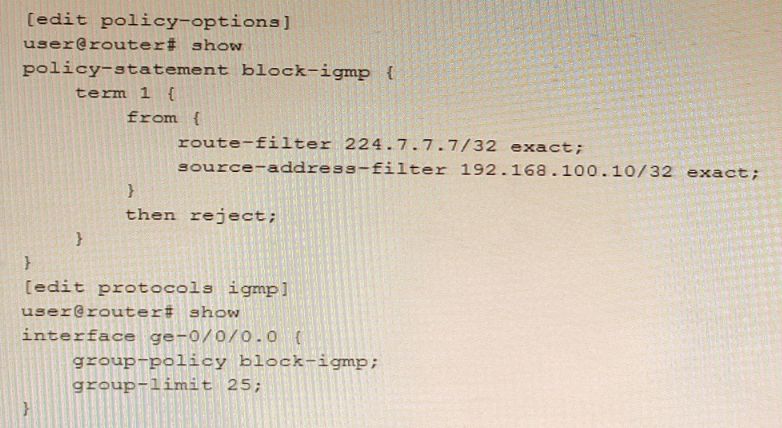

BGP policy framework is a set of tools that allows you to control the flow of routing information and apply routing policies based on various criteria. BGP policy framework consists of several components, such as route maps, prefix lists, community lists, AS path lists, and route filters. Route maps are used to define routing policies by matching certain conditions and applying certain actions. Prefix lists are used to filter routes based on their prefixes. Community lists are used to filter routes based on their community attributes. AS path lists are used to filter routes based on their AS path attributes.Route filters are used to filter routes based on their prefix length or range3. In this question, we have a route map named ISP-A that has two clauses: clause 10 and clause 20. Clause 10 matches any route with a prefix length between 8 and 24 bits and sets the local preference to 200. Clause 20 matches any route with a prefix of 224.7.7.7/32 and rejects it. The route map is applied inbound on the BGP neighborship with ISP-A. Based on this configuration, the correct statement is that joins for group 224.7.7.7 are always rejected, regardless of the group count. This is because clause 20 explicitly denies any route with a prefix of 224.7.7.7/32, which corresponds to the multicast group 224.7.7.7.

Bootstrap messages are PIM messages that are used to distribute rendezvous point (RP) information dynamically during an RP election. Bootstrap messages are sent by bootstrap routers (BSRs), which are routers that are elected to perform the RP discovery function for a PIM sparse-mode domain. Bootstrap messages contain information about candidate RPs and their multicast groups, as well as BSR priority and hash mask length. Bootstrap messages are forwarded to all routers within a PIM sparse-mode domain using hop-by-hop flooding.
