A customer needs six usable IP addresses. Which of the following best meets this requirement?

A.
255.255.255.128
A.
255.255.255.128
Answers
B.
255.255.255.192
B.
255.255.255.192
Answers
C.
255.255.255.224
C.
255.255.255.224
Answers
D.
255.255.255.240
D.
255.255.255.240
Answers
Suggested answer: D

Explanation:

To meet the requirement of six usable IP addresses, the subnet mask 255.255.255.240 (also represented as /28) is the best fit. A /28 subnet provides 16 total IP addresses, out of which 14 are usable (the first address is the network address, and the last address is the broadcast address). This meets and exceeds the requirement for six usable IP addresses, ensuring there are enough addresses for future expansion if needed. The other options provide either too few or too many addresses for this specific requirement.

Reference: CompTIA Network+ Certification Exam Objectives - IP Addressing section.

A network administrator is configuring a new switch and wants to ensure that only assigned devices can connect to the switch. Which of the following should the administrator do?

A.
Configure ACLs.
A.
Configure ACLs.
Answers
B.
Implement a captive portal.
B.
Implement a captive portal.
Answers
C.
Enable port security.
C.
Enable port security.
Answers
D.
Disable unnecessary services.
D.
Disable unnecessary services.
Answers
Suggested answer: C

Explanation:

To ensure that only assigned devices can connect to a switch, the network administrator should enable port security. Port security restricts port access based on MAC addresses, allowing only pre-configured devices to connect to the network. This helps prevent unauthorized devices from gaining access to the network. Other options like configuring ACLs, implementing a captive portal, or disabling unnecessary services serve different security purposes and do not directly restrict physical port access based on device identity.

Reference: CompTIA Network+ Certification Exam Objectives - Network Security section.

An organization has a security requirement that all network connections can be traced back to a user. A network administrator needs to identify a solution to implement on the wireless network. Which of the following is the best solution?

A.
Implementing enterprise authentication
A.
Implementing enterprise authentication
Answers
B.
Requiring the use of PSKs
B.
Requiring the use of PSKs
Answers
C.
Configuring a captive portal for users
C.
Configuring a captive portal for users
Answers
D.
Enforcing wired equivalent protection
D.
Enforcing wired equivalent protection
Answers
Suggested answer: A

Explanation:

Enterprise authentication (such as WPA2-Enterprise) utilizes unique credentials for each user, typically integrating with an authentication server like RADIUS. This allows for tracking and logging user activity, ensuring that all connections can be traced back to individual users. PSKs (Pre-Shared Keys) are shared among users and do not provide individual accountability. Captive portals can identify users but are less secure than enterprise authentication, and Wired Equivalent Privacy (WEP) is outdated and not recommended for security purposes.

CompTIA Network+ materials highlight enterprise authentication methods as the preferred solution for secure and accountable wireless network access.

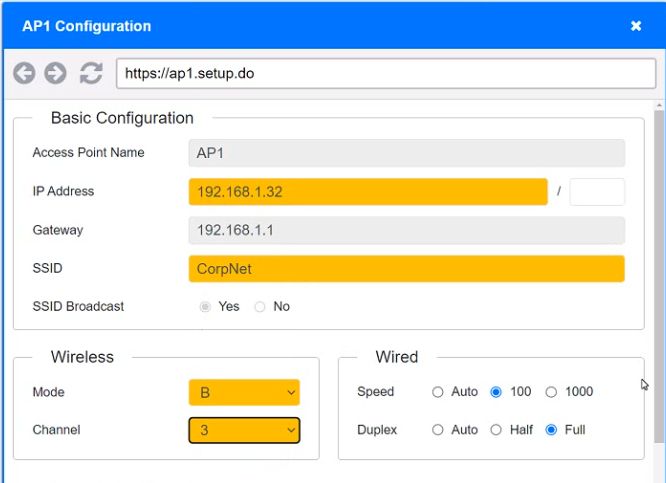

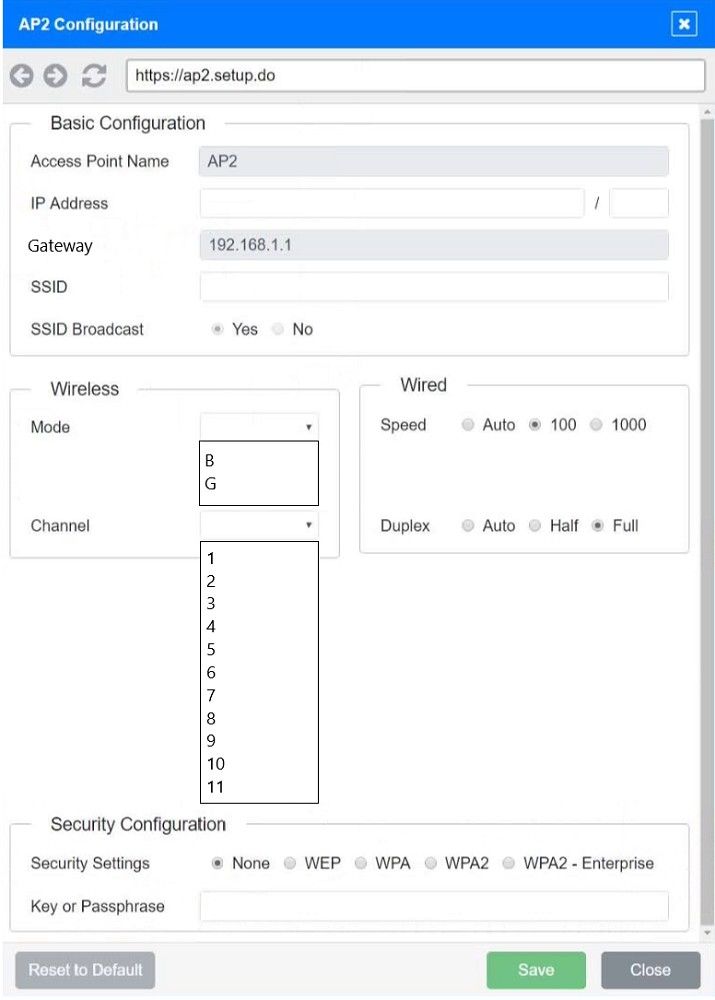

SIMULATION

A network administrator has been tasked with configuring a network for a new corporate office. The office consists of two buildings, separated by 50 feet with no physical connectivity. The configuration must meet the following requirements:

. Devices in both buildings should be able to access the Internet.

. Security insists that all Internet traffic be inspected before entering the network.

. Desktops should not see traffic destined for other devices.

INSTRUCTIONS

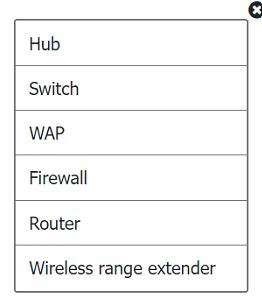

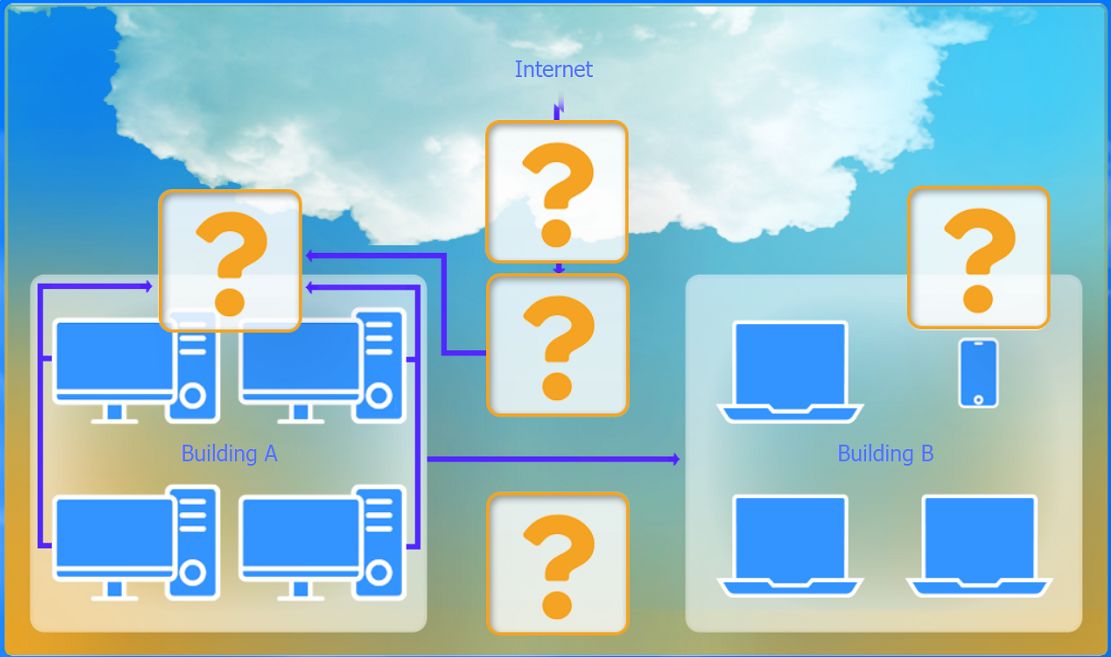

Select the appropriate network device for each location. If applicable, click on the magnifying glass next to any device which may require configuration updates and make any necessary changes.

Not all devices will be used, but all locations should be filled.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

A.
See the step by step complete solution below
A.
See the step by step complete solution below
Answers
Suggested answer: A

Explanation:

Devices in both buildings should be able to access the Internet.

Security insists that all Internet traffic be inspected before entering the network.

Desktops should not see traffic destined for other devices.

Here is the corrected layout with explanation:

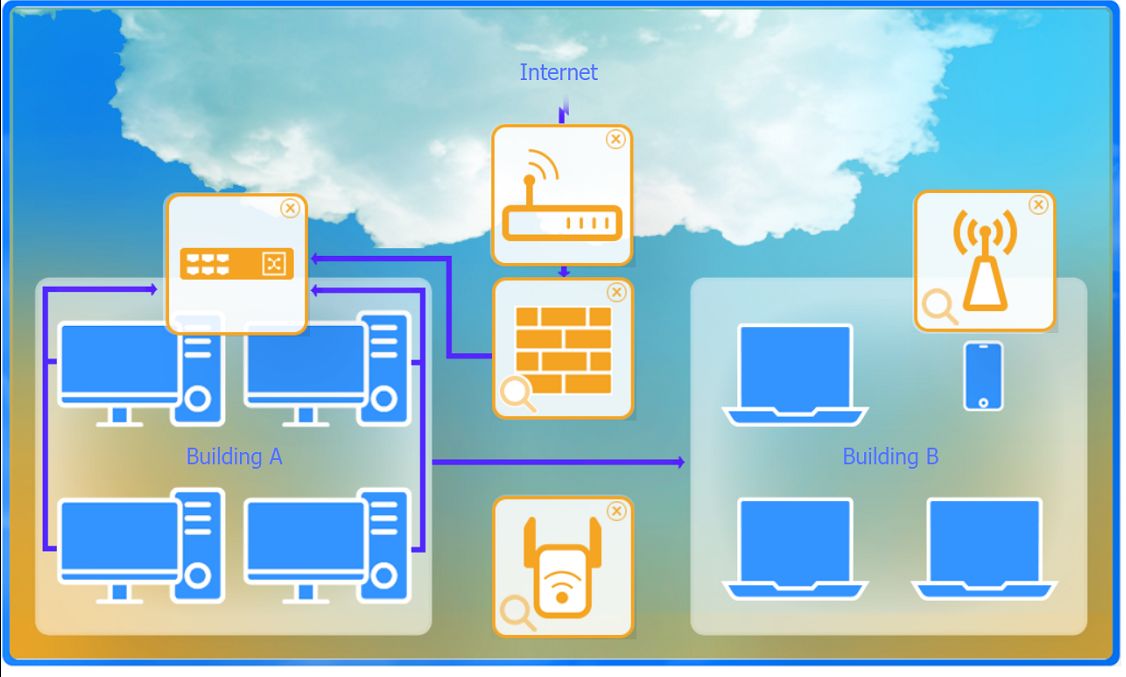

Building A:

Switch: Correctly placed to connect all desktops.

Firewall: Correctly placed to inspect all incoming and outgoing traffic.

Building B:

Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.

Between Buildings:

Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.

Connection to the Internet:

Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.

Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.

Corrected Setup:

Top-left (Building A): Switch

Bottom-left (Building A): Firewall (inspect traffic before it enters the network)

Top-middle (Internet connection): Router

Bottom-middle (between buildings): Wireless Range Extender

Top-right (Building B): Wireless Access Point (WAP)

In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

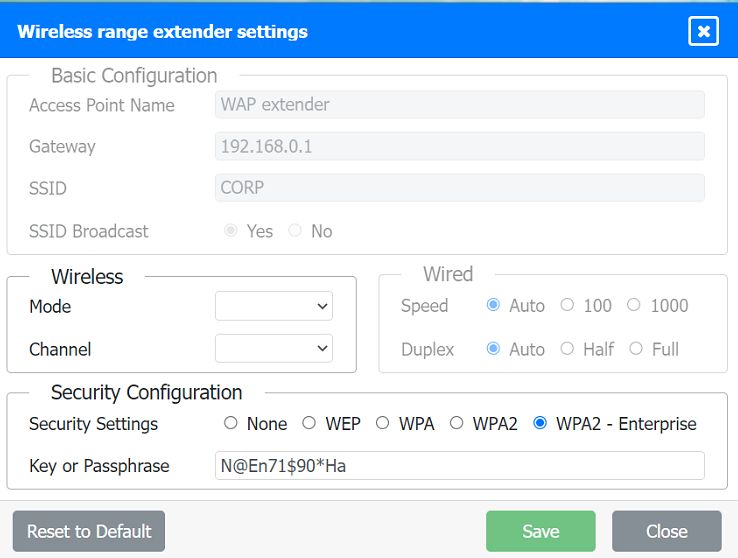

Configuration for Wireless Range Extender:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

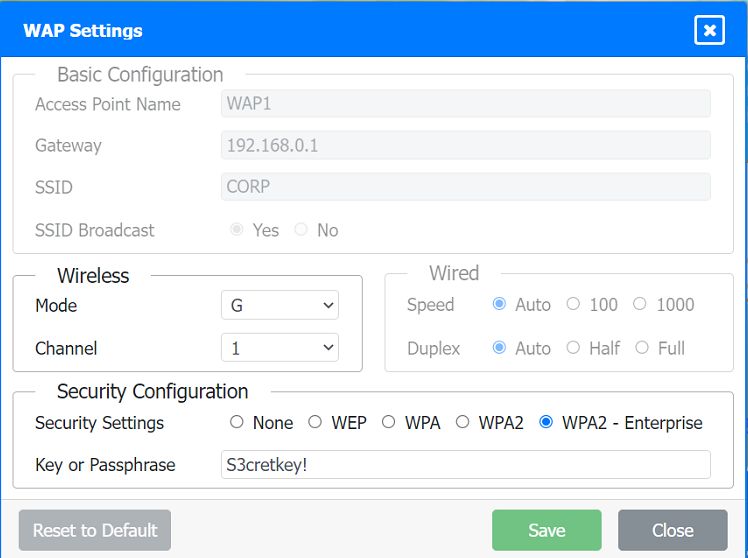

To configure the wireless range extender for security, follow these steps:

SSID (Service Set Identifier):

Ensure the SSID is set to 'CORP' as shown in the exhibit.

Security Settings:

WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.

Key or Passphrase:

If you select WPA2, enter a strong passphrase in the 'Key or Passphrase' field.

If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.

Wireless Mode and Channel:

Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.

Wired Speed and Duplex:

Set the speed to 'Auto' unless you have specific requirements for 100 or 1000 Mbps.

Set the duplex to 'Auto' unless you need to specify half or full duplex based on your network equipment.

Save Configuration:

After making the necessary changes, click the 'Save' button to apply the settings.

Here is how the configuration should look after adjustments:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.

Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:

DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.

HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.

Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.

HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.

HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.

Suggested Additional Settings:

Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.

Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.

Firewall Configuration Adjustments:

Correct the Network Typo:

Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.

Permit General Outbound Traffic:

Rule Name: General Outbound

Source: 192.168.0.1/24

Destination: ANY

Service: ANY

Action: PERMIT

Deny All Other Traffic:

Rule Name: Block All

Source: ANY

Destination: ANY

Service: ANY

Action: DENY

Here is how your updated firewall settings should look:

Rule Name

Source

Destination

Service

Action

DNS Rule

192.168.0.1/24

ANY

DNS

PERMIT

HTTPS Outbound

192.168.0.1/24

ANY

HTTPS

PERMIT

Management

ANY

192.168.0.1/24

SSH

PERMIT

HTTPS Inbound

ANY

192.168.0.1/24

HTTPS

DENY

HTTP Inbound

ANY

192.168.0.1/24

HTTP

DENY

General Outbound

192.168.0.1/24

ANY

ANY

PERMIT

Block All

ANY

ANY

ANY

DENY

These settings ensure that:

Internal devices can access DNS and HTTPS services externally.

Management access via SSH is permitted.

Inbound HTTP and HTTPS traffic is denied unless otherwise specified.

General outbound traffic is allowed.

All other traffic is blocked by default, ensuring a secure environment.

Make sure to save the settings after making these adjustments.

SIMULATION

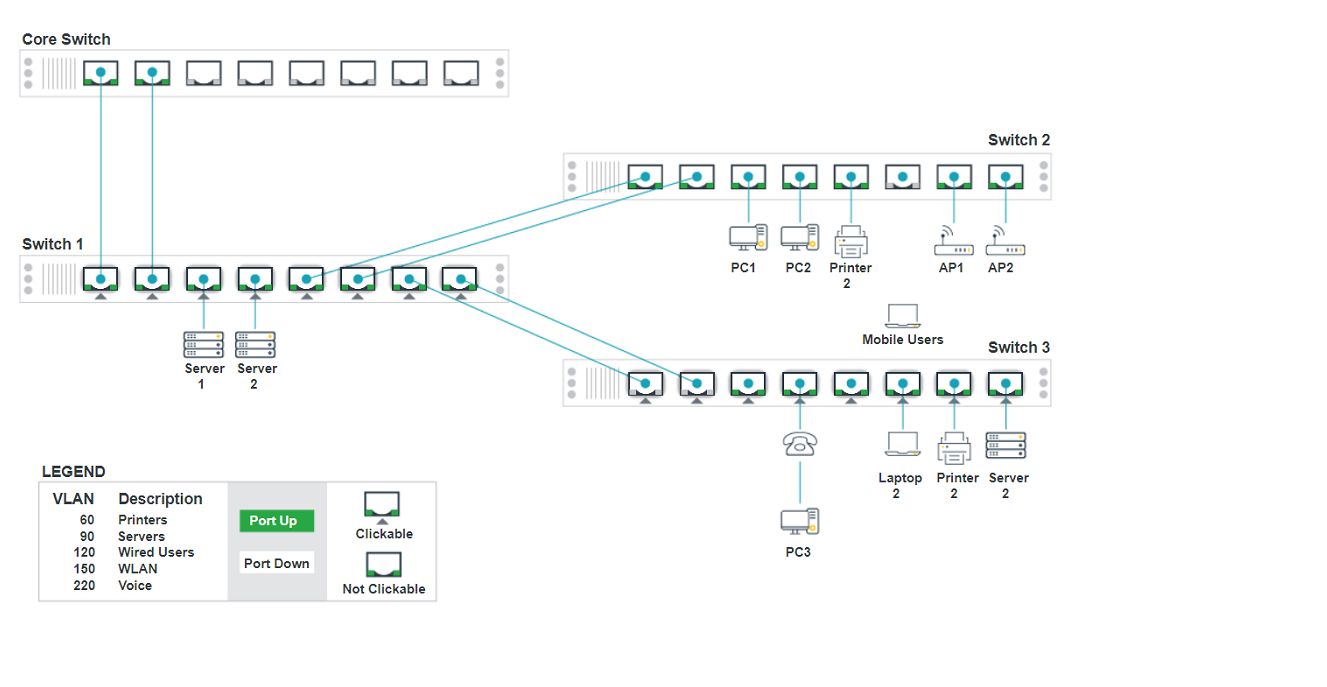

A network technician replaced an access layer switch and needs to reconfigure it to allow the connected devices to connect to the correct networks.

INSTRUCTIONS

Click on the appropriate port(s) on Switch 1 and Switch 3 to verify or reconfigure the correct settings:

* Ensure each device accesses only its correctly associated network.

* Disable all unused switchports.

. Require fault-tolerant connections between the switches.

. Only make necessary changes to complete the above requirements.

A.
See the solution below in Explanation
A.
See the solution below in Explanation
Answers
Suggested answer: A

Explanation:

To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:

Identify the correct VLANs for each device and port.

Enable necessary ports and disable unused ports.

Configure fault-tolerant connections between the switches.

Configuration Details

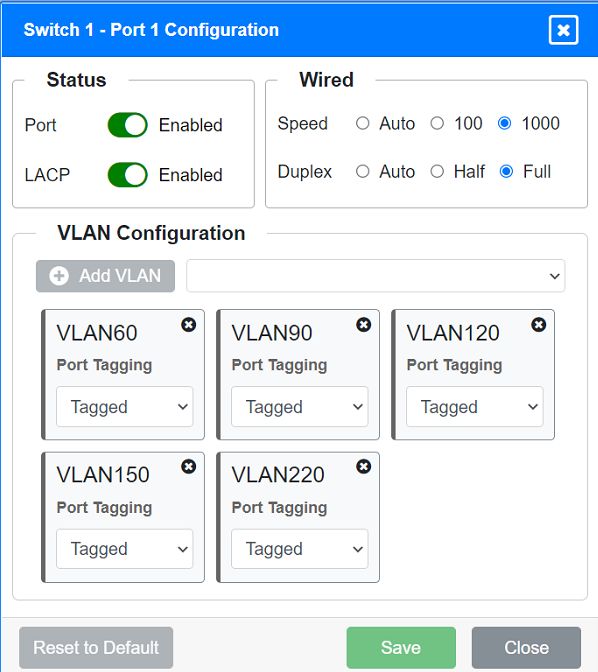

Switch 1

Port 1 Configuration (Uplink to Core Switch)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220

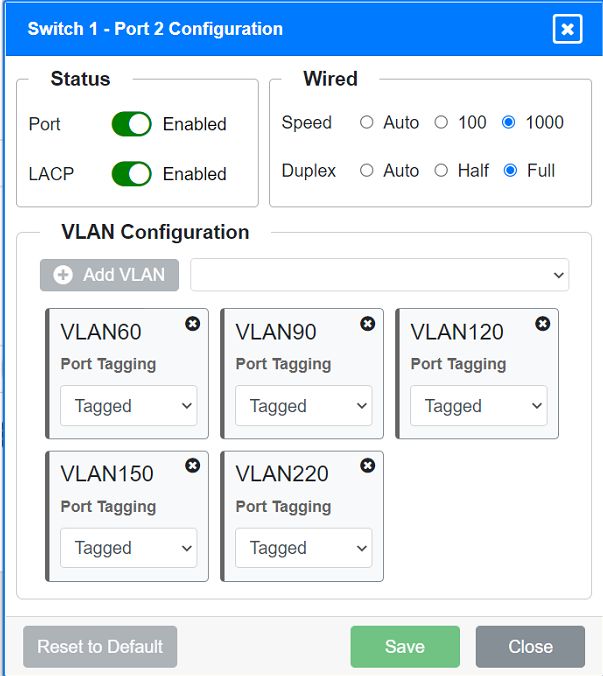

Port 2 Configuration (Uplink to Core Switch)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220

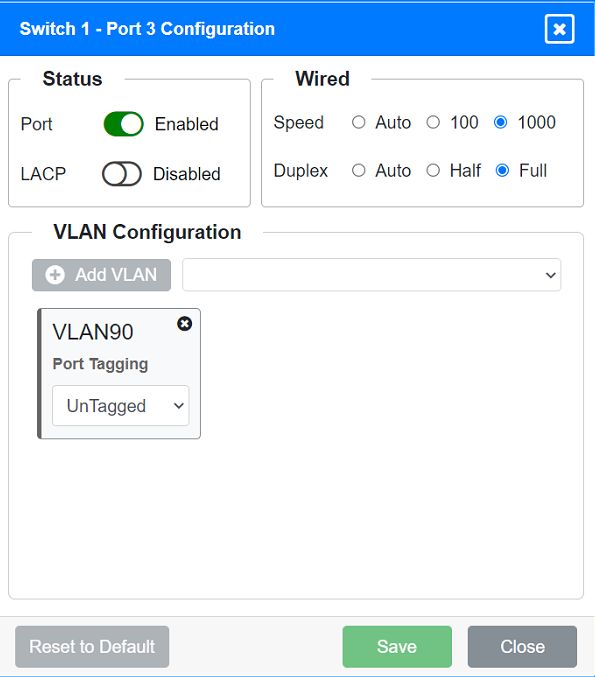

Port 3 Configuration (Server Connection)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN90 (Servers)

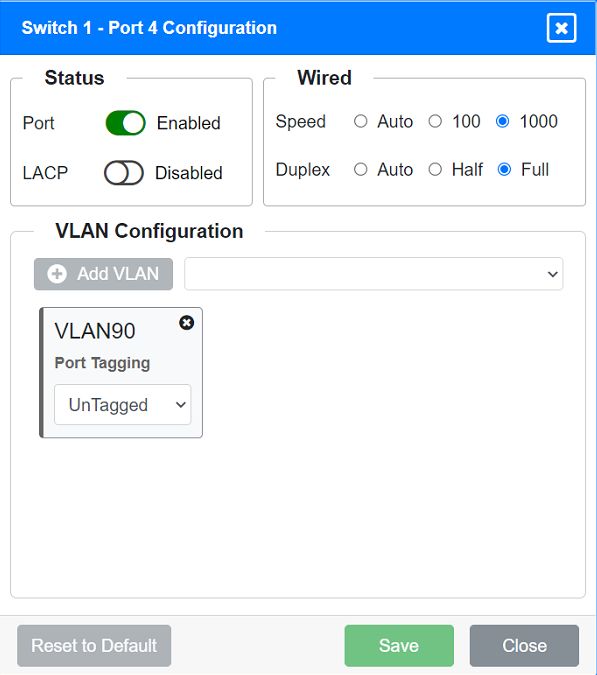

Port 4 Configuration (Server Connection)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN90 (Servers)

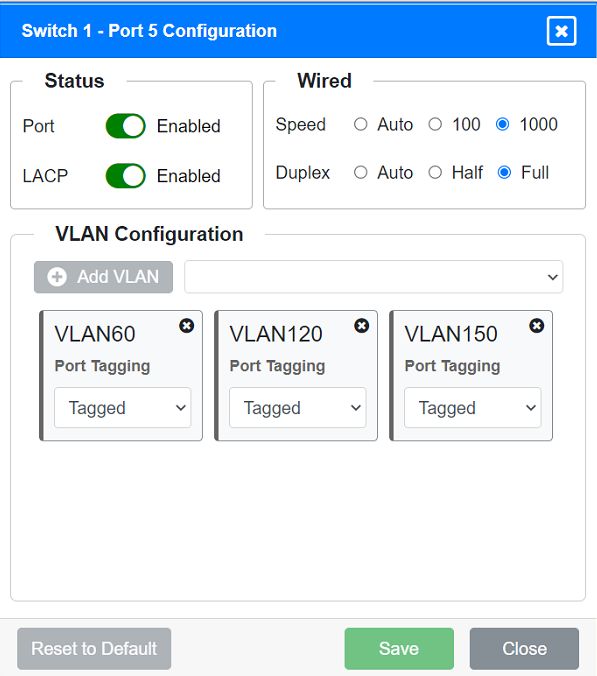

Port 5 Configuration (Wired Users and WLAN)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

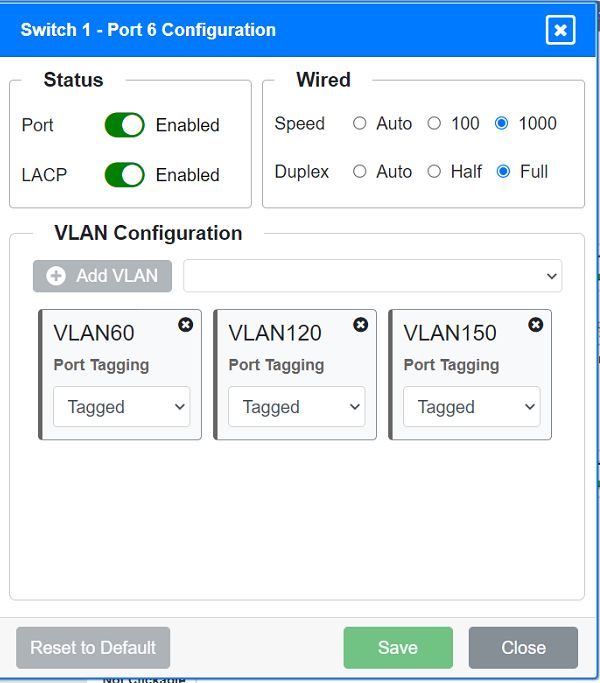

Port 6 Configuration (Wired Users and WLAN)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

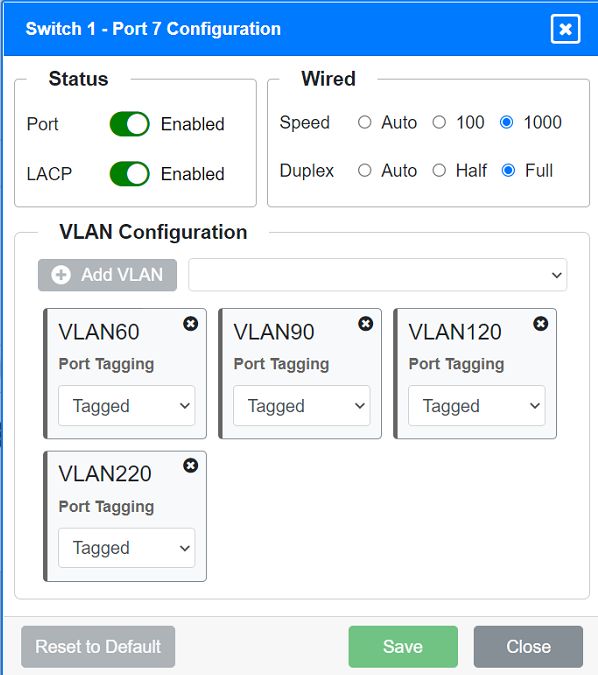

Port 7 Configuration (Voice and Wired Users)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

Port 8 Configuration (Voice, Printers, and Wired Users)

Status: Enabled

LACP: Enabled

Speed: 1000

Duplex: Full

VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

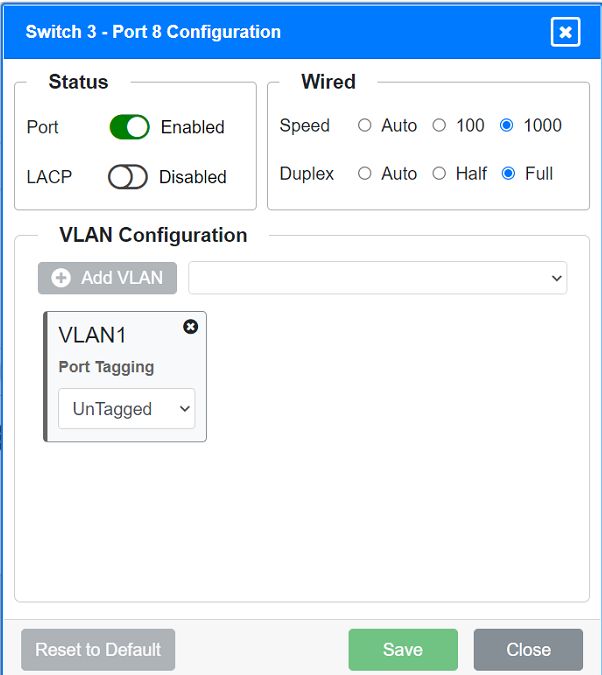

Switch 3

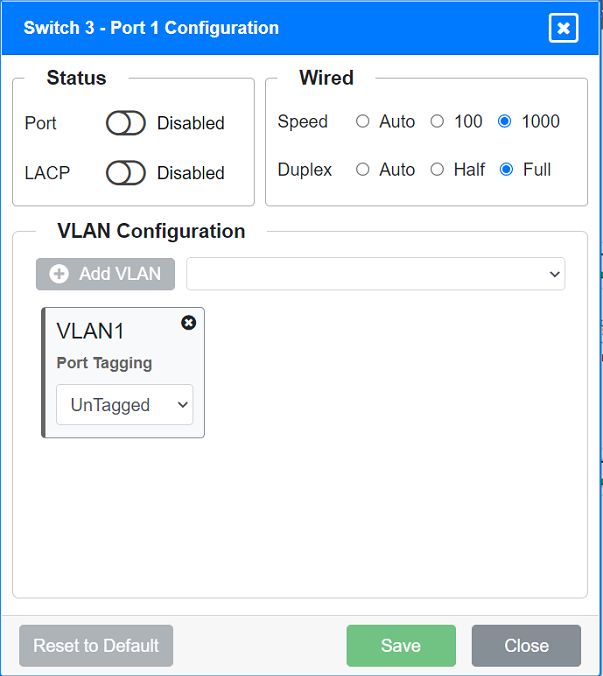

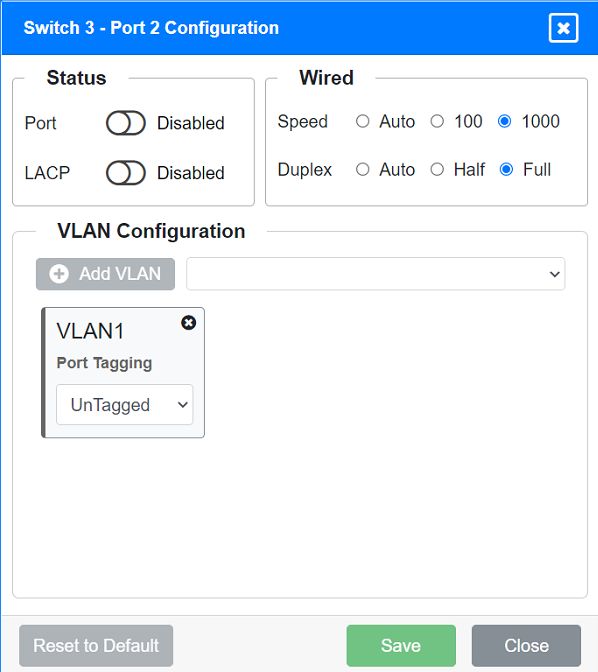

Port 1 Configuration (Unused)

Status: Disabled

LACP: Disabled

Port 2 Configuration (Unused)

Status: Disabled

LACP: Disabled

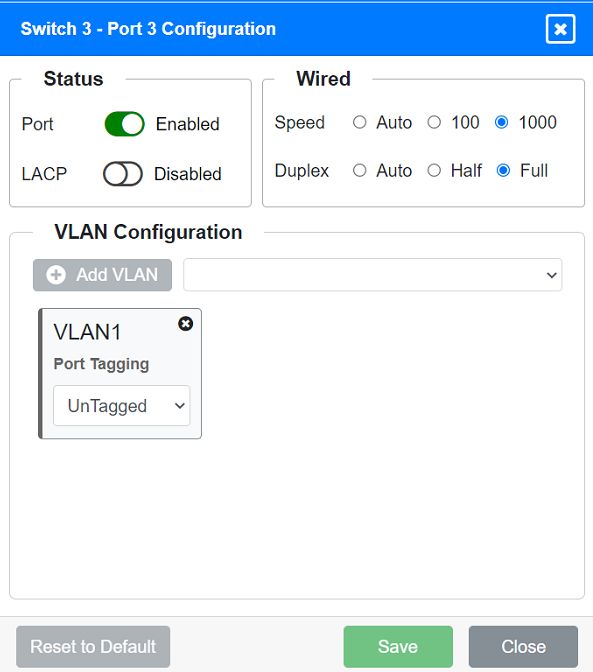

Port 3 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 4 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Port 5 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

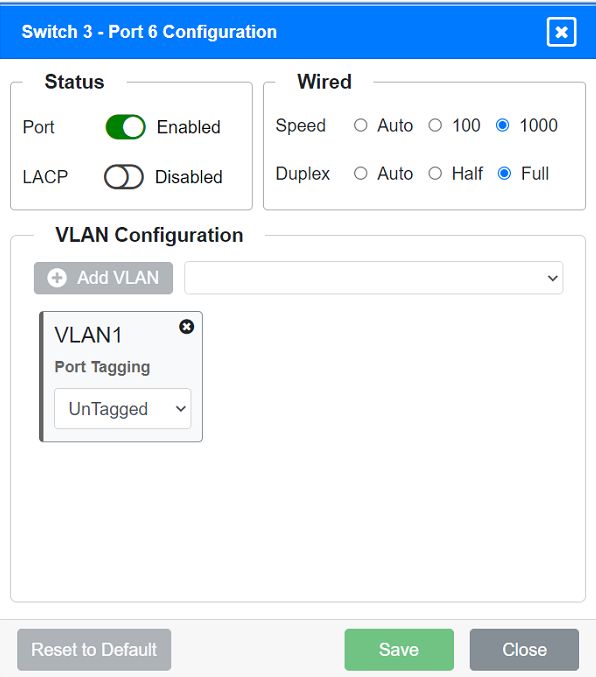

Port 6 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

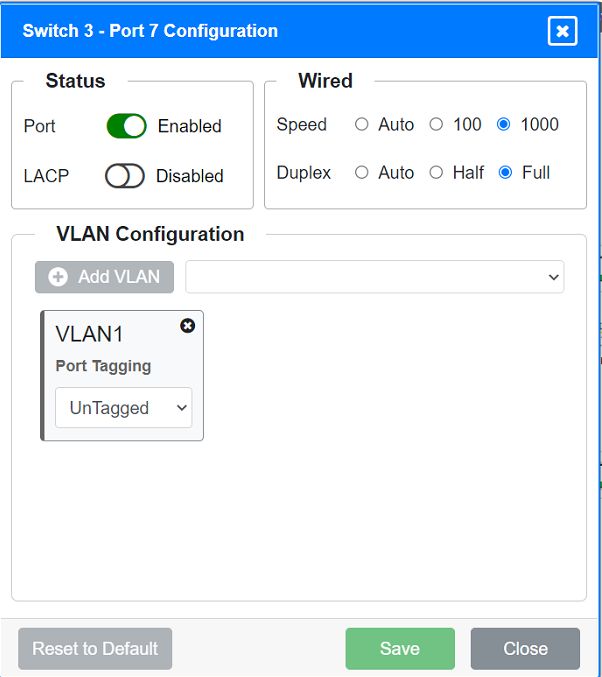

Port 7 Configuration (Connection to Device)

Status: Enabled

LACP: Disabled

Speed: 1000

Duplex: Full

VLAN Configuration: Untagged for VLAN1 (Default)

Summary of Configurations

Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.

Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.

Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.

Unused ports on Switch 3 are disabled.

Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.

Ensure All Switches and Ports are Configured as per the Requirements:

Core Switch Ports should be configured as needed for uplinks to Switch 1.

Ensure LACP is enabled for redundancy on trunk ports between switches.

By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.

SIMULATION

Users are unable to access files on their department share located on file server 2.

The network administrator has been tasked with validating routing between networks hosting workstation A and file server 2.

INSTRUCTIONS

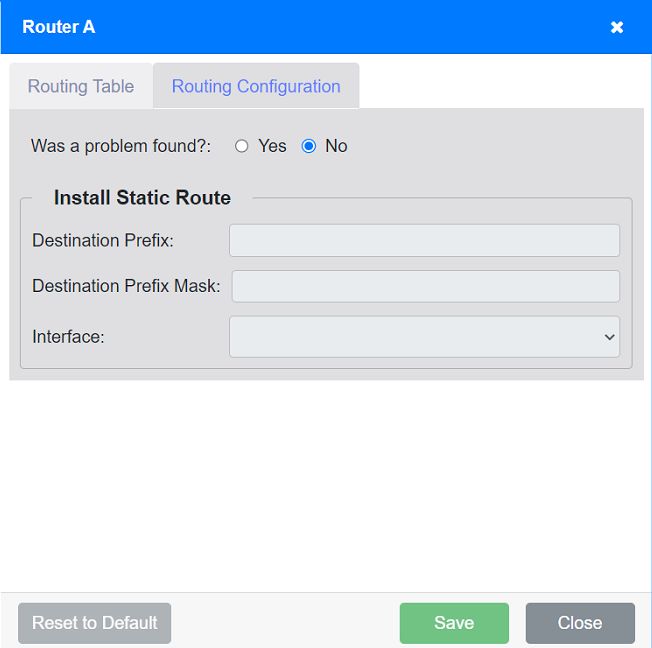

Click on each router to review output, identify any issues, and configure the appropriate solution.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

A.
See the solution in Explanation
A.
See the solution in Explanation
Answers
Suggested answer: A

Explanation:

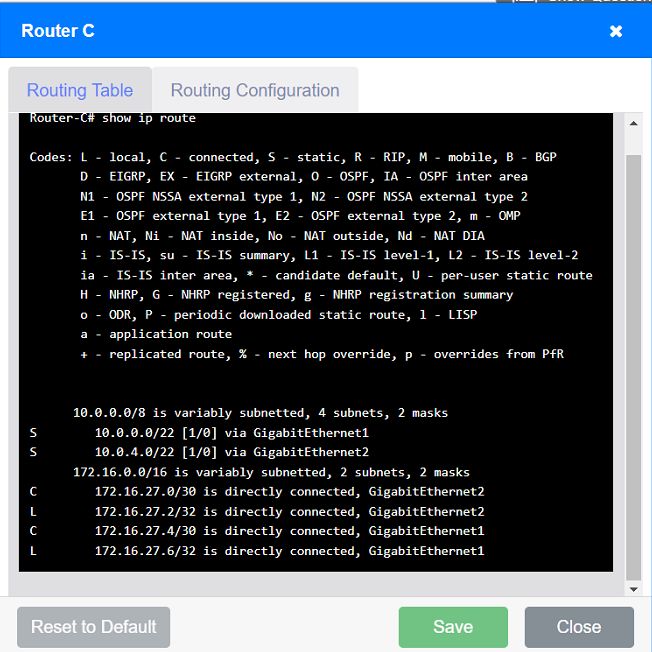

To validate routing between networks hosting Workstation A and File Server 2, follow these steps:

Step-by-Step Solution

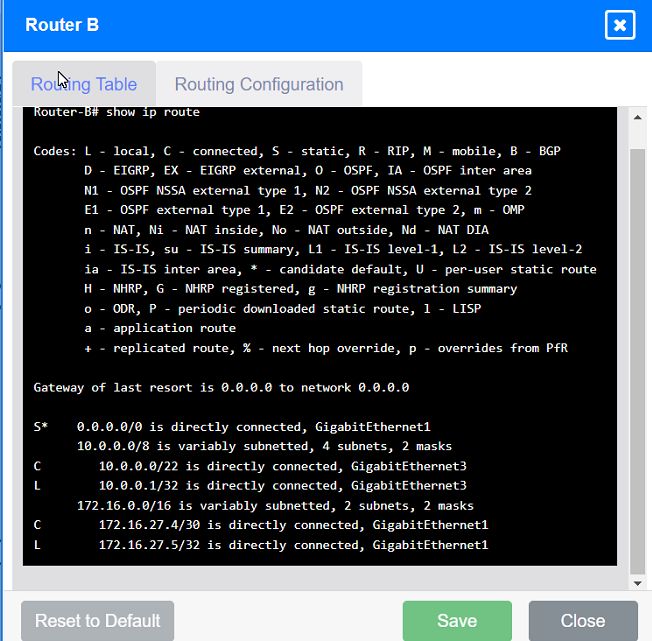

Review Routing Tables:

Check the routing tables of Router A, Router B, and Router C to identify any missing routes.

Identify Missing Routes:

Ensure that each router has routes to the networks on which Workstation A and File Server 2 are located.

Add Static Routes:

If a route is missing, add a static route to the relevant destination network via the correct interface.

Detailed Analysis and Configuration

Router A:

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet3

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.4.0/22 is directly connected, GigabitEthernet2

C 10.0.6.0/24 is directly connected, GigabitEthernet2

L 10.0.6.1/32 is directly connected, GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet3

L 172.16.27.1/32 is directly connected, GigabitEthernet3

Router B:

Routing Table:

Gateway of last resort is 0.0.0.0 to network 0.0.0.0

S* 0.0.0.0/0 is directly connected, GigabitEthernet1

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

C 10.0.0.0/22 is directly connected, GigabitEthernet1

L 10.0.0.1/32 is directly connected, GigabitEthernet1

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.5/32 is directly connected, GigabitEthernet1

Router C:

Routing Table:

10.0.0.0/8 is variably subnetted, 4 subnets, 2 masks

S 10.0.0.0/22 [1/0] via GigabitEthernet1

S 10.0.4.0/22 [1/0] via GigabitEthernet2

172.16.0.0/16 is variably subnetted, 2 subnets, 2 masks

C 172.16.27.0/30 is directly connected, GigabitEthernet2

L 172.16.27.2/32 is directly connected, GigabitEthernet2

C 172.16.27.4/30 is directly connected, GigabitEthernet1

L 172.16.27.6/32 is directly connected, GigabitEthernet1

Configuration Steps:

Router A:

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router C's IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet3

Router B:

Install Static Route to 10.0.4.0/22 via 172.16.27.5 (assuming Router C's IP is 172.16.27.5):

Destination Prefix: 10.0.4.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Router C:

Install Static Route to 10.0.6.0/24 via 172.16.27.2 (assuming Router A's IP is 172.16.27.2):

Destination Prefix: 10.0.6.0

Destination Prefix Mask: 255.255.255.0

Interface: GigabitEthernet2

Install Static Route to 10.0.0.0/22 via 172.16.27.1 (assuming Router B's IP is 172.16.27.1):

Destination Prefix: 10.0.0.0

Destination Prefix Mask: 255.255.252.0

Interface: GigabitEthernet1

Summary of Static Routes:

Router A:

ip route 10.0.0.0 255.255.252.0 GigabitEthernet3

Router B:

ip route 10.0.4.0 255.255.252.0 GigabitEthernet1

Router C:

ip route 10.0.6.0 255.255.255.0 GigabitEthernet2

ip route 10.0.0.0 255.255.252.0 GigabitEthernet1

These configurations ensure that each router knows the correct paths to reach Workstation A and File Server 2, resolving the connectivity issue.

SIMULATION

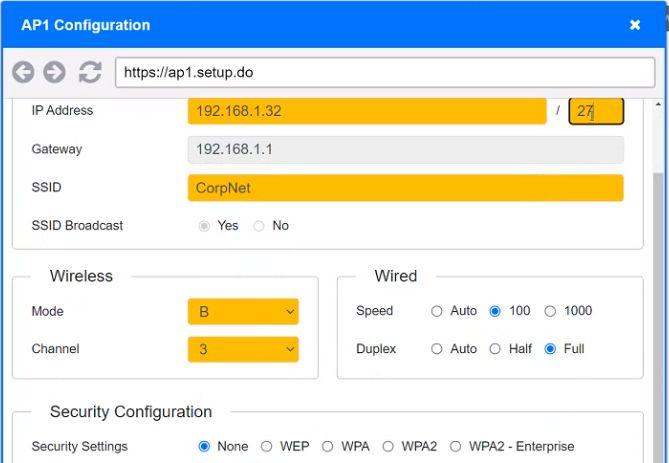

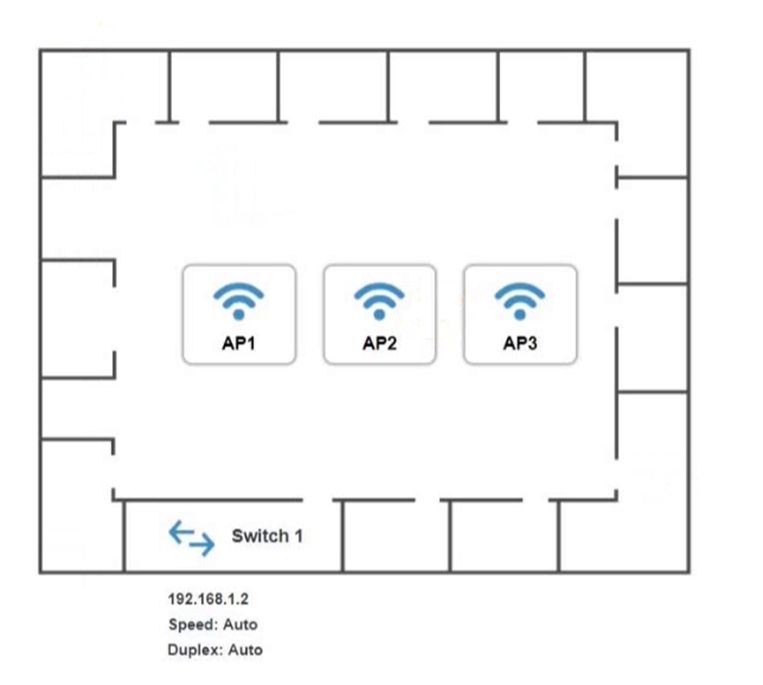

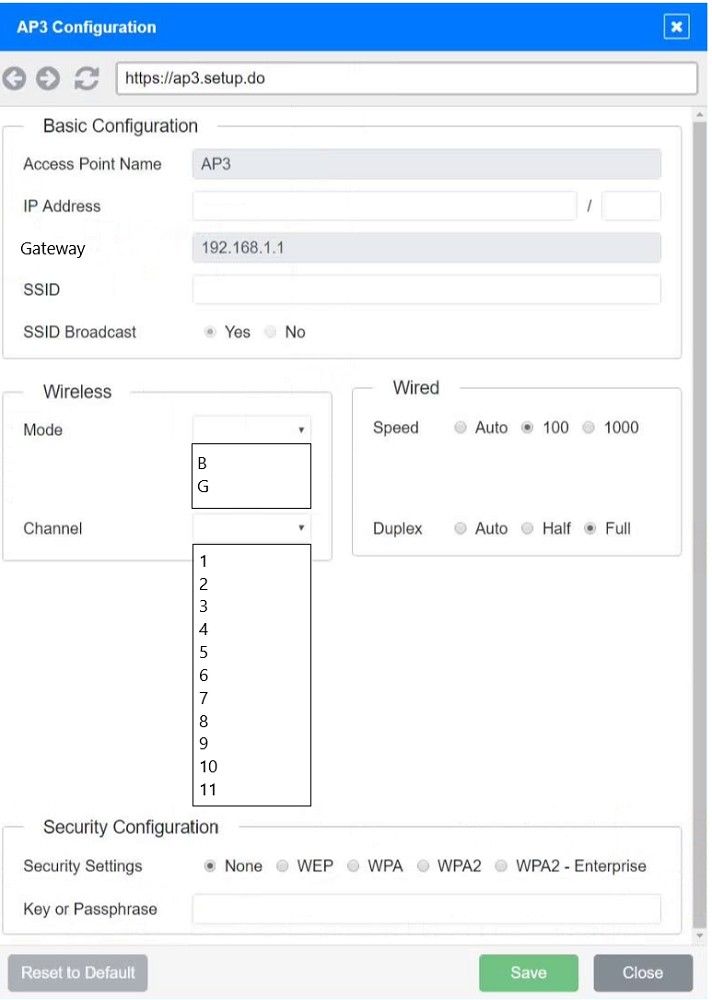

You have been tasked with setting up a wireless network in an office. The network will consist of 3 Access Points and a single switch. The network must meet the following parameters:

The SSIDs need to be configured as CorpNet with a key of S3cr3t!

The wireless signals should not interfere with each other

The subnet the Access Points and switch are on should only support 30 devices maximum

The Access Points should be configured to only support TKIP clients at a maximum speed

INSTRUCTONS

Click on the wireless devices and review their information and adjust the settings of the access points to meet the given requirements.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

A.
See explanation below
A.
See explanation below
Answers
Suggested answer: A

Explanation:

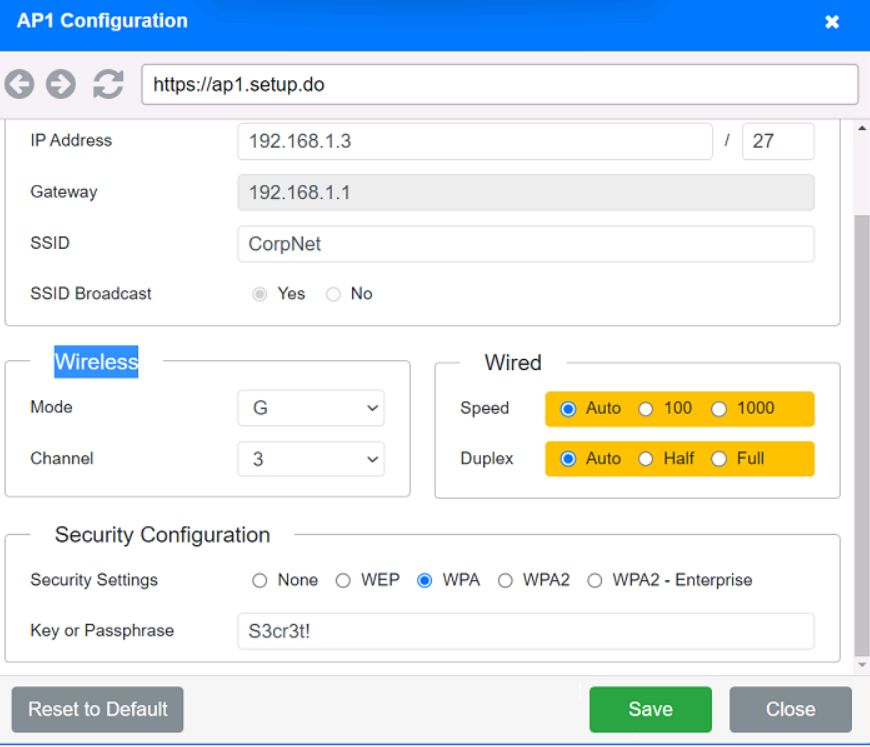

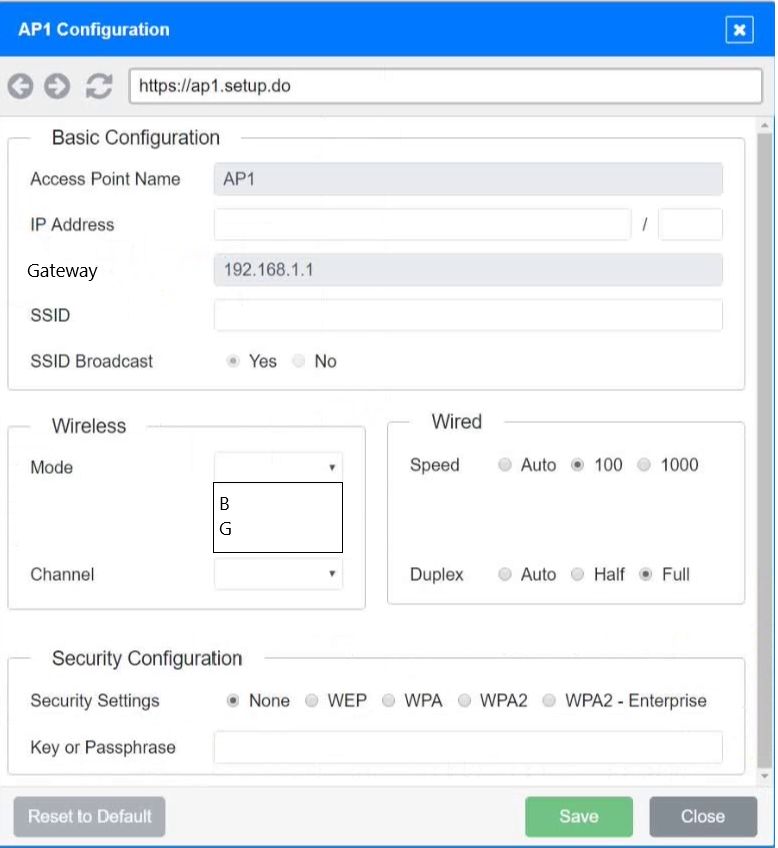

On the first exhibit, the layout should be as follows

Exhibit 2 as follows

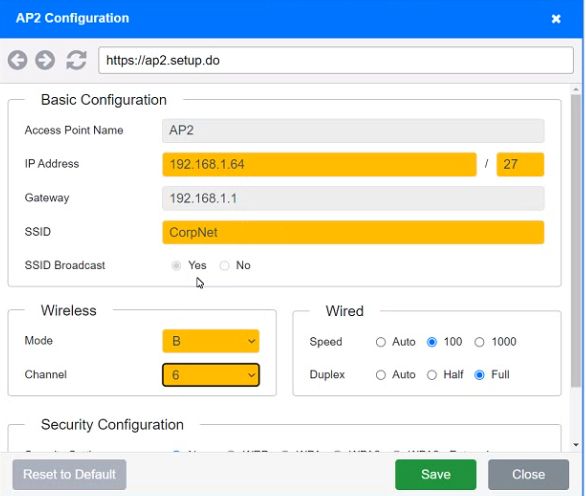

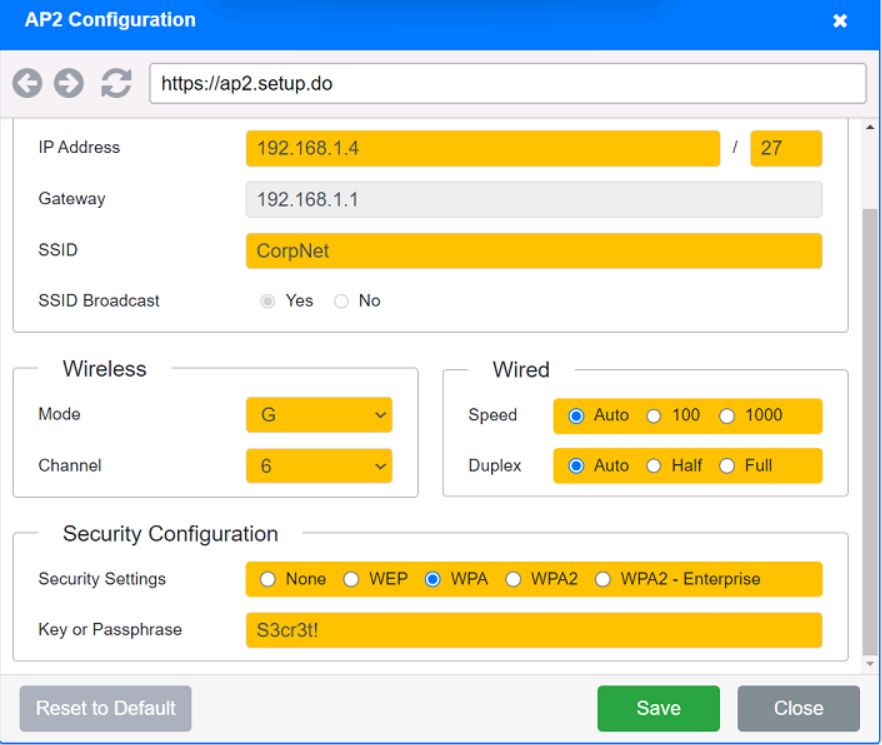

Access Point Name AP2

Exhibit 3 as follows

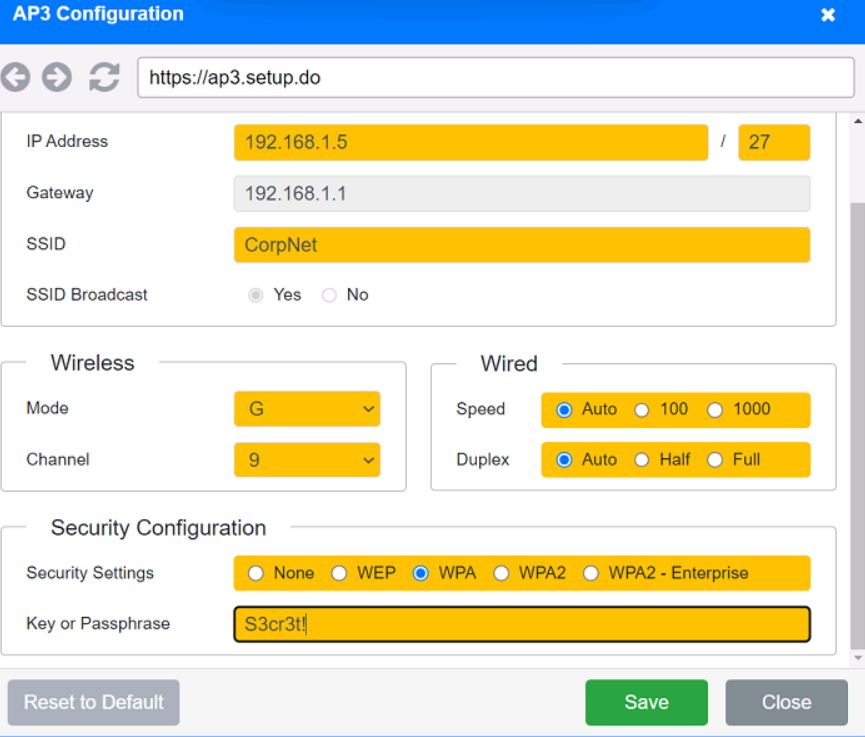

Access Point Name AP3

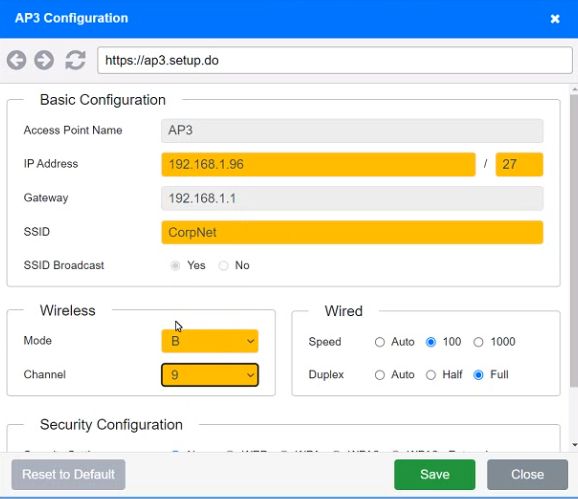

SIMULATION

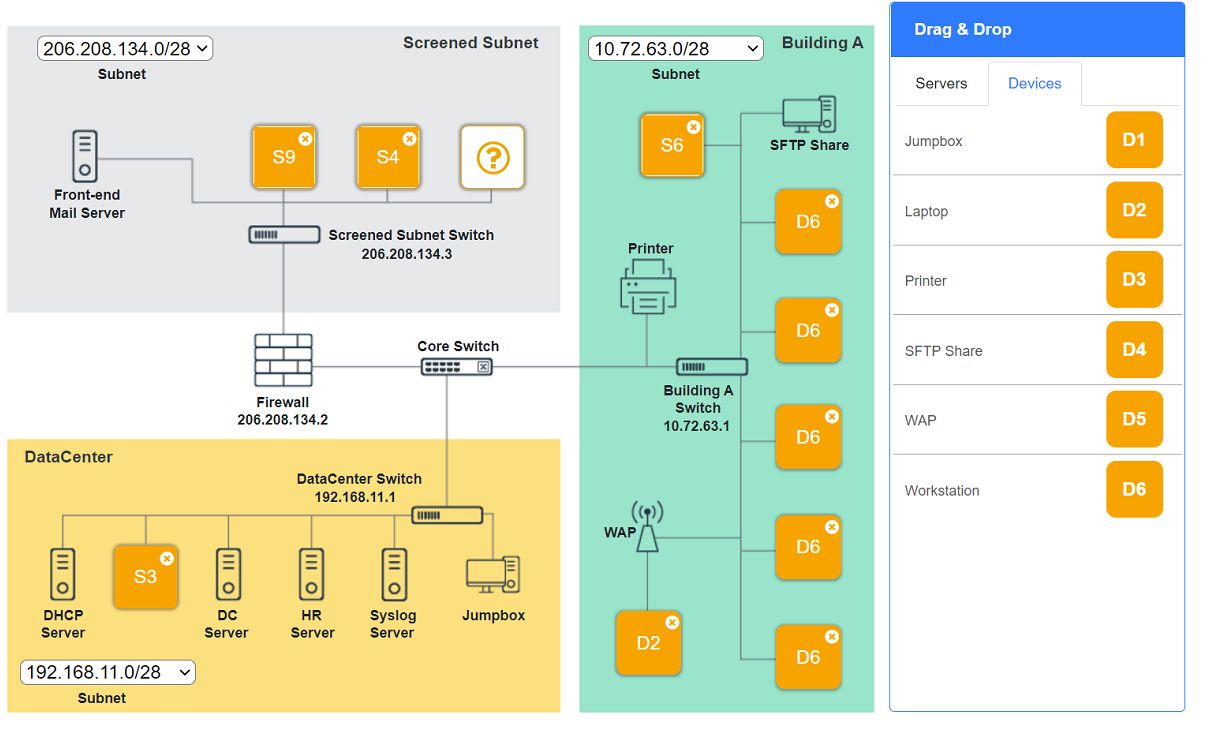

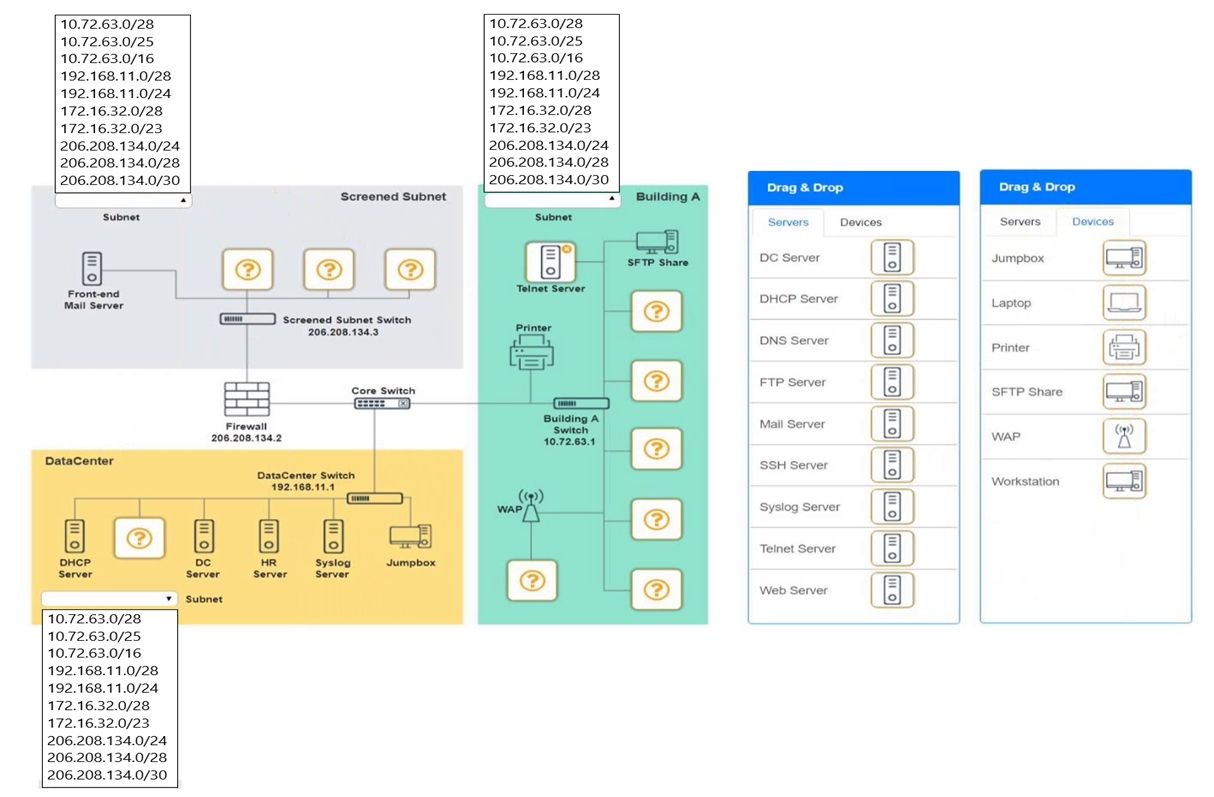

You are tasked with verifying the following requirements are met in order to ensure network security.

Requirements:

Datacenter

Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage

Provide a dedicated server to resolve IP addresses and hostnames correctly and handle port 53 traffic

Building A

Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage

Provide devices to support 5 additional different office users

Add an additional mobile user

Replace the Telnet server with a more secure solution

Screened subnet

Ensure network is subnetted to allow all devices to communicate properly while minimizing address space usage

Provide a server to handle external 80/443 traffic

Provide a server to handle port 20/21 traffic

INSTRUCTIONS

Drag and drop objects onto the appropriate locations. Objects can be used multiple times and not all placeholders need to be filled.

Available objects are located in both the Servers and Devices tabs of the Drag & Drop menu.

If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.


A.
See explanation below
A.
See explanation below
Answers
Suggested answer: A

Explanation:

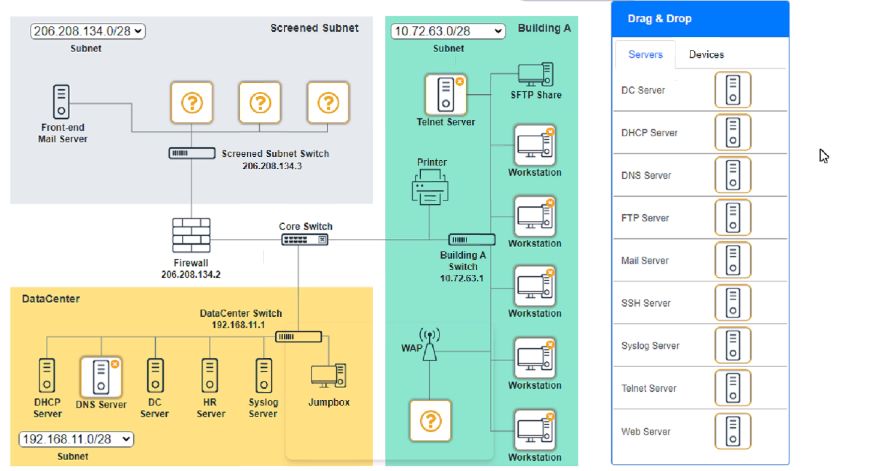

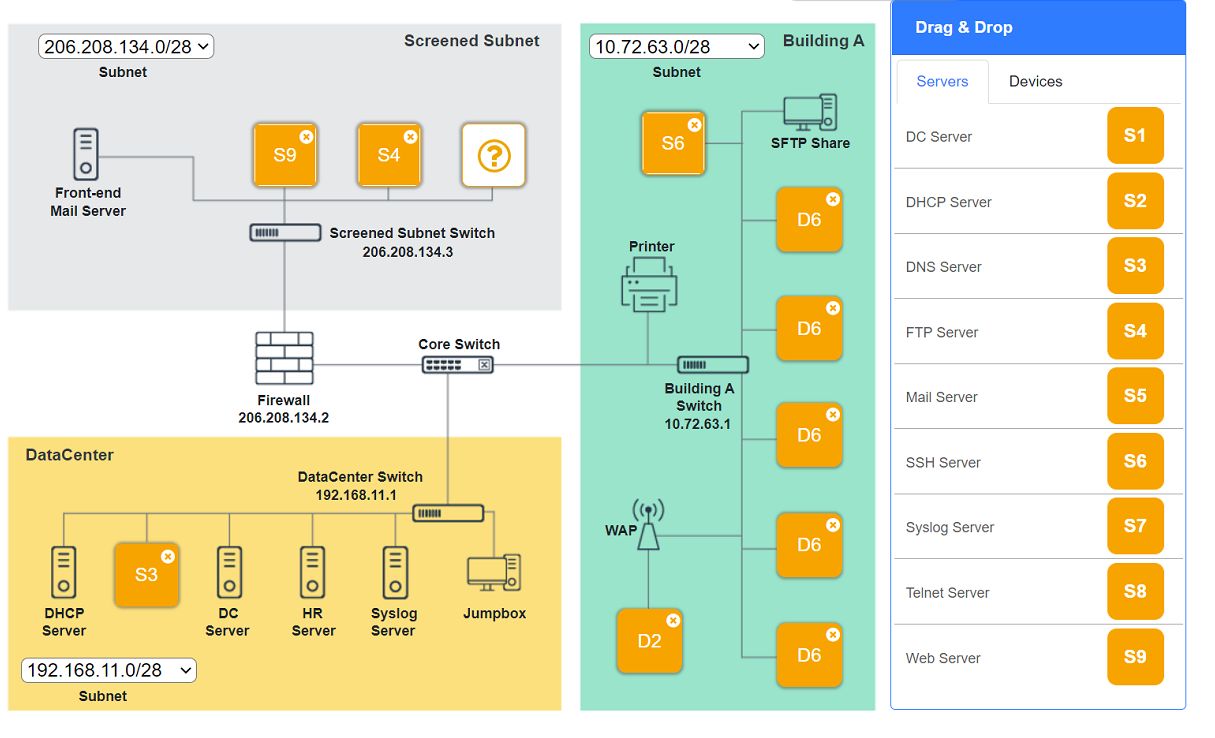

Screened Subnet devices -- Web server, FTP server

Building A devices -- SSH server top left, workstations on all 5 on the right, laptop on bottom left

DataCenter devices -- DNS server.


SIMULATION

A network technician was recently onboarded to a company. A manager has tasked the technician with documenting the network and has provided the technician With partial information from previous documentation.

Instructions:

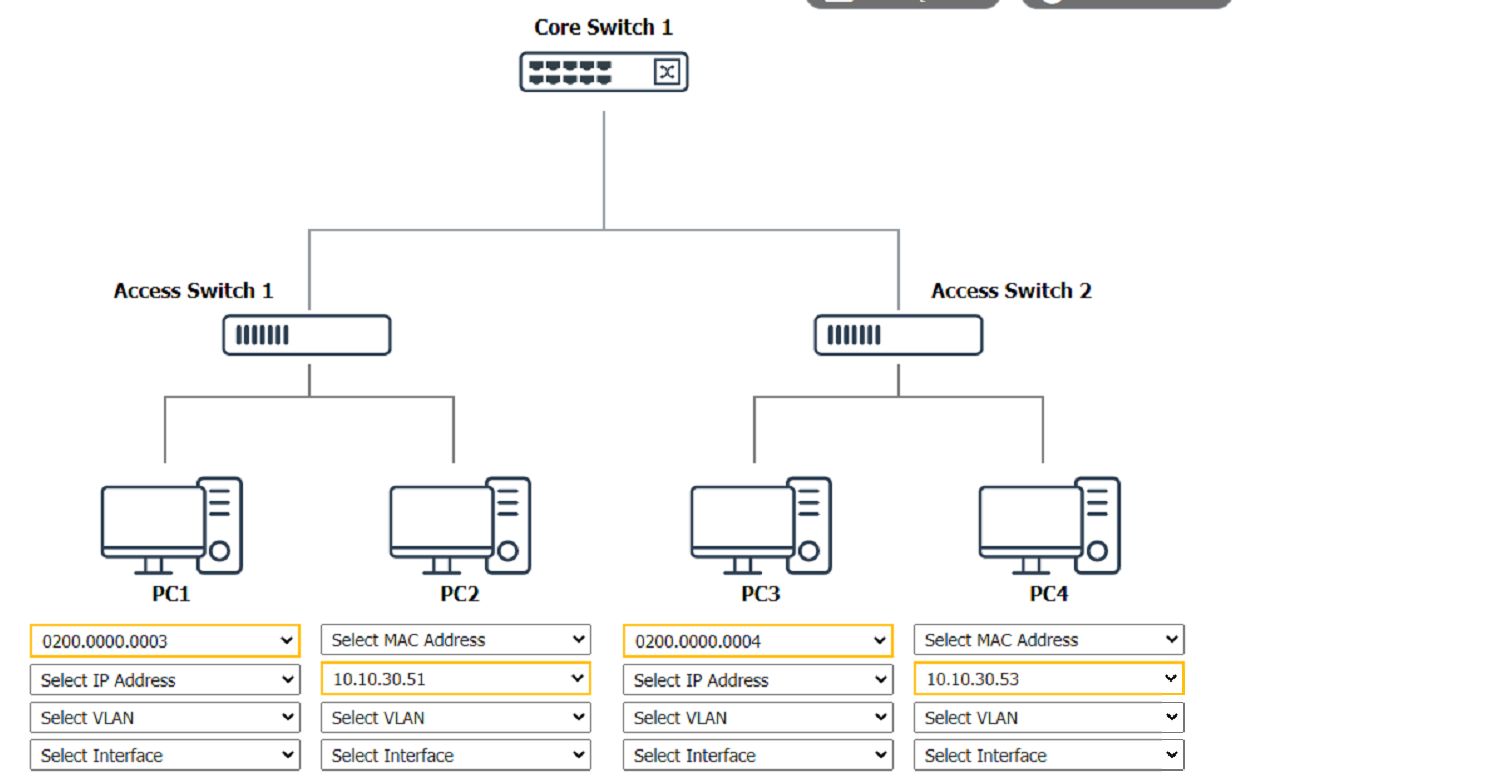

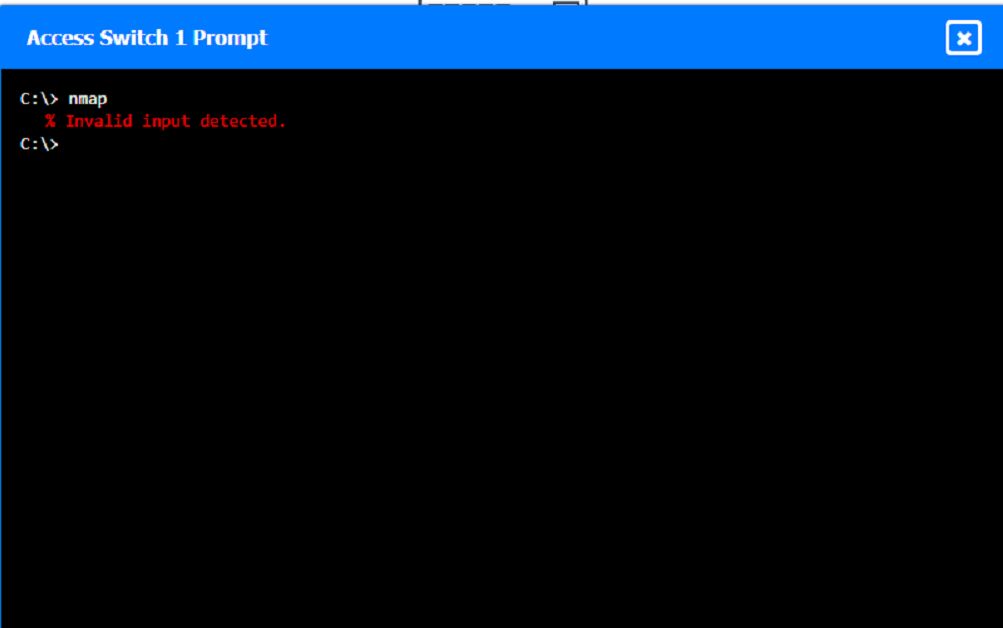

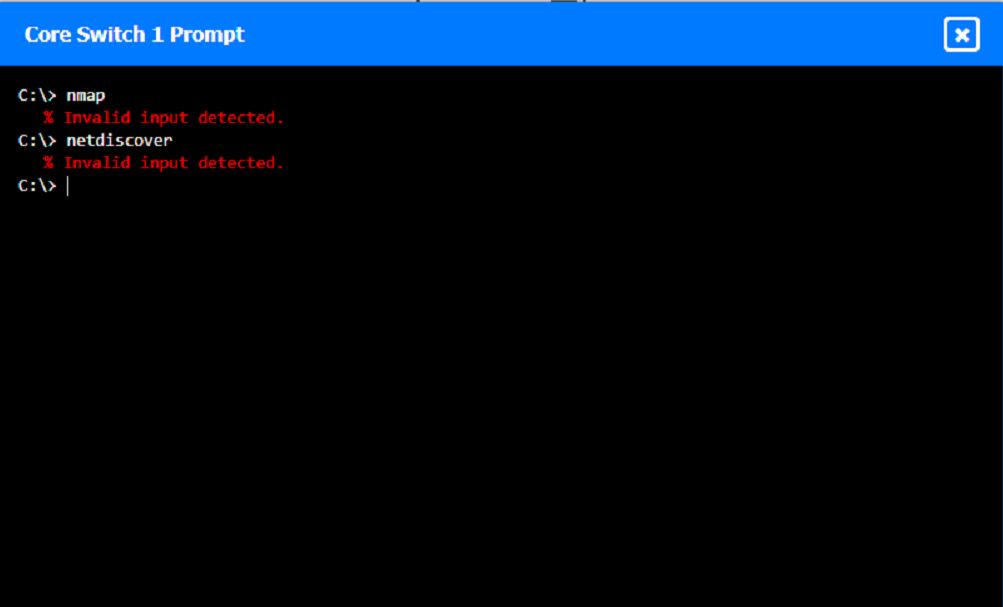

Click on each switch to perform a network discovery by entering commands into the terminal. Fill in the missing information using drop-down menus provided.

A.
See the Explanation for detailed information on this simulation
A.
See the Explanation for detailed information on this simulation
Answers
Suggested answer: A

Explanation:

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

To perform a network discovery by entering commands into the terminal, you can use the following steps:

Click on each switch to open its terminal window.

Enter the commandshow ip interface briefto display the IP addresses and statuses of the switch interfaces.

Enter the commandshow vlan briefto display the VLAN configurations and assignments of the switch interfaces.

Enter the commandshow cdp neighborsto display the information about the neighboring devices that are connected to the switch.

Fill in the missing information in the diagram using the drop-down menus provided.

Here is an example of how to fill in the missing information for Core Switch 1:

The IP address of Core Switch 1 is192.168.1.1.

The VLAN configuration of Core Switch 1 isVLAN 1: 192.168.1.0/24, VLAN 2: 192.168.2.0/24, VLAN 3: 192.168.3.0/24.

The neighboring devices of Core Switch 1 areAccess Switch 1 and Access Switch 2.

The interfaces that connect Core Switch 1 to Access Switch 1 areGigabitEthernet0/1 and GigabitEthernet0/2.

The interfaces that connect Core Switch 1 to Access Switch 2 areGigabitEthernet0/3 and GigabitEthernet0/4.

You can use the same steps to fill in the missing information for Access Switch 1 and Access Switch 2.

SIMULATION

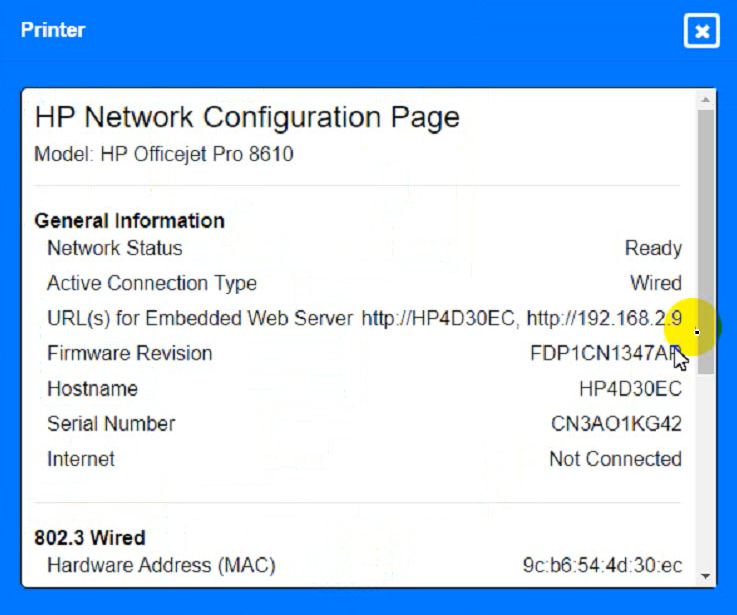

A network technician needs to resolve some issues with a customer's SOHO network.

The customer reports that some of the devices are not connecting to the network, while others appear to work as intended.

INSTRUCTIONS

Troubleshoot all the network components and review the cable test results by Clicking on each device and cable.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

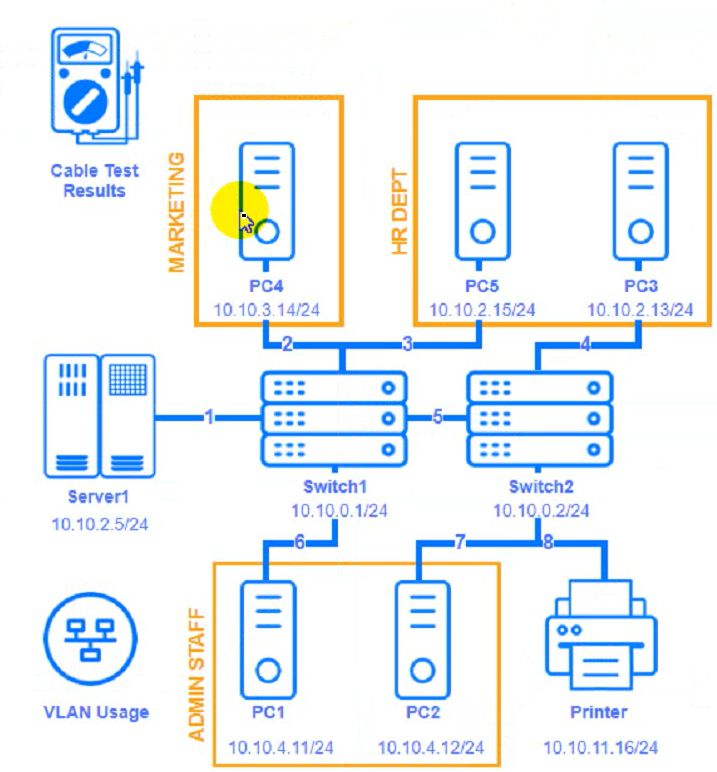

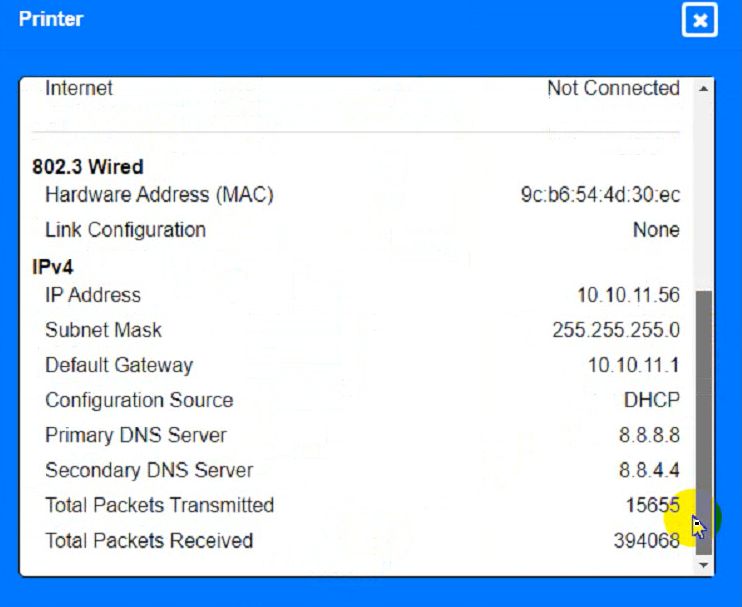

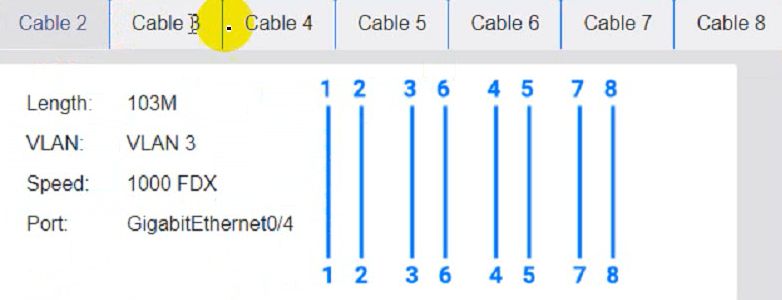

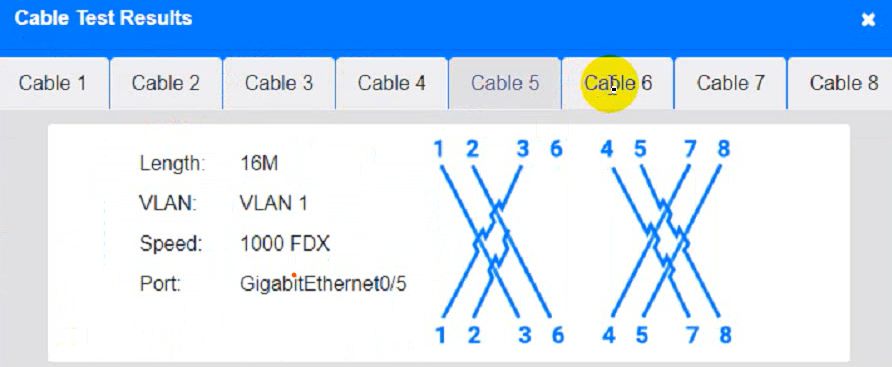

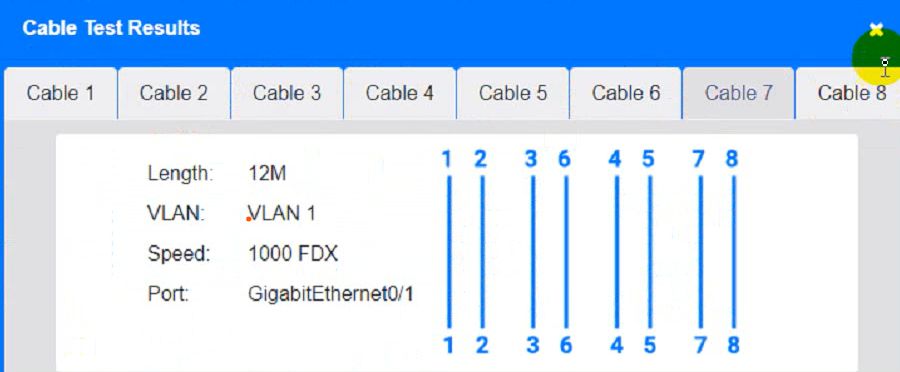

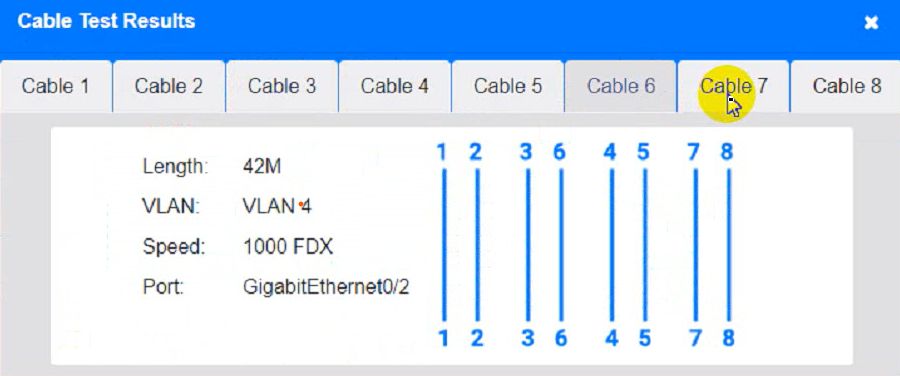

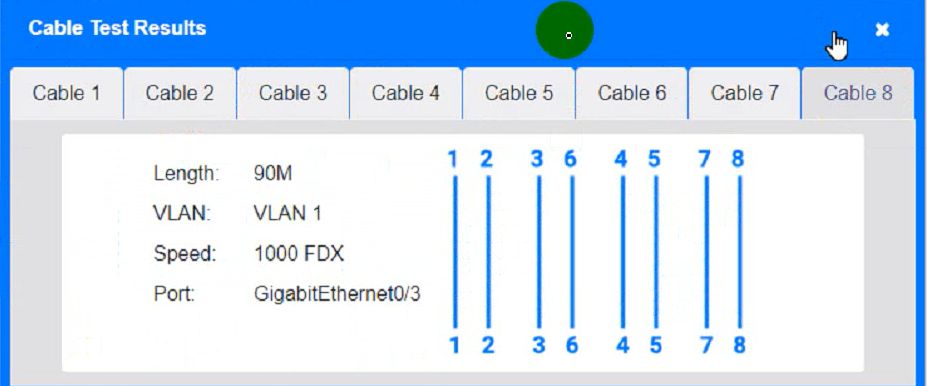

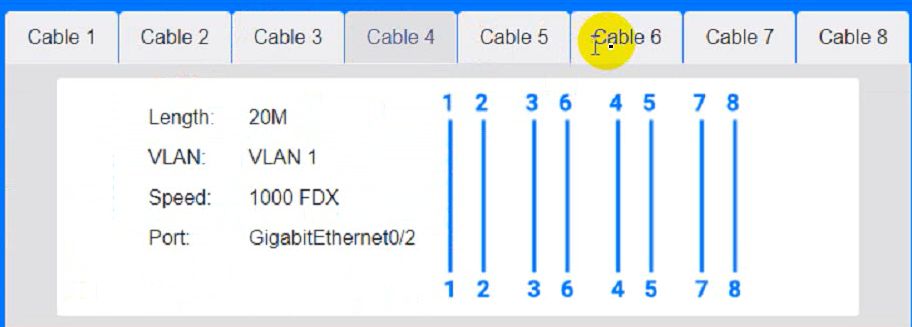

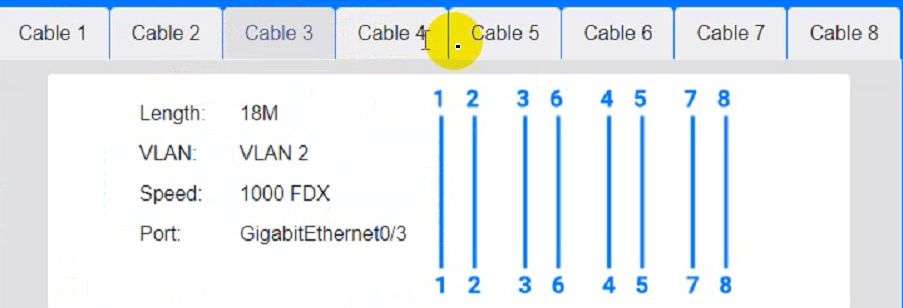

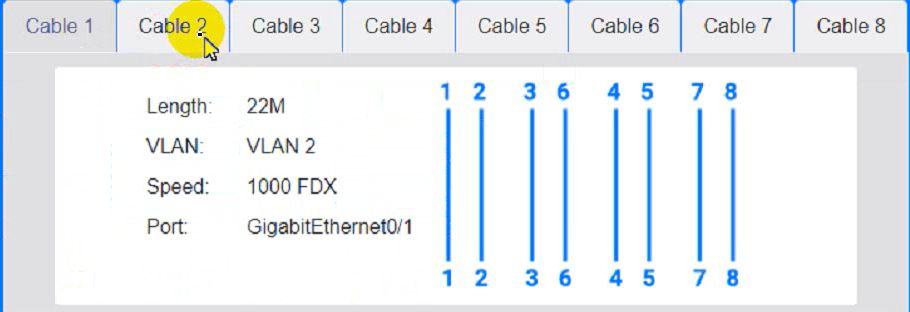

Cable Test Results:

Cable 1:

Cable 2:

Cable 3:

Cable 4:

A.
See the Explanation for detailed information on this simulation
A.
See the Explanation for detailed information on this simulation
Answers
Suggested answer: A

Explanation:

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

To troubleshoot all the network components and review the cable test results, you can use the following steps:

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

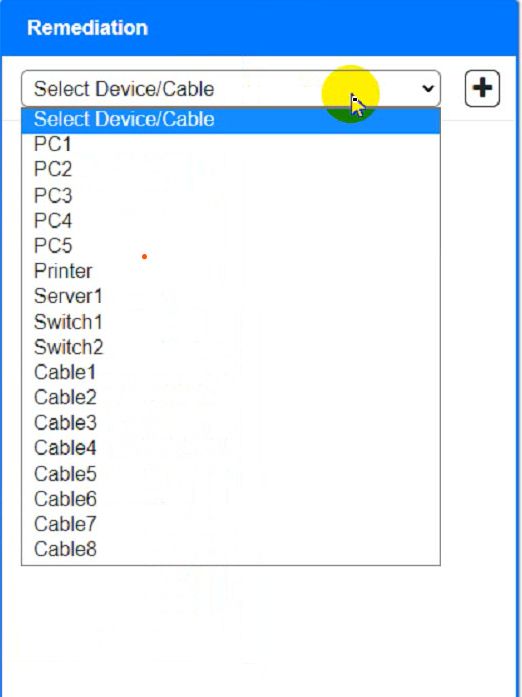

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem isPC1.

The problem isIncorrect IP address.

The solution isChange the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

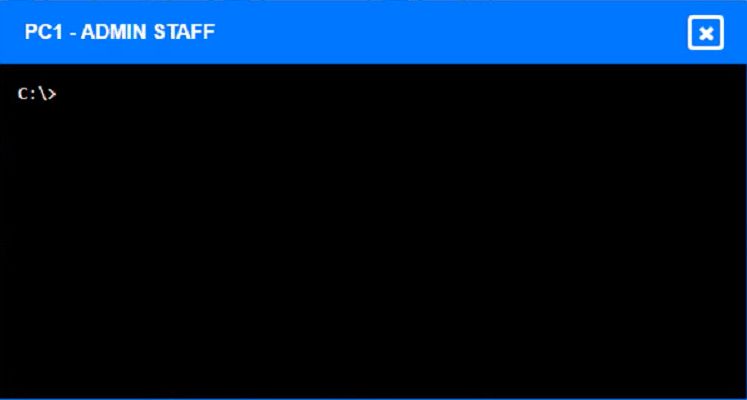

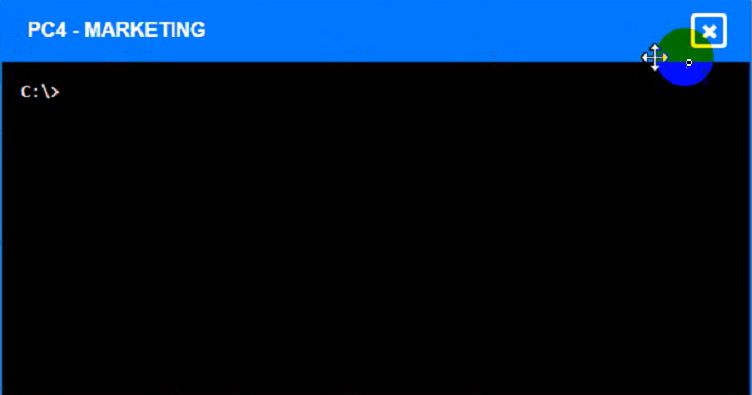

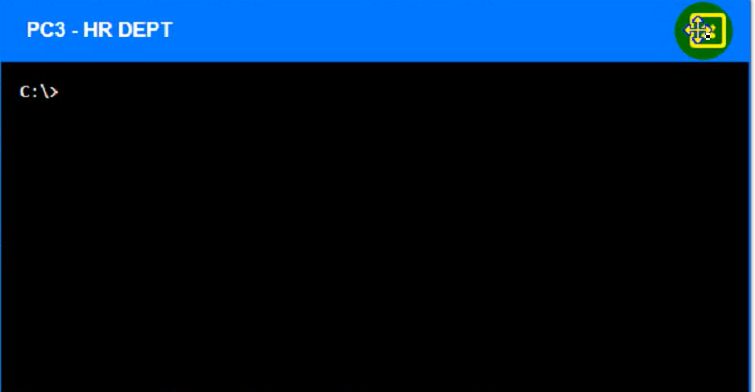

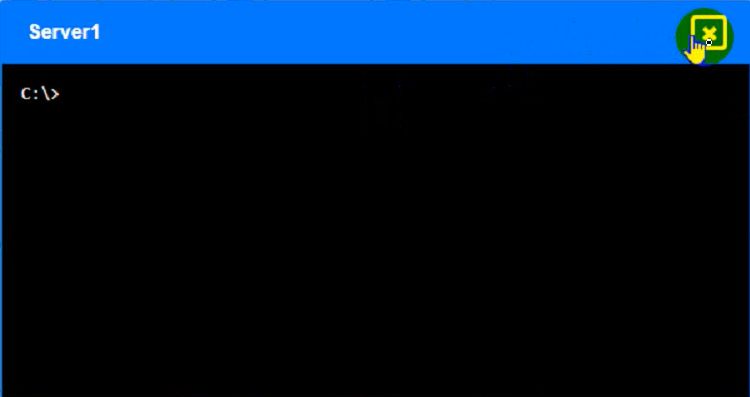

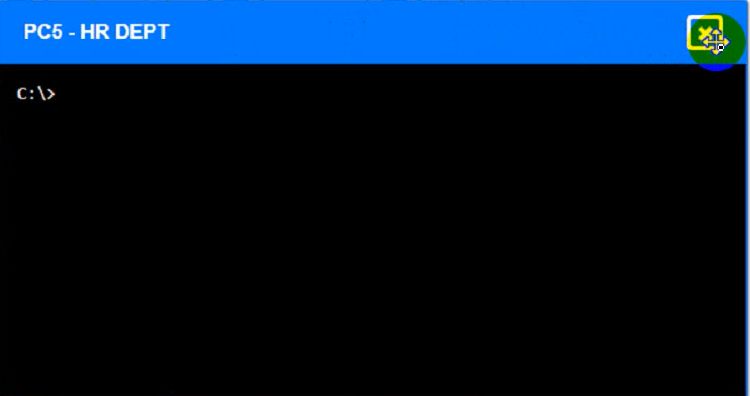

To enter commands in each device, you can use the following steps:

Click on the device to open its terminal window.

Enter the commandipconfig /allto display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the commandping <IP address>to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace <IP address> with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the commandtracert <IP address>to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace <IP address> with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

Click on PC1 to open its terminal window.

Enter the commandipconfig /allto display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the commandping 192.168.1.1to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the commandtracert 192.168.1.1to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

Total 153 questions
Go to page: of 16
