Nutanix NCS-Core Practice Test - Questions Answers, Page 26

In the scenario where the Foundation VM on a laptop is used for a cluster deployment, and an error indicating a failure to connect to the IPMIs is shown, the first troubleshooting step should be to disable the local machine's firewall to ensure it is not blocking traffic necessary for the Foundation VM to communicate with the IPMIs. Firewalls can often block essential ports or IP addresses needed for deployment operations, hindering the Foundation process.

Reference: Nutanix Foundation Tool Troubleshooting Guide, Nutanix Deployment Common Issues.

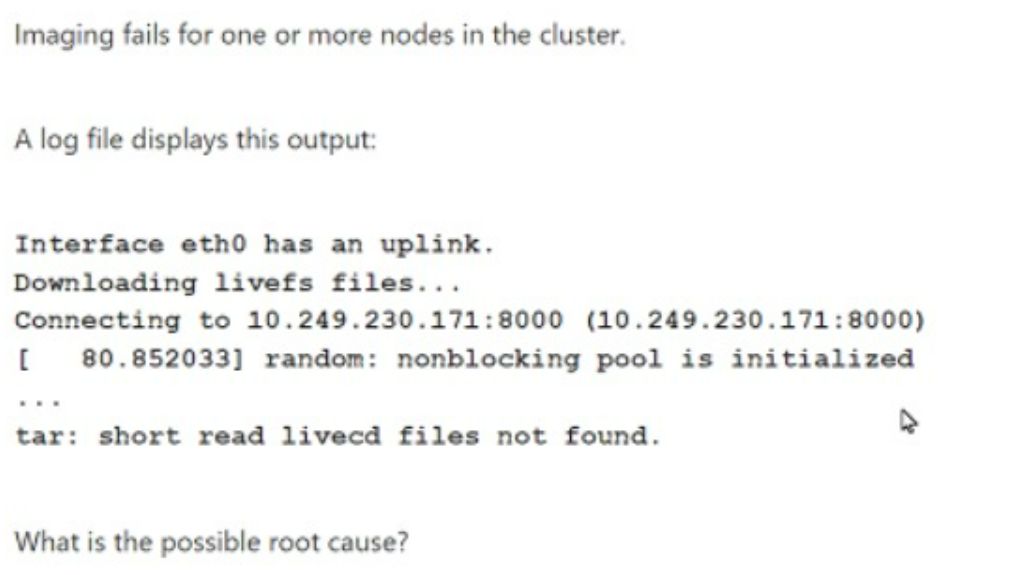

The log file output indicating a failure in downloading livefs files and problems finding the livecd files during node imaging suggests there is a problem connecting to the Foundation VM. The specific error 'tar: short read livecd files not found' typically points to an interrupted or failed download process, which can be caused by connectivity issues between the nodes and the Foundation VM. Ensuring robust network connectivity or verifying network settings in the Foundation VM could resolve this issue.

Reference: Nutanix Foundation Tool Error Messages, Nutanix Troubleshooting Documentation.

After a failed bare metal Foundation imaging process, the consultant can find relevant logs in two primary locations: on the Foundation VM at '/home/nutanix/foundation/logs' and via the 'View Logs' link available on the Foundation Imaging progress screen. These logs are crucial for diagnosing issues during the imaging process as they provide detailed error messages and operational data.

Reference:

Nutanix University - NCS-Core 6.8 Learning Path

The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/)

For a newly deployed Nutanix system where the customer has specified VLAN 10 for management traffic, the consultant should recommend using VLAN 10 for both CVM and AHV host traffic. This VLAN designation ensures that all management, monitoring, and internal cluster communication are on a dedicated network, separate from production VM traffic (VLAN 20) and backup/replication traffic (VLAN 30), thereby enhancing network security and performance.

Reference:

Nutanix University - NCS-Core 6.8 Learning Path

The Nutanix Bible, Network Configuration chapter (https://www.nutanixbible.com/)

Before arriving onsite, the consultant should set up the SMTP server to allow emails from both the Cluster Virtual IP Address (VIP) and the Controller Virtual Machine (CVM) IP addresses. This setup ensures that Prism can successfully send email notifications through the customer's mail server about any errors or notifications generated by the Nutanix environment, as both the Cluster VIP and CVM IPs are sources from which Prism sends alerts.

Reference: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

If the consultant logs into Prism Element and sees critical error messages related to the hypervisor and NTP, this could likely be caused by misconfigured Name Server settings. The Name Server (DNS) is essential for resolving domain names into IP addresses, which are required for NTP operations and overall cluster health checks and communications within the Nutanix environment.

Reference: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

If the consultant logs into Prism Element and sees critical error messages related to the hypervisor and NTP, this could likely be caused by misconfigured Name Server settings. The Name Server (DNS) is essential for resolving domain names into IP addresses, which are required for NTP operations and overall cluster health checks and communications within the Nutanix environment.

Reference: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

If nodes cannot be discovered using the Foundation VM and they are already part of a Nutanix cluster, the best course of action is to bare metal image the nodes. This process involves re-imaging the nodes from scratch, which can resolve discovery and communication issues that may be caused by existing configurations or errors within the cluster's networking setup.

Reference: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

Prior to the initial base system setup for a new cluster installation, the consultant needs to document several critical infrastructure details. Among the most important are the DNS and NTP IP addresses (C). These addresses are crucial because they ensure that all nodes within the cluster can resolve domain names properly and synchronize their clocks accurately, which is vital for cluster operations and management. Proper DNS and NTP configurations help prevent many common issues related to name resolution and time synchronization that could affect the performance and stability of the cluster.

Reference: Nutanix Installation Prep Guide, Nutanix Network Configuration Requirements.
