Question 41

Report Export Collapse

An administrator who is using the Virtual Storage Console (VSC) creates a new FC datastore on an existing volume. While the datastore was provisioned, two hosts were in maintenance mode. When the maintenance was completed, the two hosts do not have access to the new datastore, but they have access to other datastores on the same volume.

In this scenario, what caused this result?

The VSC cannot create datastores while hosts are in maintenance mode.
The VSC cannot create datastores while hosts are in maintenance mode.
During host maintenance, the FC HBAs were replaced with different FC HBAs.
During host maintenance, the FC HBAs were replaced with different FC HBAs.
The VSC created a new igroup that contains only the hosts that were online during the datastore creation.
The VSC created a new igroup that contains only the hosts that were online during the datastore creation.
After creation using the VSC, the administrator needs to create a LUN mapping.
After creation using the VSC, the administrator needs to create a LUN mapping.
Suggested answer: C
asked 23/09/2024
Ange YAO
46 questions

Question 42

Report Export Collapse

An administrator is configuring a SAN-only cluster. The data room that houses four AFF A220 controllers is small and not able to house the DS224C shelves. The administrator proposes to rack the shelves in a separate room that is 40 meters away from the controllers.

In this situation, how would you properly cable the controllers to the shelves?

Use multimode passive optical cables.
Use multimode passive optical cables.
Use multimode active copper cables.
Use multimode active copper cables.
Use multimode active optical cables.
Use multimode active optical cables.
Use multimode passive copper cables.
Use multimode passive copper cables.
Suggested answer: C
asked 23/09/2024
Mina Shaker
53 questions

Question 43

Report Export Collapse

Which three components are required for NetApp iSCSI LUN access on Linux servers? (Choose three.)

device-mapper-multipath
device-mapper-multipath
NetApp SnapDrive
NetApp SnapDrive
scsi-target-utils
scsi-target-utils
iscsi-initiator-utils
iscsi-initiator-utils
NetApp Host Utilities
NetApp Host Utilities
Suggested answer: A, C, E
asked 23/09/2024
edoardo peraino
28 questions

Question 44

Report Export Collapse

An administrator has a new AFF A220 system with two DS224C disk shelves and wants to validate if the shelf cabling is correct.

Which resource would be used to accomplish this task?

Config Advisor
Config Advisor
OnCommand Unified Manager (OCUM)
OnCommand Unified Manager (OCUM)
OneCollect
OneCollect
Interoperability Matrix Tool (IMT)
Interoperability Matrix Tool (IMT)
Suggested answer: A
asked 23/09/2024
Alex Amponsah
44 questions

Question 45

Report Export Collapse

You currently have a FAS8200 with ONTAP 9.5. You want to expand the front end FC I/O capabilities.

However, you are unsure which target adapters are supported.

What would you use to confirm which adapters are supported with your current configuration?

Hardware Universe (HWU)
Hardware Universe (HWU)
Upgrade Advisor
Upgrade Advisor
OneCollect
OneCollect
Interoperability Matrix Tool (IMT)
Interoperability Matrix Tool (IMT)
Suggested answer: A
asked 23/09/2024
Kelvin Galabuzi
46 questions

Question 46

Report Export Collapse

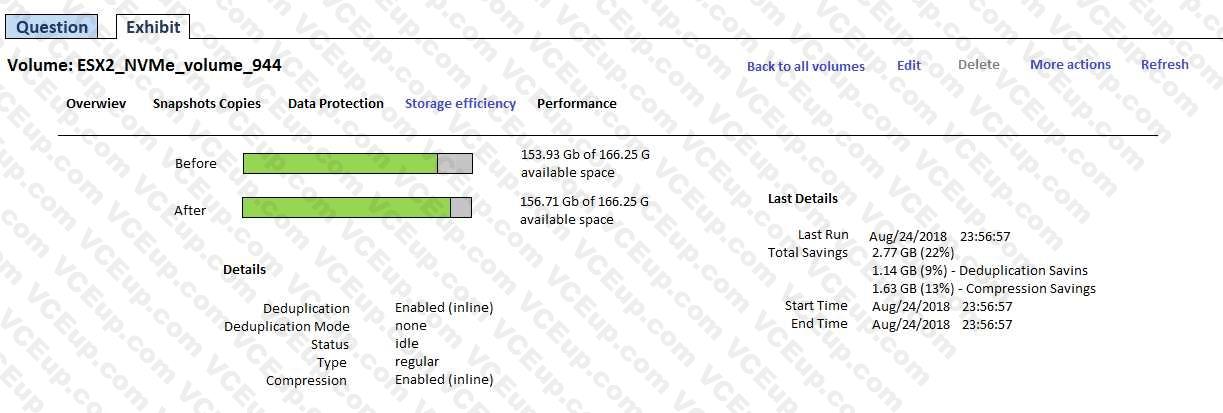

Network Appliance NS0-520 image Question 46 79443 09232024011723000000

Which two storage efficiencies have been enabled on the NVMe namespace that is shown in the exhibit? (Choose two.)

deduplication
deduplication
compaction
compaction
compression
compression
thin provisioning
thin provisioning
Suggested answer: B
asked 23/09/2024
Mohammed Meddah
42 questions

Question 47

Report Export Collapse

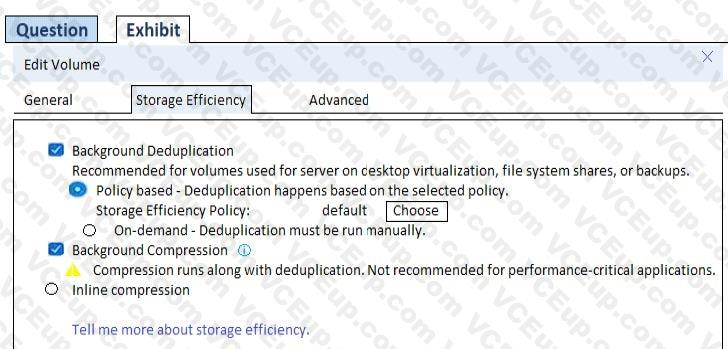

Network Appliance NS0-520 image Question 47 79444 09232024011723000000

You have a performance critical database application that is running on a FAS9000 controller that uses FC. As shown in the exhibit, volume efficiency is enabled.

If you follow the performance recommendation, what are two results to the data in the volume?

(Choose two.)

The new written data is compressed.
The new written data is compressed.
The new written data is uncompressed.
The new written data is uncompressed.
The existing data is uncompressed.
The existing data is uncompressed.
The existing data is compressed.
The existing data is compressed.
Suggested answer: A, C
asked 23/09/2024
Jose Ortuondo Arambalza
47 questions

Question 48

Report Export Collapse

You are configuring both NVMe and FC on the same AFF A800 2-node ONTAP 9.5 cluster. You are configuring both protocols on the same Cisco FC network switches.

In this scenario, which configuration on the cluster is supported?

a volume with both LUNs and namespaces
a volume with both LUNs and namespaces
an SVM with both nvme and fcp allowed protocols
an SVM with both nvme and fcp allowed protocols
an AFF A800 node HBA with both NVMe/FC and FC on the same port
an AFF A800 node HBA with both NVMe/FC and FC on the same port
a LIF with both fc-nvme and fcp data protocols
a LIF with both fc-nvme and fcp data protocols
Suggested answer: A
asked 23/09/2024
Marco Santoro
35 questions

Question 49

Report Export Collapse

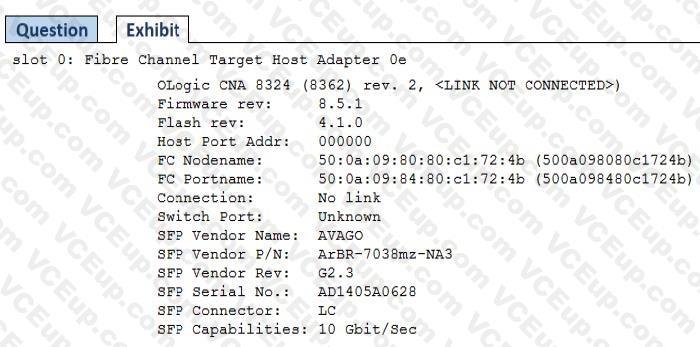

Network Appliance NS0-520 image Question 49 79446 09232024011723000000

You connected your FAS8200 to a Brocade SAN switch. As shown in the exhibit, port 0e is not available.

In this scenario, which statement is correct?

The incorrect SFP+ module is installed.
The incorrect SFP+ module is installed.
The switch zoning is using the FC nodename.
The switch zoning is using the FC nodename.
The incorrect firmware revision is installed.
The incorrect firmware revision is installed.
The switch port is configured for mode E_Port.
The switch port is configured for mode E_Port.
Suggested answer: D
asked 23/09/2024
Nicholas Roy
52 questions

Question 50

Report Export Collapse

An administrator wants to design an NVMe solution to connect Linux hosts to an ONTAP cluster. The proposed solution uses two Cisco MDS 9396T switches for each fabric in a top-of-rack design.

In this scenario, which statement is true?

Asymmetric Namespace Access requires ONTAP 9.4 and higher.
Asymmetric Namespace Access requires ONTAP 9.4 and higher.
NVMe solutions require heterogeneous multiple switch fabrics.
NVMe solutions require heterogeneous multiple switch fabrics.
N_Port ID virtualization (NPIV) must be enabled on all switches.
N_Port ID virtualization (NPIV) must be enabled on all switches.
A middle-of-rack design is required.
A middle-of-rack design is required.
Suggested answer: C
asked 23/09/2024
Serhan Azdiken
46 questions
Total 234 questions
