Network Appliance NS0-520 Practice Test - Questions Answers, Page 6

Question list

List of questions

Question 51

(0)

On your ONTAP 9.5 cluster, you need to set up the onboard key manager with hardware-based security and volume encryption. Which two licenses are required in this situation? (Choose two.)

Question 52

(0)

A customer is planning to connect a Linux server to a FAS8200 using Brocade FC switches. During the initial configuration, the SVM does not log in to the fabric. Which two statements are correct in

Question 53

(0)

You need to configure iSCSI on your existing ONTAP cluster in a new SVM. The iSCSI LUNs will be served over a new Layer 2 network using the same physical ports that also use the CIFS protocol on a d

Question 54

(0)

Referring to the exhibit, what is the problem with switch port 0?

Question 55

(0)

An administrator has expanded a 2-node ONTAP cluster to a 4-node ONTAP cluster. The cluster is using FC LUNs with all of the default settings. You must rebalance the LUNs to the new nodes. Which co

Question 56

(0)

Referring to the exhibit, which container gains space savings from deduplication, compression and compaction?

Question 57

(0)

A customer needs to change ports 0e and 0f on AFF_1 to support FC. Referring to the exhibit, which three steps are required to accomplish this task? (Choose three.)

Question 58

(0)

You want to connect a NetApp AFF A700 to a 32 Gb FC switch. The ports need to connect at 32 Gb speed. In this scenario, which statement is correct?

Question 59

(0)

You are troubleshooting high CPU use on a FAS8200 with all SAS HDDs. You have SAN hosts with LUNs in a volume named vol1. You want to reduce CPU use and maintain storage efficiencies. Referring t

Question 60

(0)

You create a 20 GB LUN in a newly created 100 GB FlexVol volume. You then write 5 GB of data to the LUN. You have space reservation disabled on the LUN. In this scenario, how much space do you have

Question 51

On your ONTAP 9.5 cluster, you need to set up the onboard key manager with hardware-based security and volume encryption.

Which two licenses are required in this situation? (Choose two.)

FDE

TPM

RSA

Show Answer Comment (0)

Question 52

A customer is planning to connect a Linux server to a FAS8200 using Brocade FC switches. During the initial configuration, the SVM does not log in to the fabric.

Which two statements are correct in this scenario? (Choose two.)

NPIV has not been enabled on the switches.

The switch port topology is set incorrectly to the E_Port.

ALUA has not been set up on the FAS8200.

Zoning is incorrectly configured between the Linux server and the ONTAP cluster.

Show Answer Comment (0)

You need to configure iSCSI on your existing ONTAP cluster in a new SVM. The iSCSI LUNs will be served over a new Layer 2 network using the same physical ports that also use the CIFS protocol on a different SVM.

Which two actions should you perform to accomplish this task? (Choose two.)

Create a new portset.

Create a new VLAN.

Create a new broadcast domain.

Create a new AD object.

Show Answer Comment (0)

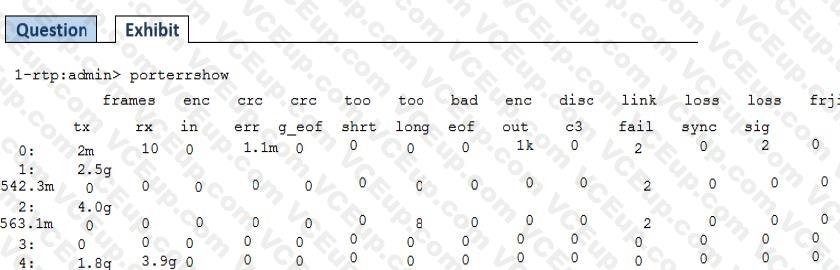

Question 54

Referring to the exhibit, what is the problem with switch port 0?

The transmit and receive links were switched.

The SFP+ is faulty.

The receive power is lower.

The link is not connected.

Show Answer Comment (0)

Question 55

An administrator has expanded a 2-node ONTAP cluster to a 4-node ONTAP cluster. The cluster is using FC LUNs with all of the default settings. You must rebalance the LUNs to the new nodes.

Which configuration must be made to achieve this requirement?

The new nodes must be added to the reporting nodes list.

All nodes must be removed from the reporting nodes list.

The original nodes must be added to the reporting nodes list.

The original nodes must be removed from the reporting nodes list.

Show Answer Comment (0)

Question 56

Referring to the exhibit, which container gains space savings from deduplication, compression and compaction?

the aggregate

the qtree

the volume

the LUN

Show Answer Comment (0)

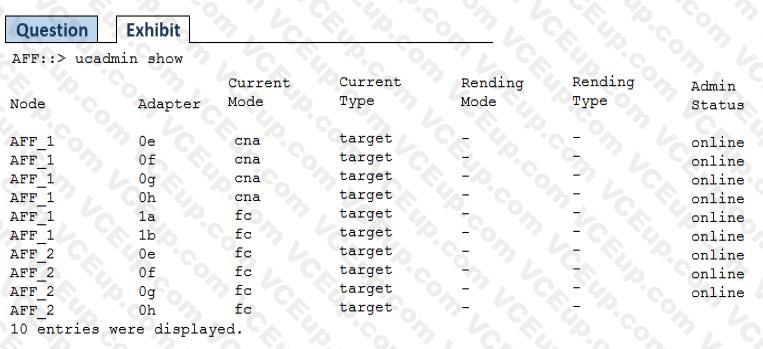

Question 57

A customer needs to change ports 0e and 0f on AFF_1 to support FC.

Referring to the exhibit, which three steps are required to accomplish this task? (Choose three.)

Issue the ucadmin modify -node AFF_1 -adapter 0e -mode FC -type target command.

Issue the ucadmin modify -node AFF_1 -adapter 0e -mode FC -type initiator command.

Restart the FC service.

Take ports 0e and 0f offline.

Reboot the node.

Show Answer Comment (0)

Question 58

You want to connect a NetApp AFF A700 to a 32 Gb FC switch. The ports need to connect at 32 Gb speed.

In this scenario, which statement is correct?

The AFF A700 includes FC ports natively on the controller.

The AFF A700 includes an additional FC I/O module that is already populated in each controller.

You need to purchase a two-port or four-port unified I/O module that enables FC and Ethernet connectivity.

You need to purchase a two-port or four-port FC I/O module.

Show Answer Comment (0)

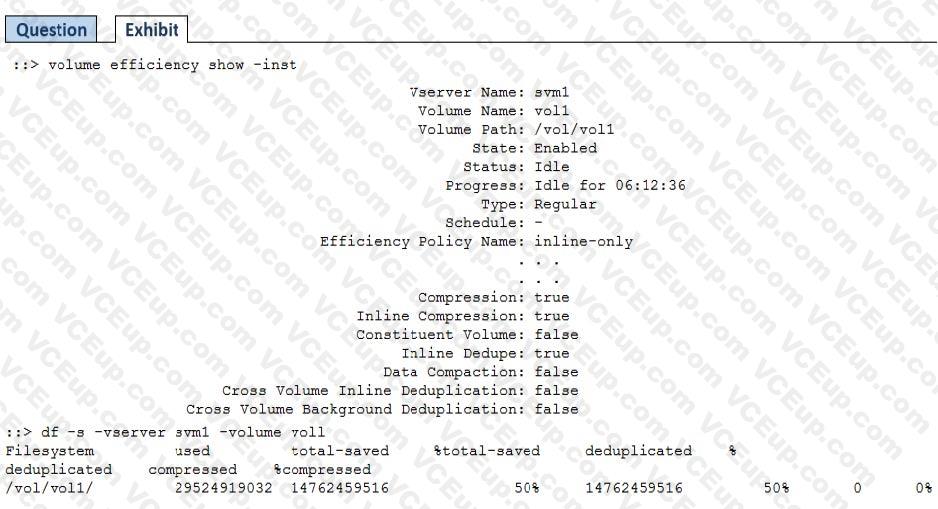

Question 59

You are troubleshooting high CPU use on a FAS8200 with all SAS HDDs. You have SAN hosts with LUNs in a volume named vol1. You want to reduce CPU use and maintain storage efficiencies.

Referring to the exhibit which three actions will accomplish this task? (Choose three.)

Disable compression.

Enable cross-volume deduplication.

Disable inline deduplication.

Enable post process deduplication.

Enable data compaction.

Show Answer Comment (0)

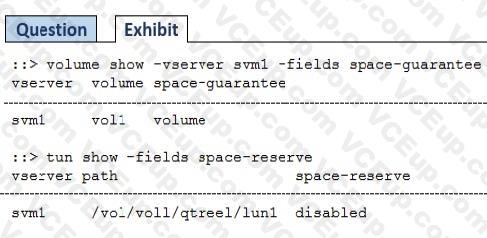

Question 60

You create a 20 GB LUN in a newly created 100 GB FlexVol volume. You then write 5 GB of data to the LUN. You have space reservation disabled on the LUN.

In this scenario, how much space do you have left on the volume?

95 GB

80 GB

75 GB

85 GBAnswer: A

Show Answer Comment (0)

Total 234 questions
