Question 31

Report Export Collapse

What are two advantages of using an IPsec recommended template to configure an IPsec tunnel in a hub-and-spoke topology? (Choose two.)

VPN monitor tool provides additional statistics for tunnels defined with an IPsec recommended template.
VPN monitor tool provides additional statistics for tunnels defined with an IPsec recommended template.
FortiManager automatically installs IPsec tunnels to every spoke when they are added to the FortiManager ADOM.
FortiManager automatically installs IPsec tunnels to every spoke when they are added to the FortiManager ADOM.
IPsec recommended template guides the administrator to use Fortinet recommended settings.
IPsec recommended template guides the administrator to use Fortinet recommended settings.
IPsec recommended template ensures consistent settings between phase1 and phase2
IPsec recommended template ensures consistent settings between phase1 and phase2
Suggested answer: B, C
Explanation:

According to theSD-WAN 7.2 Study Guide, IPsec recommended templates are designed to simplify the configuration of IPsec tunnels in a hub-and-spoke topology. They have the following advantages:

FortiManager automatically installs IPsec tunnels to every spoke when they are added to the FortiManager ADOM. This reduces the manual effort and ensures that all spokes have the same configuration.

IPsec recommended template guides the administrator to use Fortinet recommended settings, such as encryption algorithms, key lifetimes, and dead peer detection. This ensures optimal performance and security of the IPsec tunnels.

asked 18/09/2024
Ronald de Groot
49 questions

Question 32

Report Export Collapse

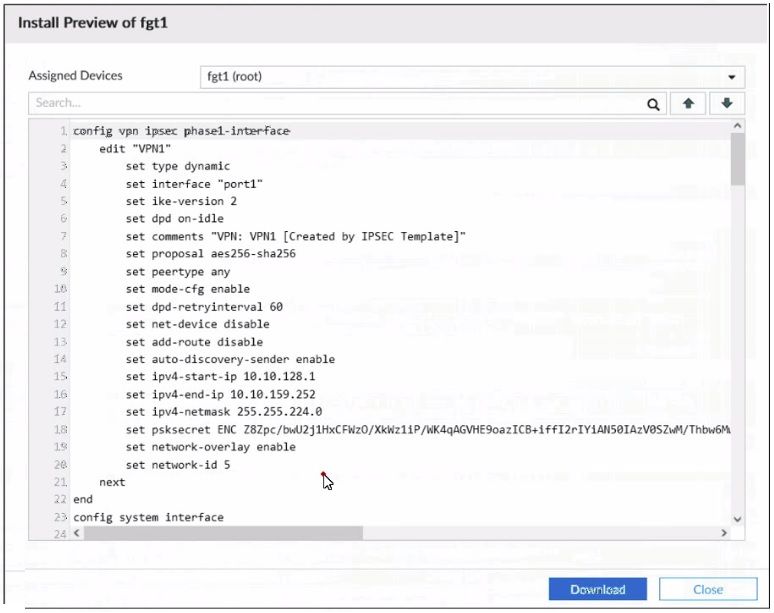

Refer to the exhibit.

Fortinet NSE7_SDW-7.2 image Question 32 27232 09182024190937000000

An administrator used the SD-WAN overlay template to prepare an IPsec configuration for a hub-and-spoke SD-WAN topology. The exhibit shows the installation preview for one FortiGate device. In the exhibit, which statement best describes the configuration applied to the FortiGate device?

It is a hub device. It can send ADVPN shortcut offers.
It is a hub device. It can send ADVPN shortcut offers.
It is a spoke device that establishes dynamic IPsec tunnels to the hub. The subnet range is 10.10.128.0/23.
It is a spoke device that establishes dynamic IPsec tunnels to the hub. The subnet range is 10.10.128.0/23.
It is a spoke device that establishes dynamic IPsec tunnels to the hub. It can send ADVPN shortcut requests.
It is a spoke device that establishes dynamic IPsec tunnels to the hub. It can send ADVPN shortcut requests.
It is a hub device and will automatically discover the spoke devices that are in the SD-WAN topology.
It is a hub device and will automatically discover the spoke devices that are in the SD-WAN topology.
Suggested answer: C
Explanation:

According to theSD-WAN 7.2 Study Guide, the SD-WAN overlay template simplifies the configuration of IPsec tunnels in a hub-and-spoke topology. The template defines the following parameters:

type: dynamic for spokes, static for hubs

interface: the WAN interface to use for the IPsec tunnel

network-overlay: enable for spokes, disable for hubs

network-id: a unique identifier for each spoke

auto-discovery-sender: enable for hubs, disable for spokes

auto-discovery-receiver: enable for spokes, disable for hubs

Based on the exhibit, the FortiGate device has the following configuration:

type: dynamic

interface: port1

network-overlay: enable

network-id: 5

auto-discovery-sender: disable

auto-discovery-receiver: enable

Therefore, the FortiGate device is a spoke that establishes dynamic IPsec tunnels to the hub.It also has the network-overlay and auto-discovery-receiver options enabled, which means it can send ADVPN shortcut requests to other spokes when it receives a shortcut offer from the hub

asked 18/09/2024
Tom Nice
33 questions

Question 33

Report Export Collapse

Which three matching traffic criteria are available in SD-WAN rules? (Choose three.)

Type of physical link connection
Type of physical link connection
Internet service database (ISDB) address object
Internet service database (ISDB) address object
Source and destination IP address
Source and destination IP address
URL categories
URL categories
Application signatures
Application signatures
Suggested answer: B, C, E
asked 18/09/2024
Arun kumar
41 questions

Question 34

Report Export Collapse

Which two interfaces are considered overlay links? (Choose two.)

LAG
LAG
IPsec
IPsec
Physical
Physical
GRE
GRE
Suggested answer: B, D
asked 18/09/2024
Lin Sun
42 questions

Question 35

Report Export Collapse

Exhibit B --

Fortinet NSE7_SDW-7.2 image Question 35 27235 09182024190937000000

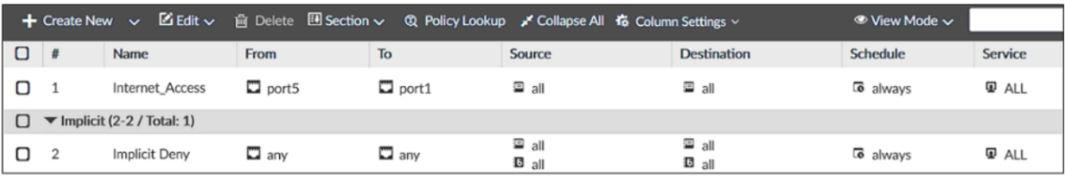

Exhibit A shows the system interface with the static routes and exhibit B shows the firewall policies on the managed FortiGate.

Based on the FortiGate configuration shown in the exhibits, what issue might you encounter when creating an SD-WAN zone for port1 and port2?

port1 is assigned a manual IP address.
port1 is assigned a manual IP address.
port1 is referenced in a firewall policy.
port1 is referenced in a firewall policy.
port2 is referenced in a static route.
port2 is referenced in a static route.
port1 and port2 are not administratively down.
port1 and port2 are not administratively down.
Suggested answer: B
asked 18/09/2024
Velli Mutham
38 questions

Question 36

Report Export Collapse

Which two settings can you configure to speed up routing convergence in BGP? (Choose two.)

update-source
update-source
set-route-tag
set-route-tag
holdtime-timer
holdtime-timer
link-down-failover
link-down-failover
Suggested answer: C, D
asked 18/09/2024
Neftali Baez-Feliciano
38 questions

Question 37

Report Export Collapse

Refer to the exhibits.

Fortinet NSE7_SDW-7.2 image Question 37 27237 09182024190937000000

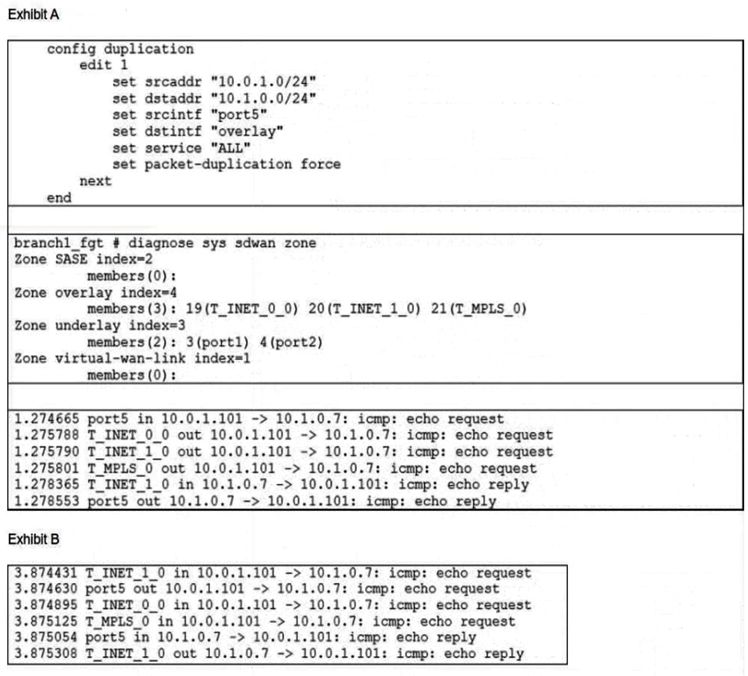

Exhibit A shows the packet duplication rule configuration, the SD-WAN zone status output, and the sniffer output on FortiGate acting as the sender. Exhibit B shows the sniffer output on a FortiGate acting as the receiver.

The administrator configured packet duplication on both FortiGate devices. The sniffer output on the sender FortiGate shows that FortiGate forwards an ICMP echo request packet over three overlays, but it only receives one reply packet through T_INET_1_0.

Based on the output shown in the exhibits, which two reasons can cause the observed behavior? (Choose two.)

On the receiver FortiGate, packet-de-duplication is enabled.
On the receiver FortiGate, packet-de-duplication is enabled.
The ICMP echo request packets sent over T_INET_0_0 and T_MPLS_0 were dropped along the way.
The ICMP echo request packets sent over T_INET_0_0 and T_MPLS_0 were dropped along the way.
The ICMP echo request packets received over T_INET_0_0 and T_MPLS_0 were offloaded to NPU.
The ICMP echo request packets received over T_INET_0_0 and T_MPLS_0 were offloaded to NPU.
On the sender FortiGate, duplication-max-num is set to 3.
On the sender FortiGate, duplication-max-num is set to 3.
Suggested answer: A, D
asked 18/09/2024
Kamal maru
45 questions

Question 38

Report Export Collapse

Which SD-WAN setting enables FortiGate to delay the recovery of ADVPN shortcuts?

hold-down-time
hold-down-time
link-down-failover
link-down-failover
auto-discovery-shortcuts
auto-discovery-shortcuts
idle-timeout
idle-timeout
Suggested answer: A
asked 18/09/2024
marius trif
53 questions

Question 39

Report Export Collapse

Refer to the exhibits.

Exhibit A -

Fortinet NSE7_SDW-7.2 image Question 39 27239 09182024190937000000

Exhibit B -

Fortinet NSE7_SDW-7.2 image Question 39 27239 09182024190937000000

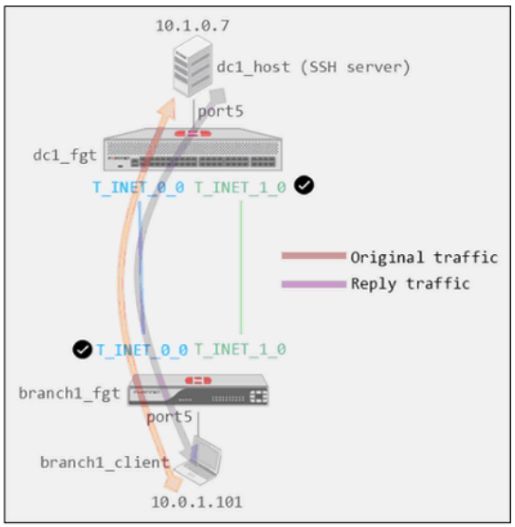

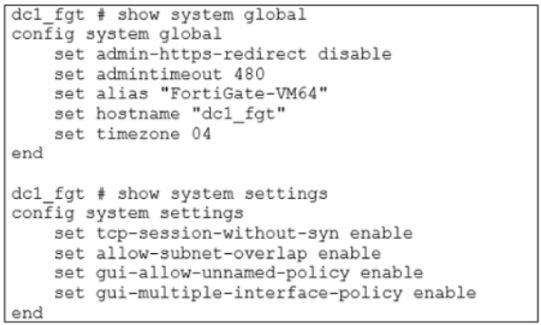

Exhibit A shows a site-to-site topology between two FortiGate devices: branch1_fgt and dc1_fgt. Exhibit B shows the system global and system settings configuration on dc1_fgt.

When branch1_client establishes a connection to dc1_host, the administrator observes that, on dc1_fgt, the reply traffic is routed over T_INET_0_0, even though T_INET_1_0 is the preferred member in the matching SD-WAN rule.

Based on the information shown in the exhibits, what configuration change must be made on dc1_fgt so dc1_fgt routes the reply traffic over T_INET_1_0?

Enable auxiliary-session under config system settings.
Enable auxiliary-session under config system settings.
Disable tp-session-without-syn under config system settings.
Disable tp-session-without-syn under config system settings.
Enable snat-route-change under config system global.
Enable snat-route-change under config system global.
Disable allow-subnet-overlap under config system settings.
Disable allow-subnet-overlap under config system settings.
Suggested answer: A
asked 18/09/2024
Alex Bu
61 questions

Question 40

Report Export Collapse

What three characteristics apply to provisioning templates available on FortiManager? (Choose three.)

You can apply a system template and a CLI template to the same FortiGate device.
You can apply a system template and a CLI template to the same FortiGate device.
A CLI template can be of type CLI script or Perl script.
A CLI template can be of type CLI script or Perl script.
A template group can include a system template and an SD-WAN template.
A template group can include a system template and an SD-WAN template.
A template group can contain CLI templates of both types.
A template group can contain CLI templates of both types.
Templates are applied in order, from top to bottom.
Templates are applied in order, from top to bottom.
Suggested answer: B, D, E
Explanation:

According to theFortiManager Administration Guide, provisioning templates are used to configure FortiGate devices in a consistent and efficient way. There are different types of templates, such as system, IPsec, SD-WAN, certificate, and CLI templates. Some characteristics of provisioning templates are:

You can apply a system template and a CLI template to the same FortiGate device, as long as they do not have conflicting settings1.

A CLI template can be of type CLI script or Perl script.A CLI script template contains FortiOS CLI commands, while a Perl script template contains Perl code that can generate FortiOS CLI commands2.

A template group can include a system template and an SD-WAN template, as well as other types of templates.A template group is a collection of templates that can be applied to multiple devices at once3.

A template group can contain CLI templates of both types, as long as they do not have conflicting settings2.

Templates are applied in order, from top to bottom.The order of the templates in a template group determines the order in which they are applied to the devices3.

asked 18/09/2024
Luigi Trigilio
47 questions
Total 99 questions
