F5 201 Practice Test - Questions Answers, Page 2

Add to Whishlist

List of questions

Question 11

Report Export Collapse

A BIG-IP Administrator uses backend servers to host multiple services per server. There are multiple virtual servers and pools defined, referencing the same backend servers.

Which load balancing algorithm is most appropriate to have an equal number of connections on each backend server?

Least Connections (member)
Least Connections (member)
Least Connections (node)
Least Connections (node)
Predictive (member)
Predictive (member)
Predictive (node)
Predictive (node)
Suggested answer: B
Explanation:

The same set of servers provides multiple services, that is, using different ports to provide different services at the same time. The stem requirement is based on server connection balancing, not server + port, so it is node.

asked 24/09/2024
Nikita Kazanenko
45 questions

Question 12

Report Export Collapse

The BIG-IP Administrator needs to perform a BIG-IP device upgrade to the latest version of TMOS. Where can the administrator obtain F5 documentation on upgrade requirements?

AskF5
AskF5
DevCentral
DevCentral
Bug Tracker
Bug Tracker
iHealth
iHealth
Suggested answer: A
asked 24/09/2024
Tuukka Valkeasuo
41 questions

Question 13

Report Export Collapse

A BIG-IP Administrator makes a configuration change to the BIG-IP device. Which file logs the message regarding the configuration change?

/var/log/messages
/var/log/messages
/var/log/audit
/var/log/audit
/var/log/user.log
/var/log/user.log
/var/log/secure
/var/log/secure
Suggested answer: B
Explanation:

About audit logging

Audit logging is an optional feature that togs messages whenever a BIG-IP system object, such as a virtual server or a load balancing pool, is confined (that is. created, modified, or deleted). The BiGIP system logs the messages for these auditing events in the file /var/log'audit

There are three ways that objects can be configured

* By user action

* By system action

* By loading configuration data

Whenever an object is configured in one of these ways, the BIG-IP system logs a message to the audit log

asked 24/09/2024
Kurt Onal
35 questions

Question 14

Report Export Collapse

In the BIG-IP Configuration Utility, a user requests a single screen view to determine the status of all Virtual Servers and associated pool members, as well as any iRules in use. Where should the BIG-IP Administrator instruct the user to find this view?

Local Traffic > Monitors
Local Traffic > Monitors
Local Traffic > Virtual Servers
Local Traffic > Virtual Servers
Local Traffic > Network Map
Local Traffic > Network Map
Statistics
Statistics
Suggested answer: C
Explanation:

Network Map can display vs and its associated pool, pool member, and irule, can be retrieved, and can be quickly linked.

asked 24/09/2024
Prinesh Chain
47 questions

Question 15

Report Export Collapse

What is the status of a pool member when manual resume is enabled and a health check first fails and then passes?

Offline (Disabled)
Offline (Disabled)
Offline (Enabled)
Offline (Enabled)
Available (Disabled)
Available (Disabled)
Available (Enabled)
Available (Enabled)
Suggested answer: A
asked 24/09/2024
Jeff Benson
46 questions

Question 16

Report Export Collapse

Some users who connect to a busy Virtual Server have connections reset by the BIG-IP system. Pool member resources are NOT a factor in this behavior. What is a possible cause for this behavior?

The Connection Rate Limit is set too high
The Connection Rate Limit is set too high
The server SSL Profile has NOT been reconfigured.
The server SSL Profile has NOT been reconfigured.
The Connection Limit is set too low.
The Connection Limit is set too low.
The Rewrite Profile has NOT been configured.
The Rewrite Profile has NOT been configured.
Suggested answer: C
Explanation:

The topic explains that the connection reset behavior is caused by the vs configuration rather than the server resource problem. The answers B C are all configuration at the service forwarding level. If there is a problem with the configuration, it is all a problem rather than some users. Answer C's Connection Limit will cause a reset behavior when the connection reaches the threshold.

asked 24/09/2024
Enrique Jose Lopez Bolivar
50 questions

Question 17

Report Export Collapse

New Syslog servers have been deployed in an organization. The BIG-IP Administrator must reconfigure the BIG-IP system to send log messages to these servers.

In which location in the Configuration Utility can the BIG-IP Administrator make the needed configuration changes to accomplish this?

System > Logs > Configuration
System > Logs > Configuration
System > Configuration > Local Traffic
System > Configuration > Local Traffic
System > Logs > Audit
System > Logs > Audit
System > Configuration > Device
System > Configuration > Device
Suggested answer: A
asked 24/09/2024
MICHELE CRISTINA DOS FELIX
41 questions

Question 18

Report Export Collapse

A BIG-IP Administrator needs to restore a UCS file to an F5 device using the Configuration Utility. Which section of the Configuration Utility should the BIG-IP Administrator access to perform this task?

Local Traffic > Virtual Servers
Local Traffic > Virtual Servers
Local Traffic > Policies
Local Traffic > Policies
System > Archives
System > Archives
System > Configuration
System > Configuration
Suggested answer: C
asked 24/09/2024
Nicole Stevens
51 questions

Question 19

Report Export Collapse

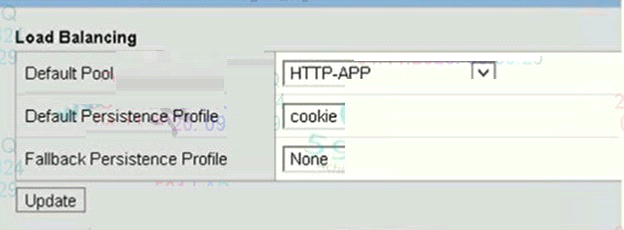

Refer to the exhibit.

F5 201 image Question 19 82930 09242024194133000000

Due to a change in application requirements, a BIG-IP Administrator needs to modify the configuration of a Virtual Server to include a Fallback Persistence Profile.

Which persistence profile type should the BIG-IP Administrator use for this purpose?

SSL
SSL
Hash
Hash
Universal
Universal
Source Address Affinity
Source Address Affinity
Suggested answer: D
asked 24/09/2024
Nardos Tadele
35 questions

Question 20

Report Export Collapse

A BIG-IP device sends out the following SNMP trap:

big-ipo.f5.com - bigipExternalLinkChange Link: 1.0 is DOWN

Where in the BIG-IP Configuration utility should the BIG-IP Administrator verify the current status of Link 1,0?

System > Platform
System > Platform
Network > Trunks > Trunk List
Network > Trunks > Trunk List
Statistics > Performance > System
Statistics > Performance > System
Network > Interfaces > Interface List 1.0 is a physical interface, you can see the interface status from the physical interface in the network.
Network > Interfaces > Interface List 1.0 is a physical interface, you can see the interface status from the physical interface in the network.
Suggested answer: D
asked 24/09/2024
BISWARUP KUNDU
47 questions
