F5 201 Practice Test - Questions Answers, Page 6

Question list
Search
Search

List of questions

Search
Open VPLUS File
Convert VPLUS to PDF

Related questions

Which statement is true concerning a functional iRule?
A virtual server is listening at 10.10.1.100:80 and has the following iRule associated with it: when HTTP_REQUEST { if { [HTTP::header UserAgent] contains 'MSIE' } { pool MSIE_pool } else { pool Mozilla_pool } http://10.10.1.100/foo.html If a user connects to http://10.10.1.100/foo.html and their browser does not specify a UserAgent, which pool will receive the request?
A site would like to ensure that a given web server's default page is being served correctly prior to sending it client traffic. They assigned the default HTTP monitor to the pool. What would the member status be if it sent an unexpected response to the GET request.?
A VLAN has the following objects configured: Self-IP 10.10.10.100 with port lockdown set to Allow default Virtual server 10.10.10.100:443 with UDP profile enabled Virtual server 10.10.10.0/24 port forwarding virtual server Global destination NAT forwarding 10.10.10.100 to internal server 172.168.10.100 <a target='_blank' href=' https://10.10.10.100'>Which object will process this request when https://10.10.10.100 is entered into a browser?</a>
Which two statements are true about NATs? (Choose two.)
Which two can be a part of a pool's definition? (Choose two.)
Where is persistence mirroring configured?
A virtual server is listening at 10.10.1.100:any and has the following iRule associated with it: when CLIENT_ACCEPTED { if {[TCP::local_port] equals 80 } { pool pool1 } elseif {[TCP::local_port] equals 443} { pool pool2 } If a user connects to 10.10.1.100 and port 22, which pool will receive the request?
Which statement is true concerning iRule events?
The incoming client IP address is 195.64.45.52 and the last five connections have been sent to members A, C, E, D and B. Given the virtual server, pool, and persistence definitions and statistics shown in the above graphic, which member will be used for the next connection?

Question 51

Report
Export
Collapse

Interface 1.2 on a BIG-IP VE has a status of UNINITIALIZED. What is the reason for this status?

A.
Interface 1.2 has been added to a trunk.
A.
Interface 1.2 has been added to a trunk.
Answers
B.
Interface 1.2 has NOT been assigned to a VLAN.
B.
Interface 1.2 has NOT been assigned to a VLAN.
Answers
C.
Interface 1.2 has been disabled.
C.
Interface 1.2 has been disabled.
Answers
D.
No default route has been created.
D.
No default route has been created.
Answers
Suggested answer: B

Explanation:

trunk is a portchannel, you need to add a physical interface.

Question 52

Report
Export
Collapse

A BIG-IP Administrator is unable to connect to the management interface via HTTPS. What is a possible reason for this issue?

A.
The port lockdown setting is configured to Allow None.
A.
The port lockdown setting is configured to Allow None.
Answers
B.
An incorrect management route is specified.
B.
An incorrect management route is specified.
Answers
C.
The IP address of the device used to access the management interface is NOT included in the 'P Allow' list in the Configuration Utility.
C.
The IP address of the device used to access the management interface is NOT included in the 'P Allow' list in the Configuration Utility.
Answers
D.
The IP address of the device used to access the management interface is NOT included in the 'httpd Allow' list in the CLI.
D.
The IP address of the device used to access the management interface is NOT included in the 'httpd Allow' list in the CLI.
Answers
Suggested answer: D

Question 53

Report
Export
Collapse

A BIG-IP Administrator needs to purchase new licenses for a BIG-IP appliance.

The administrator needs to know if a module is licensed and the memory requirement for that module.

Where should the administrator view this information in the System menu?

A.
Resource Provisioning
A.
Resource Provisioning
Answers
B.
Configuration > Device
B.
Configuration > Device
Answers
C.
Software Management
C.
Software Management
Answers
D.
Configuration >OVSDB
D.
Configuration >OVSDB
Answers
Suggested answer: A

Question 54

Report
Export
Collapse

Refer to the exhibit.

A BIG-IP Administrator needs to deploy an application on the BIG-IP system to perform SSL offload and re-encrypt the traffic to pool members.

During testing, users are unable to connect to the application.

What must the BIG-IP Administrator do to resolve the issue?

A.
Remove the configured SSL Profile (Client)
A.
Remove the configured SSL Profile (Client)
Answers
B.
Configure Protocol Profile (Server) as splitsession-default-tcp
B.
Configure Protocol Profile (Server) as splitsession-default-tcp
Answers
C.
Enable Forward Proxy in the SSL Profile (Client)
C.
Enable Forward Proxy in the SSL Profile (Client)
Answers
D.
Configure an SSL Profile (Server)
D.
Configure an SSL Profile (Server)
Answers
Suggested answer: D

Explanation:

According to the requirements of the subject, the client and server must be configured with ssl profile.

Question 55

Report
Export
Collapse

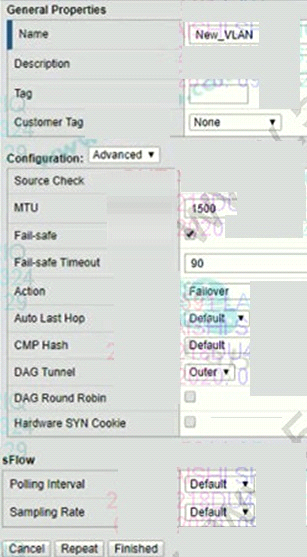

Refer to the exhibit.

A BIG-IP Administrator configures a now VLAN on an HA pair of devices that does NOT yet have any traffic. This action causes the assigned traffic group to fail over to the standby device.

Which VLAN setting should be changed to prevent this issue?

A.
Auto Last Hop
A.
Auto Last Hop
Answers
B.
Fail-safe
B.
Fail-safe
Answers
C.
Customer Tag
C.
Customer Tag
Answers
D.
Source Check
D.
Source Check
Answers
Suggested answer: B

Question 56

Report
Export
Collapse

During a high-demand traffic event, the BIG-IP Administrator needs to limit the number of new connections per second allowed to a Virtual Server.

What should the administrator apply to accomplish this task?

A.
An HTTP Compression profile to the Virtual Server
A.
An HTTP Compression profile to the Virtual Server
Answers
B.
A connection rate limit to the Virtual Server
B.
A connection rate limit to the Virtual Server
Answers
C.
A connection limit to the Virtual Server
C.
A connection limit to the Virtual Server
Answers
D.
A OneConnect profile to the Virtual Server
D.
A OneConnect profile to the Virtual Server
Answers
Suggested answer: B

Question 57

Report
Export
Collapse

Users are unable to reach an application. The BIG-IP Administrator checks the Configuration Utility and observes that the Virtual Server has a red diamond in front of the status. What is causing this issue?

A.
All pool members are down.
A.
All pool members are down.
Answers
B.
The Virtual Server is receiving HTTPS traffic over HTTP virtual.
B.
The Virtual Server is receiving HTTPS traffic over HTTP virtual.
Answers
C.
The Virtual Server is disabled.
C.
The Virtual Server is disabled.
Answers
D.
All pool members have been disabled.
D.
All pool members have been disabled.
Answers
Suggested answer: A

Question 58

Report
Export
Collapse

A BIG-IP Administrator is conducting maintenance on one BIG-IP appliance in an HA Pair. Why should the BIG-IP Administrator put the appliance into FORCED_OFFLINE state?

A.
To preserve existing connections to Virtual Servers and reduce the CPU load
A.
To preserve existing connections to Virtual Servers and reduce the CPU load
Answers
B.
To allow new connections to Virtual Servers and ensure the appliance becomes active
B.
To allow new connections to Virtual Servers and ensure the appliance becomes active
Answers
C.
To terminate connections to the management IP and decrease persistent connections
C.
To terminate connections to the management IP and decrease persistent connections
Answers
D.
To terminate existing connections to Virtual Servers and prevent the appliance from becoming active
D.
To terminate existing connections to Virtual Servers and prevent the appliance from becoming active
Answers
Suggested answer: D

Question 59

Report
Export
Collapse

An ecommerce company is experiencing latency issues with online shops during Black Friday's peak season.

The BIG-IP Administrator detects an overall high CPU load on the BIG-IP device and wants to move the top utilized Virtual Servers to a dedicated BIG-IP device.

Where should the BIG-IP Administrator determine the problematic Virtual Servers?

A.
System > Plattform
A.
System > Plattform
Answers
B.
Local Traffic > Virtual Servers > Virtual Server List
B.
Local Traffic > Virtual Servers > Virtual Server List
Answers
C.
Local Traffic > Network Map
C.
Local Traffic > Network Map
Answers
D.
Statistics > Module Statistics > Local Traffic > Virtual Servers
D.
Statistics > Module Statistics > Local Traffic > Virtual Servers
Answers
Suggested answer: D

Question 60

Report
Export
Collapse

A set of servers is used for an FTP application as well as an HTTP website via separate BIG-IP Pools. The server support team reports that some servers are receiving a lot more traffic than others.

Which Load Balancing Method should the BIG-IP Administrator apply to even out the connection count?

A.
Ratio (Member)
A.
Ratio (Member)
Answers
B.
Least Connections (Member)
B.
Least Connections (Member)
Answers
C.
Least Connections (Node)
C.
Least Connections (Node)
Answers
D.
Ratio (Node)
D.
Ratio (Node)
Answers
Suggested answer: C

Explanation:

The connection is required to be balanced, and the unit is the server and the application port is the unit, so it is node.

Total 254 questions
