Cisco 300-620 Practice Test - Questions Answers, Page 4

Add to Whishlist

List of questions

Question 31

Report Export Collapse

When Cisco ACI connects to an outside Layers 2 network, where does the ACI fabric flood the STP BPDU frame?

within the bridge domain

within the bridge domain

within the APIC

within the APIC

within the access encap VLAN

within the access encap VLAN

between all the spine and leaf switches

between all the spine and leaf switches

Suggested answer: C
Explanation:

Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-centervirtualization/application-centric- infrastructure/white-paper-c07-732033.html#_Toc395143571

asked 07/10/2024
Beatriz Mejia
49 questions

Question 32

Report Export Collapse

On which two interface types should a user configure storm control to protect against broadcast traffic? (Choose two.)

APIC facing interfaces

APIC facing interfaces

port channel on a single leaf switch

port channel on a single leaf switch

all interfaces on the leaf switches in the fabric

all interfaces on the leaf switches in the fabric

endpoint-facing trunk interface

endpoint-facing trunk interface

fabric uplink interfaces on the leaf switches

fabric uplink interfaces on the leaf switches

Suggested answer: B, D
Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/L2_config/b_Cisco_APIC_Layer_2_Configuration_Guide/b_Cisco_APIC_Layer_2_Configuration_Guide_chapter_01010.html

asked 07/10/2024
Deshawn Sharpe
44 questions

Question 33

Report Export Collapse

Which two dynamic routing protocols are supported when using Cisco ACI to connect to an external Layer 3 network? (Choose two.)

iBGP

iBGP

VXLAN

VXLAN

IS-IS

IS-IS

RIPv2

RIPv2

eBGP

eBGP

Suggested answer: A, E
Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/ACI_Best_Practices/ b_ACI_Best_Practices/b_ACI_Best_Practices_chapter_010010.html

asked 07/10/2024
Jose Manuel GONZALEZ BALSEIRO
41 questions

Question 34

Report Export Collapse

What must be configured to redistribute externally learned OSPF routes within the ACI fabric?

Route Control Profile

Route Control Profile

BGP Route Reflector

BGP Route Reflector

BGP Inter-leak Route Map

BGP Inter-leak Route Map

PIM Sparse Mode

PIM Sparse Mode

Suggested answer: B
Explanation:

Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/ACI_Best_Practices/ b_ACI_Best_Practices/b_ACI_Best_Practices_chapter_010010.html

asked 07/10/2024
Brian Charlton,
48 questions

Question 35

Report Export Collapse

Regarding the MTU value of MP-BGP EVPN control plane packets in Cisco ACI, which statement about communication between spine nodes in different sites is true?

By default, spine nodes generate 9000-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 9000-bytes packets.

By default, spine nodes generate 9000-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 9000-bytes packets.

By default, spine nodes generate 1500-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 1800-bytes packets.

By default, spine nodes generate 1500-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 1800-bytes packets.

By default, spine nodes generate 1500-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 1500-bytes packets.

By default, spine nodes generate 1500-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 1500-bytes packets.

By default, spine nodes generate 9000-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 9100-bytes packets.

By default, spine nodes generate 9000-bytes packets to exchange endpoints routing information. As a result, the Inter-Site network should be able to carry 9100-bytes packets.

Suggested answer: D
asked 07/10/2024
Oliver Mark
43 questions

Question 36

Report Export Collapse

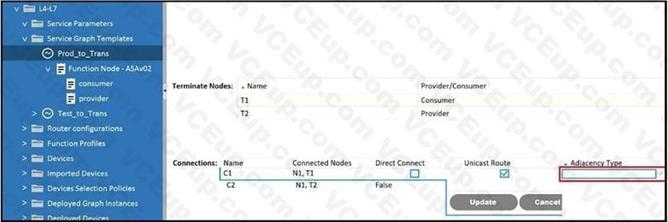

Refer to the exhibit.

Cisco 300-620 image Question 36 113383 10072024010039000000

Which Adjacency Type value should be set when the client endpoint and the service node interface are in a different subnet?

Routed

Routed

Unicast

Unicast

L3Out

L3Out

L3

L3

Suggested answer: D
asked 07/10/2024
ANIKET PATEL
43 questions

Question 37

Report Export Collapse

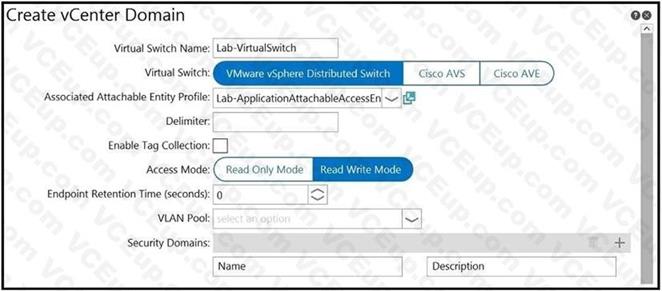

Refer to the exhibit.

Cisco 300-620 image Question 37 113384 10072024010039000000

An engineer is integrating a VMware vCenter with Cisco ACI VMM domain configuration. ACI creates port-group names with the format of “Tenant | Application | EPG”. Which configuration option is used to generate port groups with names formatted as “Tenant=Application=EPG”?

enable tag collection

enable tag collection

security domains

security domains

delimiter

delimiter

virtual switch name

virtual switch name

Suggested answer: C
asked 07/10/2024
Flora Hundal
38 questions

Question 38

Report Export Collapse

Refer to the exhibit.

Cisco 300-620 image Question 38 113385 10072024010039000000

An engineer is implementing Cisco ACI – VMware vCenter integration for a blade server that lacks support of bonding. Which port channel mode results in “route based on originating virtual port” on the VMware VDS?

Static Channel – Mode On

Static Channel – Mode On

MAC Pinning-Physical-NIC-load

MAC Pinning-Physical-NIC-load

LACP Passive

LACP Passive

MAC Pinning+

MAC Pinning+

LACP Active

LACP Active

Suggested answer: D
asked 07/10/2024
Jeffrey Cayao
42 questions

Question 39

Report Export Collapse

When configuring Cisco ACI VMM domain integration with VMware vCenter, which object is created in vCenter?

datacenter

datacenter

VMware vSphere Standard vSwitch

VMware vSphere Standard vSwitch

VMware vSphere Distributed Switch

VMware vSphere Distributed Switch

cluster

cluster

Suggested answer: C
asked 07/10/2024
Yenziwe Yengwa
50 questions

Question 40

Report Export Collapse

An engineer has set the VMM resolution immediacy to pre-provision in a Cisco ACI environment. No Cisco Discovery Protocol neighborship has been formed between the hypervisors and the ACI fabric leaf nodes. How does this affect the download policies to the leaf switches?

No policies are downloaded because LLDP is the only supported discovery protocol.

No policies are downloaded because LLDP is the only supported discovery protocol.

Policies are downloaded when the hypervisor host is connected to the VMM VDS.

Policies are downloaded when the hypervisor host is connected to the VMM VDS.

Policies are downloaded to the ACI leaf switch regardless of Cisco Discovery Protocol neighborship.

Policies are downloaded to the ACI leaf switch regardless of Cisco Discovery Protocol neighborship.

No policies are downloaded because there is no discovery protocol neighborship.

No policies are downloaded because there is no discovery protocol neighborship.

Suggested answer: C
asked 07/10/2024
sujan bolla
42 questions
Total 247 questions
