Avaya 7230X Practice Test - Questions Answers, Page 3

Add to Whishlist

List of questions

Question 21

Report Export Collapse

You are troubleshooting a TLS link down message between Avaya Aura® Session Manager (SM) and Avaya Session Border Controller for Enterprise (SBCE). Tracing on SM and SBCE reveals a Fatal Error Unknown CA message being sent by SBCE when it receives the Server Identity certificate from SM.

To solve this problem, which two actions need to be completed? (Choose two.)

Install the Certificate Authority certificate that signed SBCE identity certificate into SM.
Install the Certificate Authority certificate that signed SBCE identity certificate into SM.
Export the SBCE identity certificate, and import it into SM.
Export the SBCE identity certificate, and import it into SM.
Install the Certificate Authority certificate that signed SM identity certificate into SBCE.
Install the Certificate Authority certificate that signed SM identity certificate into SBCE.
Add Certificate Authority certificate into the TLS profile Peer Verification List.
Add Certificate Authority certificate into the TLS profile Peer Verification List.
Suggested answer: A, B
asked 16/09/2024
Braden Houser
39 questions

Question 22

Report Export Collapse

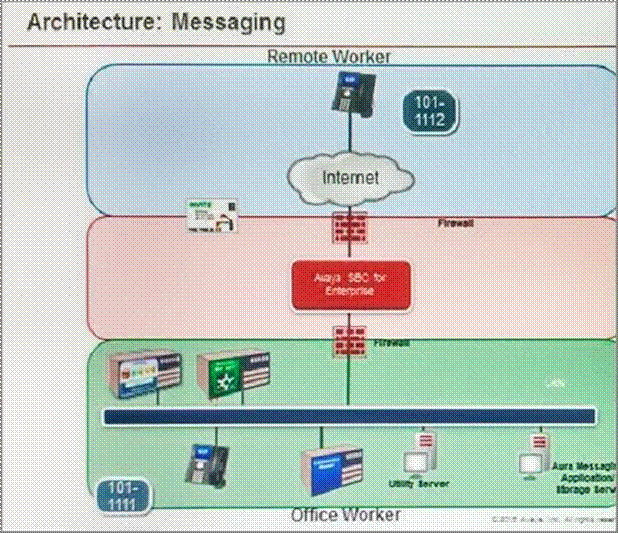

Avaya 7230X image Question 22 19219 09162024190503000000


Refer to the exhibit.

After some system maintenance was completed over the weekend, a customer calling from the office states they hear a fast busy when trying to access their voicemail.

Avaya support verifies local network connectivity is up and Avaya Aura® Messaging server is registering no alarms. A SIP trace displays a 404 Not Found error message.

Based on what is already working, to where can the issue potentially be isolated?

endpoint routing configuration issue
endpoint routing configuration issue
interoperability testing
interoperability testing
network outage
network outage
routing configuration issues
routing configuration issues
Suggested answer: D
asked 16/09/2024
Salman Hashmi
47 questions

Question 23

Report Export Collapse

When a customer calls voicemail to retrieve their messages they hear “Hello, to access your mailbox…” instead of the users named followed by “please enter your password…”.

After troubleshooting you discover that the Caller ID is not being sent correctly, therefore Avaya Aura® Messaging (AAM) is not able to identify the correct mailbox associated with the station number calling into AAM. How can this problem be fixed?

Change clid-numbering 0 SAT form to send the correct CLID.
Change clid-numbering 0 SAT form to send the correct CLID.
Using AAM web GUI access Administration > Messaging > Telephone Integration, write a caller ID modification rule to correct the incoming CLID format.
Using AAM web GUI access Administration > Messaging > Telephone Integration, write a caller ID modification rule to correct the incoming CLID format.
In Session Manager, configure a DigitConversionAdapter with ‘fromto=true’ to update the ‘Form’ header as well as the P-asserted-identity, and link it to the AAM SIP Entity.
In Session Manager, configure a DigitConversionAdapter with ‘fromto=true’ to update the ‘Form’ header as well as the P-asserted-identity, and link it to the AAM SIP Entity.
Having identified the trunk group from Avaya Aura® Communication Manager (CM) to AMM is public, change public-unknown-numbering 0 SAT form, to send the correct CLID.
Having identified the trunk group from Avaya Aura® Communication Manager (CM) to AMM is public, change public-unknown-numbering 0 SAT form, to send the correct CLID.
Suggested answer: C
asked 16/09/2024
Francinilo Leitao Ferreira
37 questions

Question 24

Report Export Collapse

Right after an Avaya Breeze ™ installation, the customer called in stating WebRTC calls are not working.

Where can the administrator go to verify that the Avaya Breeze ™ server was configured to Accept Service?

Avaya Breeze ™ web GUI, and navigate to Avaya Breeze ™ Dashboard.
Avaya Breeze ™ web GUI, and navigate to Avaya Breeze ™ Dashboard.
Avaya Breeze ™ command line, and run the status service command.
Avaya Breeze ™ command line, and run the status service command.
Avaya Aura® System Manager web GUI, and navigate to Breeze Dashboard.
Avaya Aura® System Manager web GUI, and navigate to Breeze Dashboard.
Avaya Aura® System Manager command line, run the status service command.
Avaya Aura® System Manager command line, run the status service command.
Suggested answer: C
asked 16/09/2024
Ivan Pavlek
45 questions

Question 25

Report Export Collapse

A customer called in stating that none of their users can IM or see each other’s Presence. After troubleshooting you discover that default gateway of the Avaya Breeze ™ SM100 has the wrong IP Address in the configuration.

Where would you go to correct this problem?

Use SSH to Avaya Breeze ™, and run SMnetSetup.
Use SSH to Avaya Breeze ™, and run SMnetSetup.
Use SSH to Avaya Breeze ™, and use the route command to correct the routing table.
Use SSH to Avaya Breeze ™, and use the route command to correct the routing table.
Use Avaya Aura® System Manager web GUI to update the SIP Entity screen.
Use Avaya Aura® System Manager web GUI to update the SIP Entity screen.
Use Avaya Aura® System Manager web GUI to access the Engagement Development Platform < Server Administration, and edit the Server Instance.
Use Avaya Aura® System Manager web GUI to access the Engagement Development Platform < Server Administration, and edit the Server Instance.
Suggested answer: D
asked 16/09/2024
C/1094 WOLOGUEDE COTONOU – BENIN STEVE
41 questions

Question 26

Report Export Collapse

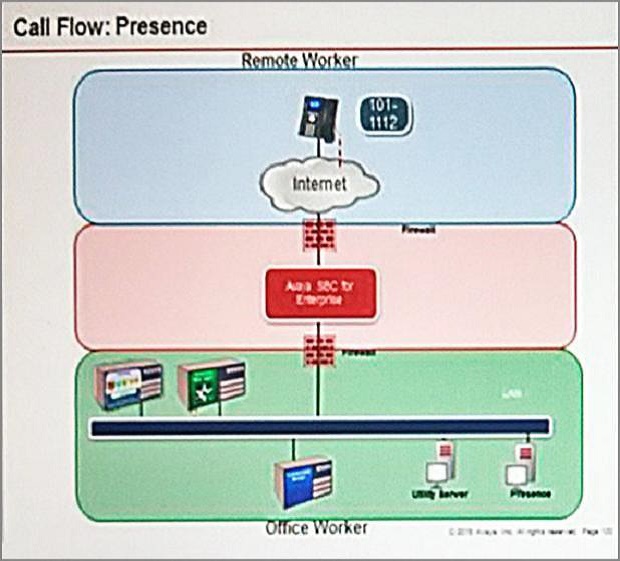

Avaya 7230X image Question 26 19223 09162024190503000000


Refer to the exhibit.

SIP endpoint 101-1112 is updating its Presence status with the Avaya Aura® Presence (PS).

Based on the exhibit, which statement about the message flow is true?

Avaya Aura® Presence sends Notify to the telephone via Avaya Aura® Session Manager.
Avaya Aura® Presence sends Notify to the telephone via Avaya Aura® Session Manager.
Phone sends Register message to Avaya Aura® Session Manager via Avaya Session Border Controller for Enterprise.
Phone sends Register message to Avaya Aura® Session Manager via Avaya Session Border Controller for Enterprise.
The telephone sends Subscribe message to Avaya Aura® Session Manager via Avaya Session Border Controller for Enterprise.
The telephone sends Subscribe message to Avaya Aura® Session Manager via Avaya Session Border Controller for Enterprise.
Avaya Aura® Presence sends Notify to the SIP endpoint via Avaya Session Border Controller for Enterprise.
Avaya Aura® Presence sends Notify to the SIP endpoint via Avaya Session Border Controller for Enterprise.
Suggested answer: A
asked 16/09/2024
Sam Poon
46 questions

Question 27

Report Export Collapse

Considering the message flow to an Avaya Aura® Contact Centre (AACC) Agent Desktop, which protocol is used to communicate between Avaya Aura® Communication Manager (CM) and Avaya Aura® Application Enablement Services (AES)?

WCF
WCF
ASAI/TSAPI
ASAI/TSAPI
DMCC/TSAPI
DMCC/TSAPI
TR87
TR87
Suggested answer: C
Explanation:

Reference: https://www.avaya.com/en/documents/avaya-aura-application-enablement-services---uc4303.pdf

asked 16/09/2024
Ben Pike
44 questions

Question 28

Report Export Collapse

Considering the message flow to an Avaya Aura® Contact Center (AACC) agent, which statement about the media path from the incoming caller is true?

It is not anchored on the Avaya Aura® Media Server.
It is not anchored on the Avaya Aura® Media Server.
It is anchored on the Avaya Aura® Media Server if using SIP agent.
It is anchored on the Avaya Aura® Media Server if using SIP agent.
It is anchored on the Avaya Aura® Media Server until the agent answers the call.
It is anchored on the Avaya Aura® Media Server until the agent answers the call.
It is anchored on the Avaya Aura® Media Server for the duration of the call.
It is anchored on the Avaya Aura® Media Server for the duration of the call.
Suggested answer: B
asked 16/09/2024
Felipe Huichacura
36 questions

Question 29

Report Export Collapse

When a user is forwarded to Avaya Aura® Messaging (AAM), Avaya Aura® Communication Manager (CM) needs to indicate to AAM who the call was originally destined for, so that the message is left in the correct mailbox.

Which SIP header is used to indicate for whom the call was originally destined, and the reason for being forwarded to AAM?

B = history info
B = history info
To
To
Request
Request
P-Asserted-Identity
P-Asserted-Identity
Suggested answer: C
asked 16/09/2024
Samori Augusto
48 questions

Question 30

Report Export Collapse

When Avaya Session Border Controller for Enterprise (SBCE) initially receives the message from a SIP endpoint wanting to update their Presence status, which operation does it perform?

It authenticates message and encrypts the Presence status.
It authenticates message and encrypts the Presence status.
It authenticates and encrypts the message and registers the user.
It authenticates and encrypts the message and registers the user.
It authenticates and encrypts the message, and replaces its own IP address with the Session Manager IP address.
It authenticates and encrypts the message, and replaces its own IP address with the Session Manager IP address.
It authenticates, encrypts the Presence status message, and replaces its own IP address with the Avaya Aura® Presence (PS) IP address.
It authenticates, encrypts the Presence status message, and replaces its own IP address with the Avaya Aura® Presence (PS) IP address.
Suggested answer: B
asked 16/09/2024
Ben Spiers
42 questions
Total 93 questions
