After replacing a failed SSD in Node 1 of a Dell EMC PowerScale F200 cluster, it's important to verify that the node has recognized the new drive and has finished any necessary updates or rebuild processes.

Command to Verify Device Status:

isi devices device list --node-lnn 1:

This command lists all devices (drives) associated with Node 1.

It provides detailed information about each device, including status, health, and activity.

Why Option C is Correct:

Specific to Node 1:

The --node-lnn 1 parameter targets Node 1 directly.

Comprehensive Output:

The device list subcommand displays the status of all devices on the node.

Verification of Update Completion:

By reviewing the output, you can confirm that the new SSD is recognized and that any rebuild or update processes have completed successfully.

Why Other Options Are Less Appropriate:

Option A (isi devices -d):

This command is incomplete and may not provide the necessary information.

Option B (isi status -h):

Provides a high-level cluster status but does not detail individual device statuses.

Option D (isi status -q):

Gives a quick summary of cluster status, similar to Option B.

Dell PowerScale

Reference:

Dell EMC PowerScale OneFS CLI Administration Guide:

Section on isi devices Commands:

Explains how to use isi devices device list to view detailed device information.

Provides options to filter by node, device type, and status.

Steps to Verify Drive Replacement:

Run the Command:

bash

Copy code

# isi devices device list --node-lnn 1

Review Output:

Look for the new SSD in the list.

Check that the status is HEALTHY or OK.

Confirm Rebuild Completion:

Ensure that there are no active jobs related to data protection or rebuilds.

Use isi job status to check for running jobs.

Best Practices:

After Replacing a Drive:

Monitor the cluster for any alerts or errors.

Ensure that data protection levels are restored.

Documentation:

Record the replacement in maintenance logs.

Update any asset tracking systems with the new drive's details.

Additional Commands:

Check Cluster Health:

arduino

Copy code

# isi status

List All Devices:

arduino

Copy code

# isi devices list

By using the isi devices device list --node-lnn 1 command, the platform engineer can confidently confirm that Node 1 has recognized the new SSD and that all necessary updates have been completed.

During the installation of Dell PowerScale H400 nodes, it is standard practice to leave a 1U gap underneath the chassis to accommodate the Cable Management Tray (CMT). The Cable Management Tray is essential for organizing and supporting the network and power cables connected to the node. Proper cable management ensures that cables are neatly routed, reduces stress on the connectors, and prevents obstruction of airflow within the rack.

According to the Dell PowerScale Hardware Installation and Planning Guide, the inclusion of a Cable Management Tray improves serviceability and maintains optimal airflow by preventing cables from hanging in front of the equipment or blocking ventilation paths. By intentionally leaving a 1U gap, the platform engineer ensures that the Cable Management Tray can be installed without interfering with the node's operation or the rack's structural integrity.

Dell PowerScale Hardware Installation and Planning Guide

Best Practices for Cable Management in Dell PowerScale Systems

The Command Line Interface (CLI) provides the most comprehensive and detailed interaction with a Dell PowerScale cluster. Through the CLI, administrators have access to a wide range of commands that offer detailed network traffic statistics, system performance metrics, and the ability to perform granular file and directory operations.

While the Web console offers a user-friendly graphical interface for cluster management, it may not provide the same level of detail or the full set of functionalities available in the CLI. The Serial console is primarily used for initial setup or troubleshooting when network access is unavailable. The Platform API allows for programmatic access but requires additional development effort to utilize.

The CLI is accessible via SSH and provides tools like isi statistics for detailed performance metrics and isi commands for file system operations. This makes it the most powerful interface for administrators needing in-depth information and control over the cluster.

Dell PowerScale OneFS Command-Line Administration Guide

Dell PowerScale OneFS CLI Reference Guide

When connecting a Dell PowerScale F600 node to the frontend network in an existing cluster with legacy nodes, it's important to follow the correct cabling practices to ensure network compatibility and optimal performance.

The F600 node uses PCIe slot 1 for frontend (client) network connections. This slot supports Ethernet network interfaces that handle client traffic. PCIe slot 3 is typically reserved for backend (cluster interconnect) networking. Since the cluster includes legacy nodes, and assuming they use Ethernet for frontend connectivity, the F600 should connect its frontend network interfaces from PCIe slot 1 to the frontend Ethernet switch.

Connecting the cables from PCIe slot 1 to the frontend Ethernet switch ensures that the F600 node properly communicates with clients and integrates seamlessly into the existing cluster network infrastructure.

Dell PowerScale F600 Technical Specifications Guide

Dell PowerScale Network Configuration Guide

Best Practices for Adding Nodes to an Existing Dell PowerScale Cluster

When a platform engineer connects to a Dell PowerScale F600 node using a serial connection and the session is unresponsive, the first action should be to check the settings of the serial connection. Serial communication requires specific configuration parameters to establish a successful connection. An incorrect setting can result in an unresponsive session.

The standard serial connection settings for Dell PowerScale nodes are:

Baud Rate: 115200

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control: None

Steps to resolve the issue:

Verify Serial Port Configuration:

Open your terminal emulator software (e.g., PuTTY, Tera Term).

Check that the serial port settings match the required parameters.

Confirm Physical Connections:

Ensure that the serial cable is securely connected to both the laptop and the node's serial port.

Test the Serial Cable:

If possible, test the cable with another device to rule out a faulty cable.

Restarting the server or updating firmware is unnecessary at this stage and could introduce additional issues. Replacing the serial cable should only be considered after confirming that the settings and connections are correct.

Dell PowerScale Hardware Installation and Planning Guide -- Serial Connection Settings

Dell PowerScale OneFS CLI Administration Guide -- Accessing the Cluster Through a Serial Connection

Dell Knowledge Base Article -- Troubleshooting Serial Console Access

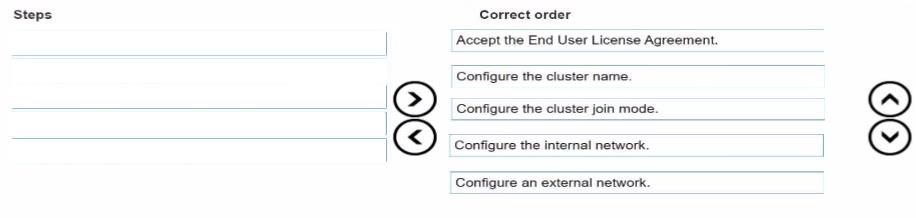

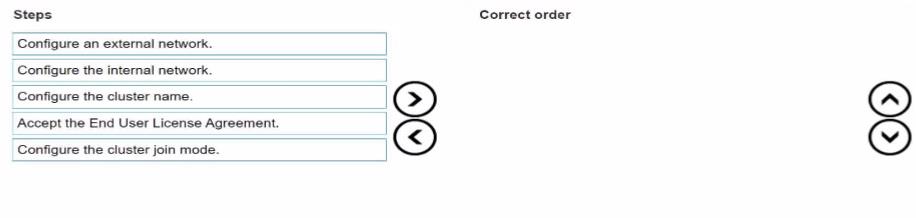

Accept End User License Agreement

Configure cluster name

Configure cluster join mode

Configure internal network

Configure external network

When replacing a failed chassis in a Dell PowerScale Gen6 cluster, it's critical to preserve the data and configuration by maintaining the exact placement of the drive sleds. After powering off the nodes, the engineer should:

Remove Drive Sleds:

Carefully remove each drive sled from the failed chassis.

Label for Identification:

Label each drive sled with its corresponding slot number or unique identifier.

Install New Chassis:

Mount the new chassis in the rack where the failed one was located.

Reinstall Drive Sleds:

Insert the labeled drive sleds into the same slots in the new chassis.

Power On Nodes:

Power on the nodes and verify that they boot correctly and rejoin the cluster.

This procedure ensures that the drives remain in their original configuration, preserving data integrity and cluster settings. There's no need to transfer motherboards or reimage drives, as these actions could disrupt cluster operations and lead to data loss.

Dell PowerScale Hardware Replacement Guide -- Chassis Replacement Procedures

Dell PowerScale OneFS Administration Guide -- Best Practices for Hardware Maintenance

Dell Knowledge Base Article -- Preserving Drive Order During Chassis Replacement

When Dell Technical Support requests a part to be sent back for analysis, a Defective Material Return (DMR) process must be completed. The DMR process involves several key steps:

Receive DMR Authorization:

Dell Technical Support provides a DMR number and return instructions.

Complete Required Documentation:

Fill out any forms detailing the part's serial number, failure symptoms, and troubleshooting steps taken.

Prepare the Part for Shipment:

Properly package the defective part using anti-static materials and cushioning to prevent further damage.

Include DMR Documentation:

Attach the DMR paperwork with the shipment to ensure correct processing.

Ship the Part:

Send the package to the designated Dell Logistics center.

Completing the DMR process allows Dell to study the defective part, which can lead to product improvements and enhanced support services.

Dell PowerScale Field Replacement Unit (FRU) Procedures -- DMR Process

Dell Logistics Return Guidelines -- Shipping and Documentation Requirements

Dell Technical Support Policies -- Defective Material Return Instructions

To ensure nondisruptive upgrades in an SMB environment, SMB Continuous Availability (CA) must be enabled. SMB CA allows file shares to remain accessible without interruption during planned maintenance or unexpected node failures.

Key features of SMB Continuous Availability:

Transparent Failover:

Client sessions persist seamlessly when the SMB service fails over to another node.

State Preservation:

Open files, locks, and session states are maintained during the failover.

High Availability:

Enhances the cluster's ability to provide uninterrupted service.

Steps to enable SMB Continuous Availability:

Verify OneFS Version:

Ensure the cluster is running OneFS version that supports SMB 3.0 or higher.

Enable SMB CA on the Cluster:

Use the OneFS WebUI or CLI to enable Continuous Availability for SMB shares.

Configure SMB Shares:

Set the 'Continuous Availability' option on the specific SMB shares that require it.

Client Requirements:

Clients must be running Windows 8 or Windows Server 2012 (or later) to support SMB CA.

By enabling SMB Continuous Availability, upgrades and maintenance can be performed without disrupting client access to file shares.

Dell PowerScale OneFS SMB Administration Guide -- Configuring SMB Continuous Availability

Dell PowerScale OneFS Upgrade Planning Guide -- Ensuring Nondisruptive Upgrades

Microsoft SMB Protocol Documentation -- SMB 3.0 Features
