When a platform engineer removes the compute module from a Dell EMC PowerScale Gen 6 node and observes lit LEDs inside the removed node, this is a normal behavior due to the design of the node's power and indicator systems.

Reasons Why LEDs Remain Lit:

Residual Power:

The node's capacitors may hold residual power for a short time after shutdown, keeping LEDs lit temporarily.

Shared Power Supplies:

In Gen 6 nodes, power supplies may be shared between paired nodes, and some components might still receive power.

Recommended Response:

Proceed with the Procedure:

The lit LEDs are expected and do not indicate a fault.

The engineer should continue with the replacement procedure as per the guidelines.

Dell PowerScale

Reference:

Dell EMC PowerScale Hardware Replacement Guide:

Section on Compute Module Replacement:

Notes that internal LEDs may remain lit after removal.

Confirms that this is normal and does not require additional action.

Safety Precautions:

Always ensure proper ESD protection when handling components.

Follow all recommended steps to safely replace hardware.

Tenant-specific administration involves managing specific zones or tenants within a Dell EMC PowerScale environment. This requires a certain level of privileges that allows administrators to control resources without having full system-wide access.

Zone Role-Based Access Control:

Definition:

Zone role-based access control allows administrators to assign permissions to users or groups for specific zones or tenants.

Functionality:

Enables delegation of administrative tasks within a particular zone without granting system-wide privileges.

Benefits:

Enhances security by limiting access.

Simplifies management in multi-tenant environments.

Why Other Options Are Incorrect:

System Root Privileges (Option B):

Root privileges grant full access to the entire system, which is not necessary for tenant-specific tasks.

System Admin Privileges (Option C):

Similar to root, system admin privileges are broader than needed.

Role-Based Access Control (Option D):

While general role-based access control is related, zone role-based access control is specifically designed for tenant administration.

Dell PowerScale

Reference:

Dell EMC PowerScale OneFS Administration Guide:

Chapter on Access Control and Authentication:

Details how to implement zone role-based access control.

Provides instructions on assigning roles to users within specific zones.

Best Practices:

Regularly review and update access permissions.

Use the principle of least privilege to enhance security.

Non-Volatile Dual In-line Memory Modules (NVDIMMs) are used in Dell EMC PowerScale nodes to enhance write performance and data protection. The NVDIMM battery provides backup power to ensure data in the NVDIMM is preserved during a power loss.

Prerequisite Conditions:

Complete Power Off:

The node must be completely powered off.

All LEDs on the node, NVDIMM, and NVDIMM battery must be off to ensure no power is supplied.

Prevent Data Loss:

Removing the NVDIMM battery while power is present can lead to data loss in the NVDIMM.

Ensuring all LEDs are off confirms that the NVDIMM has flushed its data and is safe to handle.

Why Other Options Are Incorrect:

Option A (Hot-Swappable):

The NVDIMM battery is not hot-swappable.

Option B (Node Off and Removed from Power Feed):

While the node should be off, additional confirmation of LEDs being off is necessary.

Option C (LEDs on NVDIMM Battery Must Be Off):

Not sufficient; all related LEDs must be off.

Dell PowerScale

Reference:

Dell EMC PowerScale Hardware Replacement Guide:

Section on NVDIMM Battery Replacement:

Specifies that the node and all related LEDs must be off before removing the NVDIMM battery.

Provides step-by-step procedures to safely replace the battery.

Safety Precautions:

Wear ESD protection when handling internal components.

Verify power status to prevent hardware damage and data loss.

Dell EMC PowerScale F600 nodes utilize high-speed Ethernet connections for back-end networking to facilitate fast and efficient cluster communication.

Supported Back-End Network Speeds:

25 Gigabit Ethernet (GbE):

Provides a balance between speed and cost.

Suitable for clusters that require high performance but have budget considerations.

100 Gigabit Ethernet (GbE):

Offers the highest available throughput.

Ideal for clusters with demanding performance requirements.

Why Other Options Are Incorrect:

Option A (10 GbE or 40 GbE):

F600 nodes do not support these speeds for back-end networking.

Option B (10 GbE or 25 GbE):

10 GbE is not supported on F600 back-end.

Option D (25 GbE or 40 GbE):

40 GbE is not a supported back-end speed for F600 nodes.

Dell PowerScale

Reference:

Dell EMC PowerScale Networking Guide:

Chapter on Back-End Networking:

Lists supported network speeds for different node models.

Confirms that F600 nodes support 25 GbE and 100 GbE for back-end connections.

Best Practices:

Match back-end network speeds across all nodes for optimal performance.

Use high-quality cables and switches that support the required speeds.

In Dell EMC PowerScale clusters, upgrades can be performed using different methods, each with its own impact on cluster availability and performance.

Simultaneous Upgrade:

Definition:

A simultaneous upgrade involves rebooting all nodes in the cluster at the same time.

Characteristics:

The entire cluster is taken offline during the upgrade process.

Downtime is required, making it suitable for non-production environments or maintenance windows.

Why Other Options Are Incorrect:

Rolling Upgrade (Option B):

Nodes are upgraded one at a time, allowing the cluster to remain online.

Side-by-Side Upgrade (Option C):

Involves building a new cluster and migrating data; nodes are not rebooted simultaneously.

In-Place Upgrade (Option D):

Refers to upgrading software on the existing hardware but does not imply simultaneous reboots.

Dell PowerScale

Reference:

Dell EMC PowerScale OneFS Upgrade Guide:

Chapter on Upgrade Methods:

Describes simultaneous upgrades and their impact on cluster availability.

Provides guidelines on when to choose this method.

Best Practices:

Schedule simultaneous upgrades during planned downtime.

Notify users of the expected service interruption.

Dell EMC PowerScale implementation follows a structured approach to ensure successful deployment and customer satisfaction.

Three Phases of Implementation:

Planning:

Assessment:

Understand customer requirements and environment.

Design:

Develop a solution that meets performance and capacity needs.

Preparation:

Address site readiness, networking, and resource allocation.

Implementation:

Installation:

Physical setup of hardware and network connections.

Configuration:

Set up the cluster, network settings, and data protection policies.

Validation:

Test the system to ensure it meets design specifications.

Handover:

Documentation:

Provide the customer with configuration details and operational guides.

Training:

Educate the customer's team on system management.

Support Transition:

Ensure the customer knows how to obtain ongoing support.

Dell PowerScale

Reference:

Dell EMC PowerScale Implementation Guide:

Sections on Each Implementation Phase:

Outlines activities and objectives for planning, implementation, and handover.

Best Practices:

Engage stakeholders throughout the process.

Document each phase thoroughly for transparency and future reference.

Dell EMC PowerScale F600 nodes, based on the Dell PowerEdge R640 server platform, utilize specific slots for network connectivity.

Front-End Connectivity:

rNDC Slot (rack Network Daughter Card):

The rNDC slot is dedicated to front-end network connections.

Provides high-speed network interfaces for client connectivity.

Benefits of Using rNDC Slot:

Optimizes slot utilization by freeing up PCIe slots for other purposes.

Supports various network configurations, including SFP+ and QSFP28 modules.

Why Other Options Are Incorrect:

PCIe Slot 1, 2, or 3 (Options A, C, D):

Typically used for additional cards like back-end NICs or expansion cards.

Not designated for front-end connectivity in the F600 node configuration.

Dell PowerScale

Reference:

Dell EMC PowerScale Hardware Installation Guide:

Chapter on Network Connections:

Illustrates the use of the rNDC slot for front-end networking on F600 nodes.

Provides diagrams showing the slot locations and their purposes.

Best Practices:

Ensure the correct network modules are installed in the rNDC slot.

Verify network configurations to match infrastructure requirements.

To obtain the external IP address of a specific node in a Dell EMC PowerScale cluster, the platform engineer can use commands that provide detailed node information.

Using 'isi status -q':

Function:

The isi status -q command displays a concise list of nodes along with their IDs and external IP addresses.

Syntax:

Running this command from any node in the cluster will provide the required information.

Output:

Includes node IDs, IP addresses, and status information.

Why Other Options Are Incorrect:

Option B (isi network external view):

Provides information about the external network interfaces but may not directly map node IDs to IPs.

Option C (isi status -p):

Displays the cluster status in a parsed format but may not include IP addresses.

Option D (isi network subnets list):

Lists subnets configured on the cluster but does not provide node-specific IP addresses.

Dell PowerScale

Reference:

Dell EMC PowerScale OneFS Command-Line Interface Guide:

Section on 'isi status' Commands:

Details the usage of isi status -q to retrieve node information.

Usage Example:

# isi status -q

Node | LNN | Health | IP Address | ...

------+-----+--------+-----------------+-----

Node2 | 2 | Good | 192.168.1.102 | ...

Best Practices:

Use the isi status command family for quick status checks.

Combine with other commands for comprehensive monitoring.

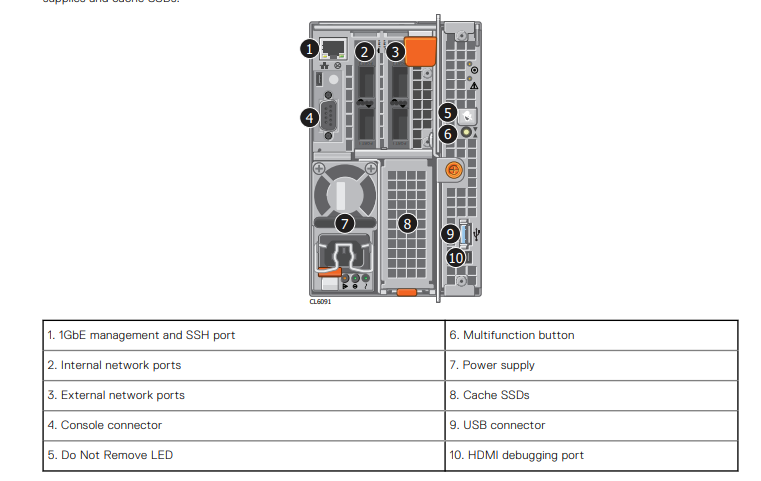

Callout 4 in the exhibit refers to the console connector on the Dell EMC PowerScale Gen6 node. The console connector provides front-end Ethernet connectivity, enabling the management of the node. This connector is typically used for direct access during the initial configuration, maintenance, or troubleshooting activities.

This front-end console port allows administrators to log in to the node using a console cable to access the system for configurations or debugging purposes.
