HP HPE6-A73 Practice Test - Questions Answers, Page 6

Add to Whishlist

List of questions

Question 51

Report Export Collapse

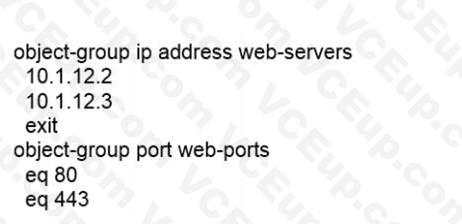

An administrator has configured the following on an AOS-CX switch:

HP HPE6-A73 image Question 51 14620 09162024180711000000

What is the correct ACL rule configuration that would allow traffic from anywhere to reach the web ports on the two specified servers?

access-list ip server 10 permit tcp any web-servers group web-ports
access-list ip server 10 permit tcp any web-servers group web-ports
access-list ip server 10 permit tcp any object-group web-servers object-group web-ports
access-list ip server 10 permit tcp any object-group web-servers object-group web-ports
access-list ip server 10 permit tcp any group web-servers group web-ports
access-list ip server 10 permit tcp any group web-servers group web-ports
access-list ip server 10 permit tcp any web-servers web-ports
access-list ip server 10 permit tcp any web-servers web-ports
Suggested answer: A
asked 16/09/2024
HC KONG
46 questions

Question 52

Report Export Collapse

A network administrator wants to centralize the management of AOS-CX switches by implementing NetEdit.

How should the administrator purchase and/or install the NetEdit solution?

Install as a hardware appliance
Install as a hardware appliance
Installed on a supported version of RedHat Enterprise Linux
Installed on a supported version of RedHat Enterprise Linux
Installed in a virtualized solution by using the Aruba-supplied OVA file
Installed in a virtualized solution by using the Aruba-supplied OVA file
Installed on a supported version of Debian Linux
Installed on a supported version of Debian Linux
Suggested answer: C
asked 16/09/2024
Endre Horvath
38 questions

Question 53

Report Export Collapse

A network engineer is using NetEdit to manage AOS-CX switches. The engineer notices that a lot of thirdparty VoIP phones are showing up in the NetEdit topology. The engineer deletes these, but they are automatically rediscovered by

NetEdit and added back in.

What should the administrator do to solve this problem?

Change the VoIP phone SNMP community string to something unknown by NetEdit
Change the VoIP phone SNMP community string to something unknown by NetEdit
Disable LLDP globally on the AOS-CX switches where phones are connected
Disable LLDP globally on the AOS-CX switches where phones are connected
Disable SSH access on all the VoIP phones
Disable SSH access on all the VoIP phones
Disable the RESTful API on all the VoIP phones
Disable the RESTful API on all the VoIP phones
Suggested answer: A
Explanation:

"NetEdit will now algo discover and display third-party devices that are using the stantard MIB's.

Using SNMP with NetEDit, administrators can also enter SSH credentials for third-party devices.

asked 16/09/2024
OKAN AYDOΓ„ΕΎAN
52 questions

Question 54

Report Export Collapse

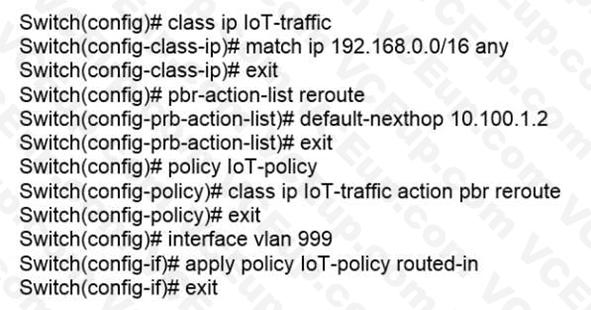

Examine the following AOS-CX configuration:

HP HPE6-A73 image Question 54 14623 09162024180711000000

Based on this configuration, which statement is correct regarding IoT traffic?

If 10.100.1.2 is not reachable, the IoT traffic will be automatically dropped by the switch
If 10.100.1.2 is not reachable, the IoT traffic will be automatically dropped by the switch
If a specific route is not available in the routing table, the traffic will be routed to 10.100.1.2
If a specific route is not available in the routing table, the traffic will be routed to 10.100.1.2
The next hop of 10.100.1.2 can be one or more hops away from the AOS-CX switch
The next hop of 10.100.1.2 can be one or more hops away from the AOS-CX switch
All routes are ignored in the routing table for IoT traffic, which is routed to 10.100.1.2
All routes are ignored in the routing table for IoT traffic, which is routed to 10.100.1.2
Suggested answer: B
asked 16/09/2024
Patrick Herrington
45 questions

Question 55

Report Export Collapse

Which protocol does NetEdit use to discover devices in a subnet during the discovery process?

LLDP
LLDP
ARP
ARP
DHCP
DHCP
ICMP
ICMP
Suggested answer: A
asked 16/09/2024
Cyrom Meryll Santos
42 questions

Question 56

Report Export Collapse

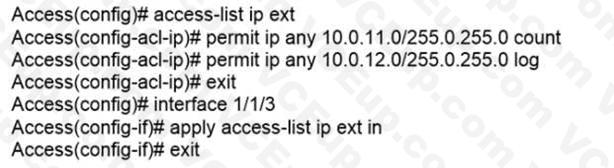

Examine the following AOS-CX switch configuration:

HP HPE6-A73 image Question 56 14625 09162024180711000000

Which statement correctly describes what is allowed for traffic entering interface 1/1/3?

IP traffic from 10.1.11.0/24 is allowed to access 10.1.110.0/24
IP traffic from 10.1.11.0/24 is allowed to access 10.1.110.0/24
IP traffic from 10.0.11.0/24 is allowed to access 10.1.12.0/24
IP traffic from 10.0.11.0/24 is allowed to access 10.1.12.0/24
Traffic from 10.0.12.0/24 will generate a log record when accessing 10.0.11.0/24
Traffic from 10.0.12.0/24 will generate a log record when accessing 10.0.11.0/24
IP traffic from 10.1.12.0/24 is allowed to access 172.0.1.0/23
IP traffic from 10.1.12.0/24 is allowed to access 172.0.1.0/23
Suggested answer: B
Explanation:

People seem to be confused by inverted mask/wildcard masks. They would be correct for Cisco switches, but AOS-CX does NOT use wildcard masks; "AOX-CX switches do not support wildcard masks - only prefixes or subnet masks -when created ACEs." Cisco: 255.0.255.0 = xx.123.xx.123 AOS-CX: 255.0.255.0 = 123.xx.123.xx

asked 16/09/2024
Wonseok Chung
27 questions

Question 57

Report Export Collapse

An administrator creates an ACL rule with both the "count" and "log" option enabled. What is correct about the action taken by an AOS-CX switch when there is a match on this rule?

By default, a summarized log is created every minute with a count of the number of matches
By default, a summarized log is created every minute with a count of the number of matches
Logging will not include certificate and TLS events, but counting will
Logging will not include certificate and TLS events, but counting will
The "count" and "log" options are processed by the AOS-CX switch's hardware ASIC
The "count" and "log" options are processed by the AOS-CX switch's hardware ASIC
The total in the "log" record and the count could contain different rule matching statistics
The total in the "log" record and the count could contain different rule matching statistics
Suggested answer: D
Explanation:

From the "AOS-CX 10.08 ACLs and Classifier Policies Guide" : "You may see a minor discrepancy between the ACL logging statistics and the hit counts statistics due to the time required to record the log message."

asked 16/09/2024
Guus Schenkelaars
35 questions

Question 58

Report Export Collapse

An administrator is defining a VSX LAG on a pair of AOS-CX switches that are defined as primary and secondary. The VSX LAG fails to establish successfully with a remote switch; however, after verification, the remote switch is configured correctly. The administrator narrows down the problem to the configuration on the AOS-CX switches.

What would cause this problem?

Local optimization was not enabled on the VSX LAG
Local optimization was not enabled on the VSX LAG
The VSX LAG hash does not match the remote peer
The VSX LAG hash does not match the remote peer
The VSX LAG interfaces are in layer-3 mode
The VSX LAG interfaces are in layer-3 mode
LACP was enabled in active mode on the VSX LAG
LACP was enabled in active mode on the VSX LAG
Suggested answer: B
asked 16/09/2024
Naveen Kotipalli
41 questions

Question 59

Report Export Collapse

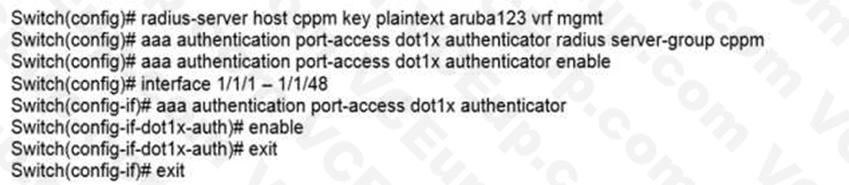

Examine the configuration performed on newly deployed AOS-CX switches:

HP HPE6-A73 image Question 59 14628 09162024180711000000

After performing this configuration, the administrator notices that the switch ports always remain in the EAP start state. What should the administrator do to fix this problem?

Define the server group cppm
Define the server group cppm
Set the ports to client-mode
Set the ports to client-mode
Create and assign a local user role to the ports
Create and assign a local user role to the ports
Enable change of authorization (CoA)
Enable change of authorization (CoA)
Suggested answer: A
Explanation:

https://community.arubanetworks.com/blogs/esupport1/2020/04/29/downloadable-user-roleconfiguration-in-aruba-os-cx-with-mac-authentication

asked 16/09/2024
amy ashton
45 questions

Question 60

Report Export Collapse

A network has two AOS-CX switches connected to two different service providers. The administrator is concerned about bandwidth consumption on the service provider links and learned that the service providers were using the company as a transit AS.

Which feature should the administrator implement to prevent this situation?

Configure route maps and apply them to BGP
Configure route maps and apply them to BGP
Configure the two switches as route reflectors
Configure the two switches as route reflectors
Configure a classifier policy to disable MED
Configure a classifier policy to disable MED
Configure bi-directional forwarding detection on both switches
Configure bi-directional forwarding detection on both switches
Suggested answer: A
asked 16/09/2024
Braden Houser
39 questions
Total 127 questions
Go to page: of 13
