Question 41

Report Export Collapse

Which protocols are used by NetEdit to interact with third-party devices? (Choose two.)

telnet
telnet
SNMP
SNMP
SSH
SSH
Restful API
Restful API
CDP
CDP
Suggested answer: B, C
asked 16/09/2024
Mustaqueahmed Ghanchibhai
46 questions

Question 42

Report Export Collapse

An administrator is implementing a downloadable user role solution involving AOS-CX switches. The AAA solution and the AOS-CX switches can successfully authenticate users; however, the role information fails to download to the switches. What policy should be added to an intermediate firewall to allow the downloadable role function to succeed?

Allow TCP 443
Allow TCP 443
Allow UDP 1811
Allow UDP 1811
Allow UDP 8211
Allow UDP 8211
Allow TCP 22
Allow TCP 22
Suggested answer: A
asked 16/09/2024
Victor Gouveia Pennella
48 questions

Question 43

Report Export Collapse

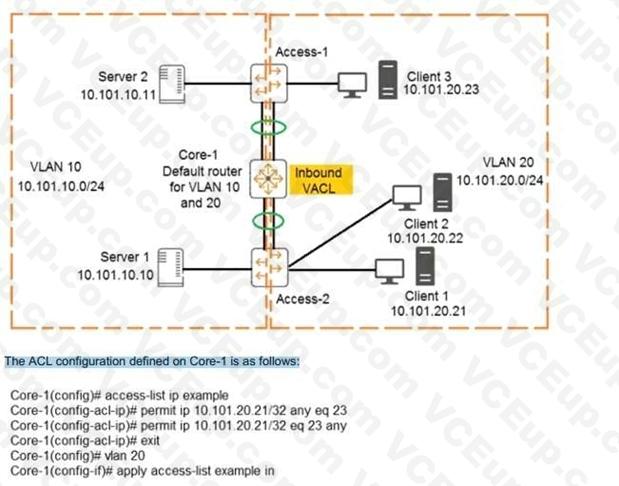

Examine the network exhibit:

HP HPE6-A73 image Question 43 14612 09162024180711000000

The ACL configuration defined on Core-1 is as follows:

If telnet was being used, which device connection would be permitted and functional in both directions?

(Choose two.)

Client 3 to Client 2
Client 3 to Client 2
Client 1 to Client 2
Client 1 to Client 2
Server 2 to Client 2
Server 2 to Client 2
Server 1 to Client 1
Server 1 to Client 1
Client 1 to Client 3
Client 1 to Client 3
Suggested answer: B, D
Explanation:

CL3 - CL2 - drop on forward path by core1 cause match VLAN 20 and CL3 not CL1 as SRC IP CL1 - CL2 - pass - no ACL cause forwarded by Access2 SR2 - CL2 - pass on forward path by core1 cause match VLAN 10 Drop on return path by core1 cause match VLAN 20 and no CL1 as SRC IP SR1 - CL1 - pass on forward path by core1 cause match VLAN 10 pass on return path by core1 cause match VLAN 20 and CL1 as SRC IP CL1 - CL3 - pass on forward path by core1 cause match VLAN 20 and CL1 as SRC IP drop on return path by core1 cause match VLAN 20 and not CL1 but CL3 as SRC IP

asked 16/09/2024
GUY XAVIER DONGMO FAPONG
44 questions

Question 44

Report Export Collapse

An administrator has an aggregation layer of 8325CX switches configured as a VSX pair. The administrator is concerned that when OSPF network changes occur, the aggregation switches will respond to the changes slowly, and this will affect network connectivity, especially VoIP calls, in the connected access layer switches.

What should the administrator do on the aggregation layer switches to alleviate this issue?D18912E1457D5D1DDCBD40AB3BF70D5D

Implement route aggregation
Implement route aggregation
Implement bidirectional forwarding detection (BFD)
Implement bidirectional forwarding detection (BFD)
Reduce the hello and dead interval timers
Reduce the hello and dead interval timers
Implement graceful restart
Implement graceful restart
Suggested answer: A
Explanation:

"BFD tests the connectivity between two IP addresses in a BFD session. BFD reports when connectivity is lost. The router (or routing switch) can then use that information to take the appropriate actions, depending on the functions to which you have tied BFD"

asked 16/09/2024
Dustin Roberts
50 questions

Question 45

Report Export Collapse

How is NetEdit installed at a customer location?

Via an Aruba NetEdit hardware appliance
Via an Aruba NetEdit hardware appliance
Via a DVD using a virtualized platform like Microsoft's Hyper-V
Via a DVD using a virtualized platform like Microsoft's Hyper-V
Via the Aruba Central cloud solution
Via the Aruba Central cloud solution
Via an OVA file and a virtualized platform like VMware's ESXi
Via an OVA file and a virtualized platform like VMware's ESXi
Suggested answer: D
asked 16/09/2024
Miguel Sartori
39 questions

Question 46

Report Export Collapse

What is correct regarding multicasting and AOS-CX switches?

IGMP snooping is disabled, by default, on Layer-2 VLAN interfaces
IGMP snooping is disabled, by default, on Layer-2 VLAN interfaces
IGMP query functions are enabled, by default, on Layer-2 VLAN interfaces
IGMP query functions are enabled, by default, on Layer-2 VLAN interfaces
IGMP snooping is enabled, by default, on Layer-3 VLAN interfaces
IGMP snooping is enabled, by default, on Layer-3 VLAN interfaces
IGMP-enabled AOS-CX switches flood unknown multicast destinations
IGMP-enabled AOS-CX switches flood unknown multicast destinations
Suggested answer: A
asked 16/09/2024
Bob Xiong
50 questions

Question 47

Report Export Collapse

A company has recently upgraded their campus switching infrastructure with AOS-CX switches. They have implemented 802.1X authentication on access ports where laptop and IOT devices typically connect.

An administrator has noticed that for POE devices, the AOS-CX switch ports are delivering the maximum wattage to the port instead of what the device actually needs.

Concerned about this waste of electricity, what should the administrator implement to solve this problem?

Implement a classifier policy with the correct power definitions
Implement a classifier policy with the correct power definitions
Create device profiles with the correct power definitions
Create device profiles with the correct power definitions
Enable AAA authentication to exempt LLDP and/or CDP information
Enable AAA authentication to exempt LLDP and/or CDP information
Globally enable the QoS trust setting for LLDP and/or CDP
Globally enable the QoS trust setting for LLDP and/or CDP
Suggested answer: B
asked 16/09/2024
Dan Yann
54 questions

Question 48

Report Export Collapse

A company requires access by all users, guests, and employees to be authenticated. Employees will be authenticated using 802.1X, whereas guests will be authenticated using captive portal. Which type of authentication must be configured on an AOS-CX switch ports where both guests and employees connect?

Both 802.1X and captive portal
Both 802.1X and captive portal
802.1X only
802.1X only
Both 802.1X and MAC-Auth
Both 802.1X and MAC-Auth
802.1X, captive portal, and MAC-Auth
802.1X, captive portal, and MAC-Auth
Suggested answer: C
Explanation:

Employees use 802.1x

The Aruba guest solution uses MAC-auth.

The Portal is not configured on the switch port.

asked 16/09/2024
Ronald Zegwaard
34 questions

Question 49

Report Export Collapse

Examine the output from an AOS-CX switch implementing a dynamic segmentation solution involving downloadable user roles:

Switch# show port-access role clearpass

Role information:

Name : icxarubadur_employee-3044-2

Type : clearpass

Status: failed, parsing_failed

Reauthentication Period :

Authentication Mode :

Session Timeout :

The downloadable user roles are not being downloaded to the AOS-CX switch. Based on the above output, what is the problem?

The certificate that ClearPass uses in invalid
The certificate that ClearPass uses in invalid
The AOS-CX switch does not have the ClearPass certificate involved
The AOS-CX switch does not have the ClearPass certificate involved
DNS fails to resolve the ClearPass server's FQDN
DNS fails to resolve the ClearPass server's FQDN
There is a date/time issue between the ClearPass server and the switch
There is a date/time issue between the ClearPass server and the switch
Suggested answer: C
Explanation:

"The top-right example shows a parsing_failed status, typically indicative of either a DNS or network connectivity issue."

asked 16/09/2024
Franklin Leon
45 questions

Question 50

Report Export Collapse

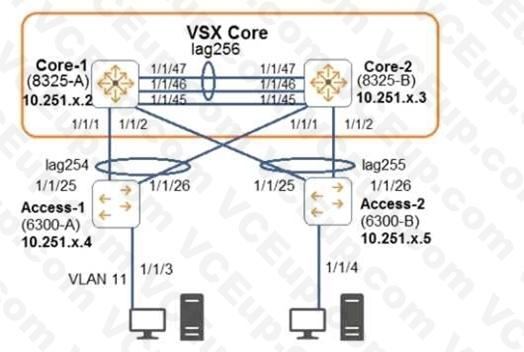

Examine the attached diagram.

HP HPE6-A73 image Question 50 14619 09162024180711000000

The two PCs are located in VLAN 11 (10.1.11.0/24). Which example defines how to implement active gateway on the VSX core for VLAN 11?

interface vlan 11active-gateway ip 10.1.11.1active-gateway mac 02:02:00:00:01:00
interface vlan 11active-gateway ip 10.1.11.1active-gateway mac 02:02:00:00:01:00
interface lag 254active-gateway vlan 11 ip 10.1.11.1active-gateway vlan 11 mac 02:02:00:00:01:00
interface lag 254active-gateway vlan 11 ip 10.1.11.1active-gateway vlan 11 mac 02:02:00:00:01:00
interface lag 254active-gateway ip 10.1.11.1active-gateway mac 02:02:00:00:01:00
interface lag 254active-gateway ip 10.1.11.1active-gateway mac 02:02:00:00:01:00
vsx vrrp group 1
vsx vrrp group 1
Suggested answer: A
asked 16/09/2024
Ricardo Chapa
43 questions
Total 127 questions
