Question 81

Examine the network topology.

The network is configured for OSPF with the following attributes:

Core1 and Core2 and ABRs

Area 1 has 20 networks in the 10.1.0.0/16 range

Area 0 has 10 networks in the 10.0.0.0/16 range

Area 2 has 50 networks in the 10.2.0.0/16 range

The ASBR is importing a static route into Area 1

Core2 has a summary for Area 2: area 0.0.0.2 range 10.2.0.0/16 type inter-area

Here is the OSPF configuration performed on Core1:

Based on the above information, what is correct?

ISP 1 is not reachable from any area.

Corel has received one type 5 LSA from the ASBR.

Area 0 has 81 routes

Area 1 has 23 routes

Show Answer Comment (0)

Question 82

Examine the network topology.

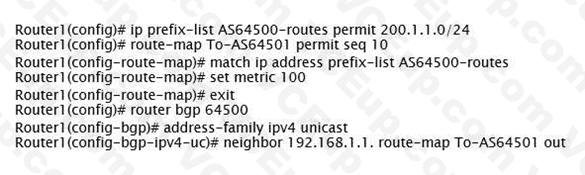

Company XYZ has two connections to a service provider (ISP1). Here is the configuration of Router1:

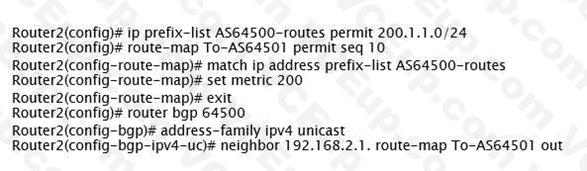

Here is the configuration of Router2:

Based on configuration of Router1 and Router2, which BGP metric is being manipulated?

Weight

Multiple exit discriminator

Local preference

AS path length

Show Answer Comment (0)

Question 83

An administrator wants to drop traffic from VLAN 6 (10.1.6.0/24) to VLAN 5 (10.1.5.0/24), but allow all other traffic. What is correct configuration to accomplish this?

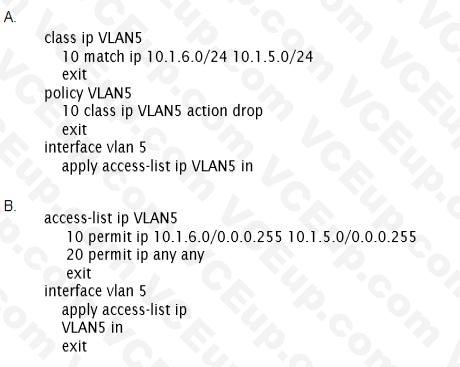

Option A

Option B

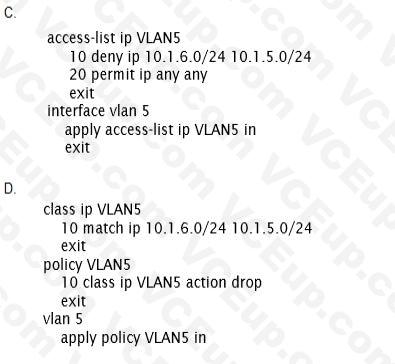

Option C

Option D

Show Answer Comment (0)

Question 84

What is correct regarding the configuration of ACLs on AOS-CX switches?

Statements with the log keyword are always processed by the switch CPU.

Standard ACLs are used to match on routes when performing route distribution.

Wildcard masks are used to match on a range of IP addresses.

Numbers 100 through 199 and 2000 through 2999 are used when creating extended ACLs.

Show Answer Comment (0)

Question 85

When comparing PIM-DM and PIM-SM, which multicast components are only found with PIM-SM in multicast routing? (Choose two.)

IGMP querier

Rendezvous point

Bootstrap router

Shortest path tree

Designated router

Show Answer Comment (0)

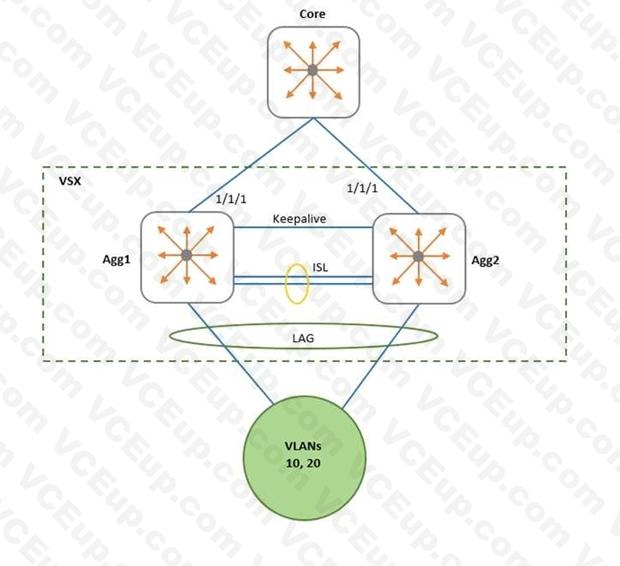

A network administrator is implementing OSPF on a VSX pair of aggregation switches: Agg1 and Agg2. VLANs 10 and 20 are connected to layer-2 access switches. Agg-1 and Agg-2 are configured as the default gateway for VLANs 10 and 20, with active gateway enabled.

What is the best practice for configuring OSPF on the aggregation switches and their connection to the Core switch?

Define a layer-2 VSX LAG associated with a layer-3 VLAN interface. Enable active gateway for the Layer-3 VLAN.

Define separate layer-3 VLAN interfaces between the aggregation and core switches. Enable active forwarding for the Layer-3 VLAN.

Define separate layer-3 VLAN interfaces between the aggregation and core switches. Enable active gateway for the Layer-3 VLAN.

Define a layer-2 VSX LAG associated with a layer-3 VLAN interface. Enable active forwarding for the Layer-3 VLAN.

Show Answer Comment (0)

Question 87

When implementing user-based tunneling on an AOS-CX switch, which component defines the primary and backup Aruba gateways?

Transit VLAN

Gateway role

Server group

Zone

Show Answer Comment (0)

Question 88

When implementing deficit weighted round robin queuing, what importance does the weight value have?

Prioritizing latency-sensitive traffic

Queue priority in processing traffic

Strict priority queue

Percentage of interface bandwidth

Show Answer Comment (0)

Question 89

A network administrator is implementing OSPF, where there are two exit points. Each exit point has a stateful, application inspection firewall to implement company policies.

What would the best practice be to ensure that one firewall will see both directions of the traffic, preventing asynchronous connections in the network?

Both ASBRs should define External Type 1 routes for the
