To perform a network discovery by entering commands into the terminal, you can use the following steps:

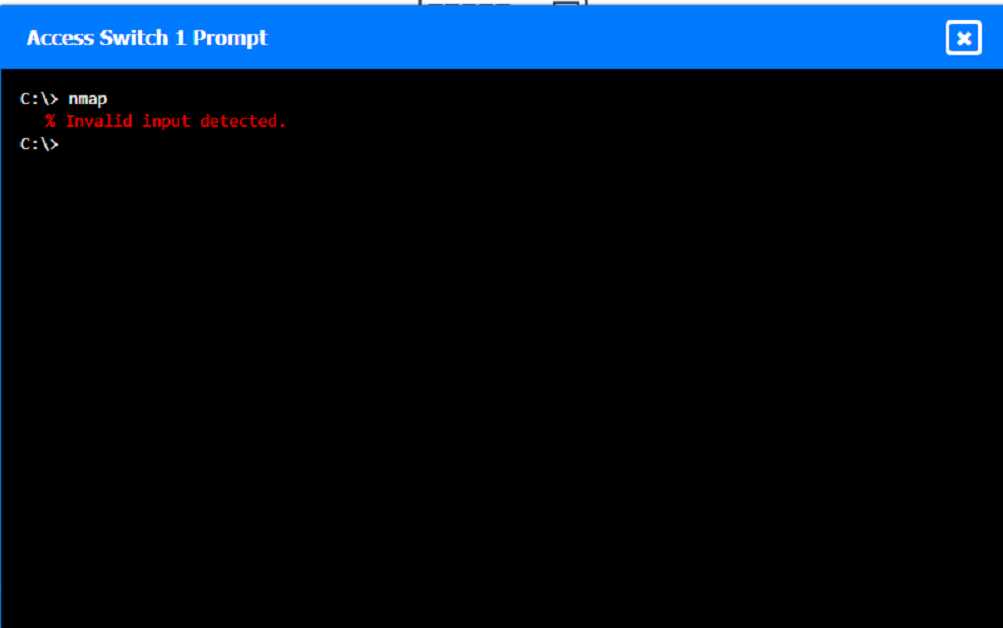

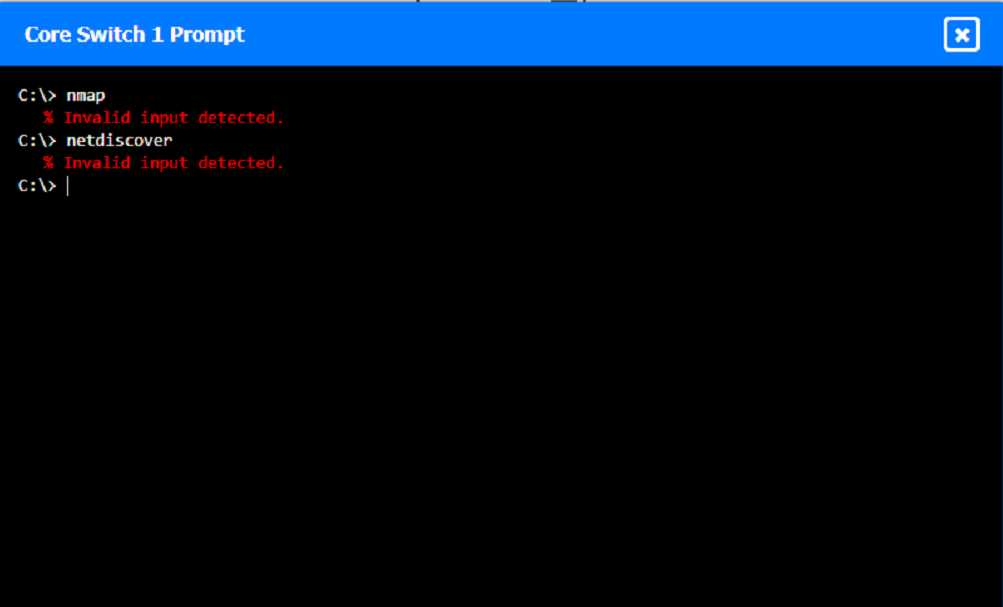

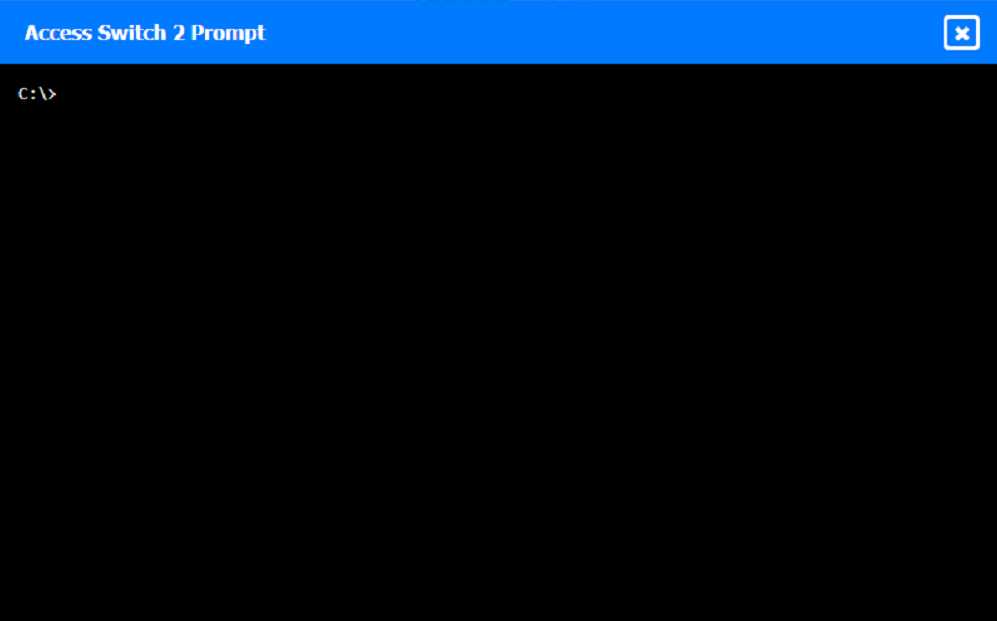

Click on each switch to open its terminal window.

Enter the command show ip interface brief to display the IP addresses and statuses of the switch interfaces.

Enter the command show vlan brief to display the VLAN configurations and assignments of the switch interfaces.

Enter the command show cdp neighbors to display the information about the neighboring devices that are connected to the switch.

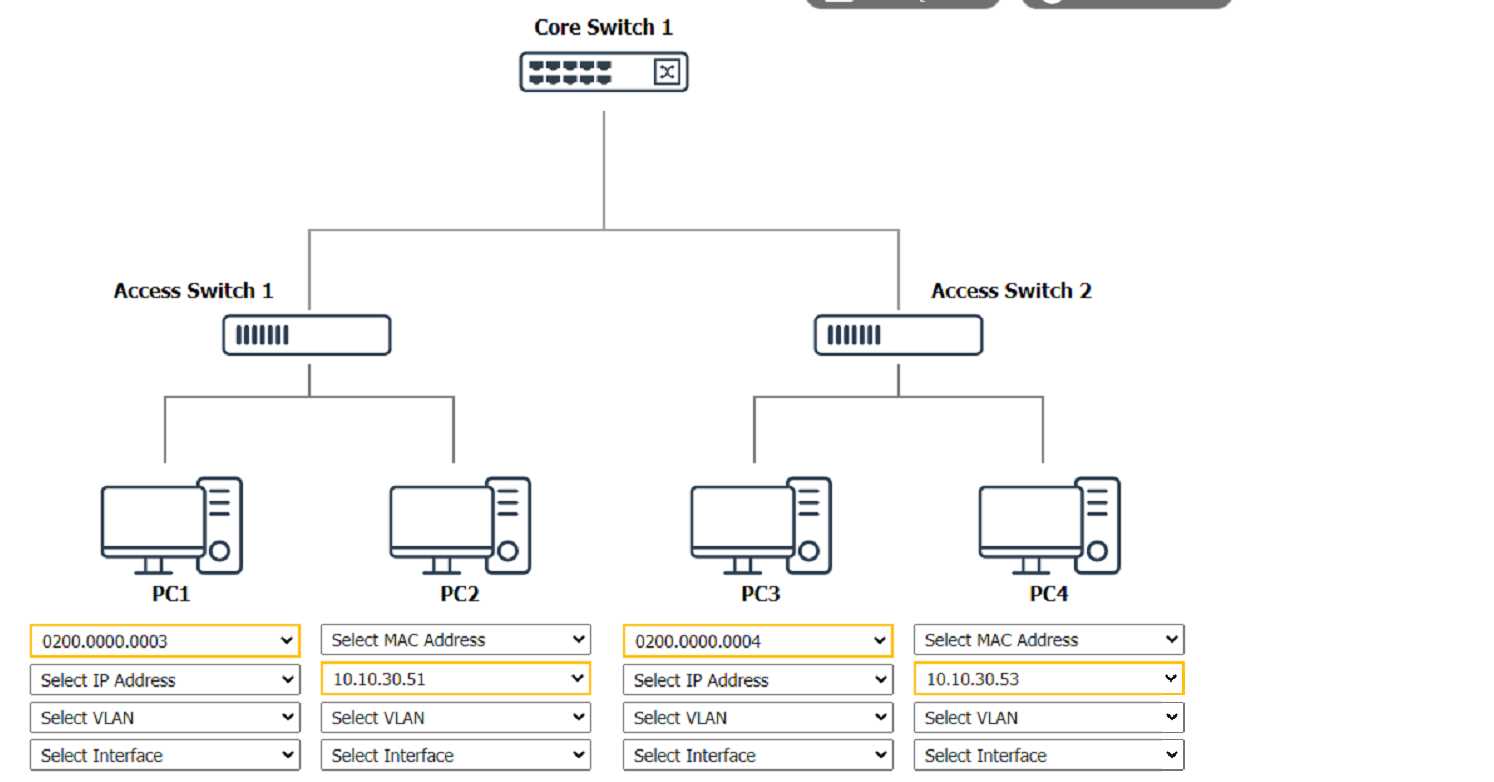

Fill in the missing information in the diagram using the drop-down menus provided.

Here is an example of how to fill in the missing information for Core Switch 1:

The IP address of Core Switch 1 is 192.168.1.1.

The VLAN configuration of Core Switch 1 is VLAN 1: 192.168.1.0/24, VLAN 2: 192.168.2.0/24, VLAN 3: 192.168.3.0/24.

The neighboring devices of Core Switch 1 are Access Switch 1 and Access Switch 2.

The interfaces that connect Core Switch 1 to Access Switch 1 are GigabitEthernet0/1 and GigabitEthernet0/2.

The interfaces that connect Core Switch 1 to Access Switch 2 are GigabitEthernet0/3 and GigabitEthernet0/4.

You can use the same steps to fill in the missing information for Access Switch 1 and Access Switch 2.

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

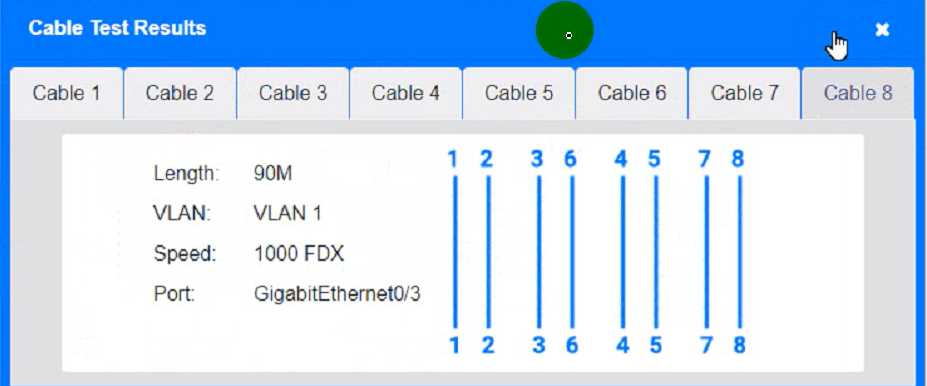

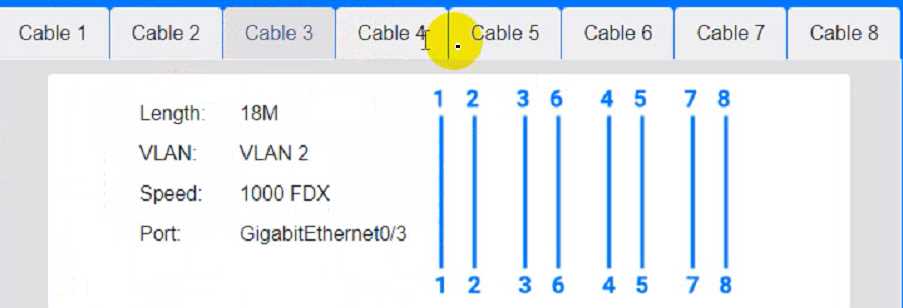

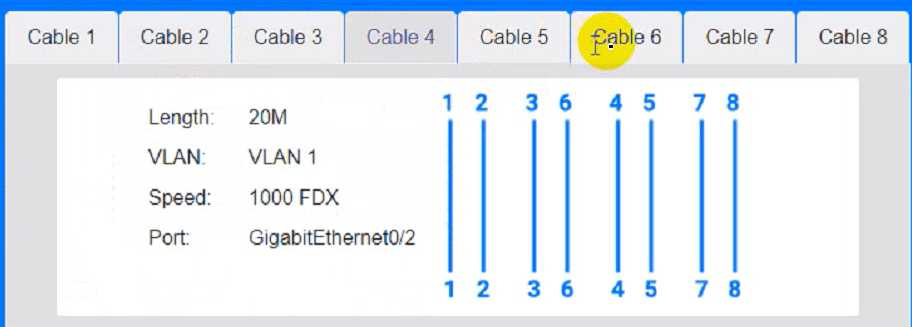

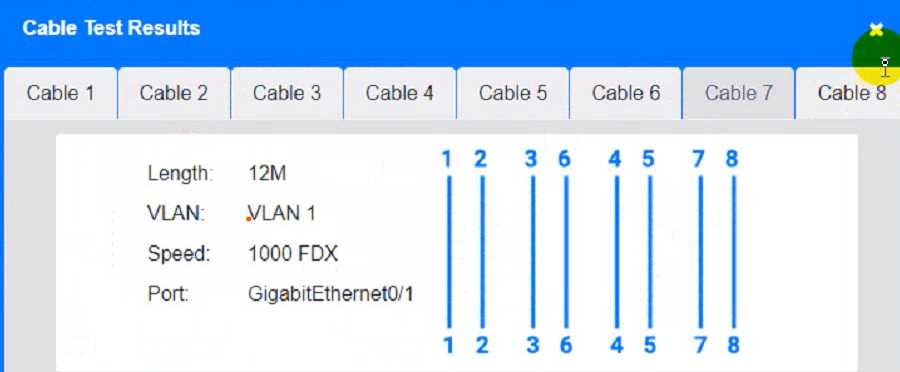

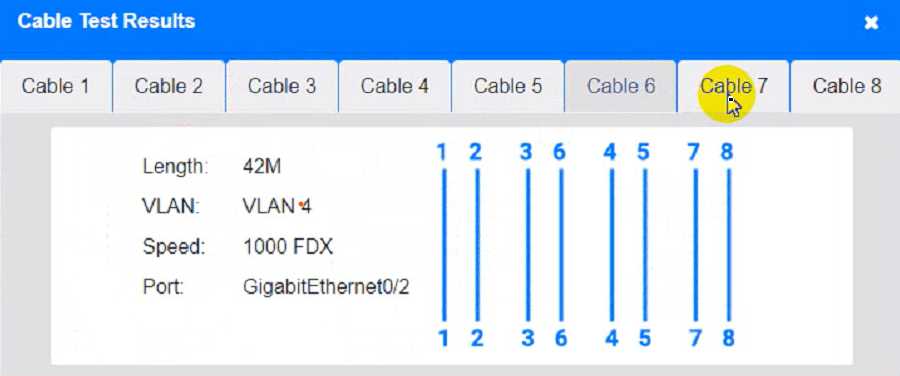

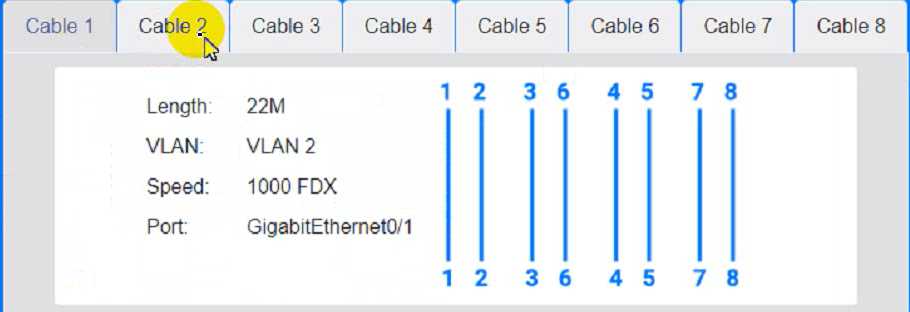

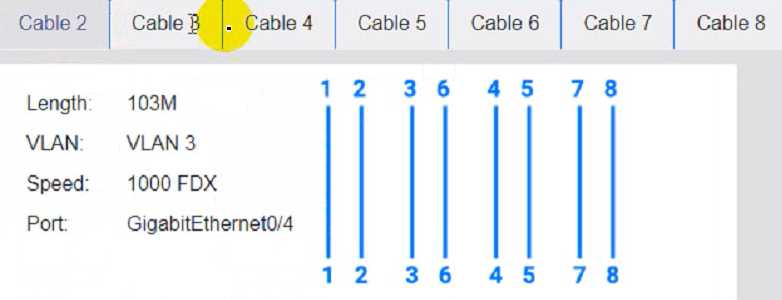

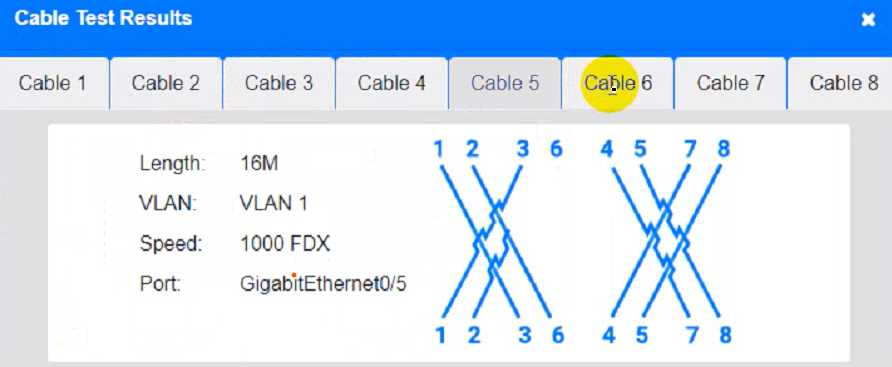

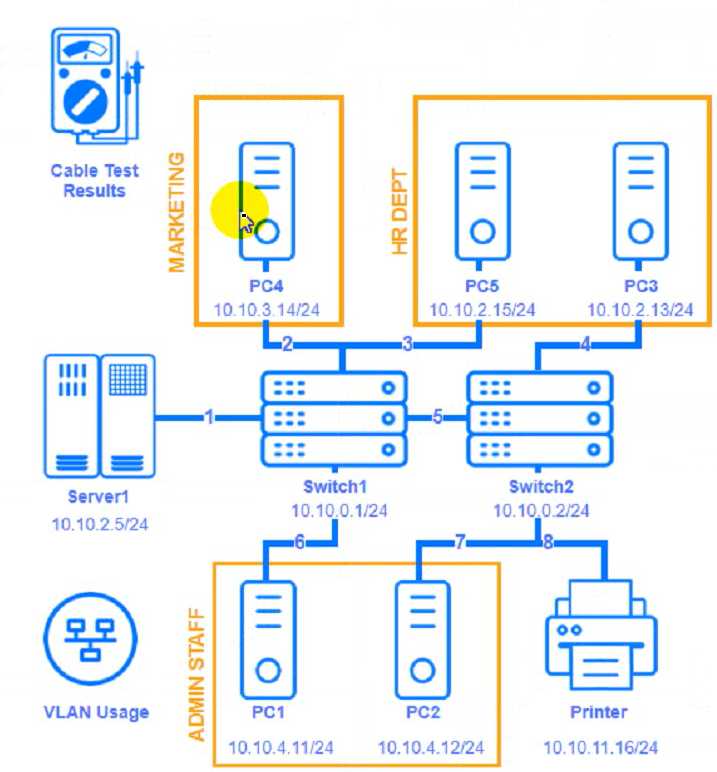

To troubleshoot all the network components and review the cable test results, you can use the following steps:

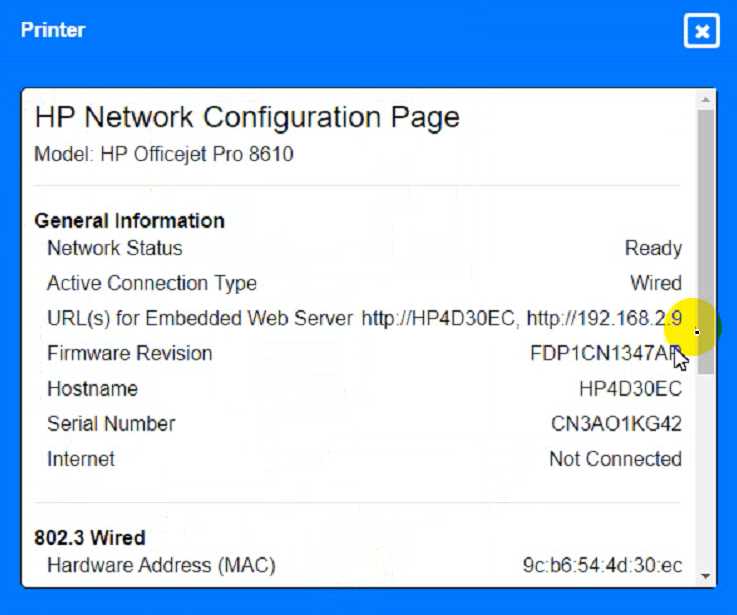

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

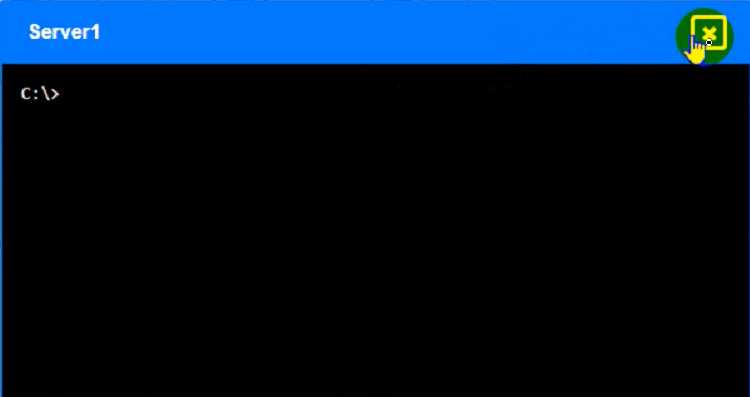

To enter commands in each device, you can use the following steps:

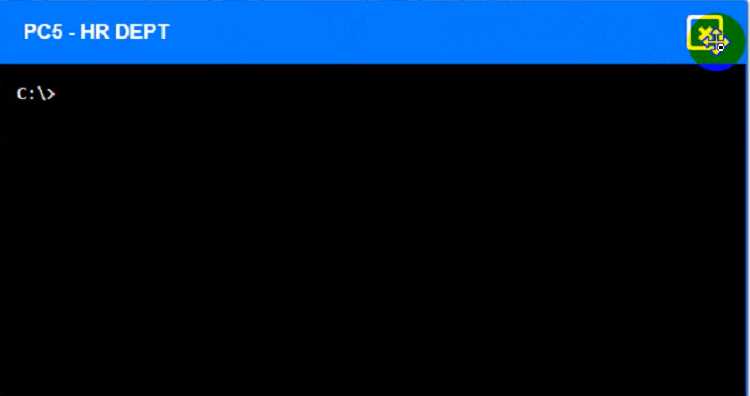

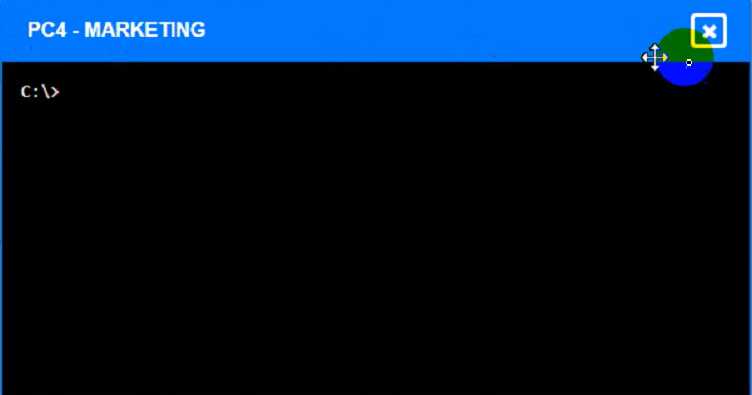

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping <IP address> to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace <IP address> with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert <IP address> to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace <IP address> with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

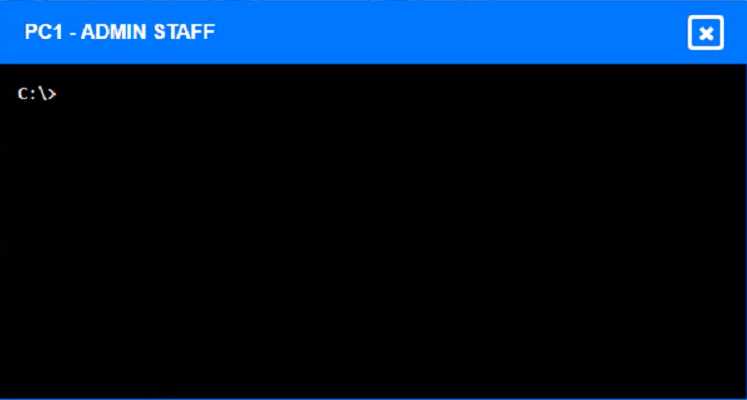

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

One possible cause of poor wireless performance is a bottleneck in the network, which means that other devices or applications are consuming too much bandwidth or resources and limiting the speed of the wireless access point. To troubleshoot this issue, the engineer should ensure that there is no congestion or interference from other devices on the network, such as wired clients, servers, routers, switches, or other wireless access points. The engineer can use tools such as network analyzers, bandwidth monitors, or ping tests to check the network traffic and latency12.

Another possible cause of poor wireless performance is outdated firmware on the device, which may contain bugs or vulnerabilities that affect the functionality or security of the wireless access point. To troubleshoot this issue, the engineer should install the latest firmware for the device from the manufacturer's website or support portal. The engineer should follow the instructions carefully and backup the configuration before updating the firmware. The engineer can also check the release notes or changelog of the firmware to see if there are any improvements or fixes related to the wireless performance3 .

The other options are not relevant to troubleshooting poor wireless performance. Creating a new VLAN for the access point may help with network segmentation or security, but it will not improve the speed of the wireless connection. Making sure the SSID is not longer than 16 characters may help with compatibility or readability, but it will not affect the wireless performance. Configuring the AP in autonomous mode may give more control or flexibility to the engineer, but it will not enhance the wireless speed. Installing a wireless LAN controller may help with managing multiple access points or deploying advanced features, but it will not increase the wireless performance.

A screened subnet is a network topology that uses two firewalls to isolate a segment of the network from both the internal LAN and the internet. The screened subnet, also known as a demilitarized zone (DMZ), hosts the internet-facing servers that need to be accessible from outside the network, such as web servers, mail servers, or DNS servers. The first firewall, also known as the external firewall, filters the traffic between the internet and the DMZ, allowing only the necessary ports and protocols to pass through. The second firewall, also known as the internal firewall, filters the traffic between the DMZ and the internal LAN, allowing only authorized and secure connections to access the internal resources. This way, the screened subnet provides a layer of protection for both the internet-facing hosts and the internal LAN from potential attacks12.

The other options are not defense strategies that help meet the design requirement of partitioning off the internet-facing hosts from the internal LAN and internal server IP ranges. Deploying a honeypot is a deception technique that lures attackers to a fake system or network that mimics the real one, in order to monitor their activities and collect information about their methods and motives. However, a honeypot does not isolate or protect the internet-facing hosts from the rest of the network3. Utilizing network access control is a security method that enforces policies on who or what can access the network resources, based on factors such as identity, role, device type, location, or time. However, network access control does not create a separate segment for the internet-facing hosts from the internal LAN. Enforcing a Zero Trust model is a security paradigm that assumes no trust for any entity inside or outside the network, and requires continuous verification and validation of every request and transaction. However, a Zero Trust model does not necessarily imply a specific network topology or architecture for separating the internet-facing hosts from the internal LAN.

A long-range microwave interface is a type of wireless communication that uses high-frequency radio waves to transmit and receive data over long distances. A long-range microwave interface typically uses a parabolic antenna, also known as a dish antenna, to focus the radio waves into a narrow beam that can travel farther and with less interference than an omnidirectional antenna, which radiates the radio waves in all directions1.

One of the most common causes of input errors on a long-range microwave interface is the misalignment of the parabolic antenn a. Input errors are errors that occur when the receiver cannot properly decode or process the incoming signal. If the parabolic antenna is not aligned correctly with the transmitter, the receiver may not be able to capture the full strength of the signal, or it may pick up unwanted noise or interference from other sources. This can result in corrupted or lost data, which will increase the input error count23.

To troubleshoot this issue, the junior network administrator should check the alignment of the parabolic antenna and make sure it is pointing directly at the transmitter. The administrator can use tools such as a spectrum analyzer, a signal strength meter, or a path alignment tool to measure and adjust the signal quality and alignment of the antenna24.

The other options are not likely reasons for the input errors on a long-range microwave interface. A long-range microwave interface does not use an omnidirectional signal, so it cannot be jammed or weakened by other sources. The parabolic signal does not depend on the routing protocols used by the network, so it cannot be affected by improper routing protocols.

The time-to-live (TTL) field is the mechanism for ending loops at Layer 3, which is the network layer of the OSI model. The TTL field is an 8-bit field that indicates the maximum time or number of hops that an IP packet can travel before it is discarded. Every time an IP packet passes through a router, the router decrements the TTL value by one. If the TTL value reaches zero, the router drops the packet and sends an ICMP message back to the source, informing that the packet has expired. This way, the TTL field prevents an IP packet from looping endlessly in a network with routing errors or cycles123.

The other options are not mechanisms for ending loops at Layer 3. The checksum field is a 16-bit field that is used to verify the integrity of the IP header. The checksum field is calculated by adding all the 16-bit words in the header and taking the one's complement of the result. If the checksum field does not match the calculated value, the IP packet is considered corrupted and discarded12. The type field, also known as the type of service (TOS) or differentiated services code point (DSCP) field, is an 8-bit field that is used to specify the quality of service (QoS) or priority of the IP packet. The type field can indicate how the packet should be handled in terms of delay, throughput, reliability, or cost12.

The protocol field is an 8-bit field that is used to identify the transport layer protocol that is encapsulated in the IP packet. The protocol field can indicate whether the payload is a TCP segment, a UDP datagram, an ICMP message, or another protocol12.

NIC teaming is a technology that allows multiple network interface cards (NICs) to work together as a single logical interface, providing redundancy and load balancing. This can prevent the loss of connection between a virtual server and network storage devices if one of the NICs fails or becomes disconnected. Reference: [CompTIA Network+ Certification Exam Objectives], Domain 2.0 Networking Concepts, Objective 2.5: Explain the purposes and use cases for advanced networking devices, Subobjective: NIC bonding/teaming

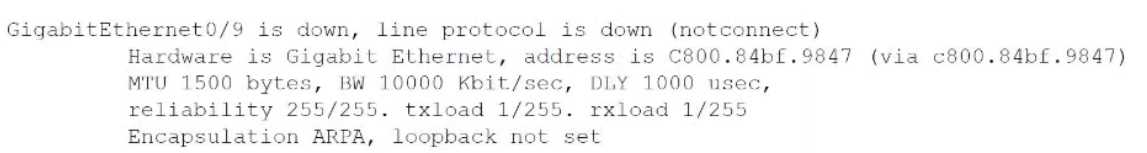

The switchport is shut down, which means it is administratively disabled and cannot forward traffic.

The image shows that the switchport status is "down" and the protocol status is "down", indicating that there is no physical or logical connection. The cable is plugged in, as shown by the "connected" message under the interface name. The loopback is not set, as shown by the "loopback not set" message under the encapsulation type. The bandwidth configuration is correct, as shown by the "BW 10000 Kbit/sec" message under the MTU size. Reference: [CompTIA Network+ Certification Exam

Objectives], Domain 3.0 Infrastructure, Objective 3.1: Given a scenario, use appropriate networking tools, Subobjective: Command line tools (ping, netstat, tracert, etc.)

An access control vestibule is a physical security mechanism that consists of a small room or chamber with two doors, one leading to the outside and one leading to the secure site. The doors are controlled by an electronic system that verifies the identity and authorization of the person entering before allowing access to the next door. A landing page is a web page that appears when a user clicks on a link or advertisement. A smart locker is a physical security mechanism that allows users to store and retrieve items using a code or biometric authentication. A firewall is a network security device that monitors and filters incoming and outgoing traffic based on predefined rules. Reference:

[CompTIA Network+ Certification Exam Objectives], Domain 4.0 Network Operations, Objective 4.1:

Explain the importance of documentation and diagrams, Subobjective: Physical security devices (locks, cameras, etc.)
