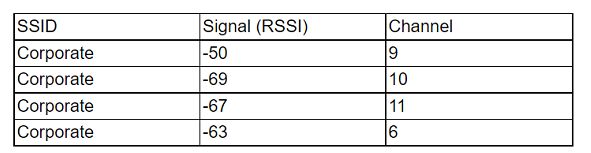

Channel overlap is a situation where multiple wireless networks use the same or adjacent frequency channels, causing interference and degradation of performance. According to the image, the corporate SSID is using channels 9, 10, 11, and 6, which are overlapping with each other and with other networks in the area. This can reduce the signal quality and strength, increase the noise and latency, and cause dropouts and connectivity issues. To avoid channel overlap, it is recommended to use non-overlapping channels, such as 1, 6, and 11, in the 2.4 GHz band, or to switch to the 5 GHz band if possible12.

Reference

1 - What happens when wifi channels overlap? - Server Fault

2 - Is it better to use a crowded 2.4GHz Wi-Fi channel 1, 6, 11 or ''unused'' 3, 4, 8, or 9? - Super User

802.1X is an authentication component that must be used in a network access control (NAC) solution. NAC is a method of enforcing security policies on devices that want to access a network, by verifying their identity, compliance, and authorization. 802.1X is a standard that defines how to provide authentication for devices trying to connect to a LAN or WLAN. It uses the Extensible Authentication Protocol (EAP) to exchange authentication information between the device (supplicant), the network access device (authenticator), and the authentication server (typically RADIUS or TACACS+). 802.1X can prevent unauthorized devices from accessing the network, and can also assign them to different VLANs or apply different policies based on their role or group.

IPSec is a protocol suite that provides encryption, authentication, and integrity for IP packets. It can be used to create secure VPN tunnels between networks or hosts. IPSec is not an authentication component for NAC, but rather a security component for protecting data in transit.

EAP is a framework that supports multiple authentication methods, such as passwords, certificates, tokens, or biometrics. EAP is used by 802.1X to provide authentication for network access, but it is not a component by itself. EAP requires a carrier protocol, such as 802.1X, to transport the authentication messages.

TACACS+ is a protocol that provides authentication, authorization, and accounting (AAA) services for network devices or users. It can be used as an authentication server for 802.1X, but it is not an authentication component for NAC by itself. TACACS+ requires a client-server protocol, such as 802.1X, to communicate with the network access device.

Reference What is 802.1X Network Access Control (NAC)? Compare TACACS + and RADIUS 802.1X: What EXACTLY is it regarding WPA and EAP? CompTIA Network+ Certification All-in-One Exam Guide, Eighth Edition (Exam N10-008)

Network Health:

WAN 2 appears to have a lower average latency and loss percentage, which would make it the preferred WAN station for VoIP traffic. VoIP traffic requires low latency and packet loss to ensure good voice quality and reliability. WAN 1 seems to have higher RAM and processor usage, which could also affect the performance of VoIP traffic.

Here's the summary of the key metrics for WAN 1 and WAN 2 from the image provided:

WAN 1:

Uplink Speed: 10G

Total Usage: 26.969GB Up / 1.748GB Down

Average Throughput: 353MBps Up / 23.42MBps Down

Loss: 2.51%

Average Latency: 24ms

Jitter: 9.5ms

WAN 2:

Uplink Speed: 1G

Total Usage: 930GB Up / 138GB Down

Average Throughput: 12.21MBps Up / 1.82MBps Down

Loss: 0.01%

Average Latency: 11ms

Jitter: 3.9ms

For VoIP traffic, low latency and jitter are particularly important to ensure voice quality. While WAN 1 has higher bandwidth and throughput, it also has higher latency and jitter compared to WAN 2. However, WAN 2 has much lower loss, lower latency, and lower jitter, which are more favorable for VoIP traffic that is sensitive to delays and variation in packet arrival times.

Given this information, WAN 2 would generally be preferred for VoIP traffic due to its lower latency, lower jitter, and significantly lower loss percentage, despite its lower bandwidth compared to WAN 1. The high bandwidth of WAN 1 may be more suitable for other types of traffic that are less sensitive to latency and jitter, such as bulk data transfers.

Device Monitoring:

the device that is experiencing connectivity issues is theAPP Server or Router 1, which has a status ofDown. This means that the server is not responding to network requests or sending any data. You may want to check the physical connection, power supply, and configuration of the APP Server to troubleshoot the problem.

Port mirroring is a feature that allows a network switch to copy the traffic from one or more ports to another port for monitoring purposes. Port mirroring can be used to analyze the network traffic from a specific source, destination, or protocol without affecting the normal operation of the network. Port mirroring can also help to detect and troubleshoot network problems, such as performance issues, security breaches, or policy violations.

The other options are not correct because they do not meet the requirements of the question. They are:

Turn on port security. Port security is a feature that restricts the number and type of devices that can connect to a switch port. Port security can help to prevent unauthorized access, MAC address spoofing, or MAC flooding attacks. However, port security does not allow the network security engineer to view the traffic from the user's PC to the switch.

Implement dynamic ARP inspection. Dynamic ARP inspection (DAI) is a feature that validates the ARP packets on a network and prevents ARP spoofing attacks. DAI can help to protect the network from man-in-the-middle, denial-of-service, or data interception attacks. However, DAI does not allow the network security engineer to view the traffic from the user's PC to the switch.

Configure 802.1Q. 802.1Q is a standard that defines how to create and manage virtual LANs (VLANs) on a network. VLANs can help to segment the network into logical groups based on function, security, or performance. However, 802.1Q does not allow the network security engineer to view the traffic from the user's PC to the switch.

Reference 1:Port Mirroring - an overview | ScienceDirect Topics 2:Network+ (Plus) Certification | CompTIA IT Certifications 3:Port Security - an overview | ScienceDirect Topics 4:Dynamic ARP Inspection - an overview | ScienceDirect Topics 5:802.1Q - an overview | ScienceDirect Topics

QSFP+ is a type of transceiver that supports 40 gigabit Ethernet (40GbE) over four lanes of 10 gigabit Ethernet (10GbE) each. QSFP+ stands for quad small form-factor pluggable plus, and it is a compact and hot-swappable module that plugs into a QSFP+ port on a network device. QSFP+ transceivers can support various types of cables and connectors, such as direct attach copper (DAC), active optical cable (AOC), or fiber optic cable.

Multimode is a type of fiber optic cable that supports multiple modes of light propagation within the core. Multimode fiber optic cable can carry higher bandwidth and data rates than single-mode fiber optic cable, but over shorter distances. Multimode fiber optic cable is commonly used for short-reach applications, such as within a data center or a campus network. Multimode fiber optic cable can be paired with QSFP+ transceivers to achieve 40GbE connectivity.

The other options are not correct because they do not support 40GbE. They are:

SFP+. SFP+ is a type of transceiver that supports 10 gigabit Ethernet (10GbE) over a single lane. SFP+ stands for small form-factor pluggable plus, and it is a compact and hot-swappable module that plugs into an SFP+ port on a network device. SFP+ transceivers can support various types of cables and connectors, such as direct attach copper (DAC), active optical cable (AOC), or fiber optic cable. However, SFP+ transceivers cannot support 40GbE by themselves, unless they are used in a breakout configuration with a QSFP+ transceiver.

SFP. SFP is a type of transceiver that supports 1 gigabit Ethernet (1GbE) over a single lane. SFP stands for small form-factor pluggable, and it is a compact and hot-swappable module that plugs into an SFP port on a network device. SFP transceivers can support various types of cables and connectors, such as twisted-pair copper, coaxial cable, or fiber optic cable. However, SFP transceivers cannot support 40GbE by themselves, unless they are used in a breakout configuration with a QSFP+ transceiver.

Cat 6a. Cat 6a is a type of twisted-pair copper cable that supports 10 gigabit Ethernet (10GbE) over distances up to 100 meters. Cat 6a stands for category 6 augmented, and it is an enhanced version of Cat 6 cable that offers better performance and reduced crosstalk. Cat 6a cable can be paired with 10Gbase-T transceivers to achieve 10GbE connectivity. However, Cat 6a cable cannot support 40GbE by itself, unless it is used in a breakout configuration with a QSFP+ transceiver.

Cat 5e. Cat 5e is a type of twisted-pair copper cable that supports 1 gigabit Ethernet (1GbE) over distances up to 100 meters. Cat 5e stands for category 5 enhanced, and it is an improved version of Cat 5 cable that offers better performance and reduced crosstalk. Cat 5e cable can be paired with 1000base-T transceivers to achieve 1GbE connectivity. However, Cat 5e cable cannot support 40GbE by itself, unless it is used in a breakout configuration with a QSFP+ transceiver.

Reference 1:QSFP+ - an overview | ScienceDirect Topics 2:Multimode Fiber - an overview | ScienceDirect Topics 3:Network+ (Plus) Certification | CompTIA IT Certifications 4:SFP+ - an overview | ScienceDirect Topics 5:SFP - an overview | ScienceDirect Topics 6:Cat 6a - an overview | ScienceDirect Topics 7: [Cat 5e - an overview | ScienceDirect Topics]

SIEM stands for Security Information and Event Management, and it is a system that collects, normalizes, and analyzes log data from different sources in a centralized platform. SIEM can help identify security incidents, monitor network performance, and generate reports and alerts.SIEM can make log analysis less difficult by providing a unified view of the log data, correlating events across different devices, and applying rules and filters to detect anomalies and patterns12.

SLA stands for Service Level Agreement, and it is a contract that defines the expectations and responsibilities between a service provider and a customer. SLA can specify the quality, availability, and performance metrics of the service, as well as the penalties for non-compliance and the procedures for resolving issues.SLA can help the network technician determine the scope of the issue by providing the baseline and target values for the service, the escalation process and contacts, and the service credits or remedies for the customer45.

CompTIA Network+ N10-008 Cert Guide - Chapter 15: Network Troubleshooting Methodology35: What is a Service Level Agreement (SLA)? | ITIL | AXELOS
