Home / Huawei / H12-811_V1.0

Huawei H12-811_V1.0 Practice Test - Questions Answers, Page 3

Question list

List of questions

Question 21

(0)

As shown in the figure below. Host A and Host B cannot communicate. ()(True or False)

Question 22

(0)

As shown in the figure, when the switch needs to forward frames with the destination mac address of 5489-98ec-f011, which of the following descriptions is correct? () (Single-choice question)

Question 23

(0)

The mac address of the existing switch is shown in the figure. Which of the following statements is correct ()? (Multiple Choice Questions)

Question 24

(0)

The network administrator configures the RTA on the Huawei router as shown in the figure. If a user needs to be authenticated in the authentication domain "huawei", which of the following descriptio

Question 25

(0)

The output information of the router is shown in the figure. Which of the following statements is wrong? () (Single-choice question)

Question 26

(0)

The following figure shows the routing table of a router. When the router receives a destinationIWhen the P address is a data packet of 9.1.1.1,The router will forward according to the route of 9.1.

Question 27

(0)

What is wrong about the description of the information as shown in the figure? () (Single-choice question) (RI) display interface g0/0/0 GlgabltEtherneto/0/0 current state :Adainistratively DOWN L

Question 28

(0)

In the figure below, all switches have enabled the STP protocol, assuming that the path cost value of all ports is 200. What is the root path cost value contained in the configuration BPDU message r

Question 29

(0)

The information shown in the figure is the port status information displayed on a switch running STP. According to this information, what is wrong in the following description? () (Single-choice que

Question 30

(0)

As shown in the figure, the switch runs STP with default parameters. Which of the following ports will be elected as the designated port? () (Single-choice question)

Question 21

As shown in the figure below. Host A and Host B cannot communicate. ()(True or False)

True

False

Show Answer Comment (0)

Question 22

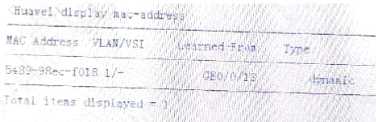

As shown in the figure, when the switch needs to forward frames with the destination mac address of 5489-98ec-f011, which of the following descriptions is correct? () (Single-choice question)

The switch will send a message that the destination is unreachable to the source device

The switch did not find a matching entry in the mac address table. So the frame will be discarded

The switch needs to send a request to discover the device with the mac address of 5489-98ec-f011

The switch will be All ports outside flood the frame

Show Answer Comment (0)

Question 23

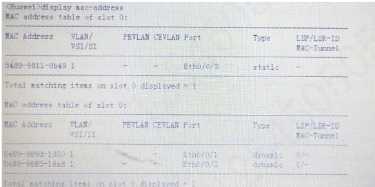

The mac address of the existing switch is shown in the figure. Which of the following statements is correct ()? (Multiple Choice Questions)

When the switch restarts, the mac address learned by port Eth0/0/2 does not need to be relearned

The data frame with the source mac address of 5489-9885-18a8 and the destination mac address of 5489-989d-1d30 learned from the port is forwarded from the Eth0/0/1 port

The source mac address learned from the port is 5489-9811-0b49. The data frame with the destination mac address 5489-989d-1d30 is forwarded from the Eth0/0/2 port

When the switch restarts, the mac address learned by port Eth0/0/3 needs to be re-learned

Show Answer Comment (0)

The network administrator configures the RTA on the Huawei router as shown in the figure. If a user needs to be authenticated in the authentication domain "huawei", which of the following descriptions is correct? () (Single-choice question)

(RTA) aaa

(RTA-aaa) domain huawei

(RTA-aaa-doaain huavei) authentication -schene au1

(RTA-aaa-dogairhuavel) authenticIcation-schene au2

Will use "authentication-scheme aul" authentication

"Authentication-scheme aul authentication will be used. If "au1 is deleted."au2 authentication will be used

"Authentication-scheme au2 authentication will be used. If "au2" is deleted, "aul authentication will be used

Will use "authentication-scheme au2" authentication

Show Answer Comment (0)

Question 25

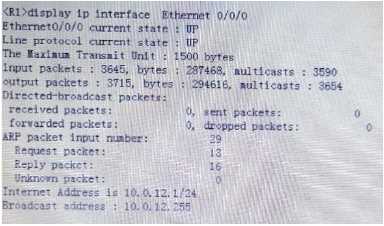

The output information of the router is shown in the figure. Which of the following statements is wrong? () (Single-choice question)

The broadcast address corresponding to the AEthernet0/0/0 interface is 10.0.12.255

The physical link of the Ethernet0/0/0 interface is normal

Ethernet0/0/0 interfaceThe MTU value is 1480

Ethernet (The IP address of the /0/0 interface is 10.0.12.1/24

Show Answer Comment (0)

Question 26

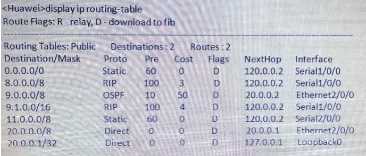

The following figure shows the routing table of a router. When the router receives a destinationIWhen the P address is a data packet of 9.1.1.1,The router will forward according to the route of 9.1.0.0/16 because the mask length of this route is longer. ()(True or False)

True

False

Show Answer Comment (0)

Question 27

What is wrong about the description of the information as shown in the figure? () (Single-choice question)

(RI) display interface g0/0/0

GlgabltEtherneto/0/0 current state :Adainistratively DOWN Line protocol current state :DOWN

GigbitEthernet (/0/0 interface is connected to a wrong cable

The GigbitEthernet0/0/0 interface is not configured with an IP address

The GigbitEthernet0/0/0 interface was manually closed by the administrator

GigbitEthernet (0/0/0 interface does not enable dynamic routing protocol

Show Answer Comment (0)

Question 28

In the figure below, all switches have enabled the STP protocol, assuming that the path cost value of all ports is 200. What is the root path cost value contained in the configuration BPDU message received by the G0/0/4 port of $WD? () (Single-choice question)

600

200

400

Show Answer Comment (0)

Question 29

The information shown in the figure is the port status information displayed on a switch running STP. According to this information, what is wrong in the following description? () (Single-choice question)

This switch is the root switch in the network

The priority of this switch is 0

This network may only contain this switch

This switch may be connected to 6 other switches

Show Answer Comment (0)

Question 30

As shown in the figure, the switch runs STP with default parameters. Which of the following ports will be elected as the designated port? () (Single-choice question)
