Huawei H12-811_V1.0 Practice Test - Questions Answers, Page 60

Question list

List of questions

Question 591

(0)

The output information of the router R1 routing table is shown in the figure. Which of the following statements is correct? () (Multiple Choice Questions) <R1>display ip routing-table Route

Question 592

(0)

As shown in the figure, after the two routers are configured with 0SPF, the administrator configures the <silent-interface$0/0/0> command on RTA. Is the following description correct? () (Mul

Question 593

(0)

As shown in the figure below. All switches enable the $P protocol and keep other configurations in their default state. When the network is stable, are the following statements correct? () (Multiple

Question 594

(0)

The network as shown in the figure. Which of the following configurations can realize that Host A cannot access the HTTP service of Host B. Host B cannot access the FTP service of Host A? () (Multip

Question 595

(0)

In the network as shown in the figure, the administrator hopes that all hosts cannot access the Web service (the port number is 80). Other services can be accessed normally. Then, in the interface c

Question 596

(0)

As shown in the figure below, are the following statements correct? () (Multiple Choice Questions)

Question 597

(0)

The output information of the sub-interface of a router aggregate port 1 is shown in the figure. Based on this information, which of the following statements are correct? ()

Question 598

(0)

As shown in the figure below. Router A has passed the IP address 10.0.12.2 Telnet Router B. Which of the following operations on the current interface will cause the Telnet session between Router A

Question 599

(0)

The network shown in the figure below. The host has an ARP cache. Which of the following statements are correct? )(Multiple Choice Questions)

Question 600

(0)

Router A and Router B are established OSPF neighbor relationship, the OSPF process number of router A. is 1, and the area number is 0. Which of the following configurations on router A can enable r

Question 591

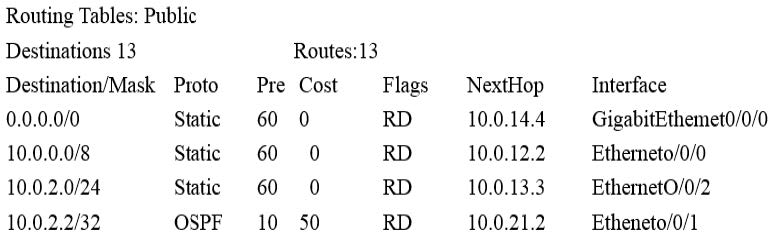

The output information of the router R1 routing table is shown in the figure. Which of the following statements is correct? () (Multiple Choice Questions)

<R1>display ip routing-table

Route Flags: R-relay, D-download to fib

The data packet whose destination network is 12.0.0.0/8 will be forwarded from the router's Ethernet0/0/0 interface

The router will discard packets whose destination network is 11.0.0.0/8

The router will forward data packets whose destination network is 12.0.0.0/8

The data packet whose destination network is 11.0.0.0/8 will be forwarded from the router's GigabitEthernet0/0/0 interface

Show Answer Comment (0)

As shown in the figure, after the two routers are configured with 0SPF, the administrator configures the <silent-interface$0/0/0> command on RTA. Is the following description correct? () (Multiple Choice Questions)

RTA will continue to receive, analyze and process OSPF packets sent by RTB

The neighbor relationship between the two routers will be down

The neighbor relationship between the two routers will not be affected

RTA will no longer send OSPF packets

Show Answer Comment (0)

Question 593

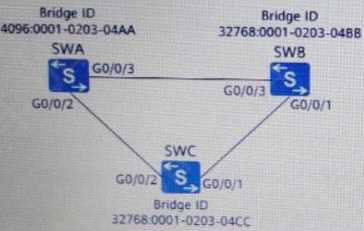

As shown in the figure below. All switches enable the $P protocol and keep other configurations in their default state. When the network is stable, are the following statements correct? () (Multiple Choice Questions)

Both ports of SWC are in Forwarding state

Both ports of SWB are in Forwarding state

SWA is the root bridge in this network

SWB is the root bridge in this network

Show Answer Comment (0)

Question 594

The network as shown in the figure. Which of the following configurations can realize that Host A cannot access the HTTP service of Host B. Host B cannot access the FTP service of Host A? () (Multiple Choice Questions)

acl number 3000Rule5DenyTepSource#Acl number 3001Rule5 deny top source 100.0.13.0 0.0.0.255 source-port eq ftp destination#Interface GigabitEthernet0/0/1Traffic-filter inbound acl 3000#Interface GigabitEthernet0/0/2Traffic-filter inbound acl 3001#

acl number 3000Rule5Deny tcp source 100.0.13.0 0.0.0.255 destination 100.0.12.00.0.0.255Destination eq www#Acl number 3001Rule5 deny tcp source 100.0.12.0 0.0.0.255 destination 100.0.13.00.0.0.255Destination eq ftp#Interface GigabitEthernet0/0/1Traffic-filter inbound acl 3000#Interface GigabitEthernet0/0/2Traffic-filter inbound acl 3001#

acl number 3000Rule 5 deny tcp source 100.0.12.0 0.0.0.255 source-port eq www destinationRule5 deny tcp source 100.0.13.0 0.0.0.255 source-port eq ftp destination#Interface GigabitEthernet0/0/1Traffic-filter inbound acl 3000#Interface GigabitEthernet0/0/2Traffic-filter inbound acl 3001#

Show Answer Comment (0)

Question 595

In the network as shown in the figure, the administrator hopes that all hosts cannot access the Web service (the port number is 80). Other services can be accessed normally. Then, in the interface configuration of G0/0/1, traffic-filWhich ACL rule needs to be bound to ter outbound? ()

acl number 3000ARule 5 deny tcy destination-port eq wwwRule 10 permit ip#

acl number 3001Rule 5 deny udp destination-port eg wwwRule 10 permit ip#

acl number 3002Rule 5 permit ipRule 10 deny tep destination eq www#

acl number 3003Rule 5 permit ipRule 10 deny udp destination eq www#

Show Answer Comment (0)

Question 596

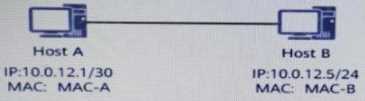

As shown in the figure below, are the following statements correct? () (Multiple Choice Questions)

The broadcast address of host A and host B are the same

Host A can ping host B

Host A and Host B cannot obtain each other's MAC address

The following entry 10.0.12.5 MAC-B exists in the ARP cache of host A

Show Answer Comment (0)

Question 597

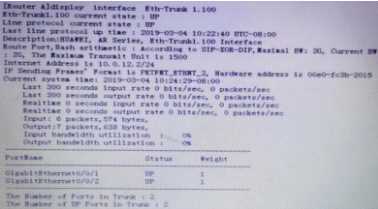

The output information of the sub-interface of a router aggregate port 1 is shown in the figure. Based on this information, which of the following statements are correct? ()

The sub-interface number of the aggregate port is 100

The sub-interface of the aggregate port carries B with VLAN when forwarding data frames

Two links exist on the aggregated port

The P address of the sub-interface of the aggregate port is 10.0.12.2/24

Show Answer Comment (0)

Question 598

As shown in the figure below. Router A has passed the IP address 10.0.12.2 Telnet Router B. Which of the following operations on the current interface will cause the Telnet session between Router A and Router B to be interrupted? () (Multiple Choice Questions)

Enable OSPF protocol under G0/0/1 interface

Configure static routing

Modify G0/0/1 interfaceIP address

Close G0/0/1 interface

Show Answer Comment (0)

Question 599

The network shown in the figure below. The host has an ARP cache. Which of the following statements are correct? )(Multiple Choice Questions)

The following entries may appear in the ARP cache of host A 10.0.12.2MAC-C

The router needs to be configured with a static route. Otherwise, host A and host B cannot communicate in both directions

Host A and Host B can communicate in two directions

The following entry 11.0.12.1 MAC-B exists in the ARP cache of host A

Show Answer Comment (0)

Question 600

Router A and Router B are established OSPF neighbor relationship, the OSPF process number of router A. is 1, and the area number is 0. Which of the following configurations on router A can enable router B to obtain the route of the network segment where host A is located? ()

ospf 1 AreA. 0.0.0.0 Network 192.168.1.2 0.0.0.0

ospf 1 Import-route direct

ospf 1 AreA. 0.0.0.0 Network 192.168.0.00.0.255.255

ospf 1 AreA. 0.0.0.0 Network 192.168.1.00.0.0.255

Show Answer Comment (0)

Total 869 questions
