Huawei H12-811_V1.0 Practice Test - Questions Answers, Page 82

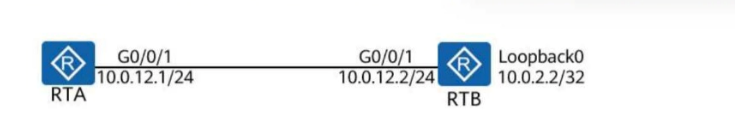

Comprehensive Router A needs a static route to reach the Loopback interface (10.0.2.2/32) on Router B. The correct next-hop IP address is 10.0.12.2, which is Router B's interface IP address directly connected to Router A

Comprehensive On Huawei VRP, the default route preference is as follows: Direct routes have the highest preference, followed by OSPF, Static, and then RIP. Direct routes are preferred because they represent directly connected networks

Comprehensive OSPF (Open Shortest Path First) is a link-state routing protocol. It builds a complete map of the network's topology using Link-State Advertisements (LSAs) and makes routing decisions based on this map. Protocols like Static and Direct are not dynamic routing protocols, while FTP is a file transfer protocol

Comprehensive A routing table contains information necessary for the router to determine the best path to forward packets. This includes the destination network or subnet (Destination/Mask), the next-hop address (the IP address of the next device in the path), and the cost (metric) associated with the route. MAC addresses are used at the Data Link layer (Layer 2) for local network communication and are not part of the routing table, which operates at the Network layer (Layer 3).

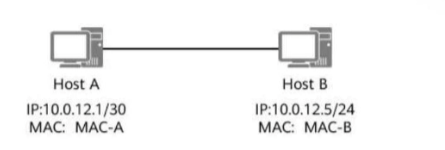

Comprehensive Host A and Host B cannot communicate because they are in different subnets. Host A's IP address is 10.0.12.1/30, while Host B's IP address is 10.0.12.5/24. Since they are in different subnet ranges and there is no router in the diagram to perform inter-subnet routing, direct communication between them is not possible without a router to route traffic between the different subnets.

Comprehensive In OSPF (Open Shortest Path First), a router first synchronizes its Link-State Database (LSDB) with its neighbors by exchanging link-state information. Only after this synchronization process is complete does the router transition to the Full state. The Full state indicates that the router has fully converged with its OSPF neighbors and has a complete and up-to-date view of the network topology. Therefore, the router enters the Full state after synchronizing its LSDB, not before.

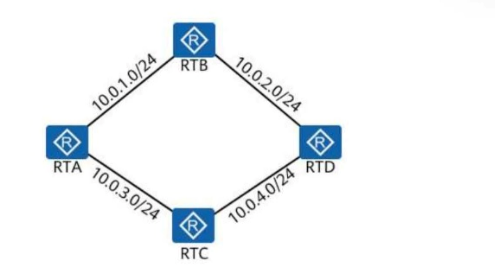

Comprehensive In OSPF, an Area Border Router (ABR) is a router that has interfaces in more than one OSPF area, facilitating communication between different areas. If a router has interfaces in only one OSPF area, it is not an ABR. Based on the network structure, it is incorrect to assume that all routers except RTA are ABRs. A router can only be considered an ABR if it has interfaces connecting to multiple OSPF areas. If a router only connects within one area, it is not an ABR.

Comprehensive A routing table contains several key elements:

Cost: Also known as metric, this indicates the cost associated with reaching a specific destination, such as the number of hops or link speed.

Next-hop address: This is the IP address of the next device along the route that packets should be forwarded to.

Protocol: The routing protocol (e.g., OSPF, RIP) that determined the route.

Interface: The physical or logical interface through which the router sends packets to reach the destination.

Destination/Mask: The destination network or subnet and the associated subnet mask define the range of IP addresses for which this route is valid. These elements together allow routers to efficiently forward traffic to the correct destinations.

Comprehensive The '-i' parameter in the Ping command on Huawei VRP (Versatile Routing Platform) is used to specify the source IP address for sending an Echo Request (ping) packet. This is useful in cases where the router has multiple interfaces and you want to control which interface is used to initiate the ping. By defining the source IP address, the ping request can be sent from a specific interface on the router, enabling network administrators to test connectivity from that interface.
