Refer to the exhibit.
While troubleshooting call failures on the Cisco Unified Border Element, an administrator notices that messages are being sent to the service provider, but there is no response The administrator later learns that this SIP provider does not support PRACK. Which header should be removed from the SIP message to resolve this issue?
Content-Disposition: session:handling=required
Require 100rel
Contact <sip:[email protected]:5060>
Content-Type: application/sdp
Refer to the exhibit.
An administrator is troubleshooting a problem in which some outbound calls from an internal network to the Internet telephony service provider are not getting connected, but some others connect successfully. The firewall team found that some call attempts on port 5060 came from an unrecognized IP that has not been defined in the firewall rule. What should the administrator configure in the Cisco Unified Border Element to fix this issue?
use of port 5061 for SIP secure
access list allowing the firewall IP
ip prefix-list to filter the unwanted IP address
bind signaling and media to the loopback interface

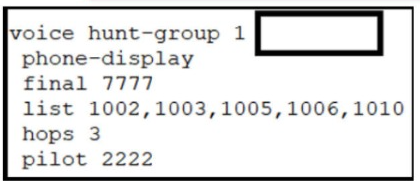

Refer to the exhibit.
DN 1003 was the last to ring during the most recent call. Which hunting method ensures that DN 1005 is presented with the next call when the hunt pilot is dialed?
call-blast
parallel
sequential
peer
An administrator is troubleshooting call failures on an H.323 gateway via the CLI. To see signaling for media and call setup, which debug must the Administrator turn on?
debug H.323 messages
debug H.224 asn1
debug H.246 asn 1
debug H.225 media
debug H.323 asn 1
What are two configureation features of the Client matter code setting in the route pattern configuration? (Choose two.)
The client Matter Code feature supports overlap sending since the Cisco UCM can determine when to prompt the user for the code.
Selecting the Allow Overlap Sending setting disables the Require Client Matter Code setting.
The Client Matter Code feature provides the option to configure Authorization Level susch as in the Forced Authorization Code.
Selecting the Allow Overlap Sending setting allows a user to select the Require Client Matter Code setting.
An administrator sees the voice register pool 1 command in a Cisco UCME configuration. Which configuration is occurring in this section?
configuration for a pool of SIP phones (similar to device pool on Cisco UCM)
configuration for a single SIP phone
configuration for SIP registrar service
configuration items common for all SIP phones
An engineer has two cisco UCM Clusters and wants to integrate them using ILS with TLS certificates. Cluster A (pub and 1 subscriber) will be the hub, and Cluster B (pub and 1 subscriber) will be the spoke. Both Clusters have self-signed certificates. The engineer has exchanged Publisher A and subscriber B Tomcat certificates, but the connection fails. What is the cause of the failure?
The password is incorrect.
Cluster IDs are not unique.
The tomcat certificate from Cluster B must be the publisher.
The engineer needs to exchange the CallManager certificate.

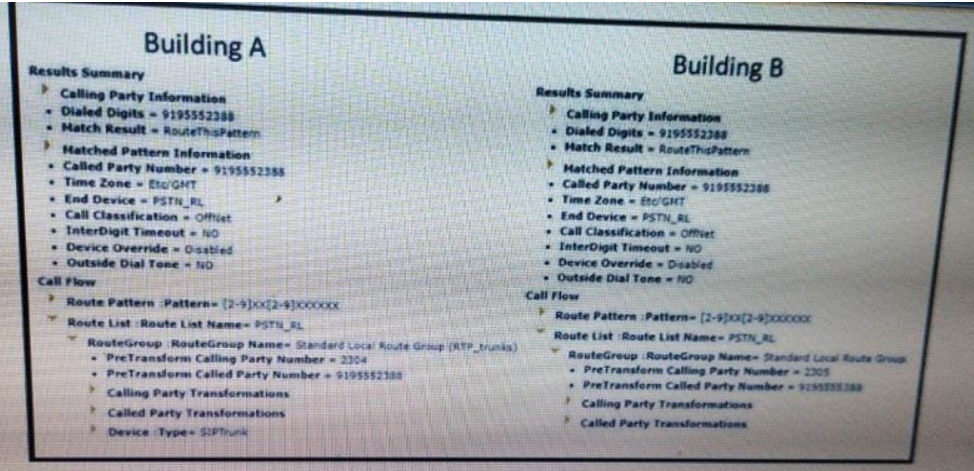

Refer to the exhibit.
Refer to the exhibit. A standard local route group is configured for long-distance calls. Calls from building A succeed, but calls from building B fail. On the system. Each building has is own device pool. The DNA tool is used to test the configuration. How is this issue resolved?
Change the partition of the route pattern
Add a sip trunk inside route group Standard Local Route Group.
Modify the route pattern to add a prefix of 91
Add a local route group on the device pool configuration.
ABC company has decided to implement hunt groups to help distribute calls between members. In order to implement this, administrator must configure hunt list, hunt group, and line groups on Cisco UCM. Which distribution algorithms should the administrator implement?
Top Down, Round Robin, Broadcast
Top Down, Circular, Broadcast
Top Down, Round Robin, Distribute
Sequantial, Circular, Broadcast

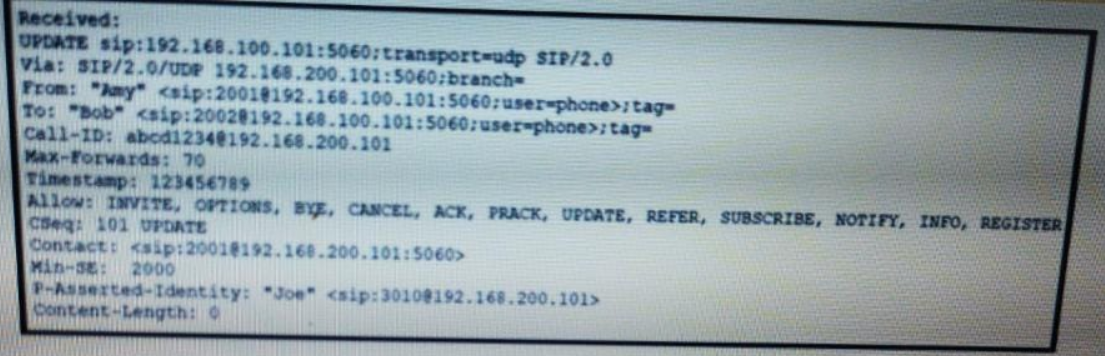

Refer to the exhibit.
Refer to the exhibit. An engineer is troubleshooting an issue where inbound Calls are failing after they transferred. The provider reports that update is not supported, and this is causing the calls to fail. Which command should resolve this issue?
no midcall-signaling passthru
no update-callerId
no contact-passig
rel1xx require ''100rel''
