An administrator must make a pattern to route calls to two different destinations john doe@company com and jane doe@company com Which type of patterns are needed in the Cisco UCM. and what must the pattern look like?
A SIP route pattern that looks like the *@company.com
A SIP route pattern that looks like this company.com
A regular route pattern with URI feature enable in the configuration page. The pattern must look like this:(*@company.com)
A regular route pattern with URI feature enable in the configuration page. The pattern must look like this:MATCH(*@company.com)
Refer to the exhibit.
Refer to the exhibit. Unanswered calls do not reach the voicemail associated with the phones Instead, callers receive the default greeting Which action fixes the configuration?
Reboot Cisco Unity Connection.
Check the box "Redirecting Diversion Header Delivery - Outbound", then reset the trunk.
Check the box 'Redirecting Diversion Header Delivery - Outbound".
Review the conversation manager logs on Cisco Unity Connection.
Refer to the exhibit.
A Cisco Telepresence SX80 suddenly has issues displaying main video to a display over HDMI. Which command can you use from the SX80 admin CLI to check the video output status to the monitor?
xStatus HDMI Output
xStatus video Output
xconfiguration video Output
xcommand video status
Refer to the exhibit.
Refer to the exhibit. Cisco Unified element is attempting to establish a call with Subcribers1, but the call fails. Cisco Unified Border Element then retries the same call with Subcribers2, and the call proceeds normally.
Which action resolves the issue?
Verify that the correct calling search space is selected for the inbound Calls section
Verify that the run on all active United CM Nodes checkbox is enabled
Verify that the Significant Digits field for inbound Calls is set to All.
Verify that the PSTN Access checkbox is enabled.
An engineer is configuring IP telephony. The network relies on DHCP to provide TFTP server addresses to the endpoints. Policy requires the endpoints to receive two server addresses. Which DHCP option must be configured?
66
143
150
166

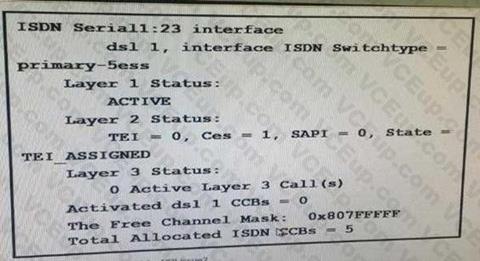

Refer to the exhibit.
What is a possible cause of the PRI issue?
The cable is unplugged.
The controller shut down.
The clock source is incorrect.
The framing is configured incorrectly.

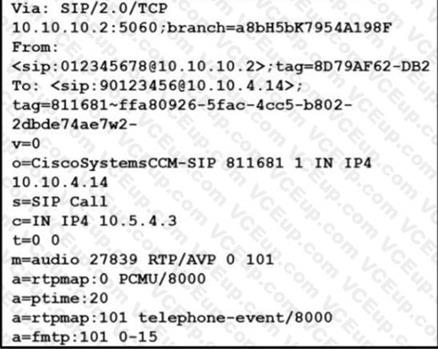

Refer to the exhibit.
Which Codec is negotiated?
G.729
ILBC
G.711ulaw
G.728

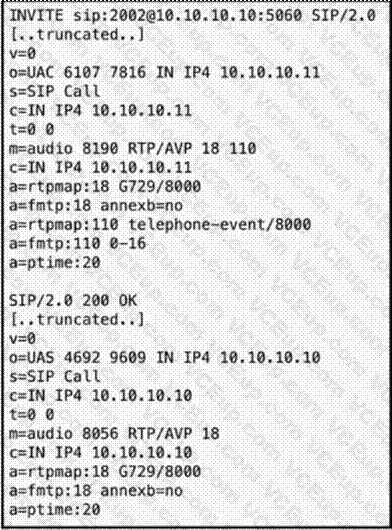

Refer to the exhibit.
Refer to the exhibit. The SDP offer/answer has been completed successfully but there is no DTMF when users press keys. What is the cause of the issue?
Payload type 110 was negotiated rather than type 101.
DTMF was negotiated property in these messages.
DTMF was not negotiated on the call.
G.729 rather than G.711ulaw was negotiated.
What happens to voice packets from a Cisco 8845 IP phone in the QoS trust boundary?
The voice packets are not trusted, and the access layer switch reclassifies the packets.
The voice packets are classified by the phone, and the classification is accepted
The voice and access layer switch negotiate the classification of packets
Cisco UCM determines how the voice packers are classified.
Which SNMP service must be activated manually on the Cisco Unified Communications Manager after installation?
Cisco CallManager SNMP
SNMP Master Agent
Connection SNMP Agent
Host Resources Agent
