Huawei H12-811_V1.0 Practice Test - Questions Answers, Page 6

List of questions

Question 51

Report Export Collapse

As shown in the figure, two switches use the default parameters to run STP root primary; Switch B uses the configuration command STP priority 0. Then which port will be blocked? () (Single-choice question)

Huawei H12-811_V1.0 image Question 51 33626 09182024192851000000

G0/0/3 of HUB
G0/0/3 of HUB
G0/0/2 of switch A
G0/0/2 of switch A
G0/0/1 of switch A
G0/0/1 of switch A
G0/0/1 of switch B
G0/0/1 of switch B
Suggested answer: B
asked 18/09/2024
Mehr Khan
42 questions

Question 52

Report Export Collapse

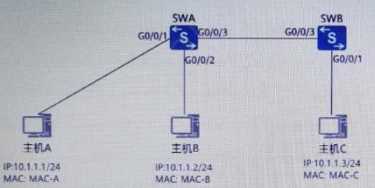

As shown in the figure below. All hosts can communicate normally. Is the corresponding relationship between SWA MAC address and port correct? () (Single-choice question)

Huawei H12-811_V1.0 image Question 52 33627 09182024192851000000

MAC-A GO/0/1MAC-B G0/0/2MAC-C G0/0/1
MAC-A GO/0/1MAC-B G0/0/2MAC-C G0/0/1
MAC-A G0/0/2MAC-B GO/0/2MAC-C GO/0/3
MAC-A G0/0/2MAC-B GO/0/2MAC-C GO/0/3
MAC-A GO/0/1MAC-B GO/0/1MAC-C GO/0/3
MAC-A GO/0/1MAC-B GO/0/1MAC-C GO/0/3
MAC-A GO/0/1MAC-B GO/0/2MAC-C GO/0/3
MAC-A GO/0/1MAC-B GO/0/2MAC-C GO/0/3
Suggested answer: D
asked 18/09/2024
Easwari Lakshminarayanan
48 questions

Question 53

Report Export Collapse

The configuration information of a certain port of the switch is shown in the figure. Which of the following statements is wrong? () (Single-choice question)

Huawei H12-811_V1.0 image Question 53 33628 09182024192851000000

The port type is Hybrid
The port type is Hybrid
If the VLAN TAG carried in the data frame is 200, the switch will strip off the VLAN TAG and send it out
If the VLAN TAG carried in the data frame is 200, the switch will strip off the VLAN TAG and send it out
If the port receives a data frame without VLAN TAG, the switch needs to add VLAN TAG100
If the port receives a data frame without VLAN TAG, the switch needs to add VLAN TAG100
If the VLAN TAG carried in the data frame is 100, the switch will strip off the VLAN TAG and send it out
If the VLAN TAG carried in the data frame is 100, the switch will strip off the VLAN TAG and send it out
Suggested answer: D
asked 18/09/2024
justen layne
43 questions

Question 54

Report Export Collapse

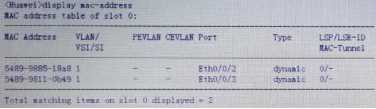

The MAC address table of a certain switch is shown in the figure. If the switch receives a data frame with a destination MAC of 5489-9811-0b49 from port Eth0/0/2, which of the following statements is correct? ()

Huawei H12-811_V1.0 image Question 54 33629 09182024192851000000

Forward this data frame from the Eth0/0/2 port
Forward this data frame from the Eth0/0/2 port
Discard this data frame
Discard this data frame
Forward this data frame from the Eth0/0/3 port
Forward this data frame from the Eth0/0/3 port
Flood out this data frame
Flood out this data frame
Suggested answer: C
asked 18/09/2024
B Erol
63 questions

Question 55

Report Export Collapse

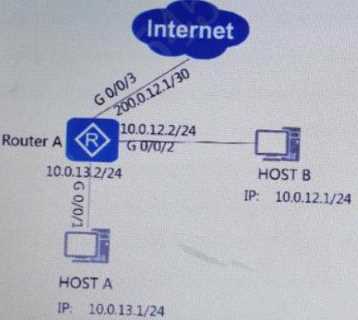

The network shown in the figure below. The network where host A is required to access the Internet through Easy IP, then which of the following ACLs should be used on the G0/0/3 interface of router A? () (Single-choice question)

Huawei H12-811_V1.0 image Question 55 33630 09182024192851000000

acl number 2000 Rule 5 permit source 10.0.12.0.0.0.0.255#
acl number 2000 Rule 5 permit source 10.0.12.0.0.0.0.255#
acl number 2000 Rule 5 permit source 10.0.13.0.0.0.0.255#
acl number 2000 Rule 5 permit source 10.0.13.0.0.0.0.255#
acl number 2000 Rule 5 permit source 10.0.12.1.0.0.0.0#
acl number 2000 Rule 5 permit source 10.0.12.1.0.0.0.0#
acl number 2000 Rule 5 permit source 10.0.13.1.0.0.0.0
acl number 2000 Rule 5 permit source 10.0.13.1.0.0.0.0
Suggested answer: B
asked 18/09/2024
Loyston Mathias
43 questions

Question 56

Report Export Collapse

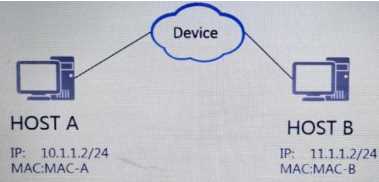

As shown in the figure below, what kind of network equipment can host A and host B use to communicate? () (Single-choice question)

Huawei H12-811_V1.0 image Question 56 33631 09182024192851000000

Layer 2 switch
Layer 2 switch
Hub
Hub
router
router
HUB
HUB
Suggested answer: C
asked 18/09/2024
Lionel Fitzgerald Gweth
45 questions

Question 57

Report Export Collapse

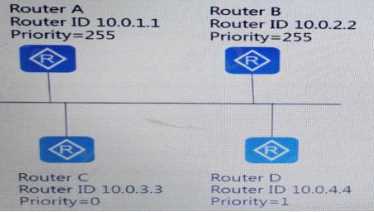

The network shown in the figure below assumes that all routers can enable OSPF at the same time. Which router is the DR in this network? () (Single-choice question)

Huawei H12-811_V1.0 image Question 57 33632 09182024192851000000

Router B
Router B
Router D
Router D
Router A
Router A
Router C
Router C
Suggested answer: A
asked 18/09/2024
Peter Lam
47 questions

Question 58

Report Export Collapse

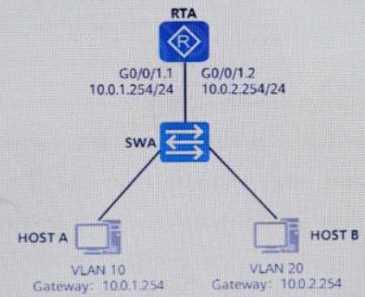

As shown in the figure, host A and host B want to implement inter-VLAN communication through single-arm routing. What configuration should be done under the G0/0/1.1 interface of RTA?()(Single-choice question)

Huawei H12-811_V1.0 image Question 58 33633 09182024192851000000

dotlg termination vid 1
dotlg termination vid 1
dotlq termination vid 10
dotlq termination vid 10
dotlq termination vid 20
dotlq termination vid 20
dotlq termination vid 30
dotlq termination vid 30
Suggested answer: B
asked 18/09/2024
Ricardson Albuquerque
38 questions

Question 59

Report Export Collapse

As shown in the figure, the administrator hopes that all hosts cannot access the Internet from 8:00 to 17:00 every day. Which ACL rule needs to be bound to traffic-filter outbound in the interface configuration of G0/0/1? () (Single-choice question)

Huawei H12-811_V1.0 image Question 59 33634 09182024192851000000

time-range am9 to pm5 08:00 to 17:00 working-day # Ac1 number 2003 Rule 5 deny time-range am9 to pm560 H12-811HCIA-Datacom655 new question bank#
time-range am9 to pm5 08:00 to 17:00 working-day # Ac1 number 2003 Rule 5 deny time-range am9 to pm560 H12-811HCIA-Datacom655 new question bank#
time-range am9 to pm5 08:00 to 17:00 daily # Acl number 2001 Rule 5 deny time-range am9 to pm5 #
time-range am9 to pm5 08:00 to 17:00 daily # Acl number 2001 Rule 5 deny time-range am9 to pm5 #
time-range am9 to pm5 07:00 to 18:00 daily # Acl number 2002 Rule 5 permit time-range am9 to pm5 #
time-range am9 to pm5 07:00 to 18:00 daily # Acl number 2002 Rule 5 permit time-range am9 to pm5 #
time-range am9 to pm5 08:00 to 17:00 off-day # Acl number 2004 Rule 5 permit time-range am9 to pm5
time-range am9 to pm5 08:00 to 17:00 off-day # Acl number 2004 Rule 5 permit time-range am9 to pm5
Suggested answer: B
asked 18/09/2024
Prakhar Sengar
35 questions

Question 60

Report Export Collapse

Regarding the configuration shown in the figure, which statement is correct? () (Single-choice question)

Huawei H12-811_V1.0 image Question 60 33635 09182024192851000000

history-command max-size20 is to adjust the size of the history named cache to 20
history-command max-size20 is to adjust the size of the history named cache to 20
The default size of the history command cache is 5 bytes
The default size of the history command cache is 5 bytes
After the above configuration is completed, the history command buffer can store 20 bytes of commands
After the above configuration is completed, the history command buffer can store 20 bytes of commands
The default size of the history command cache is 5
The default size of the history command cache is 5
Suggested answer: A
asked 18/09/2024
MICHELE CRISTINA DOS FELIX
39 questions
Total 984 questions
