R2 has a locally originated prefix 192.168.130.0/24 and has these configurations: What is the result when the route-map OUT command is applied toward an eBGP neighbor R1(1.1.1.1) by using the neighbor 1.1.1.1 route-map OUT out command?

R1 sees 192.168.130.0/24 as two AS hops away instead of one AS hop away.

R1 does not accept any routes other than 192.168.130.0/24

R1 does not forward traffic that is destined for 192.168.30.0/24

Network 192.168.130.0/24 is not allowed in the R1 table

Refer to the exhibit. An engineer configures a static route on a router, but when the engineer checks the route to the destination, a different next hop is chosen. What is the reason for this?

The configured AD for the static route is higher than the AD of OSPF.

Dynamic routing protocols always have priority over static routes.

The metric of the OSPF route is lower than the metric of the static route.

The configured AD for the static route is higher than the AD of OSPF.

The syntax of the static route is not valid, so the route is not considered.

Refer to the exhibit. An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the summary route does not show up in the routing table. Why is the summary route missing?

There is no route for a subnet inside 10.0.0.0/8, so the summary route is not generated.

The summary-address command is used only for summarizing prefixes between areas.

The summary route is visible only in the OSPF database, not in the routing table.

There is no route for a subnet inside 10.0.0.0/8, so the summary route is not generated.

The summary route is not visible on this router, but it is visible on other OSPF routers in the same area.

Refer to the exhibit. An engineer is trying to block the route to 192.168.2.2 from the routing table by using the configuration that is shown. The route is still present in the routing table as an OSPF route. Which action blocks the route?

Change sequence 10 in the route-map command from permit to deny.

Use an extended access list instead of a standard access list.

Change sequence 10 in the route-map command from permit to deny.

Use a prefix list instead of an access list in the route map.

Add this statement to the route map: route-map RM-OSPF-DL deny 20.

What is a prerequisite for configuring BFD?

Cisco Express Forwarding must be enabled on all participating BFD endpoints.

Jumbo frame support must be configured on the router that is using BFD.

All routers in the path between two BFD endpoints must have BFD enabled.

Cisco Express Forwarding must be enabled on all participating BFD endpoints.

To use BFD with BGP, the timers 3 9 command must first be configured in the BGP routing process.

Refer to the exhibit. R2 is a route reflector, and R1 and R3 are route reflector clients. The route reflector learns the route to 172.16.25.0/24 from R1, but it does not advertise to R3. What is the reason the route is not advertised?

R2 does not have a route to the next hop, so R2 does not advertise the prefix to other clients.

Route reflector setup requires full IBGP mesh between the routers.

In route reflector setup, only classful prefixes are advertised to other clients.

In route reflector setups, prefixes are not advertised from one client to another.

Refer to the exhibit. An engineer is trying to redistribute OSPF to BGP, but not all of the routes are redistributed. What is the reason for this issue?

By default, only internal OSPF routes are redistributed into BGP

By default, only internal routes and external type 1 routes are redistributed into BGP

Only classful networks are redistributed from OSPF to BGP

BGP convergence is slow, so the route will eventually be present in the BGP table

By default, only internal OSPF routes are redistributed into BGP

Refer to the exhibit. In which circumstance does the BGP neighbor remain in the idle condition?

if prefixes exceed the maximum limit

if prefixes are not received from the BGP peer

if prefixes reach the maximum limit

if a prefix list is applied on the inbound direction

if prefixes exceed the maximum limit

Which attribute eliminates LFAs that belong to protected paths in situations where links in a network are connected through a common fiber?

shared risk link group-disjoint

Refer to the exhibit. An engineer is troubleshooting BGP on a device but discovers that the clock on the device does not correspond to the time stamp of the log entries. Which action ensures consistency between the two times?

Configure the service timestamps log datetime localtime command in global configuration mode.

Configure the service timestamps log uptime command in global configuration mode.

Configure the logging clock synchronize command in global configuration mode.

Configure the service timestamps log datetime localtime command in global configuration mode.

Make sure that the clock on the device is synchronized with an NTP server.

Refer to the exhibit. What is the result of applying this configuration?

The router cannot form BGP neighborships with any device that is matched by the access list named "BGP".

The router can form BGP neighborships with any other device.

The router cannot form BGP neighborships with any other device.

The router cannot form BGP neighborships with any device that is matched by the access list named "BGP".

The router can form BGP neighborships with any device that is matched by the access list named "BGP".

Which configuration adds an IPv4 interface to an OSPFv3 process in OSPFv3 address family configuration?

Router(config-if)#ospfv3 1 ipv4 area 0

Router ospf3 1 address-family ipv4

Router(config-router)#ospfv3 1 ipv4 area 0

Router(config-if)#ospfv3 1 ipv4 area 0

Router ospfv3 1 address-family ipv4 unicast

Refer to the exhibit. Which statement about R1 is true?

RIP learned routes are distributed to OSPF with a tag value of one.

OSPF redistributes RIP routes only if they have a tag of one.

RIP learned routes are distributed to OSPF with a tag value of one.

R1 adds one to the metric for RIP learned routes before redistributing to OSPF.

RIP routes are redistributed to OSPF without any changes.

Which configuration enabled the VRF that is labeled "Inet" on FastEthernet0/0?

R1(config)# ip vrf InetR1(config-vrf)#interface FastEthernet0/0R1(config-if)#ip vrf forwarding Inet

R1(config)#router ospf 1 vrf InetR1(config-router)#ip vrf forwarding FastEthernet0/0

R1(config)#ip vrf Inet FastEthernet0/0

R1(config)# ip vrf InetR1(config-vrf)#ip vrf FastEthernet0/0

Refer to the exhibit. After redistribution is enabled between the routing protocols; PC2, PC3, and PC4 cannot reach PC1.Which action can the engineer take to solve the issue so that all the PCs are reachable?

Set the administrative distance 100 under the RIP process on R2.

Filter the prefix 10.1.1.0/24 when redistributed from OSPF to EIGRP.

Filter the prefix 10.1.1.0/24 when redistributed from RIP to EIGRP.

Redistribute the directly connected interfaces on R2.

Refer to the exhibit. After applying IPsec, the engineer observed that the DMVPN tunnel went down, and both spoke-to-spoke and hub were not establishing. Which two actions resolve the issue? (Choose two.)

Configure the crypto isakmp key cisco address 192.1.1.1 on R2 and R3

Change the mode from mode transport to mode tunnel on R2.

Configure the crypto isakmp key cisco address 192.1.1.1 on R2 and R3

Configure the crypto isakmp key cisco address 0.0.0.0 on R2 and R3.

Change the mode from mode tunnel to mode transport on R3

Change the mode from mode transport to mode tunnel on R2.

Remove the crypto isakmp key cisco address 10.1.1.1 on R2 and R3

Which statement about route distinguishers in an MPLS network is true?

Route distinguishers make a unique VPNv4 address across the MPLS network.

Route distinguishers allow multiple instances of a routing table to coexist within the edge router.

Route distinguishers are used for label bindings.

Route distinguishers make a unique VPNv4 address across the MPLS network.

Route distinguishers define which prefixes are imported and exported on the edge router.

Which statement about MPLS LDP router ID is true?

The loopback with the highest IP address is selected as the router ID.

If not configured, the operational physical interface is chosen as the router ID even if a loopback is configured.

The loopback with the highest IP address is selected as the router ID.

The MPLS LDP router ID must match the IGP router ID.

The force keyword changes the router ID to the specified address without causing any impact.

Which list defines the contents of an MPLS label?

20-bit label; 3-bit traffic class; 1-bit bottom stack; 8-bit TTL

32-bit label; 3-bit traffic class; 1-bit bottom stack; 8-bit TTL

20-bit label; 3-bit flow label; 1-bit bottom stack; 8-bit hop limit

32-bit label; 3-bit flow label; 1-bit bottom stack; 8-bit hop limit

Refer to the exhibits. Phase-3 tunnels cannot be established between spoke-to-spoke in DMVPN. Which two commands are missing? (Choose two.)

The ip nhrp shortcut command is missing on the spoke routers.

The ip nhrp redirect commands is missing on the hub router.

The ip nhrp redirect command is missing on the spoke routers.

The ip nhrp shortcut command is missing on the spoke routers.

The ip nhrp redirect commands is missing on the hub router.

The ip nhrp shortcut commands is missing on the hub router.

The ip nhrp map command is missing on the hub router.

Refer to the exhibit. An engineer is trying to configure local authentication on the console line, but the device is trying to authenticate using TACACS+. Which action produces the desired configuration?

Add the login authentication Console command to the line configuration

Add the aaa authentication login default none command to the global configuration.

Replace the capital "C" with a lowercase "c" in the aaa authentication login Console local command.

Add the aaa authentication login default group tacacs+ local-case command to the global configuration.

Add the login authentication Console command to the line configuration

Which statement about IPv6 ND inspection is true?

It learns and secures bindings for stateless autoconfiguration addresses in Layer 2 neighbor tables.

It learns and secures bindings for stateless autoconfiguration addresses in Layer 3 neighbor tables.

It learns and secures bindings for stateless autoconfiguration addresses in Layer 2 neighbor tables.

It learns and secures bindings for stateful autoconfiguration addresses in Layer 3 neighbor tables.

It learns and secures bindings for stateful autoconfiguration addresses in Layer 2 neighbor tables.

Refer to the exhibit. Why is user authentication being rejected?

The TACACS+ server is down, and the user is not in the local database.

The TACACS+ server expects "user", but the NT client sends "domain/user".

The TACACS+ server refuses the user because the user is set up for CHAP.

The TACACS+ server is down, and the user is in the local database.

The TACACS+ server is down, and the user is not in the local database.

Cisco 300-410 Practice Test 1 - Free Online Exam Prep & Questions

Question 1 / 40

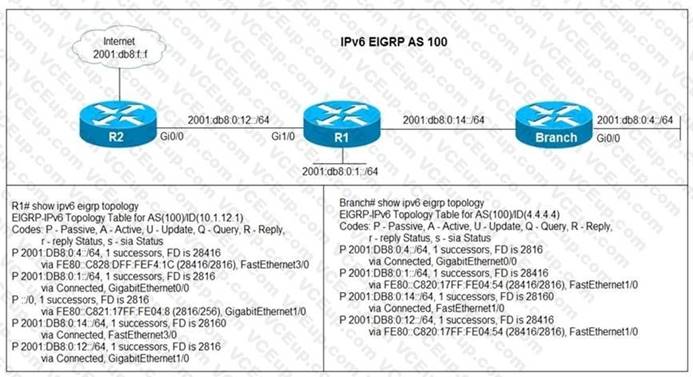

Refer to the exhibit.

Cisco 300-410 image Question 1 110947 10072024005413000000

Users in the branch network of 2001:db8:0:4::/64 report that they cannot access the Internet. Which command is issued in IPv6 router EIGRP 100 configuration mode to solve this issue?

Issue the eigrp stub command on R1

Issue the no neighbor stub command on R2.

Issue the eighr command on R2.

Issue the no eighrp stub command on R2.

Comment (0)
