A support engineer is troubleshooting a voice network. When conducting a search for call setup details related to calling search space issues, which trace files should be investigated?
CallManager traces
CTI Manager traces
Cisco IP Manager Assistant
Call logs

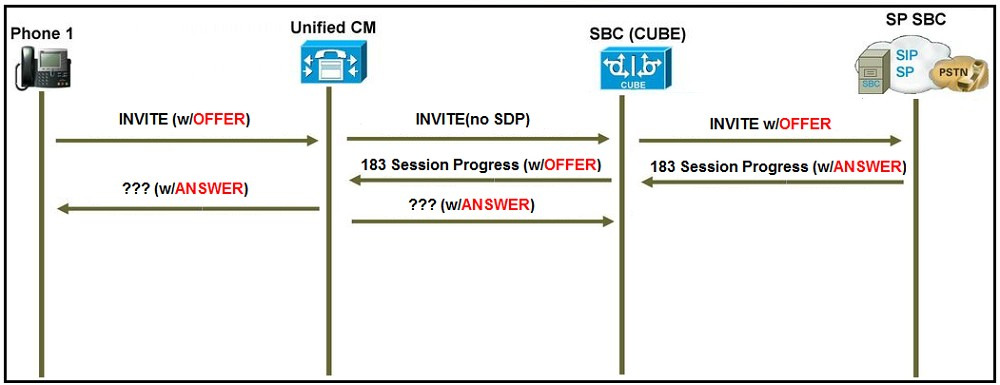

Refer to the exhibit.
A user reports that when they call a specific phone number, no one answers the call, but when they call from a mobile phone, the call is answered. The engineer troubleshooting the issue is expecting the far-end gateway to cut through audio on the 183 Session Progress SIP message. Which SIP Profile configuration element is necessary for the Cisco Unified Communications Manager to send acknowledgement of provisional responses?
Allow Passthrough of Configured Line Device Caller Information must be enabled.
Accept Audio Codec Preferences in Received Offer must be set to On.
On the SIP Profile, the configuration parameter SIP Rel1XX Options must be set to Send PRACK for all 1xx Messages.
Early Offer for G Clear Calls must be enabled.
A company has an SRST gateway running an IOS XE image. The company plans to enable the IPv6 addressing companywide. To enable the IPv6 in a unified SRST gateway to support SIP phones, what are two supported supplementary features for an IPv6 fallback scenario? (Choose two.)
three-way conference
secure SIP lines
T.38 fax relay
transcoding
SIP trunk
Which action is correct with respect to toll fraud prevention configuration in the Cisco Unified Communications Manager Express?
Configure Direct Inward Dial for Incoming ISDN Calls with overlap dialing.
Configure IP Address Trusted Authentication for Incoming VoIP Calls.
Configure the command no ip address trusted authenticate under ''voice service voip''.
Enable Secondary Dial tone on Analog and Digital FXO Ports.
You see the voice register pool 1 command in your Cisco Unified Communications Manager Express configuration. Which configuration is occurring in this section?
configuration for a single SIP phone
configuration items common for all SIP phones
configuration for a pool of SIP phones (similar to device pool on Cisco Unified Communications Manager)
configuration for SIP registrar service
Which top-level IOS command is needed to begin the configuration of a Cisco Unified Communications Manager Express gateway to enable phones to be registered via SIP?
allow-connections sip to sip
voice service voip
voice register global
voice register dn
For s SIP to SIP call flow, when does Cisco Unified Border Element require transcoding resources for DTMF?
interworking between an OOB method and RFC2833 for flow-around calls
interworking between h245-signal and rtp-nte
interworking between an OOB method and RFC2833 for flow-through calls
interworking between h245-alpha numeric and sip-kpml
Where is the dtmf-relay command configured on Cisco Unified Border Element?
in the voice-class VoIP configuration
in the VoIP dial peer
in global SIP configuration
in the VoIP or POTS dial peers

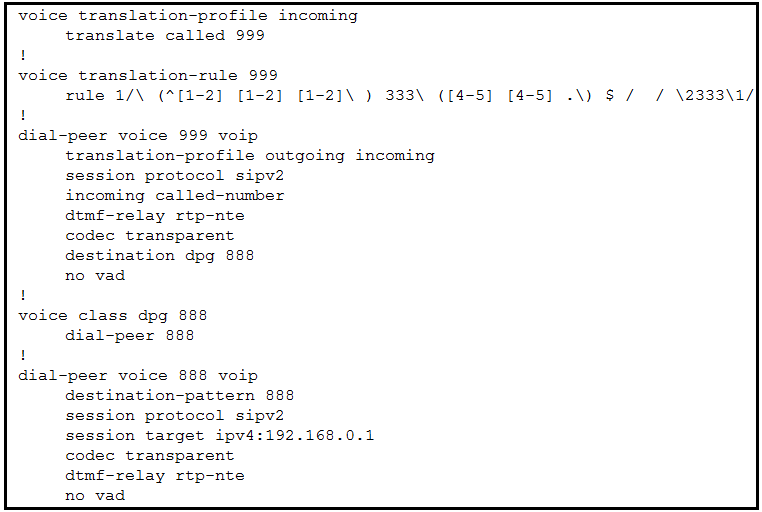

Refer to the exhibit.
Calls incoming from the provider are not working through newly set up Cisco Unified Border Element. Provider engineers get the 404 Not Found SIP message. Incoming calls are coming from the provider with called number ''222333444'' and Cisco Unified Communications Manager is expecting the called number to be delivered as ''444333222''. The administrator already verified that the IP address of the Cisco Unified CM is set up correctly and there are no dial peers configured other than those shown in the exhibit. Which action must the administrator take to fix the issue?
Change the destination-pattern on the outgoing dial peer to match ''444333222''.
Set up translation-profile on the incoming dial peer to match incoming traffic.
Create specific matching for ''222333444'' on the incoming dial peer.
Fix the voice translation-rule to match specifically number ''222333444'' and change it to ''444333222''.
Refer to the exhibit.
Users report that outbound PSTN calls from phones registered to Cisco Unified Communications Manager are not completing. The local service provider in North America has a requirement to receive calls in 10-digit format. The Cisco Unified CM sends the calls to the Cisco Unified Border Element router in a globalized E.164 format. There is an outbound dial peer on Cisco Unified Border Element configured to send the calls to the provider. The dial peer has a voice translation profile applied in the correct direction but an incorrect voice translation rule applied, which is shown in the exhibit. Which rule modified DNIS in the format that the provider is expecting?
rule 1 /^/+\([^1].*\)/ /011\1/
rule 1/^\+1\([2-9]..[2-9]......$\)/ /\1/
rule 1 /^\([2-9]..[2-9]......$\)/ /\1/
rule 1 /^\+1\([2-9]..[2-9]......$\)/ /\0/
